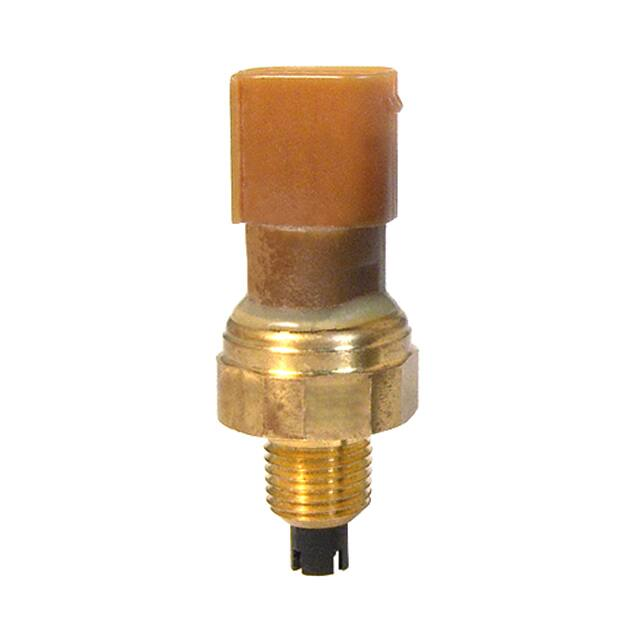

| 112CP SERIES Combined Pressure & Temperature Sensor Introduction The 112CP series combined pressure and temperature sensors delivers the benefit of both pressure and instream temperature sensing in a single, robust integrated package. Sensata Technologies has been a leading global supplier of pressure sensors and switches for over 50 years. Features • Pressure and temperature measurement in one package • Fast, in-stream temperature measurement • Precise superheat measurement Aplications • Air conditioning & refrigeration • Alternative energy management • Engine controls & monitors • Compressors & pumps SPECIFICATIONS Pressure Ranges 0 to 150 psi through 0 to 650 psi Pressure Accuracy ±0.8% F.S. (linearity, hysteresis, repeatability and calibration) Total Error Band ±1.7% F.S. (0°C to +85°C) Proof Pressure ≥ 2X Burst Pressure Temperature Accuracy ≥ 3X Resistance @ 25°C 10K or 100 ohms Operating Temperature -40°C to 135°C Suppy Voltage (VCC) 4.5 to 5.5 VDC Output Voltage 0.5 to 4.5 VDC Supply Current 0.5 to 4.5 VDC Output Current 8.0 mA Output Load Range 10K to 50K ohms Overvoltage Protection 16 VDC Reverse Voltage Protection -14 VDC Output Response Time 10mS ±1% (delta R/R) Page 1 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com Cycle Life ≥ 1M cycles Vibration 5g Drop (any Axis) 1m Electrical Connection 4 pin AMP Micro-Quadlok System™ connector Weight 1.5 oz max *Refer to chart for seal compatibility NOTE: Not suitable for use in conductive media Micro-Quadlok System is a trademark of Tyco Electronics Corporation DIMENSIONS 0.764 ± 0.004 [19.4 ] ± 0.10 0.104 ± 0.004 [2.64 ] ± 0.10 Ø Ø 2.56 MAX [65.02 ] 0.366 ± 0.004 [9.3 ] ± 0.10 POWER (V IN ) PRESSURE OUTPUT (V OUT ) 0.394 [10.0] 0.720 [18.29 ] M12 x 1.25 - 6g THREAD O-RING TEMPERATURE OUTPUT (R OUT ) 6˚ REF. GROUND (GND) STANDARD OFFERINGS Pressure Connections M12 x 1.25 - 6g plated steel 1/4" NPT male brass Pressure References Absolute Sealed gage Pressure Ranges 9.0 to 150 psia 26.8 to 500 psia Elastomer Seals See Seal Compatibility Guide Page 2 Copyright © 2018 Sensata Technologies, Inc. www.sensata.com SEAL COMPATIBILITY GUIDE Seal Material Media Compatibility Max Seal Temperature Range Nitrile (BUNA-N, NBR) Petroleum oils, lubricants, detergent solutions, helium -20°C to 100°C HNBR (Hydrogenated Nitrile) Petroleum oils, lubricants, detergent solutions -20°C to +135°C Ethylene Propylene Steam, soaps, polar solvents, brake fuilds, acetone, Skydrol™ -40°C to +135°C Fluorosilicone Chlorinated solvents, oils, fuels, air -40°C to +135°C Neoprene Refrigerants (freons/ammonia) -40°C to +120°C Fluorocarbon (Viton™) Fertilizers, freons, butanes, oils, trichlorethylene -35°C to +135°C ORDERING OPTIONS Part Number Pressure Pressure Connection Thermistor Internal Seal Thread O-Ring 112CP3-4 9 to 149 psia M12 x 1.25 - 6g plated steel 10k Ohm @ 25°C Neoprene Neoprene 112CP3-6 9 to 149 psia 1/4” NPT male brass 10k Ohm @ 25°C Nitrile — 112CP3-8 9 to 500 psia M12 x 1.25 - 6g plated steel 10k Ohm @ 25°C Neoprene Neoprene 112CP3-9 9 to 500 psia 1/4” NPT male brass 10k Ohm @ 25°C Nitrile — AGENCY & CERTIFICATIONS RoHS, REACH available Page 3 Sensata Technologies, Inc. (“Sensata”) data sheets are solely intended to assist designers (“Buyers”) who are developing systems that incorporate Sensata products (also referred to herein as “components”). Buyer understands and agrees that Buyer remains responsible for using its independent analysis, evaluation and judgment in designing Buyer’s systems and products. Sensata data sheets have been created using standard laboratory conditions and engineering practices. Sensata has not conducted any testing other than that specifically described in the published documentation for a particular data sheet. Sensata may make corrections, enhancements, improvements and other changes to its data sheets or components without notice. Buyers are authorized to use Sensata data sheets with the Sensata component(s) identified in each particular data sheet. HOWEVER, NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO ANY OTHER SENSATA INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY THIRD PARTY TECHNOLOGY OR INTELLECTUAL PROPERTY RIGHT, IS GRANTED HEREIN. SENSATA DATA SHEETS ARE PROVIDED “AS IS”. SENSATA MAKES NO WARRANTIES OR REPRESENTATIONS WITH REGARD TO THE DATA SHEETS OR USE OF THE DATA SHEETS, EXPRESS, IMPLIED OR STATUTORY, INCLUDING ACCURACY OR COMPLETENESS. SENSATA DISCLAIMS ANY WARRANTY OF TITLE AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, QUIET ENJOYMENT, QUIET POSSESSION, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL PROPERTY RIGHTS WITH REGARD TO SENSATA DATA SHEETS OR USE THEREOF. All products are sold subject to Sensata’s terms and conditions of sale supplied at www.sensata.com SENSATA ASSUMES NO LIABILITY FOR APPLICATIONS ASSISTANCE OR THE DESIGN OF BUYERS’ PRODUCTS. BUYER ACKNOWLEDGES AND AGREES THAT IT IS SOLELY RESPONSIBLE FOR COMPLIANCE WITH ALL LEGAL, REGULATORY AND SAFETY-RELATED REQUIREMENTS CONCERNING ITS PRODUCTS, AND ANY USE OF SENSATA COMPONENTS IN ITS APPLICATIONS, NOTWITHSTANDING ANY APPLICATIONS-RELATED INFORMATION OR SUPPORT THAT MAY BE PROVIDED BY SENSATA. Mailing Address: Sensata Technologies, Inc., 529 Pleasant Street, Attleboro, MA 02703, USA. Copyright © 2018 Sensata Technologies, Inc. Rev.03/27/18 CONTACT US Americas +1 (800) 350 2727 sensors@sensata.com switches@sensata.com Europe, Middle East & Africa +359 (2) 809 1826 pressure-info.eu@sensata.com Asia Pacific sales.isasia@list.sensata.com China +86 (21) 2306 1500 Japan +81 (45) 277 7117 Korea +82 (31) 601 2004 India +91 (80) 67920890 Rest of Asia +886 (2) 27602006 ext 2808 www.sensata.com
