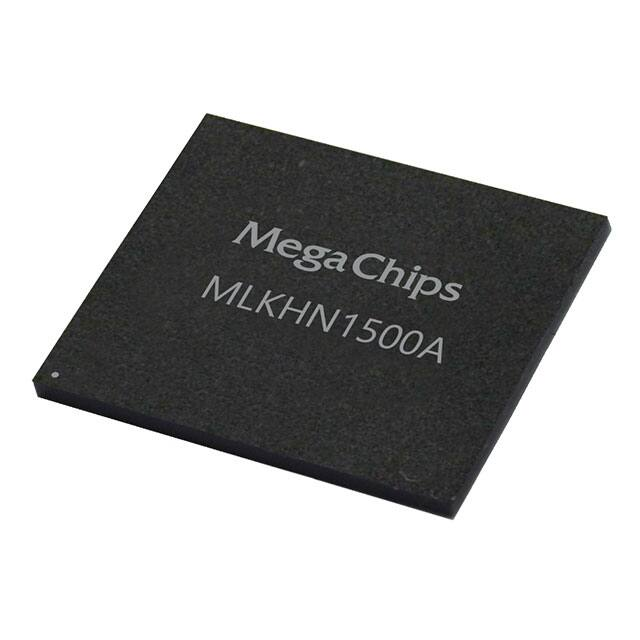

BlueChip PLC MLKHN1500 Single-Chip HD-PLC ■ GENERAL DESCRIPTION MLKHN1500 is the world’s first fully compliant IEEE 1901 HD-PLC Power line Communications (PLC) solution delivering bi-directional, IP based, high-speed communication over AC/DC power lines, COAX and twisted pair wiring, where wider bandwidths, robustness, long-range, support for larger number of nodes, and highly secure network is required. The MLKHN1500 combines the Physical (PHY), Media-Access-Control (MAC), 128Mb SDRAM, and a fully integrated Analog-Front-End (AFE) with high precision A/D, D/A data converters and programmable gain amplifiers (PGA) in a single compact package. The modem is based on an Orthogonal Frequency Division Multiplexing (OFDM), using advanced Forward-Error-Correction (FEC) techniques to allow the most robust data communication over poor channels, especially in environments with high implosive noise such as the harsh AC power lines. Security is provided by a 128-bit AES encryption engine meeting today’s Internet-of-Things (IoT) requirements. Evaluation boards, reference design, Software Development Kits (SDK) and Hardware Development Kits (HDK) are now available to help speed up your evaluation and development projects. ■ FEATURES • Channel Access: CSMA/CA • HD-PLC/Ethernet/RS485 bridge • Ethernet⇔PLC⇔Ethernet • RS485⇔PLC⇔RS485 • High noise immunity (0dB) • Supports IPv4/IPv6 ■ APPLICATIONS • Smart Grid/AMI • Smart Buildings/Homes • Video Entry Systems • Security/Surveillance • • • • • Low power: 0.57W (typ) Meets EN50561-1 EMC requirements Free Topology Plug-and-Play Operating Temp: -40°C to +85°C • • • • Outdoor Lighting HVAC Industrial Automation Solar Power ■ BLOCK DIAGRAM © 2019 MegaChips MegaChips reserves the right to make changes to this document and to any products without notice. Rev 1.4 BlueChip PLC MLKHN1500 Single-Chip HD-PLC ■ KEY SPECIFICATIONS PLC Method Frequency band 2-28MHz Modulation Wavelet OFDM PHY/MAC IEEE1901 full compliant PHY Rate 240Mbps Error correction Reed-Solomon, LDPC-CC ARM w/16 Kb Cache CPU GPIO,UART, MII/RMII Peripheral I/F Full access Standby mode Power Consumption 0.57W(Typ) 0.12W(Typ) Supply Voltage 1.2, 3.3V Operating Temp Range -40℃ to 85℃ Encryption AES 128bit Memory (SDRAM) 128Mb EMC EN50561-1 System Clock 125MHz Package LBGA 238pin, 18x15mm ■ SOFTWARE DEVELOPMENT KIT MegaChips offer various reference designs to qualified customers including schematics, layout, BoM and technical support. Contents: Master ROM tools • Sample firmware • External command sample program Evaluation tools • Tool Manager (1) Power Control tool (2) Channel Monitor tool • Net test tool ■ EVALUATION KIT MegaChips offers a comprehensive set of tools to help customers shorten their design time. Our evaluation kit includes all the hardware, software, and documentation to easily set-up and evaluate the performance of the system under various conditions and configurations. The included BlueChip PLC Network Manager helps customers to configure, monitor and manage complex networks. MegaChips Corporation MegaChips Technology America Corporation Corporate Headquarters Shin-Osaka Hankyu Building 1-1-1 Miyahara, Yodogawa-ku Osaka 532-0003, Japan Makuhari Office 1-3, Nakase, Mihama-ku, Chiba 261-8501, Japan Tokyo Office 17-6 Ichibancho, Chiyoda-ku, Tokyo 102-0082, Japan 2755 Orchard Pkwy. San Jose, CA 95134, USA Tel +81-6-6399-2884 Tel +81-43-296-7414 Tel: +81-3-3512-5083 Tel: +1 (408) 570-0555 E-mail: :mca_sales@megachips.com http://www.megachips.com/ www.megachips.co.jp © 2019 MegaChips MegaChips reserves the right to make changes to this document and to any products without notice. Rev 1.4
