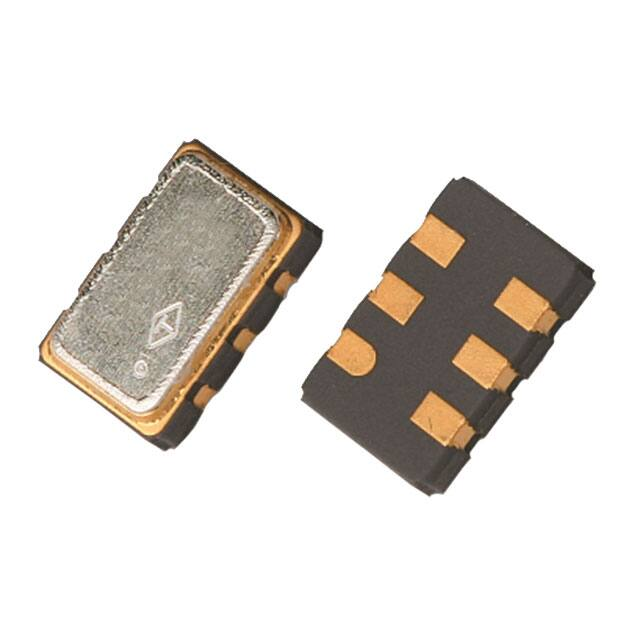

VW Type 5.0 x 3.2mm SMD Voltage Controlled Crystal Oscillator Actual Size FEATURE - Typical 5.0 x 3.2 x 1.25 mm 6 pads ceramic SMD package. - Tight symmetry (45 to 55%) available. - Operating temperature up to 105。C - Tri-state enable/disable TYPICAL APPLICATION - Set-top Box, HDTV - WiMAX/WLAN - xDSL/ VoIP, Cable modem RoHS Compliant DIMENSION (mm) SOLDER PAD LAYOUT (mm) [ BOTTOM VIEW ] [ TOP VIEW ] 2.54 ± 0.15 5.00 ± 0.15 #4 #4 #5 #6 #2 #3 #3 #2 #1 0.1µF 1.20 #1 0.90 ± 0.15 2.10 ± 0.15 2.54 0.64 ± 0.15 0.55 1.25 ± 0.10 [ SIDE VIEW ] Pin# 1 2 3 4 5 6 2.20 #5 3.20 ± 0.15 #6 Function Vcon Tri-State GND Output NC VDD 0.85 To ensure optimal oscillator performance, place a by-pass capacitor of 0.1μF as close to the part as possible between Vdd and GND pads. ELECTRICAL SPECIFICATION 3.3V Parameter Supply Voltage Variation (VDD) Frequency Range Standard Frequency Absolute Pulling Range (APR) Control Voltage Range Supply Current 1.5 MHz Fo < 20 MHz 20 MHz Fo < 50 MHz Fo 170 MHz 50 MHz Output Level Output High (Logic"1") Output Low (Logic"0") Transition Time: Rise/Fall Time+ 1.5 MHz Fo < 20 MHz 20 MHz Fo < 50 MHz 50 MHz Fo 170 MHz Start Time Tri-State (input to Pin 2) Enable (High voltage or floating) Disable (Low voltage or GND) Linearity Modulation Bandwidth (BW) 1.5 MHz Fo 170 MHz Input Impedance Period Jitter (Pk-Pk) RMS Phase Jitter (Integrated 12 kHz ~ 20 MHz) Phase Noise@38.4 MHz 100 Hz 1 kHz 10 kHz Aging (@ 25°C 1st year) Storage Temp. Range Min Max. VDD -5% VDD+5% 1.5 170 19.44, 38.4 ±50 0.3 _ 3.0 10 20 30 _ _ _ V MHz ppm V mA _ 2.97 _ 0.33 _ _ _ _ 5 4 3 2 2.31 _ _ _ 0.99 10 15 10000 _ _ _ _ 40 1 -100 -133 -140 _ Unit -55 V nSec mSec V % kHz kΩ pSec pSec dBc/Hz ±3 125 ppm °C Standard frequencies are frequencies which the crystal has been designed and does not imply a stock position. + Transition times are measured between 10% and 90% of VDD, with an output load of 15pF. FREQ. STABILITY vs. TEMP. RANGE Temp. (°C) ppm ±25 ±50 -10 ~ +60 -20 ~ +70 -40 ~ +85 -40 ~ +105 * ż: Available Χ:Conditional X: Not available * Inclusive of calibration @ 25 °C, operating temperature range, input voltage variation, load variation, aging (1st year), shock, and vibration Note: not all combination of options are available. Other specifications may be available upon request. Specifications subject to change without notice. www.taitien.com sales@taitien.com.tw Rev(12)11/2019 67
