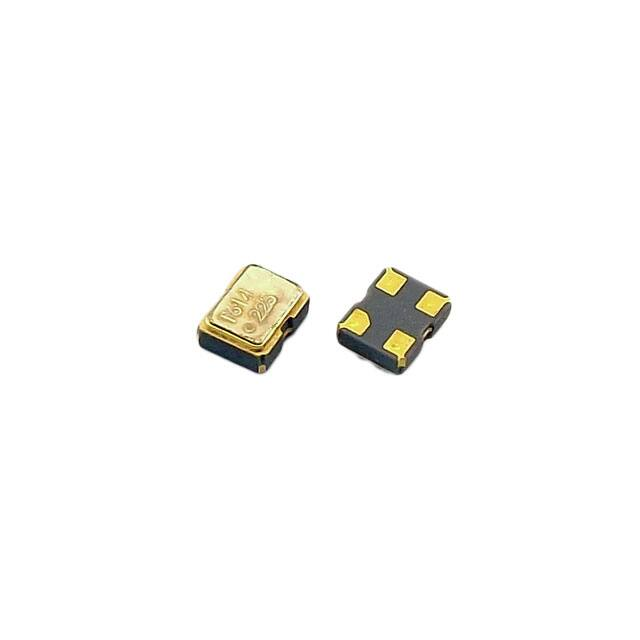

TSM21-H50CT18ST-33.333M

TSM21 RoHS Compliant ULTRA MINIATURE SMD HCMOS OSCILLATOR (2.0 x 1.6 x 0.9mm) FEATURES: • WIDE FREQUENCY RANGE • • LOW VOLTAGE / LOW CURRENT AEC-Q200 QUALIFIED OPTION ■ SPECIFICATION FREQUENCY RANGE FREQUENCY STABILITY OPERATING TEMPERATURE RANGE STORAGE TEMPERATURE RANGE SUPPLY VOLTAGE ±10% 1.000MHz ~ 60.000MHz 1.000MHz ~ 80.000MHz ±25ppm ~ ±100ppm STD: 0°C ~ 70°C, Option: -40°C ~ 85°C (See P/N guide for other options) -55°C ~ 125°C 1.8VDC 2.5VDC 3.3VDC 1MHz ≤ f ≤10MHz: 10MHz < f ≤ 20MHz: 20MHz < f ≤ 25MHz: 25MHz < f ≤ 50MHz: 50MHz < f ≤ 60MHz: SUPPLY CURRENT 0.4mA typ. 1.0mA typ. 1.0mA typ. 2.0mA typ. - LOGIC FAMILY LOAD LEVEL LOGIC ‘1’ (VOH) OUTPUT LEVEL LOGIC ‘0’ (VOL) SYMMETRY(DUTY CYCLE) RISE AND FALL TIME (Tr/Tf) START-UP TIME ENABLE (VIH) STAND-BY VOLTAGE DISABLE (VIL) ENABLE DELAY TIME DISABLE DELAY TIME AGING @ 25°C ± 3°C PHASE JITTER RMS (12kHz ~ 20MHz) 2.0mA typ. 2.0mA typ. 3.0mA typ. 3.0mA typ. 5.0mA typ. HCMOS 15pF 0.9 x VDD min. 0.1 x VDD max. STD: 40% / 60% @ 1/2VDD level, Option: 45% / 55% 3.0nS typ. 10nS max. 10mS max. 0.7 x VDD ≤ VIH ≤ VDD or N/C VIL ≤ 0.3 x VDD 10mS max. 10mS max. ±3.0ppm / 1st year max. 1.0pS max. ■ PACKAGE DIMENSIONS 4 2.0mA typ. 2.0mA typ. 2.0mA typ. 4.0mA typ. 4.0mA typ. ■ SOLDER PATTERN ■ REFLOW PROFILE 1.35 3 Soldering 0.75 1.05 Pre-heating 0.85 * 1 170 ±5°C 150 ±5°C 1.60 Marking Unit :mm
