W16282-2SG-P-318

W16282-2SG-P-318

  • 厂商:

    SWITCHCRAFT

  • 封装:

    -

  • 描述:

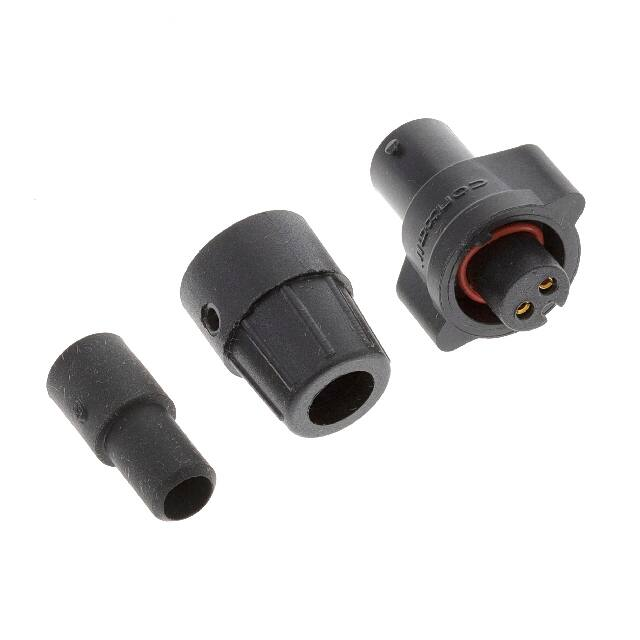

    CONN PLUG FMALE 2POS GOLD SOLDER

  • 数据手册
  • 价格&库存
W16282-2SG-P-318 数据手册
NOTES: 1. ALL PARTS TO BE BULK PACKED. 2. ALL DIMENSIONS ARE REFERENCE EXCEPT THOSE WITH A TOLERANCE ASS'Y P/N FOR CABLE O.D. W16282-XSG-P-311 .09-.14 [2.3-3.6] W16282-XSG-P-315 .15-.17 [3.8-4.3] W16282-XSG-P-318 .18-.20 [4.6-5.1] ASS'Y P/N CONTACT QTY. W16282-2SG-P-3XX W16282-3SG-P-3XX W16282-XSG-P-3XX 2 3 GROMMET SIZE NUMBER OF CONTACTS CUSTOMER PRINT .078±.015 2±0.4 .900 22.9 KEYWAY 2 .700 17.8 CABLE END HOUSING MAT'L: UV PBT BLACK COUPLING RING MAT'L: UV PBT, BLACK O-RING MAT'L: SILICONE, RED SPRING MAT'L: STAINLESS STEEL KEYWAY W16282-XSG-P-3XX 2 WIRING VIEW FACE VIEW 2 KEYWAY 1 1 W16282-2SG-P-3XX PART NUMBER: .648 16.5 1 3 GROMMET MAT'L: RUBBER, BLACK BACKSHELL MAT'L: UV PBT, BLACK W16282-2SG-P-3XX (2-3) #20 PIN CONTACTS, SOLDER MAT'L: GOLD PLATED COPPER ALLOY KEYWAY 1 3 1.553 39.4 FACE VIEW 2 WIRING VIEW W16282-3SG-P-3XX W16282-3SG-P-3XX .728 18.5 CUSTOMER APPROVAL THIS DOCUMENT CONTAINS CONFIDENTIAL INFORMATION PROPRIETARY TO CONXALL CORPORATION. ANY REPRODUCTION, DISCLOSURE, OR USE OF THIS DOCUMENT /INFORMATION IS EXPRESSLY PROHIBITED UNLESS AUTHORIZED IN WRITING BY CONXALL CORPORATION. SHOWN ASSEMBLED FOR CUSTOMER REFERENCE ONLY APPROVED BY: DATE: DIMENSIONS IN BRACKETS [ ] ARE METRIC RoHS COMPLIANT A MA 08-17-20 RELEASED PER PDR 18004-4 JGK 03/03/20 ADDED SHEET 2 FOR CABLE-END ASSEMBLY INSTRUCTIONS. JGK 09/06/19 REV. INIT. DATE ALL INFORMATION ILLUSTRATED IS THE PROPERTY OF "CONXALL CORPORATION." UNAUTHORIZED DUPLICATION OR DISTRIBUTION OF THIS DOCUMENT IS PROHIBITED. ALL UNITS ARE IN FEET, INCHES, FRACTION OF INCHES AND DECIMALS. UNLESS OTHERWISE SPECIFIED TOLERANCES: 3 PLACE DECIMALS ±.005 ANGLES ±1° FRACTIONS ±1/16 = CRITICAL CHARACTERISTIC FLAG PER SPEC. XXXX DRAWING CREATED FOR PDR #18004. DESCRIPTION ORIG. DRAWN BY: DATE: 9/06/19 JGK CHECKED BY: 601 E. WILDWOOD VILLA PARK, IL 60181 TITLE: APPROVED BY: SCALE SIZE SHEET NTS B 1 OF 1 FILE: W16282-XSG-P-3XX DIRECTORY: SLW CABLE-END ASSEMBLY (2-3) #20 SOCKET CONTACTS, SOLDER INSTA-CLICK™ MICRO-CON-X CUSTOMER: STANDARD PRODUCT PART NUMBER: W16282-XSG-P-3XX REV A
W16282-2SG-P-318 价格&库存

很抱歉,暂时无法提供与“W16282-2SG-P-318”相匹配的价格&库存,您可以联系我们找货

免费人工找货
W16282-2SG-P-318
  •  国内价格 香港价格
  • 1+152.729181+18.94599

库存:3
