FGN.2M.310.XLBT

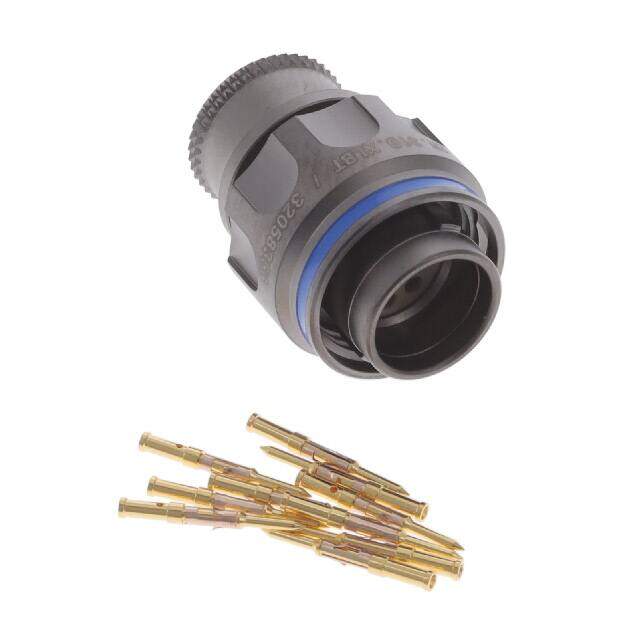

FGN.2M.310.XLBT www.lemo.com SUMMARY # Wires Low voltage 10 Image is for illustrative purpose only Series 2M Termination type Male crimp IP rating 68 AWG wire size 26.00 - 22.00 Cable Ø 6.50 - 13.00 mm Status active Matching parts PHN.2M.310.XLPT Download Request a quote Eplan Catalog TECHNICAL DETAILS Mechanics Shell Style/Model FG*: Straight plug with arctic grip and mold stop Keying 3 keys (beta=165, gamma=30, plug: male contacts, receptacle: female contacts) Housing Material Aluminium (nickel plated [SAE AMS QQ N 290], anthracite color) shell and nut, other pieces bronze/brass Weight 10.37 g Performance Configuration 2M.310 : 10 Low Voltage Insulator L: PEEK Rated Current 8 Amps Specifications Contact Type: Crimp Test voltage (kV rms) Contact-contact: 1.8 Test voltage (kV rms) Contact-shell: 1.2 Others Endurance (Shell): 3000 mating cycles Temp (min / max): -20°C / +200°C LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 1/3 Humidity (max): 21 days at 95% Gunfire vibration: 25 Hz - 2000 Hz, 3 axis (Apache helicopter) Vibration-Sine: 30 g, 3 axes, 12 hr [10 Hz - 2000 Hz] Vibration-Random: 37.8 g rms - 3 axes, 4 hr amb [50 Hz - 2000 Hz] Shock Resistance: 300 g [ 3 ms] Lighting strike EIA 364-75: 10K amps - 6 times Thermal shock: 5 cycles: -65°C to +150°C EMI Shielding EIA 364-66A: >= 80 dB (1 GHz), >=70 dB (3 GHz), >= 58 dB (6 GHz), >= 40 dB (10 GHz) Salt Spray Corrosion: max. 48 hr DRAWINGS Dimensions A B C D F Lr Ls M P X mm. 18.9 14 17.2 13 15.5 27.5 27.5 10.1 3.9 7.1 in. 0,74 0,55 0,68 0,51 0,61 1,08 1,08 0,40 0,15 0,28 RECOMMENDED BY LEMO Tools Crimp Tool: DPC.91.701.V Positionner: DCE.91.090.5MVC Extractor: DCF.93.090.4LT LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 2/3 Replacement contact: FGN.0M.561.ZZC LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications using LEMO components. 3/3
