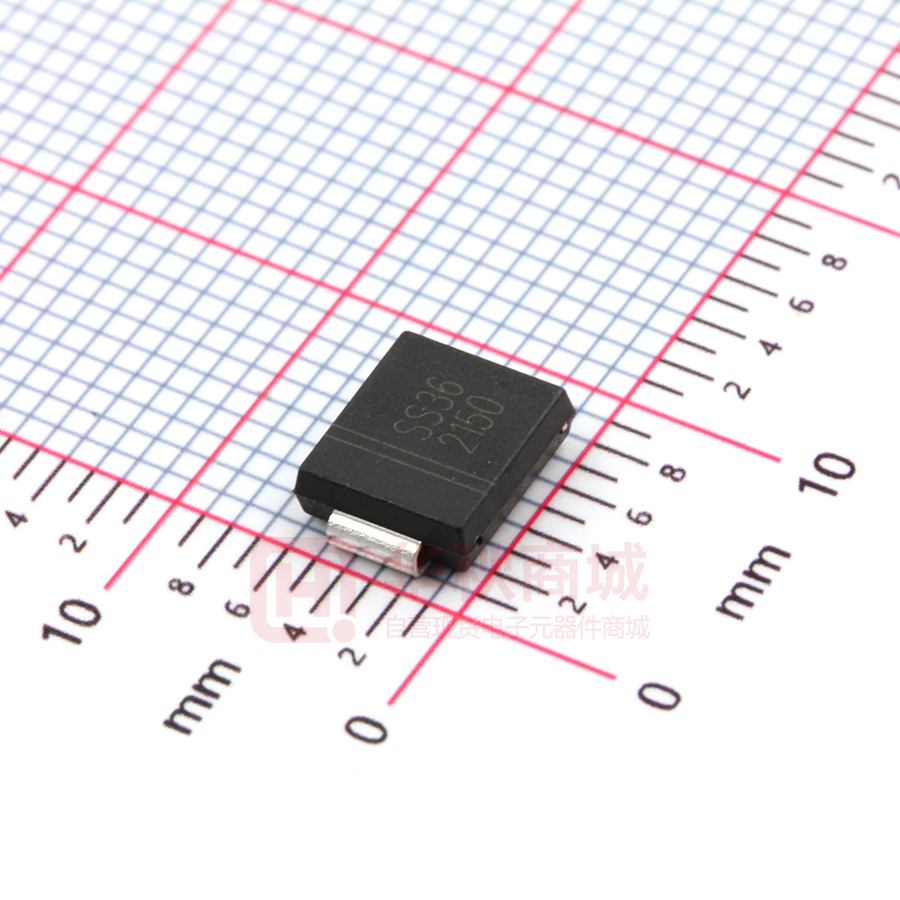

SS36C

山东晶导微电子有限公司 SS32C THRU SS320C Jingdao Microelectronics Surface Mount Schottky Barrier Rectifier Reverse Voltage - 20 to 200 V Forward Current - 3 A PINNING PIN FEATURES • Metal silicon junction, majority carrier conduction • For surface mounted applications • Low power loss, high efficiency • High forward surge current capability • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications DESCRIPTION 1 Cathode 2 Anode 2 1 Top View Marking Code: SS32 ~ SS320 Simplified outline SMC and symbol MECHANICAL DATA • Case: SMC • Terminals: Solderable per MIL-STD-750, Method 2026 • A pprox. Weight: 0.22g / 0.0077oz Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Single phase half-wave 60 Hz, resistive or inductive load, for capacitive load current derate by 20 %. Parameter Symbols SS32C SS34C SS36C SS38C SS310C SS312C SS315C SS320C Units Maximum Repetitive Peak Reverse Voltage V RRM 20 40 60 80 100 120 150 200 V Maximum RMS voltage V RMS 14 28 42 56 70 84 105 140 V Maximum DC Blocking Voltage V DC 20 40 60 80 100 120 150 200 V Maximum Average Forward Rectified Current I F(AV) 3.0 A Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) I FSM 80 A Max Instantaneous Forward Voltage at 3 A VF Maximum DC Reverse Current T a = 25°C T a =100°C IR 0.5 5 0.3 3 mA Typical Junction Capacitance（1） Cj 450 350 pF Typical Thermal Resistance （2） RθJA 50 °C/W Tj -55 ~ +150 °C T stg -55 ~ +150 °C at Rated DC Reverse Voltage Operating Junction Temperature Range Storage Temperature Range 0.55 0.70 0.85 0.95 V （1）Measured at 1 MHz and applied reverse voltage of 4 V D.C （2）P.C.B. mounted with 2.0" X 2.0" (5 X 5 cm) copper pad areas. 2017.04 SMC-S-SS32C~SS320C-3A200V Page 1 of 3 山东晶导微电子有限公司 SS32C THRU SS320C Jingdao Microelectronics Fig.2 Typical Reverse Characteristics 3.5 3.0 2.4 1.8 1.2 0.6 0.0 25 50 75 100 125 150 Instaneous Reverse Current ( μA) Average Forward Current (A) Fig.1 Forward Current Derating Curve 10 4 T J =100°C 10 3 T J =75°C 10 2 SS32C/SS36C T J =25°C 10 0 0 Case Temperature (°C) 60 80 100 Fig.4 Typical Junction Capacitance T J =25°C Junction Capacitance ( pF) 20 10 1.0 SS32C/SS34C SS36C/SS38C SS310C/SS312C SS315C/SS320C 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 200 100 20 SS32C~SS36C SS38C~SS320C 10 0.1 1 10 100 Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current Fig.6- Typical Transient Thermal Impedance 80 70 60 50 40 8.3 ms Single Half Sine Wave (JEDEC Method) 20 1 500 1.8 90 30 1000 Instaneous Forward Voltage (V) 10 100 Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) Peak Forward Surage Current (A) 40 20 Percent of Rated Peak Reverse Voltage（%） Fig.3 Typical Forward Characteristic 100 Number of Cycles at 60Hz 2017.04 SS38C~SS320C 10 1 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） www.sdjingdao.com Page 2 of 3 山东晶导微电子有限公司 SS32C THRU SS320C Jingdao Microelectronics PACKAGE OUTLINE SMC Plastic surface mounted package; 2 leads E A A1 A C b D L E1 VM A SMC mechanical data A E D E1 A1 C L b max 2.62 7.0 6.2 8.0 0.21 0.31 1.6 3.25 min 2.00 6.5 5.6 7.6 0.05 0.15 0.9 2.75 max 103 276 244 315 8.3 12 63 128 min 79 256 220 299 2.0 5.9 35 108 UNIT mm mil Marking The recommended mounting pad size 3.8 (150) 4.1 (160) 4.3 (170) 4.1 (160) mm Unit ： (mil) 2017.04 706305A0 Type number Marking code SS32C SS32 SS34C SS34 SS36C SS36 SS38C SS38 SS310C SS310 SS312C SS312 SS315C SS315 SS320C SS320 Page 3 of 3
