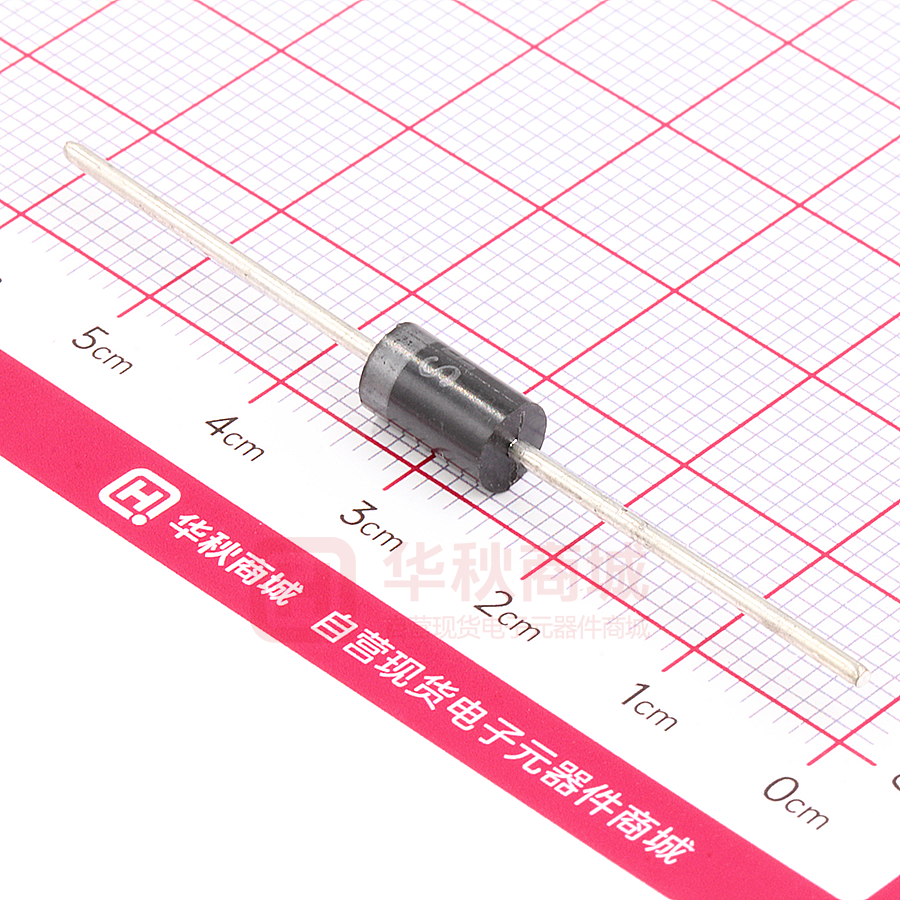

SR5100L-B

SR540L THRU SR5100L 5.0 AMP SCHOTTKY BARRIER RECTIFIERS VOLTAGE RANGE 40 to 100 Volts CURRENT 5.0 Amperes FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * Epitaxial construction DO-27 .220(5.6) .197(5.0) DIA. 1.0(25.4) MIN. MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed * Polarity: Color band denotes cathode end * Mounting position: Any .375(9.5) .285(7.2) .052(1.3) .048(1.2) DIA. * Weight: 1.10 grams 1.0(25.4) MIN. Dimensions in inches and (millimeters) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. TYPE NUMBER Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current SR5 40L SR5 6 0L SR5 1 00L UNITS 40 28 40 60 42 60 100 70 100 V V V See Fig. 1 Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Maximum Instantaneous Forward Voltage at 5.0A Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Ta=100C Typical Junction Capacitance (Note1) Typical Thermal Resistance R JA (Note 2) Operating Temperature Range TJ Storage Temperature Range TSTG A 5.0 120 0.55 0.46 200 0.70 0.85 20 0.67 50 0.70 0.85 15 570 250 20 -55 to10+125 -55 to +150 -55 to10+150 A V A mA pF C/W C C NOTES: 1. Measured at 1MHz and applied reverse voltage of 4.0V D.C. 2. Thermal Resistance Junction to Ambient Vertical PC Board Mounting 0.5"(12.7mm) Lead Length. REV 1.0 2017 JAN PAGE:1/2 3.0 2.5 2.0 1.5 1.0 0.5 RATING AND CHARACTERISTIC CURVES (SR540L THUR SR5100L) FIG.2-TYPICAL FORWARD CHARACTERISTICS 50 0L 10 L 60 R5 L-S 40 2.0 5 SR 3.0 1.0 0 0 20 40 60 80 100 120 140 160 180 200 AMBIENT TEMPERATURE,( C) PEAK FORWAARD SURGE CURRENT,(A) FIG.3-MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 10 3.0 SR 51 00 L 4.0 SR 54 SR 0L 56 0L 5.0 INSTANTANEOUS FORWARD CURRENT,(A) 6.0 5 SR AVERAGE FORWARD CURRENT,(A) FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE 1.0 Tj=25 C Pulse Width 300us 1% Duty Cycle 0.1 150 .01 120 .1 .3 .5 .7 .9 1.1 1.3 1.5 FORWARD VOLTAGE,(V) 90 8.3ms Single Half Tj=25 C Sine Wave 60 JEDEC method 30 FIG.5 - TYPICAL REVERSE CHARACTERISTICS 0 1 5 50 10 100 100 NUMBER OF CYCLES AT 60Hz REVERSE LEAKAGE CURRENT, (mA) FIG.4-TYPICAL JUNCTION CAPACITANCE JUNCTION CAPACITANCE,(pF) 1050 900 750 600 450 300 10 Tj=100 C 1.0 .1 Tj=25 C 150 0 .01 .05 .1 .5 1 REVERSE VOLTAGE,(V) 5 10 50 100 .01 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,(%) REV 1.0 2017 JAN PAGE:2/2
