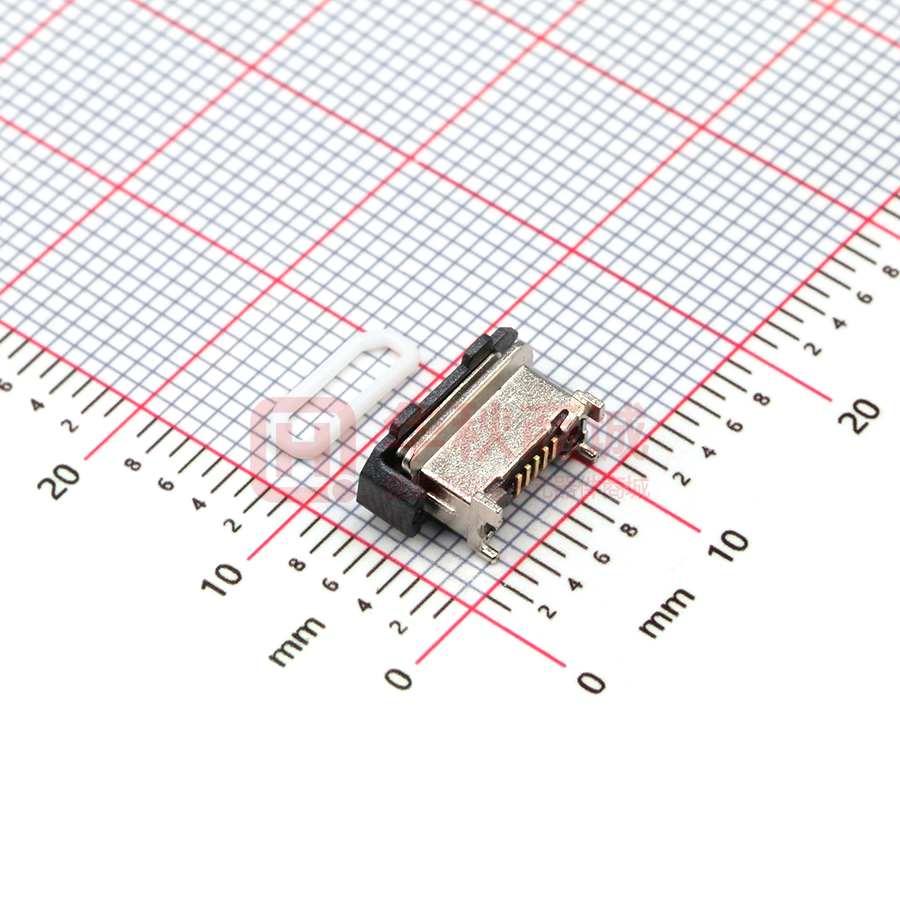

U-E-M8SS-W-1

XKB Connecitity XKB Connecitity 5.30 [0.209] 5.75 [0.226] H 5.20 [0.205] NOTES: 1.MATERIAL: HOUSING: THERMOPLASTIC HIGH-TEMP UL94V-0 BLACK COLOR. CONTACT:COPPER ALLOY SHELL: STAINLESS STEEL. 2.FINISH: CONTACT: SEE TABLE 1. CAP 3.APPLIED TO IR SOLDERING PROCESS. 4.SPECIFICATION: 4.1.ELECTRICAL CHARACTERISTICS CONTACT CURRENT RATING:Signal pin 1A,Power pin 1.8A VOLTAGE RATING: 30V AC rms. 7.90 [0.311] 9.00 [0.354] ASSEMBLY WITH CAP 6.90 [0.272] DIELECTRIC WTHSTANDING VOLTANGE: UNMATEP CONTACT 100V AC rms. 60MHZ FOR 1 MINUTE. INSULATION RESISTANCE:1000MQ MIN.100V DC 7.40 [0.291] 3.50 [0.138] 6.32 [0.249] 0.85 [0.034] 4.2.MECHANICAL: INSERTION FORCE:35N MAX. WITHDRAWAL FORCE:8N~25N. DURABILITY:10.000 CYCLES 4.90 [0.193] 1.69 [0.066] 1.80 [0.071] 1.15 [0.045] U-E-M8SS-W-1 0.60 [0.023] 2.85 [0.112] R0.2 4.40 [0.173] 3.20 [0.126] 0.40 [0.016] 1:G/F 2:5u" 3:10u" 4:15u" 5:30u" 7.60 [0.299] IP-X8 6.00 [0.236] 7.40 [0.291] 8.10 [0.319] 7.40 [0.291] 1.70 [0.067] 1.68 [0.066] 3.20 [0.126] 1.56 [0.061] 2.04 [0.080] 0.42 [0.017] 5-0.30 [0.012] 0.75 [0.030] 1.30 [0.051] 2.60 [0.102] 1.80 [0.071] 0.44 [0.017] 1.30 [0.051] No1 0.60 [0.023] No5 1.08 [0.042] 2.60 [0.102] 7.60 [0.299] 0.65 [0.026] RECOMMENDED PCB LAYOUT RECOMMEND PCB THICKNESS:0.80mm XKB Connecitity X X X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED ANGLAR L 4 4
