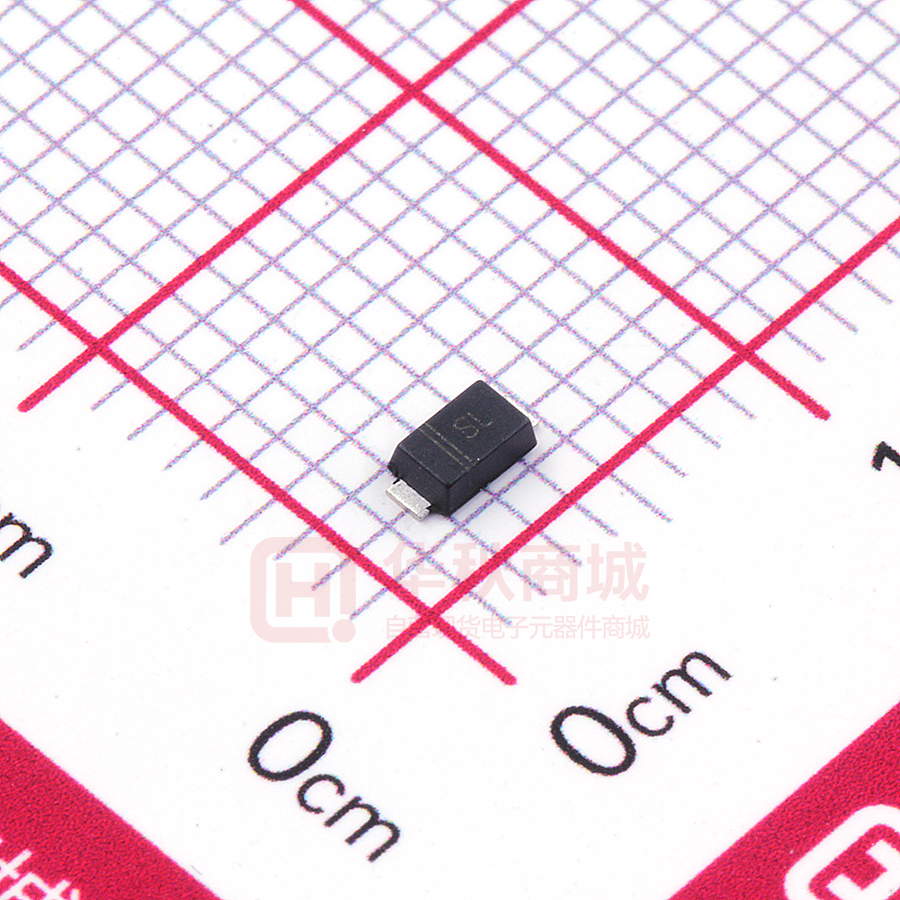

B5818W / B5819WSerise
Small Signal Schottky Barrier Diode
Features
Low reverse current and low forward voltage
High reliability
Small surface mounting type
Typical Applications
For general purpose applications
SOD-123
SOD323
Mechanical Data
Case: SOD-123,SOD-323
Molding compound, UL flammability classification
O
CR
MI
JS
rating 94V-0
Terminals: Tin plated leads, solderable per
MIL-STD-202, Method 208
Ordering Information
Package
Shipping
Marking Code
B5818W
SOD-123
3000pcs / Tape & Reel
SK
B5818WS
SOD-323
3000pcs / Tape & Reel
SK
B5819W
SOD-123
3000pcs / Tape & Reel
SL
B5819WS
SOD-323
3000pcs / Tape & Reel
SL
co
mi
Se
Part Number
nd
Maximum Ratings (@TA=25℃ unless otherwise specified)
Parameter
Symbol
VRMS
Maximum Average Forward Output Current
IF(AV)
Peak Forward Surge Current,8.3ms Single Half-sine-wave
IFSM
30
40
V
21
28
V
1
A
10
A
r
RMS Reverse Voltage
Units
to
VRRM
B5819W(S)
uc
Peak Repetitive Reverse Voltage
B5818W(S)
Thermal Characteristics
Parameter
Power Dissipation
Typical Thermal Resistance per leg
Operating Junction Temperature Range
Storage Temperature Range
Symbol
B5818W/B5819W
B5818WS/B5819WS
Units
PD
500
250
mW
R ΘJA*
200
400
°C /W
TJ
125
°C
TSTG
-55 to +150
°C
* Part mounted on FR-4 board with recommended pad layout
www.jsmsemi.com
第1/4页
B5818W / B5819WSerise
Small Signal Schottky Barrier Diode
Electrical Characteristics (@TA=25℃ unless otherwise specified)
Parameter
Forward Voltage
Symbol
VF *
Maximum Peak Reverse Current
IR**
Capacitance Between Terminals
CT
Test conditions
Min.
Typ.
Max.
-
-
0.55
IF=1A
B5818W(S)
IF=1A
B5819W(S)
0.60
IF=3A
B5818W(S)
0.875
IF=3A
B5819W(S)
VR= 30V
B5818W(S)
VR= 40V
B5819W(S)
VR=4V,f=1MHz
Units
V
-
-
0.90
-
-
1
mA
-
39
120
pF
*Pulse width ≤380 uS, Duty cycle < 2%
**pulse test ,tp≤5ms
O
CR
MI
JS
Ratings and Characteristic Curves (TA=25℃ unless otherwise noted)
nd
co
mi
Se
r
to
uc
www.jsmsemi.com
第2/4页
B5818W / B5819WSerise
Small Signal Schottky Barrier Diode
Package Outline Dimensions (unit: mm)
SOD-123
K
SOD-123
B
C
Dim
Min
Max
A
1.45
1.75
B
2.55
2.85
C
1.00
1.30
D
0.50
0.60
E
0.25
0.45
H
0.02
0.10
J
0.05
0.15
K
3.55
3.85
A
D
H
E
O
CR
MI
JS
J
co
mi
Se
SOD-323
K
C
Max
A
1.60
1.80
B
1.20
1.40
C
0.80
0.90
D
0.25
0.35
E
0.22
0.42
H
0.02
0.10
J
0.05
0.15
K
2.55
2.75
to
H
Min
r
D
Dim
nd
B
SOD-323
uc
A
E
J
www.jsmsemi.com
第3/4页
B5818W / B5819WSerise
Small Signal Schottky Barrier Diode
Mounting Pad Layout (unit: mm)
SOD-123
0.91
1.22
2.36
4.19
O
CR
MI
JS
SOD-323
nd
co
mi
2.85
0.83
Se
1.60
0.63
r
to
uc
www.jsmsemi.com
第4/4页
