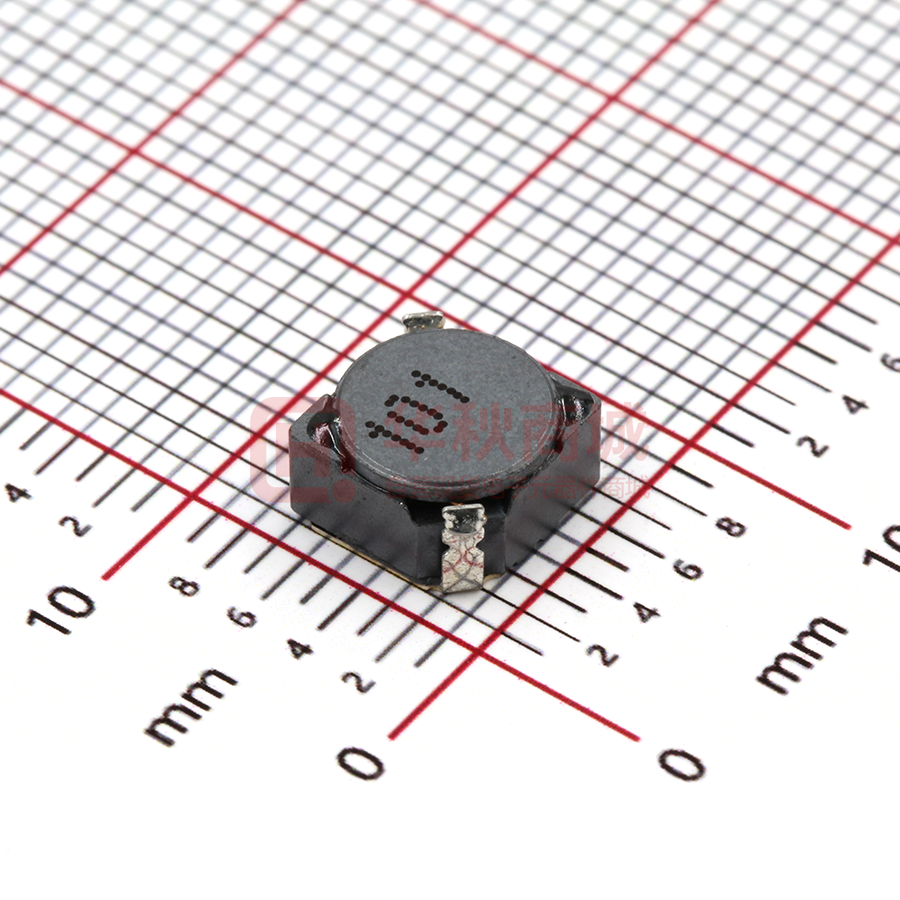

SWRH6D38S-101MT

Wire Wound SMD Power Inductors – SWRH-DS Series Operating Temperature: -40℃~+105℃ (Including self-heating) FEATURES  High saturation current, low DCR  Suitable for surface mounting equipment  Close magnetic circuit design reduce leakage APPLICATIONS  Power supply choke for small electrical equipments such as DVC, LCD display, notebook, communication equipment, OA equipment and so on. PRODUCT IDENTIFICATION SWRH 3D16 ① S -1R5 N T ③ ④ ⑤ ⑥ ② ① ② Type SWRH External Dimensions Wire Wound SMD Type Power Inductors (With Metallic Base) 3D16~6D38 ④ ③ Configuration S ⑤ Nominal Inductance Example Nominal Value 1R5 1.5μH 100 10μH 101 100μH S Type Base Inductance Tolerance M ±20% N ±30% ⑥ Packing T Tape Carrier Package SHAPE AND DIMENSIONS Series A max. B max. C max. D typ. I typ. J typ. H typ. SWRH3D16S 4.2 4.2 1.8 5.5 1.7 1.1 4.5 SWRH3D18S SWRH3D28S SWRH4D18S SWRH4D28S SWRH5D18S SWRH5D28S SWRH6D28S SWRH6D38S 4.2 4.2 5.0 5.0 6.0 6.0 7.0 7.0 4.2 4.2 5.0 5.0 6.0 6.0 7.0 7.0 2.1 3.2 2.0 3.0 2.0 3.0 3.0 4.0 5.5 5.5 6.9 6.9 8.2 8.2 9.5 9.5 1.7 1.7 1.9 1.9 2.1 2.1 2.6 2.6 1.1 1.1 1.5 1.5 2.0 2.0 2.0 2.0 4.5 4.5 5.3 5.3 6.3 6.3 7.3 7.3 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWRH3D16S TYPE Part Number Units Symbol SWRH3D16S-1R5NT SWRH3D16S-2R2NT SWRH3D16S-3R3NT SWRH3D16S-4R7NT SWRH3D16S-6R8NT SWRH3D16S-8R2NT SWRH3D16S-100MT SWRH3D16S-150MT SWRH3D16S-220MT SWRH3D16S-330MT Inductance μH L 1.5±30% 2.2±30% 3.3±30% 4.7±30% 6.8±30% 8.2±30% 10±20% 15±20% 22±20% 33±20% L Test Condition Hz, V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.052 0.072 0.085 0.105 0.170 0.190 0.210 0.295 0.430 0.660 Max. Rated Current A Ir 1.35 1.20 1.10 0.90 0.73 0.66 0.55 0.45 0.40 0.32 Inductance μH L 3.3±30% 4.7±30% 6.8±30% 8.2±30% 10±20% 15±20% 22±20% 33±20% 47±20% L Test Condition Hz, V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.088 0.107 0.150 0.185 0.205 0.301 0.424 0.640 0.964 Max. Rated Current A Ir 1.45 1.35 1.10 1.00 0.90 0.75 0.60 0.45 0.35 Inductance μH L 3.3±30% 4.7±30% 6.8±30% 8.2±30% 10±20% 15±20% 22±20% 33±20% 47±20% L Test Condition Hz, V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.072 0.088 0.119 0.132 0.145 0.213 0.335 0.481 0.599 Max. Rated Current A Ir 2.00 1.65 1.24 1.15 1.05 0.90 0.76 0.58 0.48 Inductance μH L 1.0±30% 2.2±30% 2.7±30% 3.3±30% 3.9±30% 4.7±30% L Test Condition Hz, V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V Max. DC Resistance Ω DCR 0.045 0.075 0.105 0.110 0.155 0.162 Max. Rated Current A Ir 1.72 1.32 1.28 1.04 0.88 0.84 SWRH3D18S TYPE Part Number Units Symbol SWRH3D18S-3R3NT SWRH3D18S-4R7NT SWRH3D18S-6R8NT SWRH3D18S-8R2NT SWRH3D18S-100MT SWRH3D18S-150MT SWRH3D18S-220MT SWRH3D18S-330MT SWRH3D18S-470MT SWRH3D28S TYPE Part Number Units Symbol SWRH3D28S-3R3NT SWRH3D28S-4R7NT SWRH3D28S-6R8NT SWRH3D28S-8R2NT SWRH3D28S-100MT SWRH3D28S-150MT SWRH3D28S-220MT SWRH3D28S-330MT SWRH3D28S-470MT SWRH4D18S TYPE Part Number Units Symbol SWRH4D18S-1R0NT SWRH4D18S-2R2NT SWRH4D18S-2R7NT SWRH4D18S-3R3NT SWRH4D18S-3R9NT SWRH4D18S-4R7NT Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWRH4D18S TYPE Part Number Units Symbol SWRH4D18S-5R6NT SWRH4D18S-6R8NT SWRH4D18S-8R2NT SWRH4D18S-100MT SWRH4D18S-120MT SWRH4D18S-150MT SWRH4D18S-180MT SWRH4D18S-220MT SWRH4D18S-270MT SWRH4D18S-330MT SWRH4D18S-390MT SWRH4D18S-470MT SWRH4D18S-560MT SWRH4D18S-680MT SWRH4D18S-820MT SWRH4D18S-101MT SWRH4D18S-121MT SWRH4D18S-151MT Inductance μH L 5.6±30% 6.8±30% 8.2±30% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 39±20% 47±20% 56±20% 68±20% 82±20% 100±20% 120±20% 150±20% L Test Condition Hz, V 100k, 0.3V 100k, 0.3V 100k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.170 0.190 0.195 0.200 0.210 0.240 0.338 0.397 0.441 0.694 0.709 0.922 1.080 1.300 1.560 1.730 2.390 2.670 Max. Rated Current A Ir 0.80 0.76 0.68 0.61 0.56 0.50 0.48 0.41 0.35 0.32 0.30 0.28 0.26 0.24 0.22 0.20 0.18 0.15 Part Number Units Symbol Inductance μH L L Test Condition Hz, V - Max. DC Resistance Ω DCR Max. Rated Current A Ir SWRH4D28S-1R0NT 1.0±30% 100k, 0.3V 0.022 2.60 SWRH4D28S-1R2NT 1.2±30% 100k, 0.3V 0.024 2.56 SWRH4D28S-2R2NT 2.2±30% 100k, 0.3V 0.031 2.04 SWRH4D28S-3R3NT 3.3±30% 100k, 0.3V 0.049 1.57 SWRH4D28S-4R7NT 4.7±30% 100k, 0.3V 0.072 1.32 SWRH4D28S-5R6NT 5.6±30% 100k, 0.3V 0.101 1.17 SWRH4D28S-6R8NT 6.8±30% 100k, 0.3V 0.108 1.12 SWRH4D28S-8R2NT 8.2±30% 100k, 0.3V 0.118 1.04 SWRH4D28S-100MT 10±20% 1k, 0.3V 0.128 1.00 SWRH4D28S-120MT 12±20% 1k, 0.3V 0.132 0.84 SWRH4D28S-150MT 15±20% 1k, 0.3V 0.149 0.76 SWRH4D28S-180MT 18±20% 1k, 0.3V 0.165 0.72 SWRH4D28S-220MT 22±20% 1k, 0.3V 0.235 0.70 SWRH4D28S-330MT 33±20% 1k, 0.3V 0.331 0.56 SWRH4D28S-390MT 39±20% 1k, 0.3V 0.384 0.50 SWRH4D28S-470MT 47±20% 1k, 0.3V 0.587 0.48 SWRH4D28S-560MT 56±20% 1k, 0.3V 0.624 0.41 SWRH4D28S-680MT 68±20% 1k, 0.3V 0.699 0.35 SWRH4D28S-820MT 82±20% 1k, 0.3V 0.915 0.32 SWRH4D28S-101MT 100±20% 1k, 0.3V 1.020 0.29 SWRH4D28S-121MT 120±20% 1k, 0.3V 1.270 0.27 SWRH4D28S-151MT 150±20% 1k, 0.3V 1.350 0.24 SWRH4D28S TYPE Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWRH5D18S TYPE Part Number Units Symbol Inductance μH L L Test Condition Hz, V - Max. DC Resistance Ω DCR Max. Rated Current A Ir SWRH5D18S-3R3NT 3.3±30% 100k, 0.3V 0.053 2.00 SWRH5D18S-4R7NT 4.7±30% 100k, 0.3V 0.060 1.90 SWRH5D18S-5R6NT 5.6±30% 100k, 0.3V 0.076 1.60 SWRH5D18S-6R8NT 6.8±30% 100k, 0.3V 0.105 1.40 SWRH5D18S-8R2NT 8.2±30% 100k, 0.3V 0.117 1.30 SWRH5D18S-100MT 10±20% 1k, 0.3V 0.124 1.20 SWRH5D18S-120MT 12±20% 1k, 0.3V 0.153 1.10 SWRH5D18S-180MT 18±20% 1k, 0.3V 0.210 0.85 SWRH5D18S-220MT 22±20% 1k, 0.3V 0.290 0.80 SWRH5D18S-270MT 27±20% 1k, 0.3V 0.330 0.75 SWRH5D18S-330MT 33±20% 1k, 0.3V 0.386 0.65 SWRH5D18S-390MT 39±20% 1k, 0.3V 0.520 0.57 SWRH5D18S-470MT 47±20% 1k, 0.3V 0.595 0.54 SWRH5D18S-560MT 56±20% 1k, 0.3V 0.665 0.50 SWRH5D18S-680MT 68±20% 1k, 0.3V 0.840 0.43 SWRH5D18S-820MT 82±20% 1k, 0.3V 0.978 0.41 SWRH5D18S-101MT 100±20% 1k, 0.3V 1.200 0.36 SWRH5D18S-121MT 120±20% 1k, 0.3V 1.500 0.33 SWRH5D18S-151MT 150±20% 1k, 0.3V 1.710 0.31 Inductance μH L 2.2±30% 3.3±30% 4.7±30% 6.8±30% 8.2±30% 10±20% 12±20% 18±20% 22±20% 33±20% 47±20% 56±20% 68±20% 82±20% 100±20% 120±20% 150±20% 180±20% 220±20% 270±20% 330±20% L Test Condition Hz, V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.017 0.029 0.039 0.048 0.057 0.065 0.076 0.110 0.122 0.189 0.250 0.305 0.355 0.463 0.520 0.560 0.680 0.930 1.150 1.560 1.980 Max. Rated Current A Ir 2.60 2.40 2.10 1.85 1.58 1.30 1.20 1.00 0.90 0.75 0.62 0.58 0.52 0.46 0.42 0.40 0.35 0.32 0.30 0.27 0.25 SWRH5D28S TYPE Part Number Units Symbol SWRH5D28S-2R2NT SWRH5D28S-3R3NT SWRH5D28S-4R7NT SWRH5D28S-6R8NT SWRH5D28S-8R2NT SWRH5D28S-100MT SWRH5D28S-120MT SWRH5D28S-180MT SWRH5D28S-220MT SWRH5D28S-330MT SWRH5D28S-470MT SWRH5D28S-560MT SWRH5D28S-680MT SWRH5D28S-820MT SWRH5D28S-101MT SWRH5D28S-121MT SWRH5D28S-151MT SWRH5D28S-181MT SWRH5D28S-221MT SWRH5D28S-271MT SWRH5D28S-331MT Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWRH6D28S TYPE Part Number Units Symbol Inductance μH L L Test Condition Hz, V - Max. DC Resistance Ω DCR Max. Rated Current A Ir SWRH6D28S-3R3NT 3.3±30% 100k, 0.3V 0.026 2.80 SWRH6D28S-4R7NT 4.7±30% 100k, 0.3V 0.031 2.40 SWRH6D28S-6R8NT 6.8±30% 100k, 0.3V 0.042 2.20 SWRH6D28S-8R2NT 8.2±30% 100k, 0.3V 0.055 1.95 SWRH6D28S-100MT 10±20% 1k, 0.3V 0.065 1.70 SWRH6D28S-150MT 15±20% 1k, 0.3V 0.084 1.40 SWRH6D28S-180MT 18±20% 1k, 0.3V 0.095 1.32 SWRH6D28S-220MT 22±20% 1k, 0.3V 0.128 1.20 SWRH6D28S-330MT 33±20% 1k, 0.3V 0.165 0.97 SWRH6D28S-470MT 47±20% 1k, 0.3V 0.238 0.80 SWRH6D28S-560MT 56±20% 1k, 0.3V 0.277 0.73 SWRH6D28S-680MT 68±20% 1k, 0.3V 0.304 0.65 SWRH6D28S-820MT 82±20% 1k, 0.3V 0.390 0.60 SWRH6D28S-101MT 100±20% 1k, 0.3V 0.535 0.54 SWRH6D28S-121MT 120±20% 1k, 0.3V 0.750 0.51 SWRH6D28S-151MT 150±20% 1k, 0.3V 0.950 0.47 SWRH6D28S-181MT 180±20% 1k, 0.3V 1.200 0.41 SWRH6D28S-221MT 220±20% 1k, 0.3V 1.500 0.37 SWRH6D28S-271MT 270±20% 1k, 0.3V 1.700 0.33 SWRH6D28S-331MT 330±20% 1k, 0.3V 2.150 0.28 SWRH6D28S-391MT 390±20% 1k, 0.3V 2.750 0.23 SWRH6D28S-471MT 470±20% 1k, 0.3V 3.000 0.21 SWRH6D28S-681MT 680±20% 1k, 0.3V 5.150 0.20 SWRH6D28S-102MT 1000±20% 1k, 0.3V 8.970 0.14 Part Number Units Symbol Inductance μH L Max. DC Resistance Ω DCR Max. Rated Current A Ir SWRH6D38S-1R5NT 1.5±30% L Test Condition Hz, V 100k, 0.3V 0.015 5.20 SWRH6D38S-2R2NT SWRH6D38S-3R3NT SWRH6D38S-4R7NT SWRH6D38S-6R8NT SWRH6D38S-8R2NT SWRH6D38S-100MT SWRH6D38S-120MT SWRH6D38S-150MT SWRH6D38S-180MT SWRH6D38S-220MT SWRH6D38S-270MT SWRH6D38S-330MT SWRH6D38S-390MT SWRH6D38S-470MT SWRH6D38S-560MT SWRH6D38S-680MT 2.2±30% 3.3±30% 4.7±30% 6.8±30% 8.2±30% 10±20% 12±20% 15±20% 18±20% 22±20% 27±20% 33±20% 39±20% 47±20% 56±20% 68±20% 100k, 0.3V 0.018 0.020 0.025 0.029 0.034 0.038 0.053 0.057 0.092 0.096 0.109 0.124 0.138 0.155 0.202 0.234 4.50 3.50 2.80 2.40 2.20 2.00 1.70 1.60 1.50 1.30 1.20 1.10 1.00 0.95 0.85 0.75 SWRH6D38S TYPE Sunlord 100k, 0.3V 100k, 0.3V 100k, 0.3V 100k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SWRH6D38S TYPE Part Number Units Symbol SWRH6D38S-820MT SWRH6D38S-101MT SWRH6D38S-121MT Inductance μH L 82±20% 100±20% 120±20% L Test Condition Hz, V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.324 0.358 0.470 Max. Rated Current A Ir 0.70 0.65 0.59 Inductance μH L 150±20% 180±20% 220±20% 270±20% 330±20% 390±20% 470±20% 560±20% 680±20% 820±20% 1000±20% L Test Condition Hz, V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V 1k, 0.3V Max. DC Resistance Ω DCR 0.580 0.690 0.890 1.290 1.700 1.750 2.200 2.850 3.200 4.050 5.700 Max. Rated Current A Ir 0.54 0.49 0.43 0.40 0.37 0.34 0.32 0.29 0.25 0.22 0.20 SWRH6D38S TYPE Part Number Units Symbol SWRH6D38S-151MT SWRH6D38S-181MT SWRH6D38S-221MT SWRH6D38S-271MT SWRH6D38S-331MT SWRH6D38S-391MT SWRH6D38S-471MT SWRH6D38S-561MT SWRH6D38S-681MT SWRH6D38S-821MT SWRH6D38S-102MT Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
