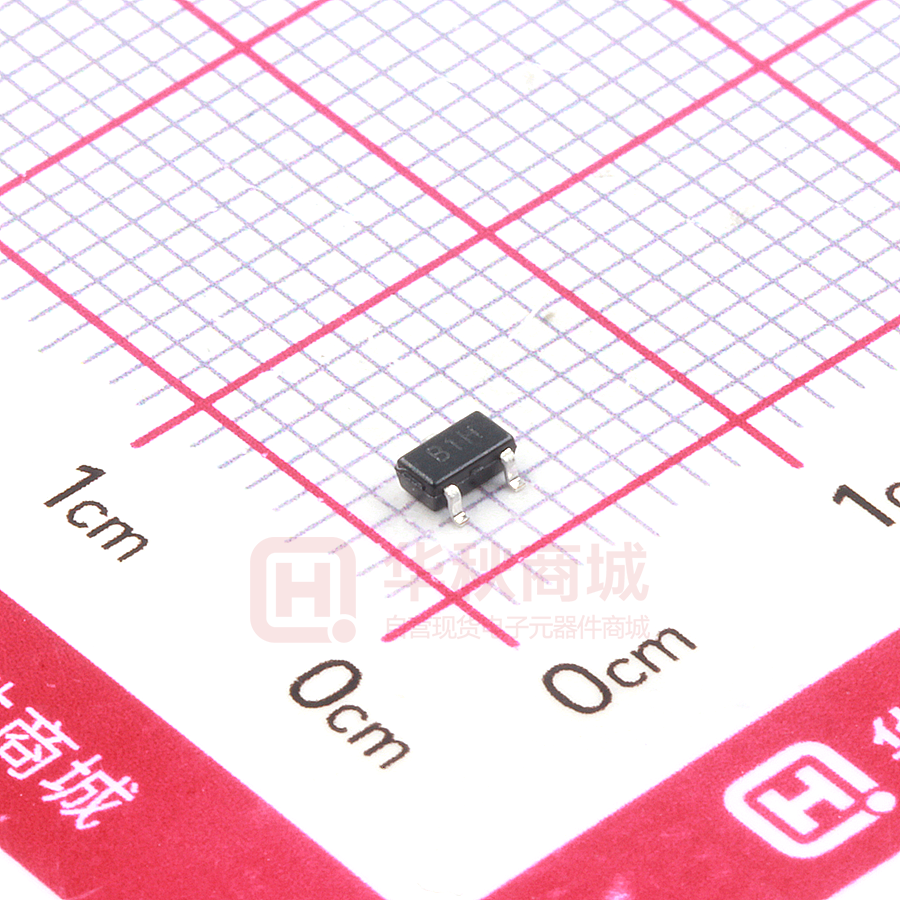

BRCS3401MC

BRCS3401MC Rev. B Dec.-2018 描述 / DATA SHEET Descriptions SOT23-3 塑封封装 P 道 MOS 场效应管。P- CHANNEL MOSFET in a SOT23-3 Plastic Package. 特征 / Features VDS (V) = -30V ID = -4.2 A (VGS = -10V) RDS(ON) < 60mΩ (VGS = -10V) RDS(ON) < 65mΩ (VGS = -4.5V) RDS(ON) < 120mΩ (VGS = -2.5V) 无卤产品。Halogen free product. 用途 / Applications 适用于作负载开关或脉宽调制应用。 This device is suitable for use as a load switch or in PWM applications. 内部等效电路 引脚排列 / Equivalent Circuit / Pinning 3 1 2 PIN1：G 印章代码 PIN 2：S PIN 3：D / Marking Marking http://www.fsbrec.com B1H 1/8 BRCS3401MC Rev. B Dec.-2018 极限参数 / DATA SHEET Absolute Maximum Ratings(Ta=25℃) 参数 Parameter Drain-Source Voltage 符号 Symbol VDS 数值 Rating -30 单位 Unit V Drain Current – Continuous ID -4.2 A Drain Current- Continuous A ID(Ta=70℃) -3.5 A IDM -30 A VGS ±12 V PD 1.4 W PD(Ta=70℃) 1.0 W TJ, TSTG -55 to 150 ℃ RθJA 125 ℃/W RθJL 60 ℃/W Pulsed Drain Current B Gate-Source Voltage Total Power Dissipation A Total Power Dissipation A Operating and Storage Junction Temperature Range Maximum Junction-to-Ambient A Maximum Junction-to-Lead 电性能参数 C / Electrical Characteristics(Ta=25℃) 参数 Parameter 符号 Symbol Drain–Source Breakdown Voltage BVDSS 测试条件 最小值 典型值 Test Conditions Min Typ VGS=0V ID=-250μA -30 最大值 Max V -1 μA -5 μA ±0.1 μA VDS=-24V VGS=0V Zero Gate Voltage Drain Current IDSS VDS=-24V TJ=55℃ VGS=0V Gate–Body Leakage. IGSS VGS=±12V VDS=0V On–State Drain Current ID(on) VGS=-4.5V VDS=-5V -25 Gate Threshold Voltage VGS(th) VDS=VGS ID=-250μA -0.7 RDS(on)(1) VGS=-10V ID=-4.2A RDS(on)(2) VGS=-10V TJ=125℃ ID=-4.2A RDS(on)(3) VGS=-4.5V ID=-4A 60 65 RDS(on)(4) VGS=-2.5V ID=-1A 75 120 Static Drain–Source On–Resistance Forward Transconductance gFS VDS=-5V ID=-5A Drain–Source Diode Forward Voltage VSD VGS=0V IS=-1A http://www.fsbrec.com 单位 Unit A -1 -1.3 52 60 75 4 mΩ 8 -0.75 V S -1.0 2/8 V BRCS3401MC Rev. B Dec.-2018 电性能参数 DATA SHEET / Electrical Characteristics(Ta=25℃) 参数 Parameter Input Capacitance 符号 Symbol Ciss Output Capacitance Coss Reverse Transfer Capacitance Crss Gate resistance Rg Total Gate Charge Qg Gate Source Charge Qgs Gate Drain Charge Qgd Turn–On Delay Time td(on) Turn–On Rise Time tr Turn–Off Delay Time td(off) Turn–Off Fall Time Body Diode Reverse Recovery Time Body Diode Reverse Recovery Charge 测试条件 Test Conditions VDS=-15V f=1MHz VGS=0V f=1MHz VGS=-4.5V ID=-4A VGS=0V 最小值 典型值 Min Typ 957 最大值 Max 单位 Unit pF 115 77 VDS=0V, VDS=-15V 6 Ω 9.4 nC 2 3 6.3 VGS=-10V VDS=-15V RL=3.6Ω RGEN=6Ω tf 3.2 ns 38.2 12 trr IF=-4A, dI/dt=100A/μs 20.2 ns Qrr IF=-4A, dI/dt=100A/μs 11.2 nC A: The value of R θJA is measured with the device mounted on 1in 2 FR-4 board with 2oz. Copper, in a still air environment with T A =25°C. The value in any given application depends on the user's specific board design. The current rating is based on the t ≤ 10s thermal resistance rating. B: Repetitive rating, pulse width limited by junction temperature. C. The R θJA is the sum of the thermal impedence from junction to lead R θJL and lead to ambient. D. The static characteristics in Figures 1 to 6,12,14 are obtained using 80 μs pulses, duty cycle 0.5% max. E. These tests are performed with the device mounted on 1 in 2 FR-4 board with 2oz. Copper, in a still air environment with T A=25°C. The SOA curve provides a single pulse rating. http://www.fsbrec.com 3/8 BRCS3401MC Rev. B Dec.-2018 电参数曲线图 DATA SHEET / Electrical Characteristic Curve http://www.fsbrec.com 4/8 BRCS3401MC Rev. B Dec.-2018 电参数曲线图 DATA SHEET / Electrical Characteristic Curve http://www.fsbrec.com 5/8 BRCS3401MC Rev. B Dec.-2018 外形尺寸图 DATA SHEET / Package Dimensions http://www.fsbrec.com 6/8 BRCS3401MC Rev. B Dec.-2018 印章说明 / DATA SHEET Marking Instructions B1H 说明： B1： 为型号代码 H： 为公司代码 Note: B1: Product Type Code. H: Company Code. http://www.fsbrec.com 7/8 BRCS3401MC Rev. B Dec.-2018 DATA SHEET 回流焊温度曲线图(无铅) / Temperature Profile for IR Reflow Soldering(Pb-Free) 说明： Note: 1、预热温度 150～180℃，时间 60～90sec; 1.Preheating:150~180℃, Time:60~90sec. 2、峰值温度 245±5℃，时间持续为 5±0.5sec; 2.Peak Temp.:245±5℃, Duration:5±0.5sec. 3、焊接制程冷却速度为 2～10℃/sec. 3. Cooling Speed: 2~10℃/sec. 耐焊接热试验条件 / Resistance to Soldering Heat Test Conditions 温度：260±5℃ 包装规格 Time:10±1 sec / REEL Package Type 封装形式 使用说明 Temp.:260±5℃ / Packaging SPEC. 卷盘包装 SOT-23-3 时间：10±1 sec. Units 包装数量 Dimension 包装尺寸 3 (unit：mm ) Units/Reel 只/卷盘 Reels/Inner Box 卷盘/盒 Units/Inner Box 只/盒 Inner Boxes/Outer Box 盒/箱 Units/Outer Box 只/箱 Reel Inner Box 盒 Outer Box 箱 3,000 10 30,000 4 120,000 7〞×8 210×205×205 445×230×435 / Notices http://www.fsbrec.com 8/8
