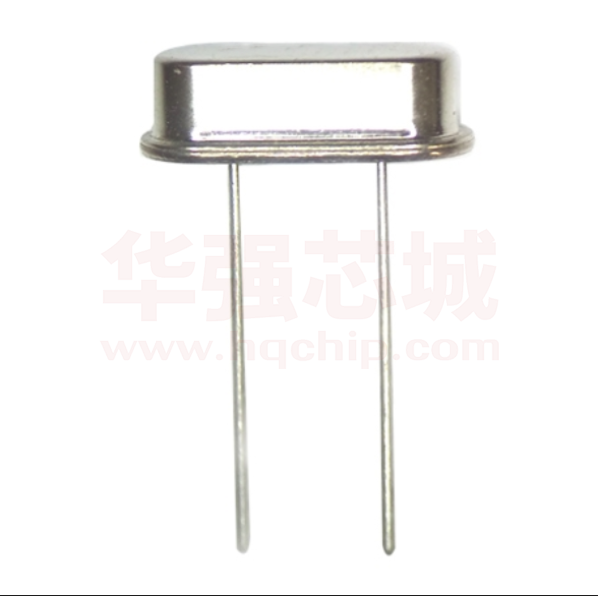

S1C27000ZWDAC

深圳市晶友嘉电子有限公司 SHENZHEN JINGYOUJIA ELECTRONIC CO.，LTD ● Feature 特性 ★满足无铅波峰焊的回流温度曲线要求 ★符合RoHS标准，绿色环保 ★包装: 自封袋装，200pcs/包 ●Electricalspecifications 电气参数 型号 Holder Type HC-49S 频率范围 Frequency Toleranc (△F) at25℃ 3.2～37.0MHz (Fund) 温度频差 37.0～70MHz (3rd Overtone) 老化 Frequency rift Operating Temperature Range Storage Temperature Range Aging 25℃ 静电容 Shunt Capacitance (C0) 7pf Maxmum 激励功率 Drive Level 10uw～50uw Typical 工作温度范围 储存温度范围 ●Mechanical Dimensions 外型尺寸 ±10ppm～±50ppm -20℃～+70℃ to -40℃～+85℃ H -20℃～+60℃ to -55℃～+125℃ ±3ppm/year Maximum 绝缘阻抗 Insulaton Resistance 500Mohms at DC 100V 负载电容 Load Capacitance (CL) Suggested by customer ●Equivalent Series Resistance and Mode of Operation 等效电阻和振荡模式 Frequency Range 频率范围 ESR(ohm)等效阻抗 Mode振荡模式 3.200-3.579 MHz 3.579-5.000 MHz 5.000-6.000 MHz 6.000-7.000 MHz 7.000-10.000 MHz 10.000-14.000 MHz 14.000-20.000 MHz 20.000-37.000 MHz ≥32.000 MHz 150Max 120Max 100Max 80Max 60Max 50Max 40Max 30Max 80Max Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Fundamental Third Overtone H1: 49S 3.5mm H2:49SB 2.5mm ●Frequency VS.Temperature Curne ●Reflow condition 回流焊条件 地址：深圳市龙华区东环一路1号杰美康创意园B栋233-235 电话:0755-32040201 0755-32850080 网址：www.jyjosc.com
