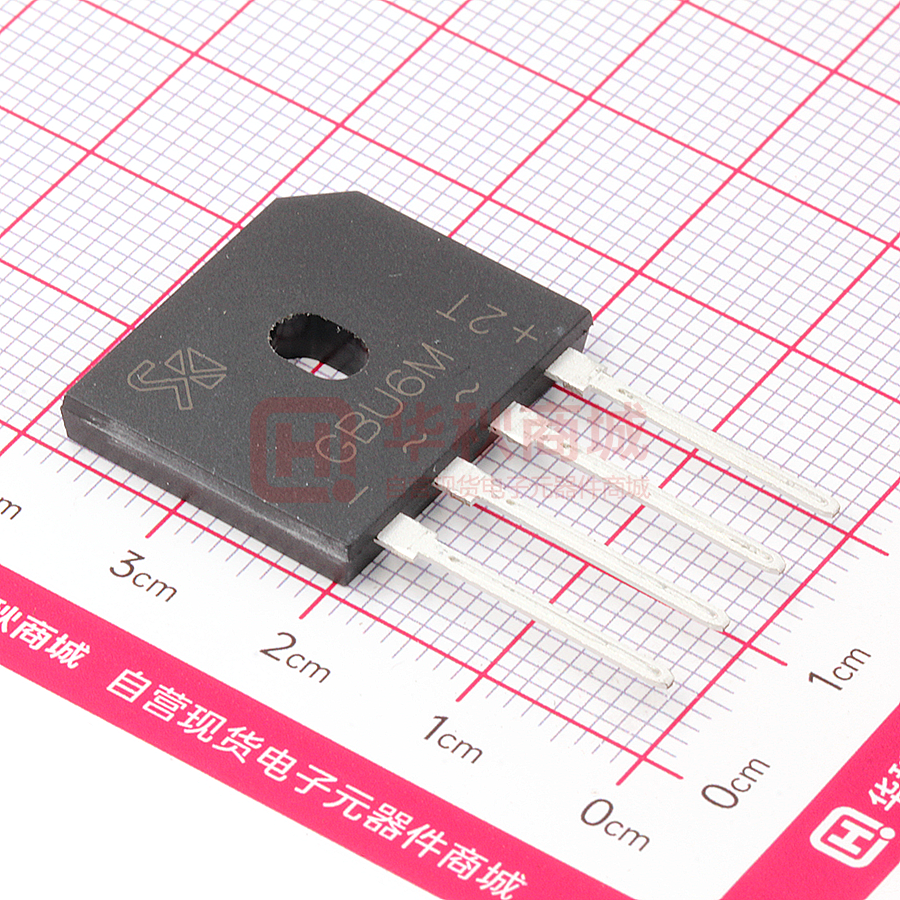

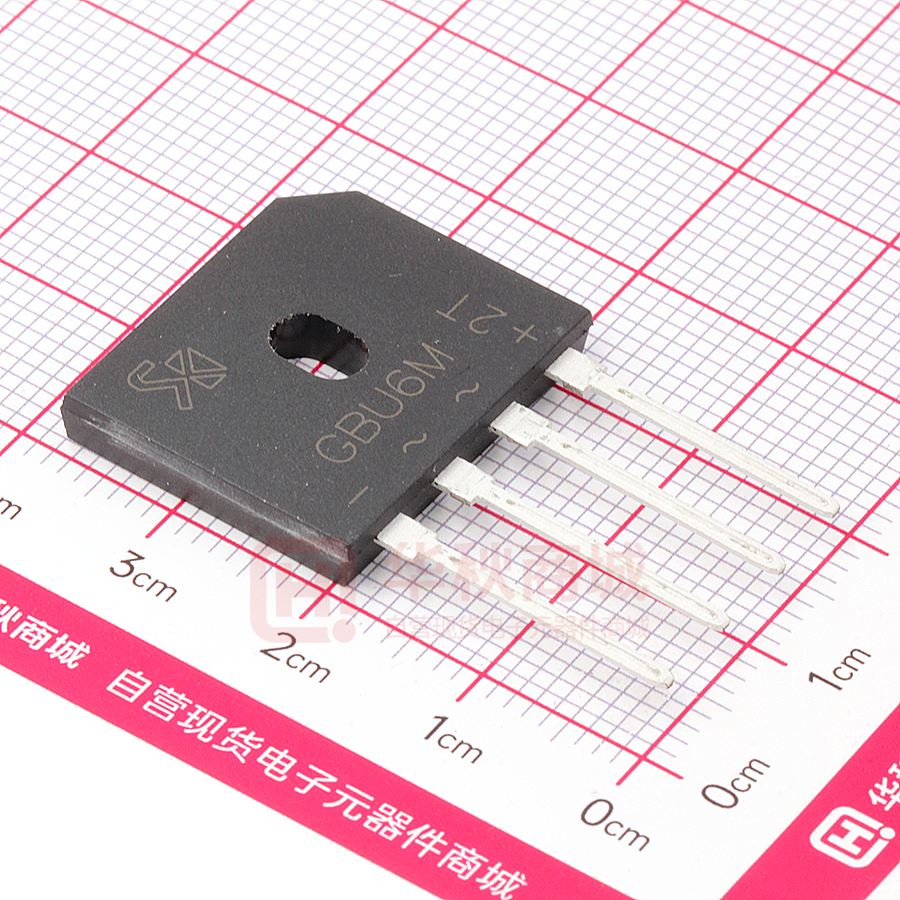

GBU6M

GBU6A THRU GBU6M GLASS PASSIVATED BRIDGE RECTIFIERS REVERSE VOLTAGE - 50 to 1000 Volts FORWARD CURRENT - 6.0 Amperes FEATURES - Polarity:As marked on body Surge overload rating -175 amperes peak ~ ~ + GBU Ideal for printed circuit board Reliable low cost construction utilizing molded plastic technique Plastic material has U/L The flammability classification 94V-0 Mounting postition:Any Weight: 0.138 ounces , 3.9 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified. CHARACTERISTICS SYMBOL GBU6A GBU6B Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 V Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 V Maximum DC Blocking Voltage VDC 50 100 200 400 600 800 1000 V Maximum Average Forward (with heatsink Note 2) Rectified Current @ T C=100℃ (without heatsink) Peak Forward Surage Current 8.3ms Single Half Sine-Wave GBU6D GBU6G GBU6J GBU6K GBU6M UNIT I(AV) 6.0 2.8 A IFSM 175 A 1.0 V Super Imposed on Rated Load (JEDEC Method) VF Maximum Forward Voltage at 3.0A DC Maximum DC Reverse Current J=25℃ at Rated DC Blocking B Voltage J=125℃ I2t Rating for Fusing (t
