T VS Diode – SMCJ Series
Features
Plastic package, excellent insulation strength.
Glass passivated chip junction in SMC package.
Excellent voltage clamping capability.
Low Zener impedance.
1500W peak pulse power capability on 10/1000s waveform.
Typical leakage current less than 1A above 13V.
Very fast response time, typically less than 1.0ps from 0 volt to
VBR minimum.
High temperature soldering guaranteed: 265°C/10 sec.
MSL: JEDEC-J-STD-020, Level 1
Applications
I/O interface, VCC bus
Telecom
Industrial and consumer electronic applications.
Relay and electromagnetic valve surge absorption.
Agency Approval
UL file no.: E474915
Mechanical and Physical Data
Case: JEDEC SMC molded plastic.
Surface mount device, solderable per MIL-STD-750,
Method 2026
Polarity: Color band denoted cathode except bidirectional.
Maximum Ratings and Thermal Characteristics
Parameter
Symbol
Value
Unit
PPPM
Min 1500
Watt
Peak Pulse Current of 10/1000s waveform (Note 1, Fig.3).
IPPM
See Table
Amp
Steady State Power Dissipation at TL = 75°C, Lead lengths 0.375”, (9.5mm) (Fig.5).
PM(AV)
6.5
Watt
IFSM
200
Amp
TJ, TSTG
-55~150
°C
Peak Pulse Power Dissipation on 10/1000s waveform (Note 1, Fig.1).
Peak Forward Surge Current, 8.3 ms Single Half Sine Wave Superimposed on Rated
Load (Note 2, Fig.6).
Operating Junction and Storage Temperature Range.
Note:
1. Non-repetitive current pulse, per Fig.3 and derated above TA = 25°C per Fig.2.
2. 8.3ms single half sine wave, or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.
Part Number Code
SMCJ
□□□ C A - □□□
Packaging Code (T13: Tape with 13” Reel; T7: Tape with 7”)
VBR Voltage tolerance (A: 5%; Blank: 10%)
C: Bi-directional; Blank: Uni-directional
Reverse Stand-Off Voltage or Typical Breakdown Voltage
SMCJ Series (1500W)
新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 1 of 6
2017/12/28 Rev: B
T VS Diode – SMCJ Series
I-V Curve Characteristics
PPPM
Peak Pulse Power Dissipation – Maximum power dissipation
VR
Stand-off Voltage – Maximum voltage that can be applied to the TVS without operation
VBR
Breakdown Voltage – Maximum voltage that flows through the TVS at a specified test current (IT)
VC
Clamping Voltage – Peak voltage measured across the TVS at a specified IPPM (Peak Impulse Current)
IR
Reverse Leakage Current – Current measured at VR
VF
Forward Voltage Drop for Uni-directional
Electrical Characteristics
Uni
Bi
Uni
Bi
Reverse
Stand Off
Voltage VR
(V)
Min.
Max.
Test
Current
IT
(mA)
SMCJ5.0A
SMCJ5.0CA
GDE
BDE
5.0
6.40
7.00
10
9.2
163.0
800
SMCJ6.0A
SMCJ6.0CA
GDG
BDG
6.0
6.67
7.37
10
10.3
145.7
800
SMCJ6.5A
SMCJ6.5CA
GDK
BDK
6.5
7.22
7.98
10
11.2
134.0
500
SMCJ7.0A
SMCJ7.0CA
GDM
BDM
7.0
7.78
8.60
10
12.0
125.0
200
SMCJ7.5A
SMCJ7.5CA
GDP
BDP
7.5
8.33
9.21
1
12.9
116.3
100
SMCJ8.0A
SMCJ8.0CA
GDR
BDR
8.0
8.89
9.83
1
13.6
110.3
50
SMCJ8.5A
SMCJ8.5CA
GDT
BDT
8.5
9.44
10.4
1
14.4
104.2
20
SMCJ9.0A
SMCJ9.0CA
GDV
BDV
9.0
10.0
11.1
1
15.4
97.4
10
SMCJ10A
SMCJ10CA
GDX
BDX
10.0
11.1
12.3
1
17.0
88.3
5
SMCJ11A
SMCJ11CA
GDZ
BDZ
11.0
12.2
13.5
1
18.2
82.5
1
SMCJ12A
SMCJ12CA
GEE
BEE
12.0
13.3
14.7
1
19.9
75.4
1
SMCJ13A
SMCJ13CA
GEG
BEG
13.0
14.4
15.9
1
21.5
69.8
1
SMCJ14A
SMCJ14CA
GEK
BEK
14.0
15.6
17.2
1
23.2
64.7
1
SMCJ15A
SMCJ15CA
GEM
BEM
15.0
16.7
18.5
1
24.4
61.5
1
SMCJ16A
SMCJ16CA
GEP
BEP
16.0
17.8
19.7
1
26.0
57.7
1
SMCJ17A
SMCJ17CA
GER
BER
17.0
18.9
20.9
1
27.6
54.4
1
SMCJ18A
SMCJ18CA
GET
BET
18.0
20.0
22.1
1
29.2
51.4
1
Part Number
Marking
Breakdown Voltage
VBR (V) @ IT
Maximum
Clamping
Voltage
VC (V) @ IPP
Maximum
Peak Pulse
Current
IPP (A)
Maximum
Reverse
Leakage
IR (A) @ VR
新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 2 of 6
2017/12/28 Rev: B
T VS Diode – SMCJ Series
Uni
Bi
Uni
Bi
Reverse
Stand Off
Voltage VR
(V)
Max.
Test
Current
IT
(mA)
SMCJ20A
SMCJ20CA
GEV
BEV
20.0
22.2
24.5
1
32.4
46.3
1
SMCJ22A
SMCJ22CA
GEX
BEX
22.0
24.4
26.9
1
35.5
42.3
1
SMCJ24A
SMCJ24CA
GEZ
BEZ
24.0
26.7
29.5
1
38.9
38.6
1
SMCJ26A
SMCJ26CA
GFE
BFE
26.0
28.9
31.9
1
42.1
35.7
1
SMCJ28A
SMCJ28CA
GFG
BFG
28.0
31.1
34.4
1
45.4
33.1
1
SMCJ30A
SMCJ30CA
GFK
BFK
30.0
33.3
36.8
1
48.4
31.0
1

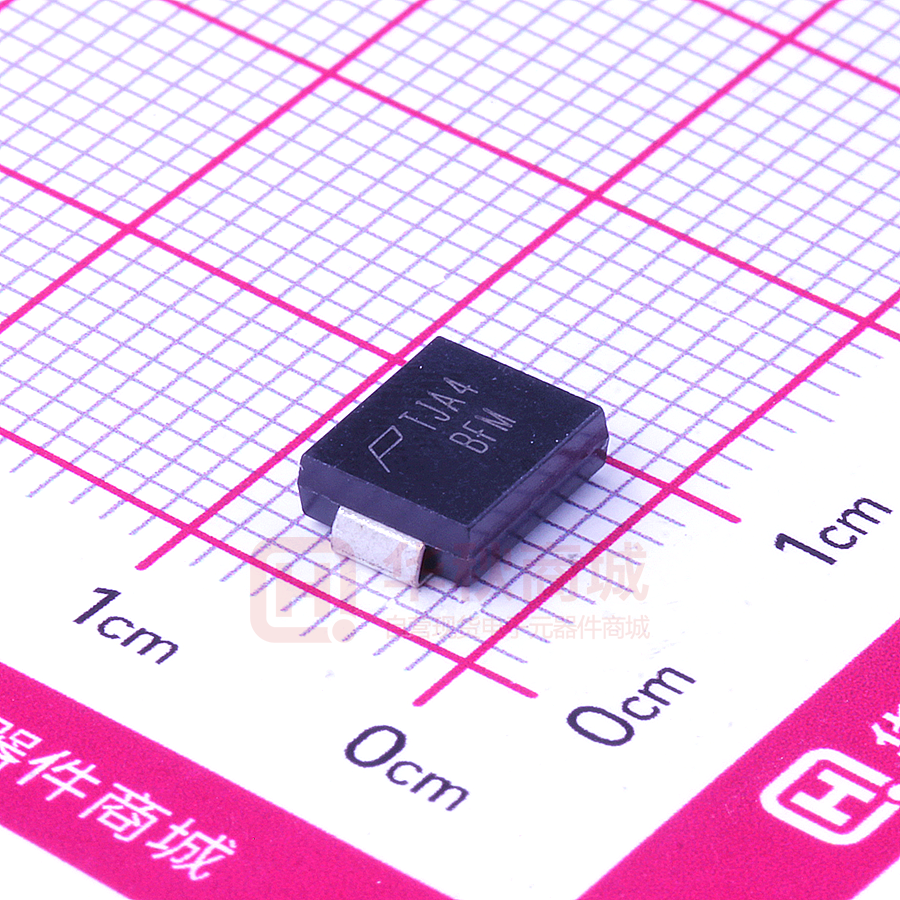

SMCJ33A
SMCJ33CA
GFM
BFM
33.0
36.7
40.6
1
53.3
28.2
1
SMCJ36A
SMCJ36CA
GFP
BFP
36.0
40.0
44.2
1
58.1
25.9
1
SMCJ40A
SMCJ40CA
GFR
BFR
40.0
44.4
49.1
1
64.5
23.3
1
SMCJ43A
SMCJ43CA
GFT
BFT
43.0
47.8
52.8
1
69.4
21.7
1
SMCJ45A
SMCJ45CA
GFV
BFV
45.0
50.0
55.3
1
72.7
20.6
1
SMCJ48A
SMCJ48CA
GFX
BFX
48.0
53.3
58.9
1
77.4
19.4
1
SMCJ51A
SMCJ51CA
GFZ
BFZ
51.0
56.7
62.7
1
82.4
18.2
1
SMCJ54A
SMCJ54CA
GGE
BGE
54.0
60.0
66.3
1
87.1
17.3
1
SMCJ58A
SMCJ58CA
GGG
BGG
58.0
64.4
71.2
1
93.6
16.1
1
SMCJ60A
SMCJ60CA
GGK
BGK
60.0
66.7
73.7
1
96.8
15.5
1
SMCJ64A
SMCJ64CA
GGM
BGM
64.0
71.1
78.6
1
103.0
14.6
1
SMCJ70A
SMCJ70CA
GGP
BGP
70.0
77.8
86.0
1
113.0
13.3
1
SMCJ75A
SMCJ75CA
GGR
BGR
75.0
83.3
92.1
1
121.0
12.4
1
SMCJ78A
SMCJ78CA
GGT
BGT
78.0
86.7
95.8
1
126.0
11.9
1
SMCJ85A
SMCJ85CA
GGV
BGV
85.0
94.4
104.0
1
137.0
11.0
1
SMCJ90A
SMCJ90CA
GGX
BGX
90.0
100.0
111.0
1
146.0
10.3
1
SMCJ100A
SMCJ100CA
GGZ
BGZ
100.0
111.0
123.0
1
162.0
9.3
1
SMCJ110A
SMCJ110CA
GHE
BHE
110.0
122.0
135.0
1
177.0
8.5
1
SMCJ120A
SMCJ120CA
GHG
BHG
120.0
133.0
147.0
1
193.0
7.8
1
SMCJ130A
SMCJ130CA
GHK
BHK
130.0
144.0
159.0
1
209.0
7.2
1
SMCJ150A
SMCJ150CA
GHM
BHM
150.0
167.0
185.0
1
243.0
6.2
1
SMCJ160A
SMCJ160CA
GHP
BHP
160.0
178.0
197.0
1
259.0
5.8
1
SMCJ170A
SMCJ170CA
GHR
BHR
170.0
189.0
209.0
1
275.0
5.5
1
SMCJ180A
SMCJ180CA
GHT
BHT
180.0
201.0
222.0
1
292.0
5.1
1
SMCJ190A
SMCJ190CA
GHU
BHU
190.0
209.0
243.0
1
308.0
4.8
1
SMCJ200A
SMCJ200CA
GHV
BHV
200.0
224.0
247.0
1
324.0
4.6
1
SMCJ220A
SMCJ220CA
GHX
BHX
220.0
246.0
272.0
1
356.0
4.2
1
SMCJ250A
SMCJ250CA
GHZ
BHZ
250.0
279.0
309.0
1
405.0
3.7
1
SMCJ300A
SMCJ300CA
GJE
BJE
300.0
335.0
371.0
1
486.0
3.1
1
SMCJ350A
SMCJ350CA
GJG
BJG
350.0
391.0
432.0
1
567.0
2.6
1
SMCJ400A
SMCJ400CA
GJK
BJK
400.0
447.0
494.0
1
648.0
2.3
1
SMCJ440A
SMCJ440CA
GJM
BJM
440.0
492.0
543.0
1
713.0
2.1
1
Part Number
Marking
Breakdown Voltage
VBR (V) @ IT
Min.
Maximum
Clamping
Voltage
VC (V) @ IPP
Maximum
Peak Pulse
Current
IPP (A)
Maximum
Reverse
Leakage
IR (A) @ VR
Note:
1. For bi-directional type having VR of 10 volts and less, the IR limit is double.
新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 3 of 6
2017/12/28 Rev: B
T VS Diode – SMCJ Series
Ratings and Characteristic Curves
Fig 1 - Peak Pulse Power Rating Curve
Fig 2 - Pulse Derating Curve
Fig 3 - Pulse Waveform
Fig 4 – Typical Junction Capacitance
Fig 5 – Steady State Power Dissipation Derating Curve
Fig 6 – Maximum Non-Repetitive Forward Surge Current
(Uni-directional Only)
新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 4 of 6
2017/12/28 Rev: B
T VS Diode – SMCJ Series
Marking Definitions
PolyTrans Trade mark
Lot No
Marking Code
Cathode Band
(For Uni-directional product only)
Physical Dimensions
Dimension
A
B
C
D
E
F
G
H
I
J
K
L
Millimeters
Inches
Min
Max
Min
Max
2.90
6.60
5.59
2.20
0.76
7.75
0.15
3.30
2.40
2.40
3.20
7.11
6.22
2.80
1.52
0.20
8.13
0.31
4.20
-
0.114
0.260
0.220
0.087
0.030
0.305
0.006
0.129
0.094
0.094
0.126
0.280
0.245
0.110
0.060
0.008
0.320
0.012
0.165
-
Lead Free Reflow Soldering Recommendations
Preheat
- Temperature Min (Ts_min)
- Temperature Max (Ts_max)
- Time (Ts_min to Ts_max)
- Average Ramp-Up Rate
150ºC
200ºC
60-180 seconds
1~3ºC/second
Peak Temperature
260ºC max.
Time within 5ºC of actual Peak
Temperature (tp)
40 seconds max.
Ramp-Down Rate
6 ºC /second max.
Note: If the soldering temperatures exceed the recommended profile, devices may not meet the performance requirements.
新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 5 of 6
2017/12/28 Rev: B
T VS Diode – SMCJ Series
Packaging Information
Part Number
Packaging
Code
Component
Package
Quantity
SMCJ Series
SMCJ Series
T13
T7
DO-214AB
DO-214AB
3000
500
Packaging Option
Tape & Reel – 16mm tape/13” reel
Tape & Reel – 16mm tape/7” reel
Packaging
Specification
EIA STD RS-481
EIA STD RS-481
Tape and Reel Specifications
新竹市科學工業園區工業東四路 24-1 號 No. 24-1 Industry E. Rd. IV, Hsinchu Science Park, Hsinchu 300, Taiwan.
TEL: +886-3-5643931 FAX: +886-3-5644624
http://www.pttc.com.tw
Page: 6 of 6
2017/12/28 Rev: B
