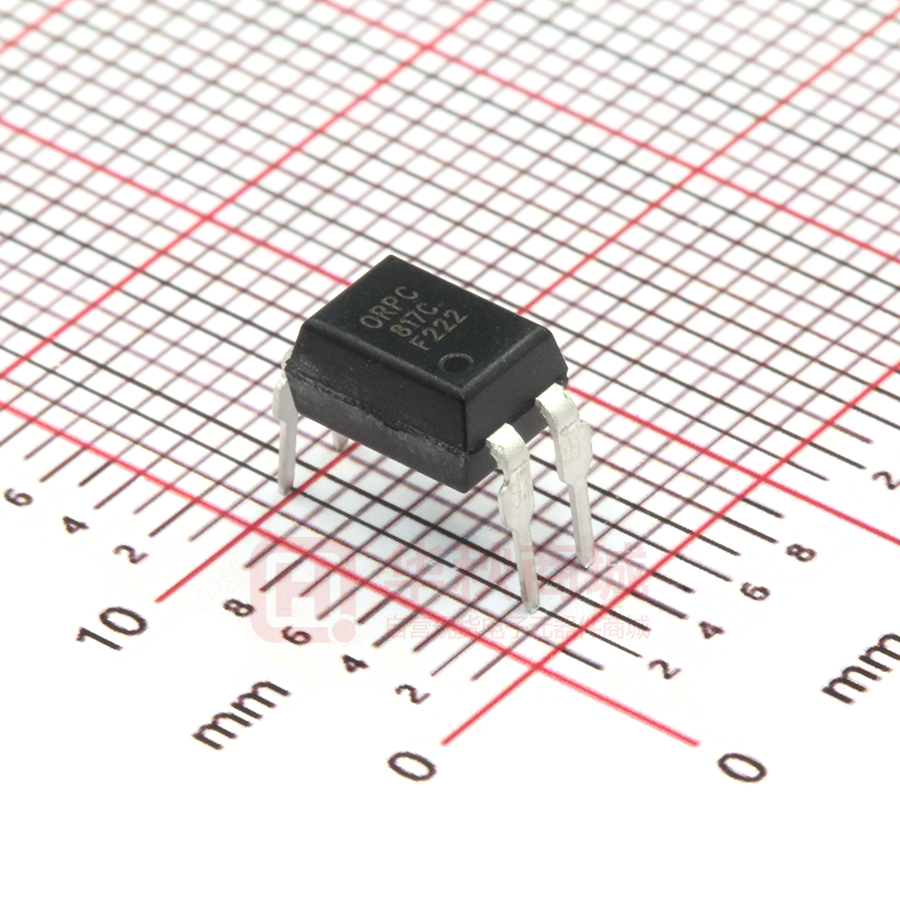

ORPC-817C-F

ORPC-817C-F

  • 厂商:

    ORIENT(奥伦德)

  • 封装:

    DIP4_4.6X6.5MM

  • 描述:

    单向光耦 Viso=5000Vrms VF(typ)=1.2V IF=50mA Vo=35V CTR=200~400% DIP4

  • 数据手册
  • 价格&库存
ORPC-817C-F 数据手册
Shenzhen Orient Components Co ., Ltd ORPC-817 ORIENT Photo coupler Product Data Sheet Part Number: ORPC-817 Customer: Date: SHENZHEN ORIENT COMPONENTS CO ., LTD Block A3rd Floor No.4 Building,Tian’an Cyber Park,Huangge Rd,LongGang Dist,Shenzhen,GD TEL:0755-29681817 FAX:0755-29681200 www.orient-opto.com Copyright© 2019 Orient .All rights Reserved 1 V3 ORPC-817 Shenzhen Orient Components Co ., Ltd 1. Features (1) (2) (3) (4) (5) Current transfer ratio ( CTR : MIN. 50% at IF = 5mA, VCE = 5V ) High input-output isolation voltage ( Viso = 5,000Vrms ) Response time ( tr : TYP. 4µs at VCE = 2V, IC = 2mA, RL = 100Ω) MSL Class Ⅰ Safety approval UL approved (No.E323844) VDE approved(No.40029733) CQC approved (No.CQC09001029446 CQC13001086898) CE approved (No.AC/0431008) State Grid approved (No.SGCM013420170152 ) 2. Description (1) ORPC-817 photo coupler consist of one piece of GaAs emitter and one piece of NPN transistor. They are packaged in a 4-pin DIP package and available in wide-lead spacing and SMD option. (2) 3. Applications (1) (4) (5) (6) (7) Switching power supply (2) Ammeter Instrumental application, measurement machine Imbursement equipments, duplicating machine, automat Family-use electric equipments, such as fans Signal transforming systems (3)Computer 4. Absolute Maximum Ratings at Ta=25℃ Parameter Symbol Rated Value Unit IF 60 mA IFP 1 A VR V mW VIOTM 6 70 80 7 50 150 200 5,000 10,000 mA mW mW Vrms V VIORM 630 V Working Temperature Deposit Temperature Topr Tstg -55 to + 110 -55 to + 125 ℃ *2 Soldering Temperature Tsol 260 Forward Current Peak forward current (100μs pulse, 100Hz frequency) Input Reverse Voltage Consume Power Collector and emitter Voltage Emitter and collector Voltage Output Collector Current Consume Power Total Consume Power *1 Insulation Voltage Max Insulation Voltage (Insulating oil test) P VCEO VECO IC PC Ptot Viso Rated Impulse Insulation Voltage V *1.AC For 1 Minute, R.H. = 40 ~ 60% Isolation voltage shall be measured using the following method. (1) Short between anode and cathode on the primary side and between collector and emitter onthe secondary side. (2) The isolation voltage tester with zero-cross circuit shall be used. (3) The waveform of applied voltage shall be a sine wave. *2. Soldering time is 10 seconds Copyright© 2019 Orient .All rights Reserved 2 V3 ORPC-817 Shenzhen Orient Components Co ., Ltd 5. Electro-Optical Characteristics (Ta=25℃ unless specified otherwise) Parameter Symbol Condition Forward Current VF IF=20mA --- 1.2 1.4 V Reverse Current IR VR=5V --- --- 5 μA Collector capacitance Ct V=0, f=1KHz --- 30 250 pF Collector to emitter Current ICEO VCE=20V, IF=0mA --- --- 100 nA Collector and Emitter attenuation Voltage BV CEO IC=0.1mA 80 --- --- V Emitter and Collector attenuation Voltage BV ECO 7 --- --- V *1 Current conversion ratio CTR 50 --- 1000 % Input Output Min Typ.* Max Unit IF=0mA IE=0.1mA IF=0mA IF=5mA Transforming Characteristics Collector Current IC VCE=5V 2.5 --- 50 mA Collector and Emitter Saturation Voltage V CE(sat) IF=20mA --- 0.1 0.2 V Insulation Impedance Riso 1×1012 --- Ω --- 0.6 1.0 pF --- 80 --- kHz IC= 1mA DC500V 40~60%R.H. Floating Capacitance Cf Cut-off Frequency fc V=0, f=1MHz VCE=5V, IC=2mA 5×1010 RL=100Ω,-3dB Rise Time tr VCE=2V, --- 4 18 μs Descend Time tf IC=2mA --- 3 18 μs RL=100Ω *1 Current Conversion Ratio = IC / IF × 100% , CTR Tolerance:±3%. Copyright© 2019 Orient .All rights Reserved 3 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 6. Rank Table of Current Transfer Ratio (1) ORPC-817 Grade Sign Min (% ) Max (% ) ORPC-817L 50 100 ORPC-817A 80 160 ORPC-817B 130 260 ORPC-817C 200 400 ORPC-817D 300 600 ORPC-817H 600 1000 Min (% ) Max (% ) ORPC-817ML 50 100 ORPC-817MA 80 160 ORPC-817MB 130 260 ORPC-817MC 200 400 ORPC-817MD 300 600 ORPC-817MH 600 1000 Grade Sign Min (% ) Max (% ) ORPC-817SL 50 100 ORPC-817SA 80 160 ORPC-817SB 130 260 ORPC-817SC 200 400 ORPC-817SD 300 600 ORPC-817SH 600 1000 Note: Working condition: IF=5mA, VCE=5V, Ta=25℃. (2) ORPC-817M Grade Sign Note: Working condition: IF=5mA, VCE=5V, Ta=25℃. (3) ORPC-817S Note: Working condition: IF=5mA, VCE=5V, Ta=25℃. Copyright© 2019 Orient .All rights Reserved 4 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 7. Order Information Part Number ORPC-817XT-V-W-Y-Z Note X = Lead form option (S, M or none) T = CTR Rank (L, A, B, C, D, H or none) V = Tape and reel option (TP,TP1 or none). W = Lead frame option (F: Iron, C:copper) Y = ‘V’ code for VDE safety (This options is not necessary). Z = ‘G’ code for Halogen free (This options is not necessary). * VDE Code can be selected. * Halogen Free can be selected. Option Description Packing quantity None Standard DIP-4 100 units per tube M Wide lead bend (0.4 inch spacing) 100 units per tube S(TP) Surface mount lead form (low profile) + TP tape & reel option 2000 units per reel S(TP1) Surface mount lead form (low profile) + TP1 tape & reel option 2000 units per reel Copyright© 2019 Orient .All rights Reserved 5 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 8. Naming Rule (1) ORIENT PHOTOCOUPLER. (2) 817 denotes Device Part Number. (3) denotes Rank Code. (4) denotes Lead Frame Code. (5) denotes Year Code. (6) (7) (8) denotes Week Code. denotes Day Code. Anode. * Halogen Free Mark can be selected. * VDE Mark can be selected. Copyright© 2019 Orient .All rights Reserved 6 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 9. Package Dimension (Unit:mm) (1) ORPC-817 (2) ORPC-817M Copyright© 2019 Orient .All rights Reserved 7 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 (3) ORPC-817S 10. Taping Dimensions (1)ORPC-817S-TP Copyright© 2019 Orient .All rights Reserved 8 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 (2)ORPC-817S-TP1 Description Symbol Dimension in mm (inch) Tape wide W 16±0.3 (.63) Pitch of sprocket holes P0 4±0.1 (.15) Distance of compartment F P2 7.5±0.1 (.295) Distance of compartment to compartment P1 8±0.1 (.472) 2±0.1 (.0079) Package Type Quantities(pcs) TP/TP1 2000 11. Recommended Foot Print Patterns (Mount Pad) Copyright© 2019 Orient .All rights Reserved 9 (Unit:mm) V3 Shenzhen Orient Components Co ., Ltd ORPC-817 12. Package Dimension (1) package dimension DIP/M type SOP type (2)Packing Label Sample 1. 2. 3. 4. 5. MTL NO:Contents with "Order Information" in the specification. LOT NO:The production cycle of the product. BATCH:The CTR RANK of the product. Quantity:Product packaging quantity. Product Data: The data when product be made. Copyright© 2019 Orient .All rights Reserved 10 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 13. Reliability Test Copyright© 2019 Orient .All rights Reserved 11 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 14. Temperature Profile Of Soldering (1).IR Reflow soldering (JEDEC-STD-020C compliant) One time soldering reflow is recommended within the condition of temperature and time profile shown below. Do not solder more than three times. Profile item Conditions Preheat - Temperature Min (T Smin ) 150˚C - Temperature Max (T Smax ) 200˚C - Time (min to max) (ts) 90±30 sec Soldering zone - Temperature (TL ) 217˚C - Time (t L ) 60 sec Peak Temperature 260˚C Peak Temperature time 20 sec Ramp-up rate 3˚C / sec max. Ramp-down rate from peak temperature 3~6˚C / sec Reflow times ≤3 Copyright© 2019 Orient .All rights Reserved 12 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 (2).Wave soldering (JEDEC22A111 compliant) One time soldering is recommended within the condition of temperature. Temperature 260+0/-5˚C Time 10 sec Preheat temperature 25 to 140˚C Preheat time 30 to 80 sec (3).Hand soldering by soldering iron Allow single lead soldering in every single process. One time soldering is recommended. Copyright© 2019 Orient .All rights Reserved Temperature 380+0/-5˚C Time 3 sec max 13 V3 Shenzhen Orient Components Co ., Ltd ORPC-817 15. Characteristics Curves Copyright© 2019 Orient .All rights Reserved 14 V3 Shenzhen Orient Components Co ., Ltd Copyright© 2019 Orient .All rights Reserved 15 ORPC-817 V3
