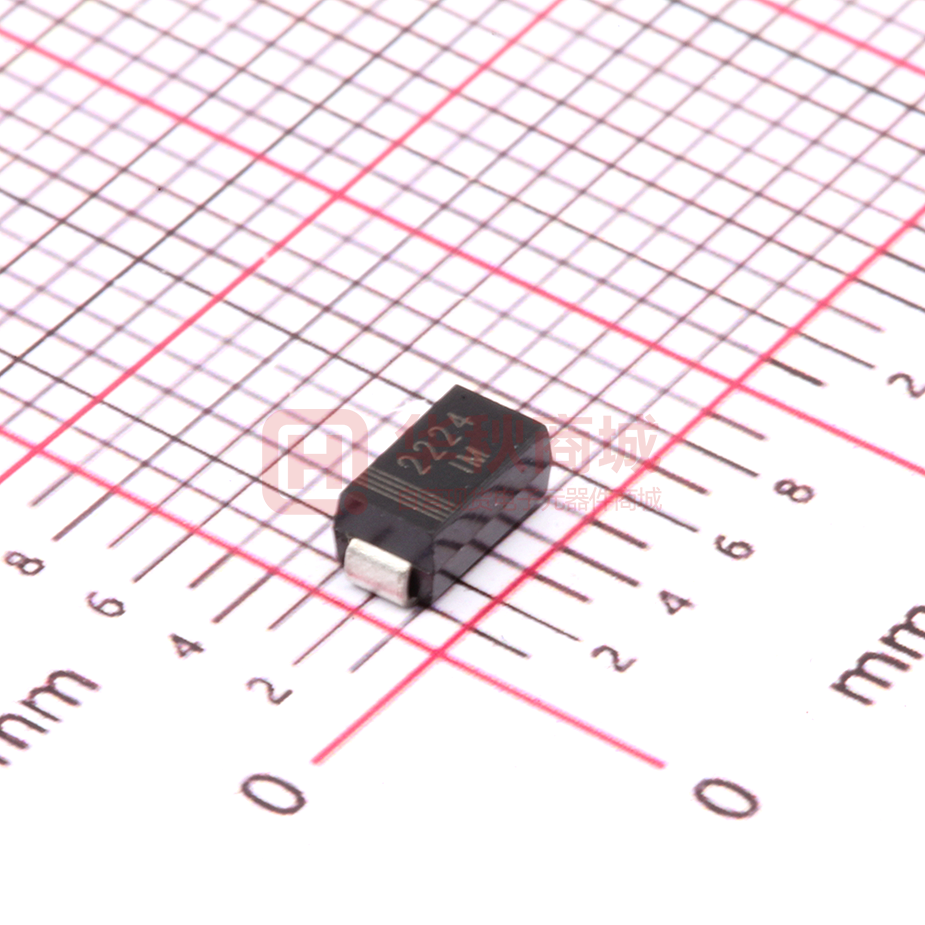

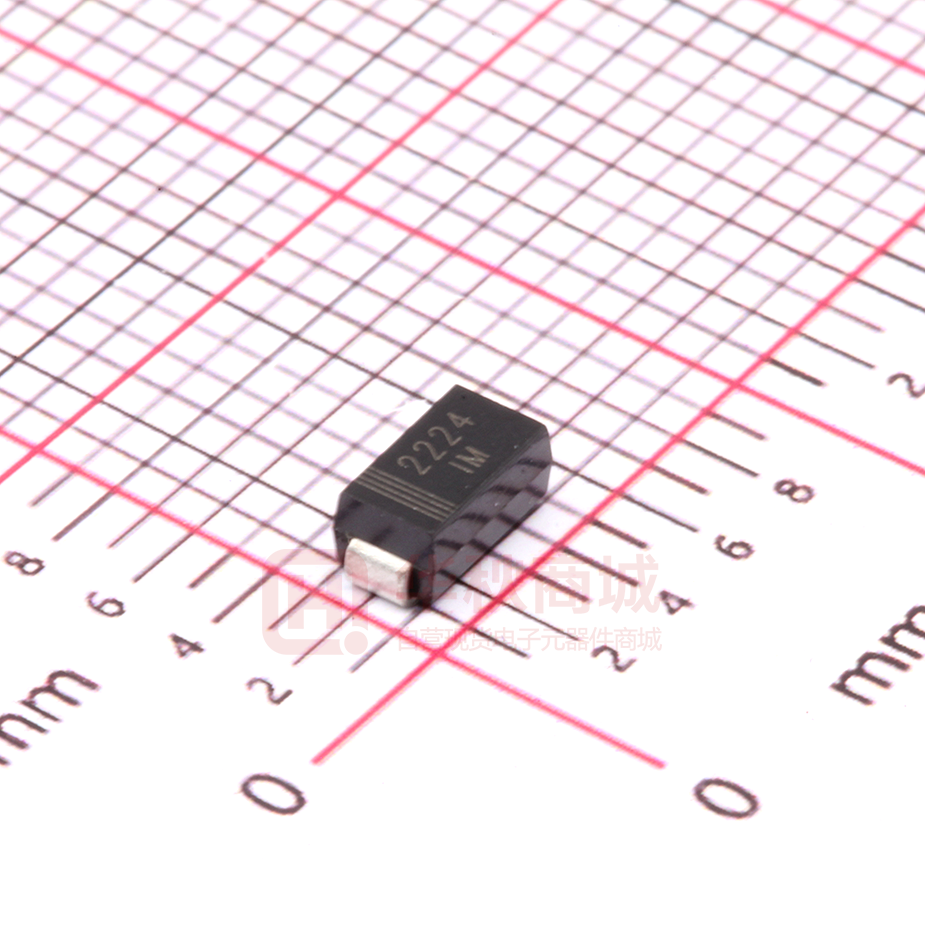

P4SMA18A

P4SMA6.8A(CA) - P4SMA440A(CA) SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR DIODE VOLTAGE RANGE: 6.8 - 440 V POWER: 400Wa t t s Features Glass Passivated Die Construction Uni- and Bi-Directional Versions Available Excellent Clamping Capability Fast Response Time Plastic Material: UL Flammability Classification Rating 94V-0 ! ! ! ! ! B SMA(DO-214AC) Mechanical Data ! ! A Case: SMA/DO-214AC, Molded Plastic Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026 Polarity: Cathode Band or Cathode Notch Marking: Type Number ! ! ! C D J Weight: 0.064 grams (approx.) H Maximum Ratings Min Max A 2.29 2.92 B 4.00 4.60 C 1.27 1.63 D 0.15 0.31 E 4.80 5.59 G 0.10 0.20 H 0.76 1.52 J 2.01 2.62 All Dimensions in mm @ TA = 25°C unless otherwise specified Characteristic Symbol Peak Pulse Power Dissipation (Non repetitive current pulse derated above TA = 25°C) (Note 1) Peak Forward Surge Current, 8.3ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Notes 1, 2, & 3) Instantaneous Forward Voltage @ IPP = 35A (Notes 1, 2, & 3) Operating and Storage Temperature Range Notes: G E Dim Value Unit PPK 400 W IFSM 40 A VF 3.5 V Tj, TSTG -55 to +150 °C 1. Valid provided that terminals are kept at ambient temperature. 2. Measured with 8.3ms single half sine-wave. Duty cycle = 4 pulses per minute maximum. 3. Unidirectional units only. 1 of 4 www.sunmate.tw TYPE (UNI) P4SMA6.8 P4SMA6.8A P4SMA7.5 P4SMA7.5A P4SMA8.2 P4SMA8.2A P4SMA9.1 P4SMA9.1A P4SMA10 P4SMA10A P4SMA11 P4SMA11A P4SMA12 P4SMA12A P4SMA13 P4SMA13A P4SMA15 P4SMA15A P4SMA16 P4SMA16A P4SMA18 P4SMA18A P4SMA20 P4SMA20A P4SMA22 P4SMA22A P4SMA24 P4SMA24A P4SMA27 P4SMA27A P4SMA30 P4SMA30A P4SMA33 P4SMA33A P4SMA36 P4SMA36A P4SMA39 P4SMA39A P4SMA43 P4SMA43A P4SMA47 P4SMA47A P4SMA51 P4SMA51A (BI) P4SMA6.8C P4SMA6.8CA P4SMA7.5C P4SMA7.5CA P4SMA8.2C P4SMA8.2CA P4SMA9.1C P4SMA9.1CA P4SMA10C P4SMA10CA P4SMA11C P4SMA11CA P4SMA12C P4SMA12CA P4SMA13C P4SMA13CA P4SMA15C P4SMA15CA P4SMA16C P4SMA16CA P4SMA18C P4SMA18CA P4SMA20C P4SMA20CA P4SMA22C P4SMA22CA P4SMA24C P4SMA24CA P4SMA27C P4SMA27CA P4SMA30C P4SMA30CA P4SMA33C P4SMA33CA P4SMA36C P4SMA36CA P4SMA39C P4SMA39CA P4SMA43C P4SMA43CA P4SMA47C P4SMA47CA P4SMA51C P4SMA51CA Reverse Stand-Off Voltage Breakdown Voltage Min. @IT Breakdown Voltage Max. @ IT VRWM (V) VBR MIN(V) VBR MAX(V) 5.50 5.80 6.05 6.40 6.63 7.02 7.37 7.78 8.10 8.55 8.92 9.40 9.72 10.2 10.5 11.1 12.1 12.8 12.9 13.6 14.5 15.3 16.2 17.1 17.8 18.8 19.4 20.5 21.8 23.1 24.3 25.6 26.8 28.2 29.1 30.8 31.6 33.3 34.8 36.8 38.1 40.8 41.3 43.6 6.12 6.45 6.75 7.13 7.38 7.79 8.19 8.65 9.00 9.50 9.90 10.5 10.8 11.4 11.7 12.4 13.5 14.3 14.4 15.2 16.2 17.1 18.0 19.0 19.8 20.9 21.6 22.8 24.3 25.7 27.0 28.5 29.7 31.4 32.4 34.2 35.1 37.1 38.7 40.9 42.3 44.7 45.9 48.5 2 of 4 7.48 7.14 8.25 7.88 9.02 8.61 10.0 9.55 11.0 10.5 12.1 11.6 13.2 12.6 14.3 13.7 16.5 15.8 17.6 16.8 19.8 18.9 22.0 21.0 24.2 23.1 26.4 25.2 29.7 28.4 33.0 31.5 36.3 34.7 39.6 37.8 42.9 41.0 47.3 45.2 51.7 49.4 56.1 53.6 Maximum Peak Reverse Test Clamping Pulse Leakage Current Voltage Current @VRWM @IPP IPP(A) IR(uA) VC(V) IT (mA) 10 10 10 10 10 10 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0 10.8 10.5 11.7 11.3 12.5 12.1 13.8 13.4 15.0 14.5 16.2 15.6 17.3 16.7 19.0 18.2 22.0 21.2 23.5 22.5 26.5 25.2 29.1 27.7 31.9 30.6 34.7 33.2 39.1 37.5 43.5 41.4 47.7 45.7 52.0 49.9 56.4 53.9 61.9 59.3 67.8 64.8 73.5 70.1 38.0 40.0 36.0 37.0 33.0 35.0 30.0 31.0 28.0 29.0 26.0 27.0 24.0 25.0 22.0 23.0 19.0 20.0 18.0 19.0 16.0 17.0 14.0 15.0 13.0 14.0 12.0 13.0 11.0 11.2 10.0 10.0 9.0 9.0 8.0 8.4 7.4 7.8 6.8 7.1 6.2 5.0 5.7 6.0 1000.0 1000.0 500.0 500.0 200.0 200.0 50.0 50.0 10.0 10.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 5.0 www.sunmate.tw Reverse Stand-Off Voltage TYPE (UNI) P4SMA56 P4SMA56A P4SMA62 P4SMA62A P4SMA68 P4SMA68A P4SMA75 P4SMA75A P4SMA82 P4SMA82A P4SMA91 P4SMA91A P4SMA100 P4SMA100A P4SMA110 P4SMA110A P4SMA120 P4SMA120A P4SMA130 P4SMA130A P4SMA150 P4SMA150A P4SMA160 P4SMA160A P4SMA170 P4SMA170A P4SMA180 P4SMA180A P4SMA200 P4SMA200A P4SMA220 P4SMA220A P4SMA250 P4SMA250A P4SMA300 P4SMA300A P4SMA350 P4SMA350A P4SMA400 P4SMA400A P4SMA440 P4SMA440A (BI) P4SMA56C P4SMA56CA P4SMA62C P4SMA62CA P4SMA68C P4SMA68CA P4SMA75C P4SMA75CA P4SMA82C P4SMA82CA P4SMA91C P4SMA91CA P4SMA100C P4SMA100CA P4SMA110C P4SMA110CA P4SMA120C P4SMA120CA P4SMA130C P4SMA130CA P4SMA150C P4SMA150CA P4SMA160C P4SMA160CA P4SMA170C P4SMA170CA P4SMA180C P4SMA180CA P4SMA200C P4SMA200CA P4SMA220C P4SMA220CA P4SMA250C P4SMA250CA P4SMA300C P4SMA300CA P4SMA350C P4SMA350CA P4SMA400C P4SMA400CA P4SMA440C P4SMA440CA VRWM (V) 45.4 47.8 50.2 53.0 55.1 58.1 60.7 64.1 66.4 70.4 73.7 77.8 81.0 85.5 89.2 94.0 97.2 102 105 111 121 128 130 136 138 145 146 154 162 171 175 185 202 214 243 256 284 300 324 342 356 376 Breakdown Voltage Min. @IT Breakdown Voltage Max. @ IT VBR MIN(V) VBR MAX(V) 50.4 53.2 55.8 58.9 61.2 64.6 67.5 71.3 73.8 77.9 81.9 86.5 90.0 95.0 99.0 105 108 114 117 124 135 143 144 152 153 162 162 171 180 190 198 209 225 237 270 285 315 333 360 380 396 418 3 of 4 61.6 58.8 68.2 65.1 74.8 71.4 82.5 78.8 90.2 86.1 100 95.5 110 105 121 116 132 126 143 137 165 158 176 168 187 179 198 189 220 210 242 231 275 263 330 315 385 368 440 420 484 462 Maximum Peak Reverse Clamping Pulse Leakage Current Voltage Current @VRWM @IPP IT (mA) IR (uA) VC(V) IPP(A) 1.0 80.5 5.2 5.0 5.5 1.0 77.0 5.0 1.0 89.0 5.0 4.7 1.0 85.0 5.0 5.0 4.3 1.0 98.0 5.0 1.0 92.0 4.6 5.0 3.9 108 5.0 1.0 103 5.0 1.0 4.1 3.6 1.0 118 5.0 113 3.7 1.0 131 3.2 5.0 1.0 3.4 125 5.0 1.0 2.9 5.0 1.0 144 137 3.1 5.0 1.0 158 5.0 1.0 2.7 1.0 152 2.8 5.0 173 1.0 5.0 2.4 1.0 165 2.5 5.0 1.0 187 5.0 2.2 2.3 1.0 179 5.0 1.0 215 2.0 5.0 1.0 207 2.0 5.0 230 1.0 1.8 5.0 1.0 219 1.9 5.0 1.0 5.0 244 1.7 234 1.0 1.8 5.0 1.0 258 1.6 5.0 1.0 246 5.0 1.7 1.0 287 1.5 5.0 1.53 5.0 1.0 274 1.0 1.16 5.0 344 328 1.0 5.0 1.22 360 1.0 5.0 1.1 344 1.0 1.16 5.0 430 0.93 1.0 5.0 1.0 0.97 5.0 414 1.0 504 0.79 5.0 0.83 1.0 482 5.0 574 1.0 0.70 5.0 0.73 1.0 548 5.0 631 0.63 1.0 5.0 1.0 602 0.65 5.0 Test www.sunmate.tw Ratings and Characteristic Curves TA=25°C unless otherwise noted 4 of 4 www.sunmate.tw
