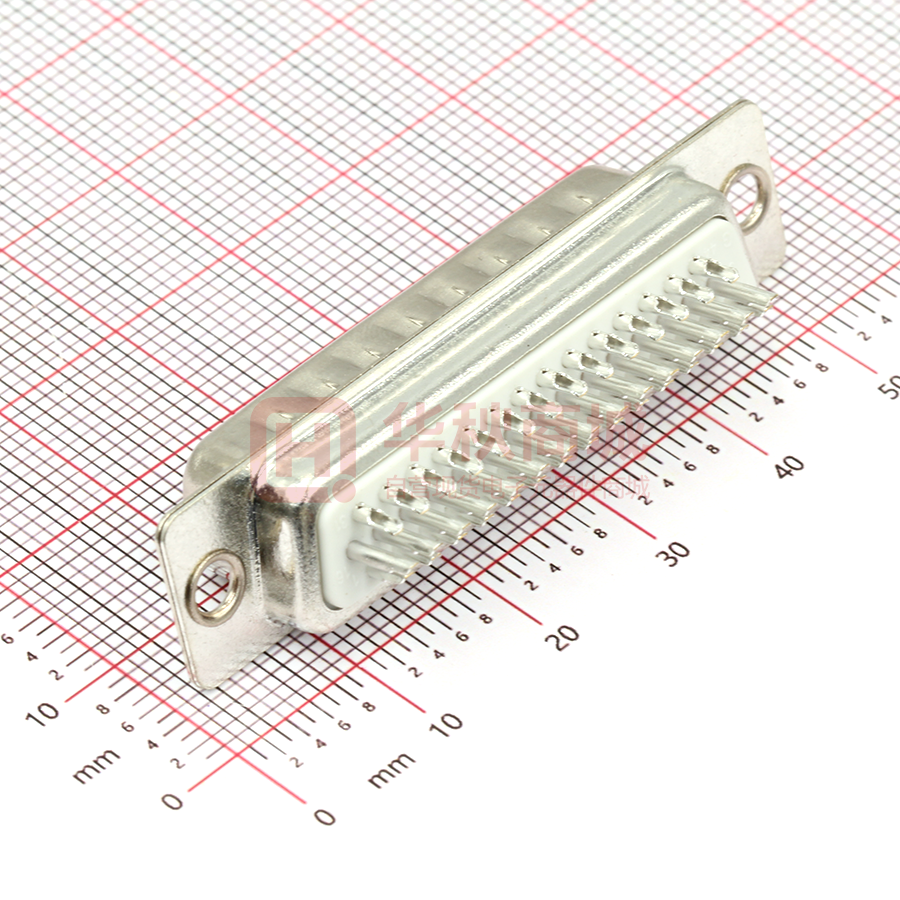

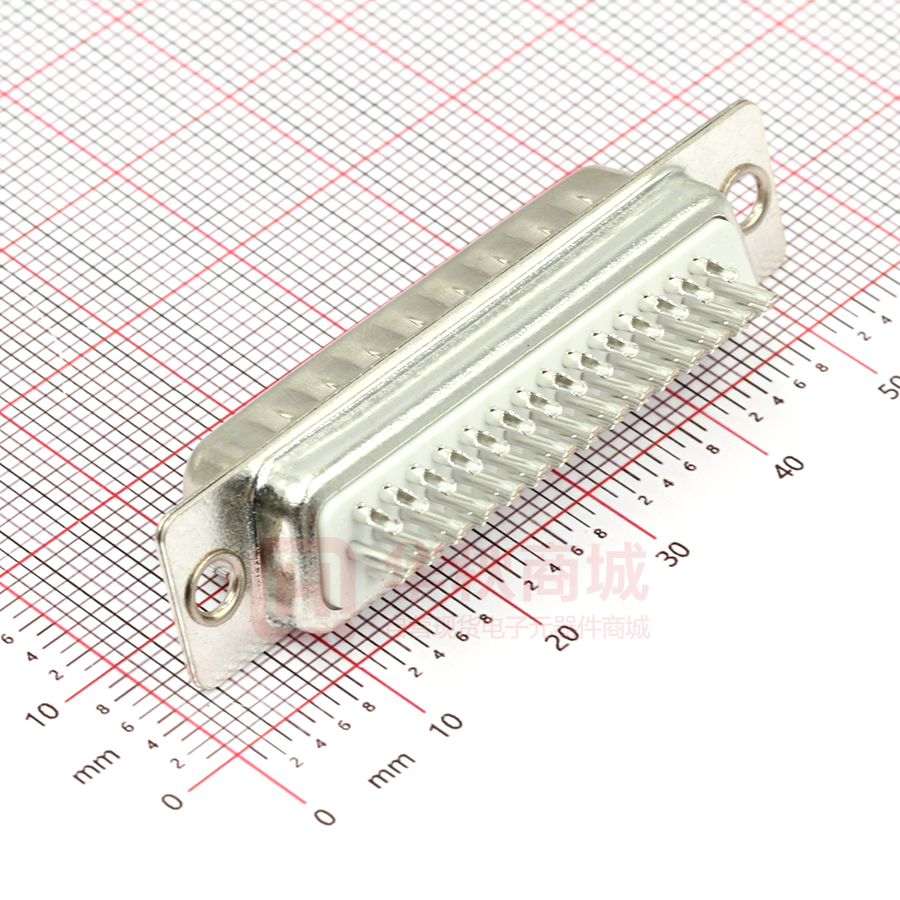

X0444WT7W1

E 1 15 Current rating:5A AC/DC 5A AC/DC Withstanding voltage:500 AC/minute 500V AC/ Temperature range:-25 -+85 -55 -+85 11.05 [0.434] 8.20 [0.323] Specifications: 12.55 [0.494] 16 30 44 31 Materiai Contacts:Brass Gold Plated Insulator:PBT+30 PBT+30 Shell(Fead):Spcc 6 [0.236] 0.80 [0.031] 10.80 [0.425] X04 XX W X X X X 1 2 3 4 5 7 6 1 Series N0. 2 Row No.Pin No.XX-09;15;25;37 3 Welding Board Angle :W-male 4 T Tradutional C Car-pin 5 Planting Categotry: 1:1U 2:2U 3:3U 4:5U 5:15U 6:30U 7 AuSn 6 B:BLACK W:White BL:Blue Y:Yellow G:Green R:Red 7 1:TYPE-1; 2:TYPE-2; 3:TYPE-3; 4:TYPE-4; 5:TYPE-5; 6:TYPE-6 TYPE-2 TYPE-3 units: mm tolerance: X X NO.POS A B C D 15PIN 26PIN 44PIN 62PIN 16.92 25.25 38.96 55.42 24.99 33.32 47.04 63.50 30.80 39.20 53.10 69.40 19.00 27.65 41.20 57.44 DSND DATE SCALE: N/A MODEL TYPE: DWN DATE VIEW: CHKD DATE UNIT: mm/in APPD DATE X MARK DATE DESCRIPTION REVISIONS www.xk-dg.cn www.helloxkb.com REVISED APPROVED UNSPECIFIED TOLERANCES www.helloxkb.cn E SIZE: A4 XKB INDUSTRIAL PRECISION CO.,LIMITED 2.29 2.29 2.29 2.29 PART NO.: DWG NO.: X04XXWXXXX WEIGHT 1.0g SHEET 1/1 REVISION A0
