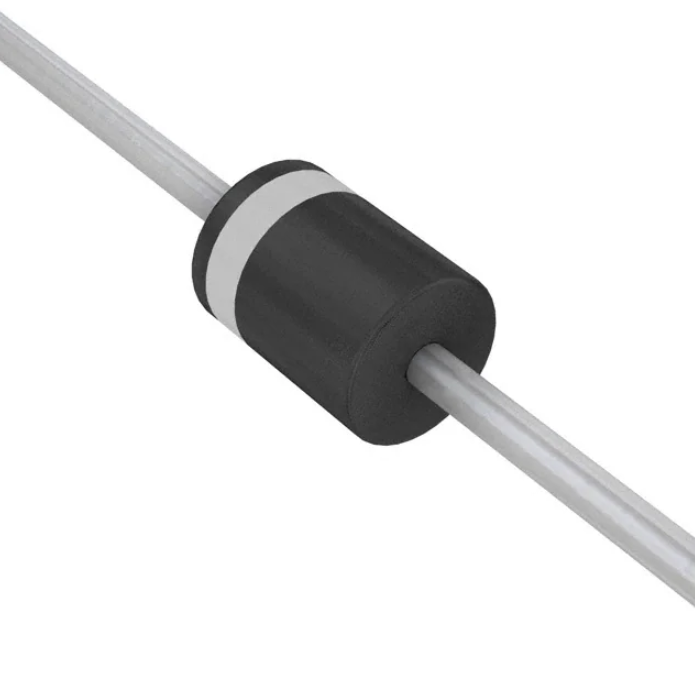

5KP30A

TVS Diodes 5KP Series Description The 5KP series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. Features             Halogen free and RoHS compliant Glass passivated junction Low incremental surge resistance Excellent clamping capability 5000W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycle): 0.05% Fast response time Typical IR less than 2μA above 10V devices High Temperature soldering guaranteed: 265℃/10 seconds/.375″, (9.5mm) lead length, 5lbs (2.3kg) tension Plastic package has underwriters laboratory flammability 94V-0 Meet MSL level1, per J-STD-020 IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact) Unit Weight: 2.1g Applications TVS components are ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits used in telecom, computer, Industrial and consumer electronic applications. Maximum Ratings and Characteristics (TA=25℃) Rating Symbol Value Peak pulse power dissipation at 10/1000μs waveform (Note1, Fig.1) PPPM 5000W Peak pulse current of at 10/1000μs waveform (Note 1, Fig.3) IPPM See Table(A) PM(AV) 8.0W IFSM 400A TJ,TSTG -55℃ to +150℃ Typical thermal resistance junction to lead RθJL 8℃/W Typical thermal resistance junction to ambient RθJA 40℃/W Steady state power dissipation at TL=75℃ (Fig.5) Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load, (JEDEC Method) (Note2, Fig.6) Operating junction and Storage Temperature Ranges Notes:1. Non-repetitive current pulse, per Fig.3 and derating above TA=25℃ per Fig.2. 2. 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minutes maximum. www.liownsemi.com 掌握芯技术Core Technology （V3） TVS Diodes 5KP Series Electrical Characteristics (TA=25℃) Reverse Stand-Off Voltage Part Number Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VR Uni. Bi. VR(V) VB MIn.(V) VB Max.(V) IT(mA) VC(V) IPP(A) IR(μA) 5KP5.0A 5KP5.0CA 5.0 6.40 7.00 50 9.2 554.3 3000 5KP6.0A 5KP6.0CA 6.0 6.67 7.37 50 10.3 495.1 2000 5KP6.5A 5KP6.5CA 6.5 7.22 7.98 50 11.2 455.4 1000 5KP7.0A 5KP7.0CA 7.0 7.78 8.60 50 12.0 425.0 800 5KP7.5A 5KP7.5CA 7.5 8.33 9.21 5 12.9 395.3 250 5KP8.0A 5KP8.0CA 8.0 8.89 9.83 5 13.6 375.0 150 5KP8.5A 5KP8.5CA 8.5 9.44 10.40 5 14.4 354.2 50 5KP9.0A 5KP9.0CA 9.0 10.00 11.10 5 15.4 331.2 20 5KP10A 5KP10CA 10.0 11.10 12.30 5 17.0 300.0 10 5KP11A 5KP11CA 11.0 12.20 13.50 5 18.2 280.2 2 5KP12A 5KP12CA 12.0 13.30 14.70 5 19.9 256.3 2 5KP13A 5KP13CA 13.0 14.40 15.90 5 21.5 237.2 2 5KP14A 5KP14CA 14.0 15.60 17.20 5 23.2 219.8 2 5KP15A 5KP15CA 15.0 16.70 18.50 5 24.4 209.0 2 5KP16A 5KP16CA 16.0 17.80 19.70 5 26.0 196.2 2 5KP17A 5KP17CA 17.0 18.90 20.90 5 27.6 184.8 2 5KP18A 5KP18CA 18.0 20.00 22.10 5 29.2 174.7 2 5KP20A 5KP20CA 20.0 22.20 24.50 5 32.4 157.4 2 5KP22A 5KP22CA 22.0 24.40 26.90 5 35.5 143.7 2 5KP24A 5KP24CA 24.0 26.70 29.50 5 38.9 131.1 2 5KP26A 5KP26CA 26.0 28.90 28.90 5 42.1 121.1 2 5KP28A 5KP28CA 28.0 31.10 34.40 5 45.4 112.3 2 5KP30A 5KP30CA 30.0 33.30 36.80 5 48.4 105.4 2 5KP33A 5KP33CA 33.0 36.70 40.60 5 53.3 95.7 2 5KP36A 5KP36CA 36.0 40.00 44.20 5 58.1 87.8 2 5KP40A 5KP40CA 40.0 44.40 49.10 5 64.5 79.1 2 www.liownsemi.com 掌握芯技术Core Technology （V3） TVS Diodes 5KP Series Electrical Characteristics (TA=25℃) Reverse Stand-Off Voltage Part Number Breakdown Voltage @IT Test Current Maximum Clamping Voltage @IPP Peak Pulse Current Reverse Leakage @VR Uni. Bi. VR(V) VB MIn.(V) VB Max.(V) IT(mA) VC(V) IPP(A) IR(μA) 5KP43A 5KP43CA 43.0 47.80 52.80 5 69.4 73.5 2 5KP45A 5KP45CA 45.0 50.00 55.30 5 72.7 70.2 2 5KP48A 5KP48CA 48.0 53.30 58.90 5 77.4 65.9 2 5KP51A 5KP51CA 51.0 56.70 62.70 5 82.4 61.9 2 5KP54A 5KP54CA 54.0 60.00 66.30 5 87.1 58.6 2 5KP58A 5KP58CA 58.0 64.40 71.20 5 93.6 54.5 2 5KP60A 5KP60CA 60.0 66.70 73.70 5 96.8 52.7 2 5KP64A 5KP64CA 64.0 71.10 78.60 5 103.0 49.5 2 5KP70A 5KP70CA 70.0 77.80 86.00 5 113.0 45.1 2 5KP75A 5KP75CA 75.0 83.30 92.10 5 121.0 42.1 2 5KP78A 5KP78CA 78.0 86.70 95.80 5 126.0 40.5 2 5KP85A 5KP85CA 85.0 94.40 104.0 5 137.0 37.2 2 5KP90A 5KP90CA 90.0 100.0 111.0 5 146.0 34.9 2 5KP100A 5KP100CA 100.0 110.0 123.0 5 162.0 31.5 2 5KP110A 5KP110CA 110.0 122.0 135.0 5 177.0 28.8 2 5KP120A 5KP120CA 120.0 133.0 147.0 5 193.0 26.4 2 5KP130A 5KP130CA 130.0 144.0 159.0 5 209.0 24.4 2 5KP150A 5KP150CA 150.0 167.0 185.0 5 243.0 21.0 2 5KP160A 5KP160CA 160.0 178.0 197.0 5 259.0 19.7 2 5KP170A 5KP170CA 170.0 189.0 209.0 5 275.0 18.5 2 5KP180A 5KP180CA 180.0 201.0 222.0 5 292.0 17.5 2 5KP190A 5KP190CA 190.0 211.0 233.0 5 310.0 16.5 2 5KP200A 5KP200CA 200.0 224.0 247.0 5 329.2 15.5 2 5KP210A 5KP210CA 210.0 237.0 263.0 5 349.5 14.6 2 5KP220A 5KP220CA 220.0 246.0 272.0 5 371.1 13.7 2 5KP250A 5KP250CA 250.0 277.0 306.0 5 425.0 12.0 2 www.liownsemi.com 掌握芯技术Core Technology （V3） TVS Diodes 5KP Series Ratings and Characteristic Curves (TA=25℃) Figure 2. Pulse Derating Curve Figure 1. Peak Pulse Power Rating Curve 1000 100 10 1 1 10 100 td-Pulse Width (µs) 1000 Figure 3. Pulse Waveform 150 Figure 4. Typical Junction Capacitance tr=10µs TJ=25℃ Pulse Width(td) is defined as the point where the peak current decays to 50% of IPPM Peak Value IPPM 100 Half Value IPPM (IPPM/2) 50 0 10/1000µs Waveform as defined by R.E.A td 0 1.0 2.0 3.0 4.0 Time (ms) Figure 5. Steady State Power Dissipation Derating Curve www.liownsemi.com Figure 6. Maximum Non-Repetitive Forward Surge Current Uni-Directional Only 掌握芯技术Core Technology （V3） TVS Diodes 5KP Series Wave Soldering 300 Preheating Maximum Wave 265℃ Soldering Cooling 250 200 150 100 Peak Temperature: 265℃ Dipping Time: 10 seconds (max.) Soldering: 1 time 50 0 0 0.5 1 1.5 2 2.5 3 3.5 4 Time (minutes) Part Number Code and Marking Code Dimensions (P600) Symbol www.liownsemi.com Millimeters Inches Min. Max. Min. Max. A 25.40 - 1.000 - B 8.60 9.10 0.340 0.360 C 8.60 9.10 0.340 0.360 d 1.19 1.35 0.047 0.053 掌握芯技术Core Technology （V3） TVS Diodes 5KP Series Packaging Specification Tape Quantity: 800pcs/reel Box Quantity：300pcs/box www.liownsemi.com 掌握芯技术Core Technology （V3）
