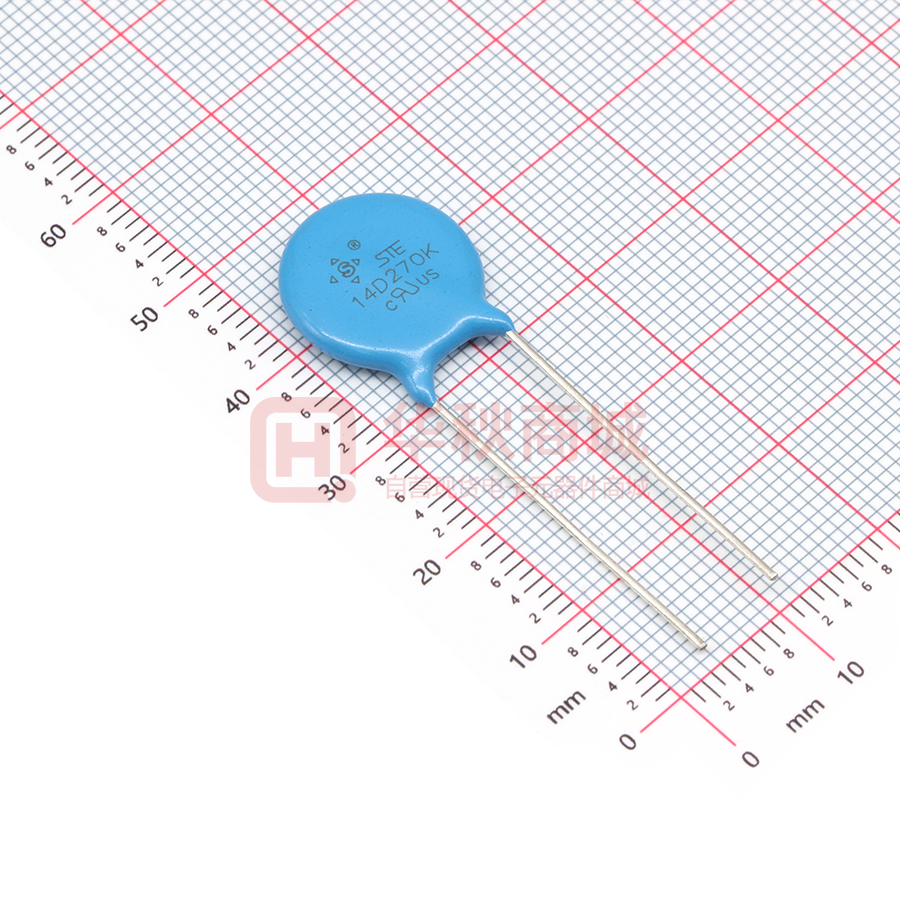

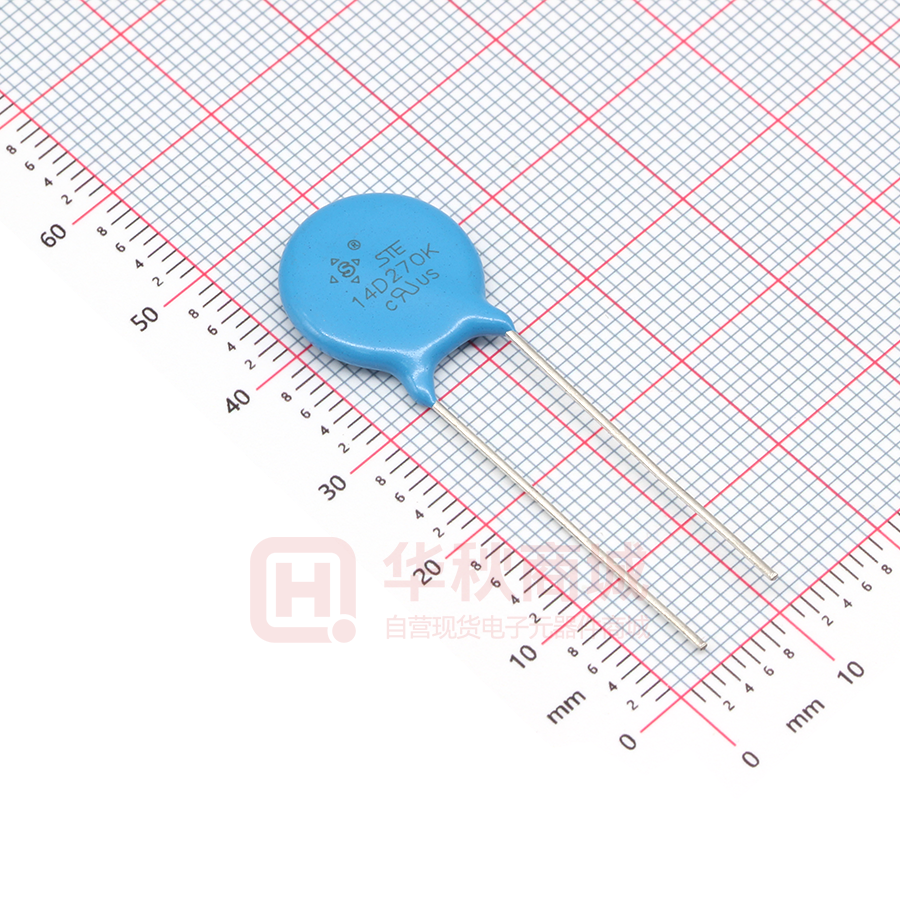

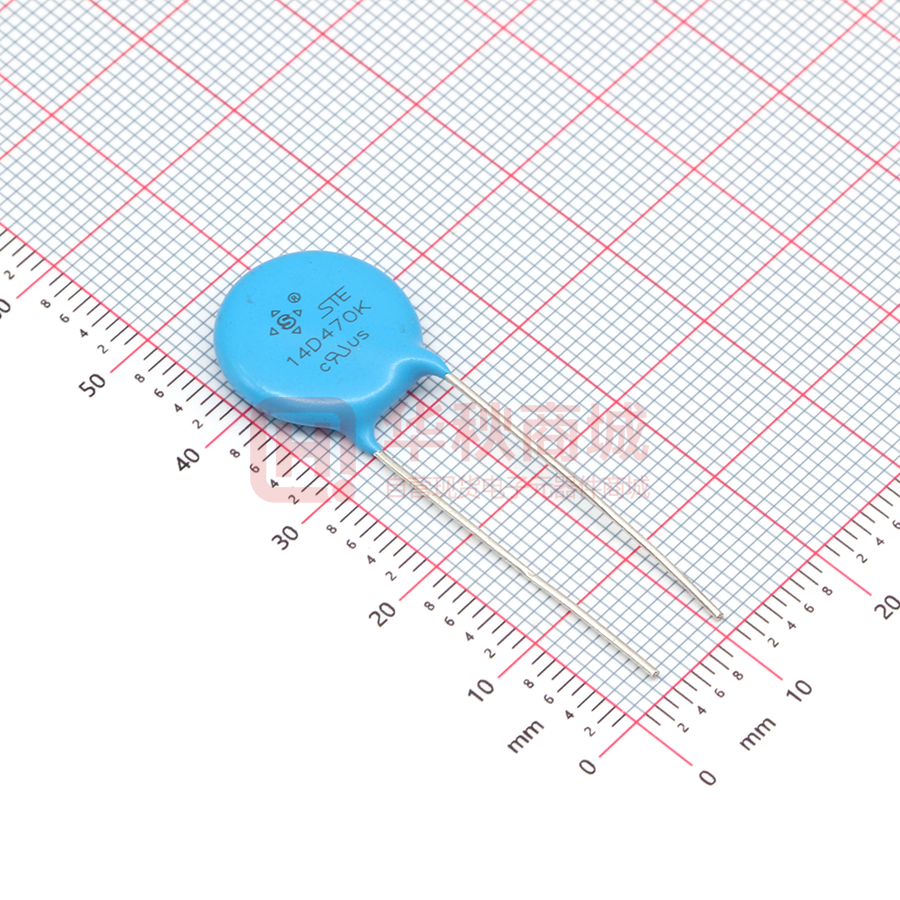

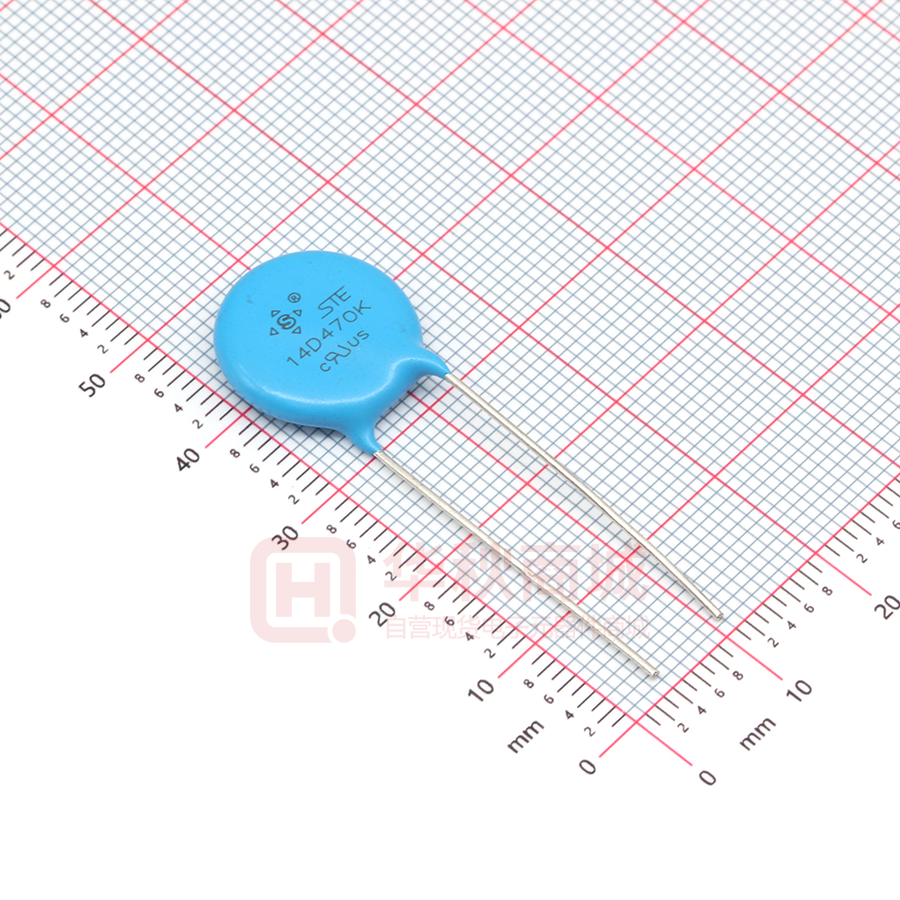

STE14D270K1EN0FSB0R0

Metal Oxide Varistors-S Series (Standard) Metal Oxide Varistors-S Series (Standard) Data Sheet Feature ■Wide operating voltage range from 18V to 1100V ■Operating Temperature: -40℃~ +105℃ ■Storage Temperature: 15℃~35℃ Applications ■The over-voltage protection for transistors, IC, SCR and semiconductor switching components and a variety of electronic, electrical equipment ■Surge absorption and over-voltage protection for household appliances ■Industrial electrical surge absorption ■Electrostatic discharge and noise signal cancellation ■Surge absorption of relays and solenoid valves ■Over-voltage protection for leakage switch ■The lightning protection and over-voltage protection for Telephone program-controlled switches and communications equipment Applicable Standard Approval Organization Safety Standards Certificate No. 5D: CQC07001020534 7D: CQC07001020533 China GB/T10193 CQC GB/T10194 10D: CQC07001020532 14D: CQC07001020531 20D: CQC07001020530 USA Canada UL UL1449 E330837 Germany VDE IEC61051 40023049 Revision: 2018-04-29 1 Email: info@songtian.cn Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) Part Number Code STE 10 Songtian (STE) D 471 Product Categories D: (Circular) Core Diameter 05:5mm 07:7mm 10:10mm 14:14mm 20:20mm Inner Management K Tolerance K:±10% E N0 Pitch B:5.0mm E:7.5mm D:10.0mm Foot Type 1:Long straight 2:Outside Crimped 3:Short Straight 8:Vertical Crimped Nominal Varistor Voltage 220:22V 471:470V 122:1200V Revision: 2018-04-29 1 F S B Package B: Bulk T:Tape 0 R 0 Environmental Standard R：RoHS F：RoHS+Halogen-Free Style S: Standard Lead Material F: Tinned copper clad steel wire C:Copper wire Lead Length S0~S9:1.0~1.9mm X0~X9:2.0~2.9mm A0~A9:3.0~3.9mm B0~B9:4.0~4.9mm C0~C9:5.0~5.9mm D0~D9:6.0~6.9mm E0~E9:7.0~7.9mm 2 Lead Length F0~F9:8.0~8.9mm G0~G9:9.0~9.9mm H0~H9:10.0~10.9mm J0~J9:11.0~11.9mm K0~K9:12.0~12.9mm L0~L9:13.0~13.9mm M0~M9:14.0~14.9mm Email: info@songtian.cn Lead Length M0~M9:14.0~14.9mm N0:16~27.0mm(Bulk) Crimped Lead Taped N0:H0=16.5mm P0:H0=17.0mm Q0:H0=19.0mm Straight Lead Q0:20.0mm Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) Electrical Characteristics 5D-S Series Part Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage Peak Current Rating(8/20μs) Maximum Energy (10/1000μs) Rated Power Typical Capacitance (Reference) ACrms (V) DCrms (V) V0.1mA (V) VC (V) IP (A) 1 pulse (A) 2 pulse (A) (J) (W) 1KHz (pF) STE-05D180KS 11 14 18(15-21.6) 40 1 100 50 0.4 0.01 1400 STE-05D220KS 14 18 22(19.5-26) 48 1 100 50 0.5 0.01 1150 STE-05D270KS 17 22 27(24-31) 60 1 100 50 0.6 0.01 930 STE-05D330KS 20 26 33(29.5-36.5) 73 1 100 50 0.8 0.01 760 STE-05D390KS 25 31 39(35-43) 80 1 100 50 0.9 0.01 640 STE-05D470KS 30 38 47(42-52) 104 1 100 50 1.1 0.01 530 STE-05D560KS 35 45 56(50-62) 123 1 100 50 1.3 0.01 450 STE-05D680KS 40 56 68(61-75) 145 1 100 50 1.6 0.01 370 STE-05D820KS 50 65 82(74-90) 150 5 400 200 2.5 0.1 300 STE-05D101KS 60 85 100(90-110) 175 5 400 200 3.0 0.1 250 STE-05D121KS 75 100 120(108-132) 210 5 400 200 3.5 0.1 210 STE-05D151KS 95 125 150(135-165) 260 5 400 200 4.5 0.1 165 STE-05D181KS 115 150 180(162-198) 320 5 400 200 5.9 0.1 140 STE-05D201KS 130 170 200(180-220) 355 5 400 200 6.5 0.1 125 STE-05D221KS 140 180 220(198-242) 380 5 400 200 7.0 0.1 110 STE-05D241KS 150 200 240(216-264) 415 5 400 200 8.0 0.1 100 STE-05D271KS 175 225 270(243-297) 475 5 400 200 8.5 0.1 95 STE-05D301KS 190 250 300(270-330) 520 5 400 200 9.0 0.1 85 STE-05D331KS 210 275 330(297-363) 570 5 400 200 9.5 0.1 75 STE-05D361KS 230 300 360(324-396) 620 5 400 200 10.0 0.1 70 STE-05D391KS 250 320 390(351-429) 675 5 400 200 12.0 0.1 65 STE-05D431KS 275 350 430(387-473) 745 5 400 200 13.0 0.1 60 STE-05D471KS 300 385 470(423-517) 810 5 400 200 15.0 0.1 55 STE-05D511KS 320 415 510(459-561) 845 5 400 200 16.0 0.1 50 STE-05D561KS 350 460 560(504-616) 920 5 400 200 16.8 0.1 45 STE-05D621KS 385 505 620(558-682) 1025 5 400 200 17.7 0.1 40 STE-05D681KS 420 560 680(612-748) 1120 5 400 200 19.4 0.1 38 Revision: 2018-04-29 3 Email: info@songtian.cn Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) 7D-S Series Part Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage Peak Current Rating(8/20μs) Maximum Energy (10/1000μs) Rated Power Typical Capacitance (Reference) ACrms (V) DCrms (V) V1mA (V) VC (V) IP (A) 1 pulse (A) 2 pulse (A) (J) (W) 1KHz (pF) STE-07D180KS 11 14 18(15-21.6) 36 2.5 250 125 0.9 0.02 2800 STE-07D220KS 14 18 22(19.5-26) 43 2.5 250 125 1.1 0.02 2300 STE-07D270KS 17 22 27(24-31) 53 2.5 250 125 1.4 0.02 1800 STE-07D330KS 20 26 33(29.5-36.5) 65 2.5 250 125 1.7 0.02 1500 STE-07D390KS 25 31 39(35-43) 77 2.5 250 125 2.1 0.02 1300 STE-07D470KS 30 38 47(42-52) 93 2.5 250 125 2.5 0.02 1100 STE-07D560KS 35 45 56(50-62) 110 2.5 250 125 3.1 0.02 890 STE-07D680KS 40 56 68(61-75) 135 2.5 250 125 3.6 0.02 740 STE-07D820KS 50 65 82(74-90) 135 10 1200 600 5.5 0.25 810 STE-07D101KS 60 85 100(90-110) 165 10 1200 600 6.5 0.25 700 STE-07D121KS 75 100 120(108-132) 200 10 1200 600 7.8 0.25 590 STE-07D151KS 95 125 150(135-165) 250 10 1200 600 9.7 0.25 500 STE-07D181KS 115 150 180(162-198) 300 10 1200 600 11.7 0.25 280 STE-07D201KS 130 170 200(180-220) 340 10 1200 600 13.0 0.25 200 STE-07D221KS 140 180 220(198-242) 360 10 1200 600 14.0 0.25 190 STE-07D241KS 150 200 240(216-264) 395 10 1200 600 15.0 0.25 170 STE-07D271KS 175 225 270(243-297) 455 10 1200 600 18.0 0.25 150 STE-07D301KS 190 250 300(270-330) 500 10 1200 600 20.0 0.25 140 STE-07D331KS 210 275 330(297-363) 550 10 1200 600 23.0 0.25 130 STE-07D361KS 230 300 360(324-396) 595 10 1200 600 24.0 0.25 130 STE-07D391KS 250 320 390(351-429) 650 10 1200 600 26.0 0.25 130 STE-07D431KS 275 350 430(387-473) 710 10 1200 600 28.0 0.25 120 STE-07D471KS 300 385 470(423-517) 775 10 1200 600 29.0 0.25 100 STE-07D511KS 320 415 510(459-561) 845 10 1200 600 31.0 0.25 90 STE-07D561KS 350 460 560(504-616) 925 10 1200 600 35.0 0.25 90 STE-07D621KS 385 505 620(558-682) 1025 10 1200 600 38.0 0.25 80 STE-07D681KS 420 560 680(612-748) 1120 10 1200 600 42.0 0.25 75 Revision: 2018-04-29 4 Email: info@songtian.cn Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) 10D-S Series Part Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage Peak Current Rating(8/20μs) Maximum Energy (10/1000μs) Rated Power Typical Capacitance (Reference) ACrms (V) DCrms (V) V1mA (V) VC (V) IP (A) 1 pulse (A) 2 pulse (A) (J) (W) 1KHz (pF) STE-10D180KS 11 14 18(15-21.6) 36 5 500 250 2.1 0.05 5600 STE-10D220KS 14 18 22(19.5-26) 43 5 500 250 2.5 0.05 4500 STE-10D270KS 17 22 27(24-31) 53 5 500 250 3.0 0.05 3700 STE-10D330KS 20 26 33(29.5-36.5) 65 5 500 250 4.0 0.05 3000 STE-10D390KS 25 31 39(35-43) 77 5 500 250 4.6 0.05 2400 STE-10D470KS 30 38 47(42-52) 93 5 500 250 5.5 0.05 2100 STE-10D560KS 35 45 56(50-62) 110 5 500 250 7.0 0.05 1800 STE-10D680KS 40 56 68(61-75) 135 5 500 250 8.2 0.05 1500 STE-10D820KS 50 65 82(74-90) 135 25 2500 1250 12.0 0.4 2000 STE-10D101KS 60 85 100(90-110) 165 25 2500 1250 15.0 0.4 1700 STE-10D121KS 75 100 120(108-132) 200 25 2500 1250 18.0 0.4 1400 STE-10D151KS 95 125 150(135-165) 250 25 2500 1250 22.0 0.4 1100 STE-10D181KS 115 150 180(162-198) 300 25 2500 1250 27.0 0.4 560 STE-10D201KS 130 170 200(180-220) 340 25 2500 1250 30.0 0.4 430 STE-10D221KS 140 180 220(198-242) 360 25 2500 1250 32.0 0.4 410 STE-10D241KS 150 200 240(216-264) 395 25 2500 1250 35.0 0.4 380 STE-10D271KS 175 225 270(243-297) 455 25 2500 1250 37.0 0.4 350 STE-10D301KS 190 250 300(270-330) 500 25 2500 1250 40.0 0.4 330 STE-10D331KS 210 275 330(297-363) 550 25 2500 1250 43.0 0.4 300 STE-10D361KS 230 300 360(324-396) 595 25 2500 1250 47.0 0.4 300 STE-10D391KS 250 320 390(351-429) 650 25 2500 1250 60.0 0.4 300 STE-10D431KS 275 350 430(387-473) 710 25 2500 1250 65.0 0.4 270 STE-10D471KS 300 385 470(423-517) 775 25 2500 1250 67.0 0.4 230 STE-10D511KS 320 415 510(459-561) 845 25 2500 1250 69.0 0.4 210 STE-10D561KS 350 460 560(504-616) 925 25 2500 1250 70.0 0.4 180 STE-10D621KS 385 505 620(558-682) 1025 25 2500 1250 72.0 0.4 190 STE-10D681KS 420 560 680(612-748) 1120 25 2500 1250 75.0 0.4 170 STE-10D751KS 460 615 750(675-825) 1240 25 2500 1250 77.0 0.4 160 STE-10D781KS 485 640 780(702-858) 1290 25 2500 1250 80.0 0.4 125 STE-10D821KS 510 670 820(738-902) 1355 25 2500 1250 85.0 0.4 140 STE-10D911KS 550 745 910(819-1001) 1500 25 2500 1250 93.0 0.4 120 STE-10D102KS 625 825 1000(900-1100) 1650 25 2500 1250 102.0 0.4 110 STE-10D112KS 680 895 1100(990-1210) 1815 25 2500 1250 115.0 0.4 90 Revision: 2018-04-29 5 Email: info@songtian.cn Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) 14D-S Series Part Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage Peak Current Rating(8/20μs) Maximum Energy (10/1000μs) Rated Power Typical Capacitance (Reference) ACrms (V) DCrms (V) V1mA (V) VC (V) IP (A) 1 pulse (A) 2 pulse (A) (J) (W) 1KHz (pF) STE-14D180KS 11 14 18(15-21.6) 36 10 1000 500 4.0 0.1 11100 STE-14D220KS 14 18 22(19.5-26) 43 10 1000 500 5.0 0.1 9100 STE-14D270KS 17 22 27(24-31) 53 10 1000 500 6.0 0.1 7400 STE-14D330KS 20 26 33(29.5-36.5) 65 10 1000 500 7.5 0.1 6100 STE-14D390KS 25 31 39(35-43) 77 10 1000 500 8.6 0.1 5100 STE-14D470KS 30 38 47(42-52) 93 10 1000 500 10.0 0.1 4300 STE-14D560KS 35 45 56(50-62) 110 10 1000 500 11.0 0.1 3600 STE-14D680KS 40 56 68(61-75) 135 10 1000 500 14.0 0.1 2900 STE-14D820KS 50 65 82(74-90) 135 50 4500 2500 22.0 0.6 3700 STE-14D101KS 60 85 100(90-110) 165 50 4500 2500 28.0 0.6 3200 STE-14D121KS 75 100 120(108-132) 200 50 4500 2500 32.0 0.6 2700 STE-14D151KS 95 125 150(135-165) 250 50 4500 2500 40.0 0.6 2200 STE-14D181KS 115 150 180(162-198) 300 50 4500 2500 50.0 0.6 1100 STE-14D201KS 130 170 200(180-220) 340 50 4500 2500 57.0 0.6 770 STE-14D221KS 140 180 220(198-242) 360 50 4500 2500 60.0 0.6 740 STE-14D241KS 150 200 240(216-264) 395 50 4500 2500 63.0 0.6 700 STE-14D271KS 175 225 270(243-297) 455 50 4500 2500 70.0 0.6 640 STE-14D301KS 190 250 300(270-330) 500 50 4500 2500 77.0 0.6 670 STE-14D331KS 210 275 330(297-363) 550 50 4500 2500 85.0 0.6 580 STE-14D361KS 230 300 360(324-396) 595 50 4500 2500 93.0 0.6 540 STE-14D391KS 250 320 390(351-429) 650 50 4500 2500 100 0.6 500 STE-14D431KS 275 350 430(387-473) 710 50 4500 2500 115 0.6 450 STE-14D471KS 300 385 470(423-517) 775 50 4500 2500 118 0.6 400 STE-14D511KS 320 415 510(459-561) 845 50 4500 2500 121 0.6 350 STE-14D561KS 350 460 560(504-616) 925 50 4500 2500 125 0.6 360 STE-14D621KS 385 505 620(558-682) 1025 50 4500 2500 128 0.6 330 STE-14D681KS 420 560 680(612-748) 1120 50 4500 2500 130 0.6 320 STE-14D751KS 460 615 750(675-825) 1240 50 4500 2500 143 0.6 310 STE-14D781KS 485 640 780(702-858) 1290 50 4500 2500 148 0.6 260 STE-14D821KS 510 670 820(738-902) 1355 50 4500 2500 157 0.6 280 STE-14D911KS 550 745 910(819-1001) 1500 50 4500 2500 175 0.6 250 STE-14D102KS 625 825 1000(900-1100) 1650 50 4500 2500 190 0.6 230 STE-14D112KS 680 895 1100(990-1210) 1815 50 4500 2500 213 0.6 180 Revision: 2018-04-29 6 Email: info@songtian.cn Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) 20D-S Series Part Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage Maximum Energy (10/1000μs) Rated Power Typical Capacitance (Reference) 2 pulse (A) (J) (W) 1KHz (pF) Peak Current Rating(8/20μs) ACrms (V) DCrms (V) V1mA (V) VC (V) IP (A) 1 pulse (A) STE-20D180KS 11 14 18(15-21.6) 36 20 2000 1000 11 0.2 28500 STE-20D220KS 14 18 22(19.5-26) 43 20 2000 1000 14 0.2 18500 STE-20D270KS 17 22 27(24-31) 53 20 2000 1000 16 0.2 13000 STE-20D330KS 20 26 33(29.5-36.5) 65 20 2000 1000 23 0.2 11500 STE-20D390KS 25 31 39(35-43) 77 20 2000 1000 26 0.2 8500 STE-20D470KS 30 38 47(42-52) 93 20 2000 1000 30 0.2 7400 STE-20D560KS 35 45 56(50-62) 110 20 2000 1000 38 0.2 6500 STE-20D680KS 40 56 68(61-75) 135 20 2000 1000 41 0.2 5800 STE-20D820KS 50 65 82(74-90) 135 100 6500 4500 45 1.0 7500 STE-20D101KS 60 85 100(90-110) 165 100 6500 4500 50 1.0 6500 STE-20D121KS 75 100 120(108-132) 200 100 6500 4500 55 1.0 5500 STE-20D151KS 95 125 150(135-165) 250 100 6500 4500 70 1.0 4500 STE-20D181KS 115 150 180(162-198) 300 100 6500 4500 85 1.0 2200 STE-20D201KS 130 170 200(180-220) 340 100 6500 4500 95 1.0 1700 STE-20D221KS 140 180 220(198-242) 360 100 6500 4500 100 1.0 1600 STE-20D241KS 150 200 240(216-264) 395 100 6500 4500 108 1.0 1500 STE-20D271KS 175 225 270(243-297) 455 100 6500 4500 127 1.0 1300 STE-20D301KS 190 250 300(270-330) 500 100 6500 4500 136 1.0 1300 STE-20D331KS 210 275 330(297-363) 550 100 6500 4500 150 1.0 1100 STE-20D361KS 230 300 360(324-396) 595 100 6500 4500 163 1.0 1100 STE-20D391KS 250 320 390(351-429) 650 100 6500 4500 180 1.0 1100 STE-20D431KS 275 350 430(387-473) 710 100 6500 4500 190 1.0 1000 STE-20D471KS 300 385 470(423-517) 775 100 6500 4500 204 1.0 900 STE-20D511KS 320 415 510(459-561) 845 100 6500 4500 210 1.0 800 STE-20D561KS 350 460 560(504-616) 925 100 6500 4500 215 1.0 710 STE-20D621KS 385 505 620(558-682) 1025 100 6500 4500 224 1.0 700 STE-20D681KS 420 560 680(612-748) 1120 100 6500 4500 230 1.0 650 STE-20D751KS 460 615 750(675-825) 1240 100 6500 4500 255 1.0 600 STE-20D781KS 485 640 780(702-858) 1290 100 6500 4500 265 1.0 510 STE-20D821KS 510 670 820(738-902) 1355 100 6500 4500 282 1.0 530 STE-20D911KS 550 745 910(819-1001) 1500 100 6500 4500 310 1.0 500 STE-20D102KS 625 825 1000(900-1100) 1650 100 6500 4500 342 1.0 450 STE-20D112KS 680 895 1100(990-1210) 1815 100 6500 4500 383 1.0 360 Revision: 2018-04-29 7 Email: info@songtian.cn Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) Dimensions (mm) and Approval 5D-S Series Size (mm) Part No. cUL (Canada) D Max. T Max. F±0.8 d±0.05 STE-05D180KS 7.5 3.0 5.0 0.5 √ √ STE-05D220KS 7.5 3.5 5.0 0.5 √ √ STE-05D270KS 7.5 3.5 5.0 0.5 √ √ STE-05D330KS 7.5 3.5 5.0 0.5 √ √ STE-05D390KS 7.5 3.5 5.0 0.5 √ √ STE-05D470KS 7.5 4.0 5.0 0.5 STE-05D560KS 7.5 4.0 5.0 0.5 STE-05D680KS 7.5 4.5 5.0 0.5 STE-05D820KS 7.5 3.5 5.0 0.5 √ √ √ STE-05D101KS 7.5 3.5 5.0 0.5 √ √ √ STE-05D121KS 7.5 3.5 5.0 0.5 √ √ √ STE-05D151KS 7.5 3.5 5.0 0.5 √ √ √ STE-05D181KS 7.5 4.0 5.0 0.5 √ √ √ STE-05D201KS 7.5 4.0 5.0 0.5 √ √ √ STE-05D221KS 7.5 4.0 5.0 0.5 √ √ STE-05D241KS 7.5 4.0 5.0 0.5 √ √ STE-05D271KS 7.5 4.0 5.0 0.5 √ √ STE-05D301KS 7.5 4.5 5.0 0.5 √ √ STE-05D331KS 7.5 4.5 5.0 0.5 √ √ STE-05D361KS 7.5 4.5 5.0 0.5 √ √ STE-05D391KS 7.5 5.0 5.0 0.5 √ √ STE-05D431KS 7.5 4.5 5.0 0.5 √ √ STE-05D471KS 7.5 4.5 5.0 0.5 √ √ STE-05D511KS 7.5 5.0 5.0 0.5 √ √ STE-05D561KS 7.5 5.0 5.0 0.5 √ √ STE-05D621KS 7.5 5.0 5.0 0.5 STE-05D681KS 7.5 5.5 5.0 0.5 Revision: 2018-04-29 8 CQC Approval UL VDE (USA) Email: info@songtian.cn Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) 7D-S Series Size (mm) Part No. Approval UL (USA) cUL (Canada) 0.5 √ √ 5.0 0.5 √ √ 3.5 5.0 0.5 √ √ 9.0 3.5 5.0 0.5 √ √ STE-07D390KS 9.0 3.5 5.0 0.5 √ √ STE-07D470KS 9.0 4.0 5.0 0.5 √ √ STE-07D560KS 9.0 4.0 5.0 0.5 √ √ STE-07D680KS 9.0 4.5 5.0 0.5 √ √ STE-07D820KS 9.0 3.5 5.0 0.5 √ √ √ √ STE-07D101KS 9.0 3.5 5.0 0.5 √ √ √ √ STE-07D121KS 9.0 3.5 5.0 0.5 √ √ √ √ STE-07D151KS 9.0 3.5 5.0 0.5 √ √ √ √ STE-07D181KS 9.0 4.0 5.0 0.5 √ √ √ √ STE-07D201KS 9.0 4.0 5.0 0.5 √ √ √ √ STE-07D221KS 9.0 4.5 5.0 0.5 √ √ √ √ STE-07D241KS 9.0 4.0 5.0 0.5 √ √ √ √ STE-07D271KS 9.0 4.0 5.0 0.5 √ √ √ √ STE-07D301KS 9.0 4.5 5.0 0.5 √ √ √ √ STE-07D331KS 9.0 4.5 5.0 0.5 √ √ √ √ STE-07D361KS 9.0 4.5 5.0 0.5 √ √ √ √ STE-07D391KS 9.0 5.0 5.0 0.5 √ √ √ √ STE-07D431KS 9.0 4.5 5.0 0.5 √ √ √ √ STE-07D471KS 9.0 4.5 5.0 0.5 √ √ √ √ STE-07D511KS 9.0 5.0 5.0 0.5 √ √ √ √ STE-07D561KS 9.0 5.0 5.0 0.5 √ √ √ √ STE-07D621KS 9.0 5.0 5.0 0.5 √ √ √ √ STE-07D681KS 9.0 5.5 5.0 0.5 √ √ √ √ D Max. T Max. F±0.8 d±0.05 STE-07D180KS 9.0 3.5 5.0 STE-07D220KS 9.0 3.5 STE-07D270KS 9.0 STE-07D330KS Revision: 2018-04-29 9 CQC Email: info@songtian.cn VDE Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) 10D-S Series Size (mm) Part No. Approval UL (USA) cUL (Canada) 0.7 √ √ 7.5 0.7 √ √ 4.0 7.5 0.7 √ √ 12.5 4.0 7.5 0.7 √ √ STE-10D390KS 12.5 4.0 7.5 0.7 √ √ STE-10D470KS 12.5 4.0 7.5 0.7 √ √ STE-10D560KS 12.5 4.5 7.5 0.7 √ √ STE-10D680KS 12.5 5.0 7.5 0.7 √ √ STE-10D820KS 12.5 4.0 7.5 0.7 √ √ √ √ STE-10D101KS 12.5 4.0 7.5 0.7 √ √ √ √ STE-10D121KS 12.5 4.0 7.5 0.7 √ √ √ √ STE-10D151KS 12.5 4.5 7.5 0.7 √ √ √ √ STE-10D181KS 12.5 4.5 7.5 0.7 √ √ √ √ STE-10D201KS 12.5 4.5 7.5 0.7 √ √ √ √ STE-10D221KS 12.5 4.5 7.5 0.7 √ √ √ √ STE-10D241KS 12.5 4.5 7.5 0.7 √ √ √ √ STE-10D271KS 12.5 4.5 7.5 0.7 √ √ √ √ STE-10D301KS 12.5 5.0 7.5 0.7 √ √ √ √ STE-10D331KS 12.5 5.0 7.5 0.7 √ √ √ √ STE-10D361KS 12.5 5.0 7.5 0.7 √ √ √ √ STE-10D391KS 12.5 5.0 7.5 0.7 √ √ √ √ STE-10D431KS 12.5 5.0 7.5 0.7 √ √ √ √ STE-10D471KS 12.5 5.0 7.5 0.7 √ √ √ √ STE-10D511KS 12.5 5.5 7.5 0.7 √ √ √ √ STE-10D561KS 12.5 5.5 7.5 0.7 √ √ √ √ STE-10D621KS 12.5 5.5 7.5 0.7 √ √ √ √ STE-10D681KS 12.5 6.0 7.5 0.7 √ √ √ √ STE-10D751KS 12.5 6.0 7.5 0.7 √ √ √ √ STE-10D781KS 12.5 6.5 7.5 0.7 √ √ STE-10D821KS 12.5 6.5 7.5 0.7 √ √ √ √ STE-10D911KS 12.5 7.0 7.5 0.7 √ √ √ √ STE-10D102KS 12.5 7.5 7.5 0.7 √ √ √ √ STE-10D112KS 12.5 7.5 7.5 0.7 √ √ √ D Max. T Max. F±0.8 d±0.05 STE-10D180KS 12.5 3.5 7.5 STE-10D220KS 12.5 3.5 STE-10D270KS 12.5 STE-10D330KS Revision: 2018-04-29 10 CQC Email: info@songtian.cn VDE Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) 14D-S Series Size (mm) Part No. Approval UL (USA) cUL (Canada) 0.7 √ √ 7.5 0.7 √ √ 4.0 7.5 0.7 √ √ 16.5 4.0 7.5 0.7 √ √ STE-14D390KS 16.5 4.0 7.5 0.7 √ √ STE-14D470KS 16.5 4.0 7.5 0.7 √ √ STE-14D560KS 16.5 4.5 7.5 0.7 √ √ STE-14D680KS 16.5 5.0 7.5 0.7 √ √ STE-14D820KS 16.5 4.0 7.5 0.7 √ √ √ √ STE-14D101KS 16.5 4.0 7.5 0.7 √ √ √ √ STE-14D121KS 16.5 4.0 7.5 0.7 √ √ √ √ STE-14D151KS 16.5 4.5 7.5 0.7 √ √ √ √ STE-14D181KS 16.5 4.5 7.5 0.7 √ √ √ √ STE-14D201KS 16.5 4.5 7.5 0.7 √ √ √ √ STE-14D221KS 16.5 4.5 7.5 0.7 √ √ √ √ STE-14D241KS 16.5 4.5 7.5 0.7 √ √ √ √ STE-14D271KS 16.5 4.5 7.5 0.7 √ √ √ √ STE-14D301KS 16.5 5.0 7.5 0.7 √ √ √ √ STE-14D331KS 16.5 5.0 7.5 0.7 √ √ √ √ STE-14D361KS 16.5 5.0 7.5 0.7 √ √ √ √ STE-14D391KS 16.5 5.0 7.5 0.7 √ √ √ √ STE-14D431KS 16.5 5.0 7.5 0.7 √ √ √ √ STE-14D471KS 16.5 5.0 7.5 0.7 √ √ √ √ STE-14D511KS 16.5 5.5 7.5 0.7 √ √ √ √ STE-14D561KS 16.5 5.5 7.5 0.7 √ √ √ √ STE-14D621KS 16.5 5.5 7.5 0.7 √ √ √ √ STE-14D681KS 16.5 6.0 7.5 0.7 √ √ √ √ STE-14D751KS 16.5 6.0 7.5 0.7 √ √ √ √ STE-14D781KS 16.5 6.5 7.5 0.7 √ √ STE-14D821KS 16.5 6.5 7.5 0.7 √ √ √ √ STE-14D911KS 16.5 7.0 7.5 0.7 √ √ √ √ STE-14D102KS 16.5 7.5 7.5 0.7 √ √ √ √ STE-14D112KS 16.5 7.5 7.5 0.7 √ √ √ D Max. T Max. F±0.8 d±0.05 STE-14D180KS 16.5 3.5 7.5 STE-14D220KS 16.5 3.5 STE-14D270KS 16.5 STE-14D330KS Revision: 2018-04-29 11 CQC Email: info@songtian.cn VDE Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) 20D-S Series Size (mm) Part No. Approval d±0.05 D Max. T Max. F±0.8 STE-20D180KS 23.0 4.0 STE-20D220KS 23.0 STE-20D270KS CQC VDE UL (USA) cUL (Canada) Straight lead Crimped lead 10.0 1.0 0.7 √ √ 4.0 10.0 1.0 0.7 √ √ 23.0 4.5 10.0 1.0 0.7 √ √ STE-20D330KS 23.0 4.5 10.0 1.0 0.7 √ √ STE-20D390KS 23.0 4.5 10.0 1.0 0.7 √ √ STE-20D470KS 23.0 5.0 10.0 1.0 0.7 √ √ STE-20D560KS 23.0 5.0 10.0 1.0 0.7 √ √ STE-20D680KS 23.0 5.5 10.0 1.0 0.7 √ √ STE-20D820KS 23.0 4.0 10.0 1.0 0.7 √ √ √ √ STE-20D101KS 23.0 4.5 10.0 1.0 0.7 √ √ √ √ STE-20D121KS 23.0 4.5 10.0 1.0 0.7 √ √ √ √ STE-20D151KS 23.0 5.0 10.0 1.0 0.7 √ √ √ √ STE-20D181KS 23.0 5.0 10.0 1.0 0.7 √ √ √ √ STE-20D201KS 23.0 5.0 10.0 1.0 0.7 √ √ √ √ STE-20D221KS 23.0 5.5 10.0 1.0 0.7 √ √ √ √ STE-20D241KS 23.0 5.0 10.0 1.0 0.7 √ √ √ √ STE-20D271KS 23.0 5.0 10.0 1.0 0.7 √ √ √ √ STE-20D301KS 23.0 5.5 10.0 1.0 0.7 √ √ √ √ STE-20D331KS 23.0 5.5 10.0 1.0 0.7 √ √ √ √ STE-20D361KS 23.0 5.5 10.0 1.0 0.7 √ √ √ √ STE-20D391KS 23.0 5.5 10.0 1.0 0.7 √ √ √ √ STE-20D431KS 23.0 5.5 10.0 1.0 0.7 √ √ √ √ STE-20D471KS 23.0 5.5 10.0 1.0 0.7 √ √ √ √ STE-20D511KS 23.0 6.0 10.0 1.0 0.7 √ √ √ √ STE-20D561KS 23.0 6.0 10.0 1.0 0.7 √ √ √ √ STE-20D621KS 23.0 6.5 10.0 1.0 0.7 √ √ √ √ STE-20D681KS 23.0 6.5 10.0 1.0 0.7 √ √ √ √ STE-20D751KS 23.0 7.0 10.0 1.0 0.7 √ √ √ √ STE-20D781KS 23.0 7.0 10.0 1.0 0.7 √ √ STE-20D821KS 23.0 7.0 10.0 1.0 0.7 √ √ √ √ STE-20D911KS 23.0 7.5 10.0 1.0 0.7 √ √ √ √ STE-20D102KS 23.0 8.0 10.0 1.0 0.7 √ √ √ √ STE-20D112KS 23.0 8.0 10.0 1.0 0.7 √ √ √ Revision: 2018-04-29 12 Email: info@songtian.cn Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) Lead Configuration Lead Length L (mm) Coating Lead Length C (mm) Height H (mm) Long Straight 16.0 min 3.0 Max / Short Straight ①[2.5≤L＜6.0]+/-0.5; ②[6.0≤L≤10]+/-1.0 3.0 Max / Outside Crimped ①[2.5≤L＜6.0]+/-0.5; ②[6.0≤L≤10]+/-1.0 Not exceed the bend point 5.5mm Max Vertical Crimped ①[2.5≤L＜6.0]+/-0.5; ②[6.0≤L≤10]+/-1.0 Not exceed the bend point 4.5mm Max Lead Style Revision: 2018-04-29 Drawing 13 Email: info@songtian.cn Website: http://www.songtian-ste.com Metal Oxide Varistors-S Series (Standard) Taping And Dimensions (mm) Fig.1 Fig.2 Figure Fig.1 (P=5.0) Symbol P=5.0 P=7.5 P=10.0 Po 12.7±0.3 12.7±0.3 12.7±0.3 P 12.7±1.0 25.4±1.0 25.4±1.0 P1 3.85±0.7 8.95±0.7 7.7±0.7 P2 6.35±1.3 12.7±1.3 12.7±1.3 F 5±0.8 7.5±0.8 10.0±0.8 Δh 0±2.0 0±2.0 0±2.0 W 18.0+1.5/-1.0 18.0 +1.5/-1.0 18.0 +1.5/-1.0 Wo 10.5 Max 10.5 Max 10.5 Max W1 9.0+0.75/-0.5 9.0+0.75/-0.5 9.0+0.75/-0.5 W2 3.0 Max 3.0 Max 3.0 Max Do 4.0±0.2 4.0±0.2 4.0±0.2 H 20+1.5/-1.0 20+1.5/-1.0 20+1.5/-1.0 16.5&17.0&19.0 16.5&17.0&19.0 16.5&17.0&19.0 Ho +1.5/-1.0 +1.5/-1.0 +1.5/-1.0 Straight Lead Crimped Lead Straight Lead Crimped Lead Straight Lead Crimped Lead 11.0 Max 9.0 Max 11.0 Max 9.0 Max 11.0 Max 9.0 Max L Fig.2 (P=7.5 & 10) Revision: 2018-04-29 t1 0.5±0.2 0.5±0.2 0.5±0.2 t2 1.7 Max 1.7 Max 1.7 Max 14 Email: info@songtian.cn Website: http://www.songtian-ste.com
