Data Sheet
PR033xxVBHC
Page 1/5
P/N
312241xx
xx=number of poles
2013/12/05

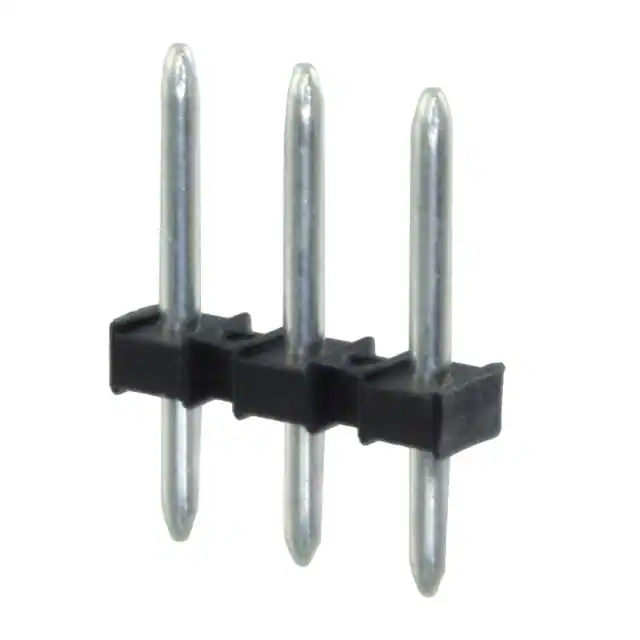

Illustration
see enlarged drawing at the end of the document
Product specification
• pin header, THR solderable
• centerline 3.50 mm, direction of connection vertical 0°
• fittable without loss of poles
• color black
• Tape & Reel packaging
• Connection data
V / A 300 / 15
6 A / 200 V / 2.5 kV / 3 / IEC 61984
Page 2/5
P/N
312241xx
xx=number of poles
2013/12/05
Data Sheet
PR033xxVBHC
Technical Data
General Data
Solder pin length
min. number of poles
max. number of poles
Insulating material class
clearance/creepage dist.
protection category
Overvoltage category
Pollution degree
Rated voltage
Rated test voltage
3.6 mm
2
24
CTI 600
2.5 mm
IP 00
III
3
200 V
2.5 kV
III
2
500 V
2.5 kV
II
2
500 V
2.5 kV
Connection data
V/A
300 / 15
6 A / 200 V / 2.5 kV / 3 / IEC 61984
Material
insulating material
flammability class
contact pin material
contact pin surface
PA46
V0
CuZn
Ni + Ag
Climatic properties
upper limit temperature
lower limit temperature
105 °C
-40 °C
General
solderability
Tolerance
For THR products acc. to IPC/JEDEC J-STD-020D-MSL 1 | For THT products max.
260 °C / 10 s
ISO 2768 -mH
Page 3/5
P/N
312241xx
xx=number of poles
2013/12/05
Data Sheet
PR033xxVBHC
Matching Part to
P/N
311661
Product name
RP023xxHBWC Typ 166
Data Sheet
PR033xxVBHC
Illustration
Drawing
L=(pole size - 1) x centerline + 2.7 [0.106]
Page 4/5
P/N
312241xx
xx=number of poles
2013/12/05
Data Sheet
PR033xxVBHC
PCB Layout
Powered by TCPDF (www.tcpdf.org)
Page 5/5
P/N
312241xx
xx=number of poles
2013/12/05
