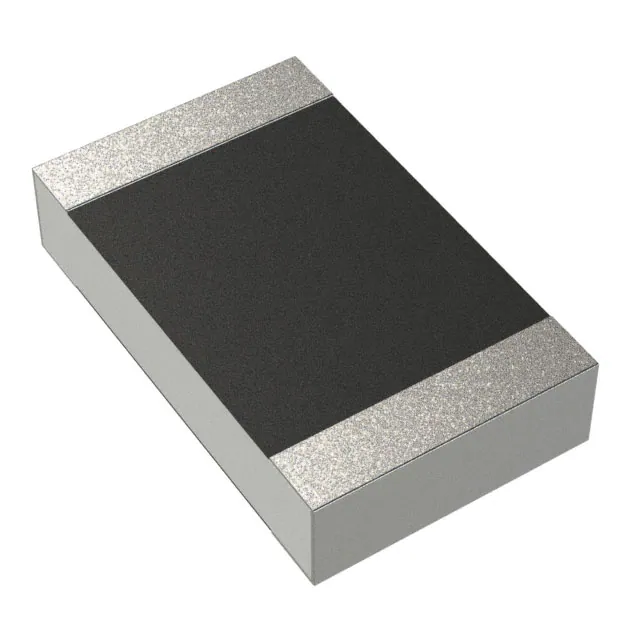

PE0201FRF7W0R05L

DATA SHEET CURRENT SENSOR - LOW TCR AUTOMOTIVE GRADE PE_L series 5%, 1%, 0.5%, 0.1% sizes 0100/ 0201/ 0402/ 0603/ 0805/ 1206/ 2010/ 2512/ 2817/ 4527 Product Specification – September 17, 2020 V.10 RoHS compliant & Halogen free Product specification Chip Resistor Surface Mount PE_L SERIES 2 13 0100 to 4527 SCOPE ORDERING INFORMATION - GLOBAL PART NUMBER This specification describes PE series current sensor - low TCR with lead-free terminations made by metal film with ceramic substrate. Global part numbers are identified by the series, size, tolerance, packing type, temperature coefficient, taping reel and resistance value. APPLICATIONS  Consumer goods  Computer  Telecom / Datacom  Industrial / Power supply  Automotive  Alternative Energy FEATURES  AEC-Q200 qualified  Halogen-free Epoxy  RoHS compliant  Reduce environmentally hazardous wastes  High component and equipment reliability  None forbidden-materials used in products/production  Low resistances applied to current sensing GLOBAL PART NUMBER PE XXXX X X X XX XXXX L (1) (2) (3) (4) (5) (6) (7) (1) SIZE 0100/ 0201/ 0402/ 0603/ 0805/ 1206/ 2010/ 2512/ 2817/ 4527 (2) TOLERANCE B = ± 0.1% D = ± 0.5% F = ± 1% J = ± 5% (3) PACKAGING TYPE R = Paper/ PE taping reel K = Embossed taping reel (4) TEMPERATURE COEFFICIENT OF RESISTANCE E = ± 50 ppm/°C M = ± 75 ppm/°C F = ± 100 ppm/°C G = ± 200ppm/C I = ± 300ppm/°C J = ± 350 ppm/°C (5) TAPING REEL 07 / 7W / 7T / 47 / 57= 7 inch dia. Reel and specific rated power. Detailed power rating are shown in the Table 2. (6) RESISTANCE VALUE 5 mΩ to 1Ω There are 3~5 digits indicated the resistance value. Letter R is decimal point. Detailed coding rules of resistance are shown in the table of “Resistance rule of global part number”. (7) DEFAULT CODE Letter L is the system default code for ordering only. (Note) Resistance rule of global part number Resistance code rule Example 0R001 = 1 mΩ 0RXXX (1 to 910 mΩ) 0R1 = 100 mΩ ORDERING EXAMPLE The ordering code of a PE2512 1W chip resistor, value 0.1 Ω with ± 1% tolerance, supplied in 7-inch tape reel is: PE2512FKM070R1L 0R91 = 910 mΩ NOTE 1. All our RSMD products are RoHS compliant. "LFP" of the internal 2D reel label mentions "Lead-Free Process" www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount PE_L SERIES 3 13 0100 to 4527 MARKING PE0100 No marking YNSC123_3 Fig. 1 PE0201 / PE0402 No marking YNSC123_1 Fig. 2 PE0603 5mΩ ≤ R ≤ 50mΩ 51mΩ ≤ R ≤ 99mΩ 100mΩ ≤ R ≤ 910mΩ 10 51 100 YNSC140_1 Fig. 3 Value = 10 mΩ YNSC145_3 YNSC144_1 Value = 51 mΩ Value = 100 mΩ 2 digits resistance range: 5mΩ ≤ R ≤ 99mΩ 3 digits resistance range: 100mΩ ≤ R ≤ 910mΩ PE0805 5mΩ ≤ R ≤ 50mΩ 51mΩ ≤ R ≤ 910mΩ 3 digits 051 010 YNSC138_1 Fig. 4 Value = 10 mΩ YNSC145_2 Value = 51 mΩ PE1206 5mΩ ≤ R ≤ 50mΩ 51mΩ ≤ R ≤ 910mΩ R010 R051 YNSC146_1 YNSC139_1 Fig. 5 Value = 10 mΩ Value = 51 mΩ 4 digits The “R” is used as a decimal point; the other 3 digits are significant. PE2010 / PE2512 (1W&2W) 5mΩ ≤ R ≤ 100mΩ 100mΩ < R ≤ 910mΩ R010 R510 YNSC158_1 YNSC139_1 Fig. 6 Value = 10 mΩ Value = 510 mΩ 4 digits The “R” is used as a decimal point; the other 3 digits are significant. PE2512 (3W&5W) / PE2817 No marking YNSC123_2 Fig. 7 PE4527 5mΩ ≤ R ≤ 120mΩ R120 YNSC123_4 Fig. 8 Value = 120 mΩ 4 digits The “R” is used as a decimal point; the other 3 digits are significant. www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount PE_L SERIES 4 13 0100 to 4527 Outlines For dimensions, please refer to Table 1 L R051 marking layer protective coat W H end termination I1 protective coat ceramic substrate resistive layer YNSC143_1 Fig. 9 Chip resistor outlines for PE0100~PE4527 For dimensions, please refer to Table 1 L inner electrode W ceramic substrate H end termination I1 inner electrode protective coat resistive layer YNSC143_2 Fig. 10 Chip resistor outlines for PE2512 (3W&5W) / PE2817 51 YNSC144 www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount PE_L SERIES 5 13 0100 to 4527 DIMENSION Table 1 For outlines, please refer to Fig. 9 & Fig. 10 TYPE RESISTANCE RANGE L (mm) W (mm) H (mm) I1 (mm) PE0100 100 mΩ ≤ R ≤ 1Ω 0.40± 0.03 0.20± 0.03 0.14± 0.03 0.10± 0.03 PE0201 50 mΩ ≤ R ≤ 910 mΩ 0.60± 0.03 0.31± 0.04 0.27± 0.04 0.14± 0.06 PE0402 10 mΩ ≤ R ≤ 910 mΩ 1.00+0.10/-0.15 0.50+0.10/-0.15 0.35± 0.15 0.25± 0.10 5 mΩ ≤ R ≤ 50 mΩ 1.60± 0.20 0.76± 0.25 0.35± 0.25 0.38± 0.25 51 mΩ ≤ R ≤ 910 mΩ 1.52± 0.25 0.76± 0.25 0.45± 0.10 0.38± 0.25 5 mΩ ≤ R ≤ 6 mΩ 2.03± 0.25 1.27± 0.25 0.35± 0.25 0.73± 0.25 7 mΩ ≤ R ≤ 50 mΩ 2.03± 0.25 1.27± 0.25 0.35± 0.25 0.38± 0.25 51 mΩ ≤ R ≤ 910 mΩ 2.03± 0.25 1.27± 0.25 0.55± 0.10 0.35± 0.20 5 mΩ 3.20± 0.25 1.60± 0.25 0.64± 0.25 0.64± 0.25 6 mΩ ≤ R ≤ 910 mΩ 3.20± 0.25 1.60± 0.25 0.64± 0.25 0.51± 0.25 5 mΩ ≤ R ≤ 6 mΩ 5.08± 0.25 2.54± 0.25 0.64± 0.25 1.47± 0.25 7 mΩ ≤ R ≤ 910 mΩ 5.08± 0.25 2.54± 0.25 0.64± 0.25 0.51± 0.25 PE2512 1W&2W 6 mΩ ≤ R ≤ 910 mΩ 6.35± 0.25 3.18± 0.25 0.64± 0.25 0.76± 0.25 PE2512 3W&5W 20 mΩ ≤ R ≤ 910 mΩ 6.35± 0.25 3.15± 0.25 0.64± 0.25 0.90± 0.25 PE2817 20 mΩ ≤ R ≤ 910 mΩ 7.10± 0.25 4.20± 0.25 0.64± 0.25 1.00± 0.25 5 mΩ 11.75± 0.45 7.20± 0.45 0.65± 0.20 3.00± 0.45 6 mΩ ≤ R ≤ 120 mΩ 11.75± 0.45 7.20± 0.45 0.65± 0.20 2.70± 0.45 PE0603 PE0805 PE1206 PE2010 PE4527 Note: 1. For relevant physical dimensions, please refer to construction outlines. 2. Please contact with sales offices, distributors and representatives in your region before ordering. www.yageo.com Sep. 17, 2020 V.10 6 Product specification Chip Resistor Surface Mount PE_L SERIES 13 0100 to 4527 ELECTRICAL CHARACTERISTICS Table 2 POWER RATING @ 70°C (1) SERIES SIZE Fig. 4 PE 07 7W 7T 47 57 0100 1/32W 1/16W --- --- --- 0201 1/20W 1/10W --- --- --- 0402 1/16W 1/8W 1/6W 1/4W 0603 1/10W 1/5W 1/3W 2/5W 1/2W 0805 1/8W 1/4W 1/3W 1/2W --- 1206 1/4W 1/2W --- Chip resistor outlines --- 1W RESISTANCE RANGE TOLERANCE ± 1%, ± 5% 100 mΩ ≤ R ≤ 299 mΩ ± 300 ppm/°C 300 mΩ ≤ R ≤ 1Ω ± 200 ppm/°C 50 mΩ ≤ R ≤ 70 mΩ ± 350 ppm/°C 70 mΩ < R ≤ 910 mΩ ± 100 ppm/°C 10 mΩ ≤ R ≤ 910 mΩ ± 100 ppm/°C 5 mΩ ≤ R ≤ 910 mΩ ± 75 ppm/°C, ± 100 ppm/°C 5 mΩ ≤ R ≤ 19 mΩ ± 75 ppm/°C, ± 100 ppm/°C --± 0.1% (only for 0805, >50 mΩ) ± 0.5% (≥10 mΩ) ± 1% 20 mΩ ≤ R ≤ 910 mΩ ± 50 ppm/°C, ± 75 ppm/°C, ± 100 ppm/°C ± 5% 2010 1/2W 1W --- --- --- 5 mΩ ≤ R ≤ 910 mΩ 1W 2W --- --- --- 6 mΩ ≤ R ≤ 910 mΩ --- --- 3W --- 5W 2817 7W --- --- --- --- 4527 2W 3W --- --- --- 2512 TEMPERATURE COEFFICIENT OF RESISTANCE ± 50 ppm/°C, ± 75 ppm/°C, ± 100 ppm/°C 20 mΩ ≤ R ≤ 910 mΩ ± 100 ppm/°C ± 0.5%, 20 mΩ ≤ R ≤ 910 mΩ ± 100 ppm/°C ± 1%, ± 5% 5 mΩ ≤ R ≤ 120 mΩ ± 75 ppm/°C, ± 100 ppm/°C Note: 1. Global part number (code 10 - 11) 2. Please contact with sales offices, distributors and representatives in your region before ordering. FUNCTIONAL DESCRIPTION OPERATING TEMPERATURE RANGE PE0100 to PE0402 Range: -55°C to +125°C (Fig.11) PE0603 to PE4527 Range: -55°C to +170°C (Fig.12) handbook, P halfpage 50 RATED VOLTAGE The DC or AC (rms) continuous working voltage corresponding to the rated power is determined by the following formula: V= (PxR ) 0 55 Fig. 11 Where V = Continuous rated DC or AC (rms) working voltage (V) P = Rated power (W) MLB206 max (%Prated) 100 0 50 70 100 125 o Tamb ( C) Maximum dissipation (P max ) in percentage of rated power as a function of the operating ambient temperature (T amb ) P MRA633 (%Prated ) 100 R = Resistance value (Ω) 50 0 55 Fig. 12 0 50 70 100 170 Tamb ( C) Maximum dissipation (P max ) in percentage of rated power as a function of the operating ambient temperature (T amb ) www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount PE_L SERIES 7 13 0100 to 4527 PULSE LOAD BEHAVIOR Fig. 13 Maximum permissible peak pulse power as a function of pul se duration Note: The curve of 2512 above is for 1W&2W PACKING STYLE AND PACKAGING QUANTITY Table 3 Packing style and packaging quantity PACKING STYLE REEL DIMENSION Paper/PE taping reel (R) 7" (178 mm) Embossed taping reel (K) 7" (178 mm) PRODUCT SIZE / QUANTITY 0100 0402 0603 0805 1206 2010 2512 2817 4527 20,000 10,000 10,000 5,000 5,000 4,000 --- --- --- --- --- --- --- 4,000 4,000 4,000 1,000 --- 0201 --- --- PAPER/PE TAPE P0 T D0 P2 E F cover tape W B0 Fig. 14 Paper/PE Tape A0 P1 MBG251 www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount SERIES PE_L 8 13 0100 to 4527 Table 4 Dimensions of Paper/PE tape for relevant chip resistors size SIZE Unit: mm SYMBOL A0 B0 W E F P0 P1 P2 Ø D0 T PE0100 0.24± 0.03 0.45± 0.03 8.00± 0.20 1.75± 0.10 3.50± 0.05 4.00± 0.05 2.00± 0.10 2.00± 0.05 1.50± 0.10 0.31± 0.10 PE0201 0.41± 0.10 0.70± 0.10 8.00± 0.30 1.75± 0.10 3.50± 0.10 4.00± 0.10 2.00± 0.05 2.00± 0.05 1.50± 0.10 0.40± 0.10 PE0402 0.65± 0.10 1.15± 0.10 8.00± 0.30 1.75± 0.10 3.50± 0.10 4.00± 0.10 2.00± 0.05 2.00± 0.05 1.50± 0.10 0.53± 0.10 PE0603 1.20± 0.15 1.90± 0.15 8.00± 0.30 1.75± 0.10 3.50± 0.10 4.00± 0.10 4.00± 0.10 2.00± 0.10 1.50± 0.10 0.55± 0.15 PE0805 1.60± 0.15 2.30± 0.15 8.00± 0.30 1.75± 0.10 3.50± 0.10 4.00± 0.10 4.00± 0.10 2.00± 0.10 1.50± 0.10 0.85± 0.15 PE1206 1.90± 0.10 3.50± 0.10 8.00± 0.30 1.75± 0.10 3.50± 0.10 4.00± 0.10 4.00± 0.10 2.00± 0.10 1.50± 0.10 0.85± 0.15 EMBOSSED TAPE P0 D0 P2 E F cover tape W B0 MBG516_b A0 T D1 P1 direction of unreeling Fig. 15 Embossed Tape Table 5 Dimensions of embossed tape for relevant chip resistors size SIZE SYMBOL A0 Unit: mm B0 W E F P0 P1 P2 Ø D0 Ø D1 T PE2010 3.00± 0.15 5.60± 0.15 12.10± 0.30 1.75± 0.10 5.50± 0.10 4.00± 0.10 4.00± 0.10 2.00± 0.10 1.50± 0.10 1.50± 0.10 0.80± 0.15 PE2512 3.40± 0.15 6.70± 0.15 12.10± 0.30 1.75± 0.10 5.50± 0.10 4.00± 0.10 4.00± 0.10 2.00± 0.10 1.50± 0.10 1.50± 0.10 0.80± 0.15 PE2817 4.50± 0.20 7.40± 0.20 12.00± 0.20 1.75± 0.10 5.50± 0.05 4.00± 0.10 4.00± 0.10 2.00± 0.05 1.50± 0.10 1.50± 0.10 0.80± 0.15 PE4527 7.50± 0.15 12.0± 0.15 24.00± 0.30 1.75± 0.10 11.50± 0.10 4.00± 0.10 8.00± 0.10 2.00± 0.10 1.50± 0.10 1.50± 0.10 0.90± 0.15 www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount PE_L SERIES 9 13 0100 to 4527 REEL SPECIFICATION W2 D C Fig. 16 Reel N A HBK039_a W1 Table 6 Dimensions of reel specification for relevant chip resistors size QUANTITY PER REEL SIZE REEL SIZE SYMBOL 8 mm TAPE WIDE 12 mm TAPE WIDE 24 mm TAPE WIDE A Unit: mm N C D W1 W2 MAX. PE0100 20,000 7" (Ø 178 mm) --- --- 180.0+0/-3 60.0+1/-0 13.0± 0.2 21.0± 0.8 9.0± 0.30 12.4 PE0201 10,000 7" (Ø 178 mm) --- --- 180.0+0/-3 60.0+1/-0 13.0± 0.2 21.0± 0.8 9.0± 0.30 12.4 PE0402 10,000 7" (Ø 178 mm) --- --- 180.0+0/-3 60.0+1/-0 13.0± 0.2 21.0± 0.8 9.0± 0.30 12.4 PE0603 5,000 7" (Ø 178 mm) -- -- 180.0+0/-3 60.0+1/-0 13.0± 0.2 21.0± 0.8 8.4 +1/-0 12.4 PE0805 5,000 7" (Ø 178 mm) -- -- 180.0+0/-3 60.0+1/-0 13.0± 0.2 21.0± 0.8 8.4 +1/-0 12.4 PE1206 4,000 7" (Ø 178 mm) -- -- 180.0+0/-3 60.0+1/-0 13.0± 0.2 21.0± 0.8 8.4 +1/-0 12.4 PE2010 4,000 -- 7" (Ø 178 mm) -- 180.0+0/-3 60.0+1/-0 13.0± 0.2 21.0± 0.8 12.3 +1/-0 18.4 PE2512 4,000 -- 7" (Ø 178 mm) -- 180.0+0/-3 60.0+1/-0 13.0± 0.2 21.0± 0.8 12.3 +1/-0 18.4 PE2817 4,000 -- 7" (Ø 178 mm) -- 180.0+0/-3 60.0+1/-0 13.0± 0.2 21.0± 0.8 12.3 +1/-0 18.4 PE4527 1,000 -- -- 17.7.± 0.5 26.5 7" (Ø 178 mm) 178.0± 1.0 60.0± 1.0 13.5± 0.5 24.0± 1.0 LEADER/TRAILER TAPE SPECIFICATION leader end handbook, full pagewidth empty compartments with cover tape (min. 240 mm) trailer end trailer (max. 260 mm) cover tape only leader 400 mm CCB325 Fig.17 Leader/Trailer Tape www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount PE_L SERIES 10 13 0100 to 4527 FOOTPRINT AND SOLDERING PROFILES For recommended soldering profiles, please refer to data sheet “Chip resistors mounting”. FOOTPRINT Fig. 18 Single resistor chips recommended dimensions of footprints Table 7 Footprint dimensions SIZE RESISTANCE RANGE PE0100 100 mΩ ≤ R ≤ 1Ω PE0201 Unit: mm A B C D 0.49~0.78 0.15~0.18 0.17~0.30 0.25~0.40 50 mΩ ≤ R ≤ 910 mΩ 1.00 0.30 0.35 0.40 PE0402 10 mΩ ≤ R ≤ 910 mΩ 1.45 0.35 0.55 0.55 PE0603 5 mΩ ≤ R ≤ 910 mΩ 2.52 0.50 1.01 1.01 PE0805 5 mΩ ≤ R ≤ 910 mΩ 2.54 0.50 1.02 1.27 PE1206 5 mΩ ≤ R ≤ 910 mΩ 3.90 0.76 1.57 1.78 5 mΩ ≤ R ≤ 6 mΩ 6.12 1.40 2.36 3.05 7 mΩ ≤ R ≤ 910 mΩ 6.10 3.30 1.40 3.05 6 mΩ 7.40 3.18 2.11 3.68 7 mΩ ≤ R ≤ 910 mΩ 7.36 4.06 1.65 3.68 20 mΩ ≤ R ≤ 910 mΩ 8.10 3.20 2.45 4.80 5 mΩ 14.50 4.00 5.25 8.05 6 mΩ ≤ R ≤ 120 mΩ 14.50 4.40 5.05 8.05 PE2010 PE2512 PE2817 PE4527 www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount PE_L SERIES 11 13 0100 to 4527 TESTS AND REQUIREMENTS Table 8 Test condition, procedure and requirements TEST TEST METHOD PROCEDURE REQUIREMENTS Life/ Operational Life/ Endurance MIL-STD-202G-method 108 1,000 hours at 70± 2 °C applied RCWV 1.5 hours on, 0.5 hour off, still air required 0100 : ± (3%+0.0005 Ω) High Temperature Exposure/ Endurance at Upper Category Temperature MIL-STD-202G-method 108 IEC 60115-1 4.25.1 IEC 60115-1 4.25.3 Others : ± (1%+0.0005 Ω) 1,000 hours at maximum operating temperature 0100 : ± (3%+0.0005 Ω) depending on specification, unpowered Others : ± (1%+0.0005 Ω) No direct impingement of forced air to the parts Tolerances: 0100/0201/0402 125± 3 °C 0603 and above 170± 3 °C Moisture Resistance MIL-STD-202G-method 106 Each temperature / humidity cycle is defined at 8 hours (method 106F), 3 cycles / 24 hours for 10d with 25 °C / 65 °C 95% R.H, without steps 7a & 7b, unpowered 0100/0201: ± (5%+0.0005 Ω) Others: ± (0.5%+0.0005 Ω) Parts mounted on test-boards, without condensation on parts Measurement at 24± 2 hours after test conclusion Thermal Shock MIL-STD-202G-method 107 -55/+125 °C ± (1%+0.0005 Ω) Note: Number of cycles required is 300. Devices mounted Maximum transfer time is 20 seconds. Dwell time is 15 minutes. Air – Air Short Time Overload IEC60115-1 4.13 5 times of rated power for 5 seconds at room temperature 0100 : ± (2%+0.0005 Ω) Others : ± (1%+0.0005 Ω) No visible damage Board Flex/ Bending IEC60115-1 4.33 Device mounted on PCB test board as described, only 1 board bending required ± (1%+0.0005 Ω) No visible damage Bending for 0100 : 5mm 0201: 3mm 0402 and above: 2mm Holding time: minimum 60 seconds Biased Humidity MIL-STD-202 Method 103 1,000 hours at 85ºC/85%R.H. 10% of operating power, no condensation on the devices, circulating air. 0100/0201: ± (5%+0.0005 Ω) Others : ± (1.0%+0.0005 Ω) www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount PE_L SERIES 12 13 0100 to 4527 TEST TEST METHOD PROCEDURE REQUIREMENTS Solderability - Wetting IPC/JEDEC Electrical Test not required Well tinned (≥95% covered) J-STD-002B test B Magnification 50X No visible damage SMD conditions: 1st step: method B, aging 4 hours at 155 °C dry heat 2nd step: leadfree solder bath at 245± 3 °C Dipping time: 3± 0.5 seconds - Leaching - Resistance to Soldering Heat IPC/JEDEC Leadfree solder, 260 °C, 30 seconds immersion time No visible damage J-STD-002B test D MIL-STD-202G-method 210F Condition B, no pre-heat of samples 0100 : ± (1%+0.0005 Ω) IEC 60115-1 4.18 Leadfree solder, 260 °C, 10 seconds immersion time Others : ± (0.5%+0.0005 Ω) No visible damage Procedure 2 for SMD: devices fluxed and cleaned with isopropanol www.yageo.com Sep. 17, 2020 V.10 Product specification Chip Resistor Surface Mount PE_L SERIES 13 13 0100 to 4527 REVISION HISTORY REVISION DATE TYPE Version 10 Jan. 18, 2021 0603 Version 90805 Sep. 1, 2020 1206 CHANGE NOTIFICATION POWER - Jun. 11, 2020 1/2W, 1W 1/8W, 1/4W, 1/3W, 1/2W - 1/4W, 1/2W The resistors are constructed using outstanding TCR level material, which makes Yageo PF Version 7 Jan. 21, 2019 resistors excellent for current sensing application in battery Version 6 - & DC-DC Oct.charger 22, 2018circuit converter. The composition of the resistive Version 5 Novmaterial 23, 2016 is adjusted to give the PF 2010 approximate required resistance covered Version 4 Dec.and 21, is 2015 - with a protective coating, which printed with the resistance value. Version 3 Aug. 06, 2015 Finally, the three external terminations (Ni / matte Tin) are as shown in Fig. 4. Version 2 Apr.added, 20, 2015 Version 1 Mar. 04, 2015 Version 02512 Feb. 10, 2015 4527 1W, 2W - TOLERANCE RESISTANCE RANGE - Add rated power of PE2512 3W&5W 1/10W, 1/5W, 3/10W, 2/5W, 1/2W Version 8 DESCRIPTION 3W 2W, 3W, 5W TEMPERATURE COEFFICIENT OF RESISTANCE mΩ ≦ Rand < 100 mΩ - Add sizes of PE0100,5 PE2817 PE4527 - Update dimensions4ofmΩ tape≦ for PE0201 and PE1206 R< 100 mΩ 3 mΩ ≦ R < 100 mΩ - Update the dimension for PE0805 5mohm & 6mohm - Update the marking for PE0603 - Extend resistance range for PE0201 - Extended resistor value for PE2010 and 2512 - Extend resistor value for PE0603 and 0805, and 0.1% tol for 0805 > 50mΩ - Add in pulse load behavior ± 1% - Extend resistor value for 0.5% 5 mΩ ≦ R < 100 mΩ ± 2% ±75 ppm/°C ± 5% - Update resistance value - Update 0603 to 1206 TCR - Extend resistor value - Update TCR and operating temperature 1 mΩ ≦ R < 100 mΩ - New datasheet for current - low 1 mΩ ≦sensor R ≦ 50 mΩTCR PE series sizes of 0201/0402/0603/0805/1206/2010/2512, 0.5%, 1%, and 5% 6 mΩ ≦ R < 1Ω NOTE: 1. PLEASE CONTACT WITH SALES OFFICES, DISTRIBUTORS AND REPRESENTATIVES IN YOUR REGION BEFORE ORDERING “ Yageo reserves all the rights for revising the content of this datasheet without further notification, as long as the products itself are unchanged. Any product change will be announced by PCN.” www.yageo.com Sep. 17, 2020 V.10
