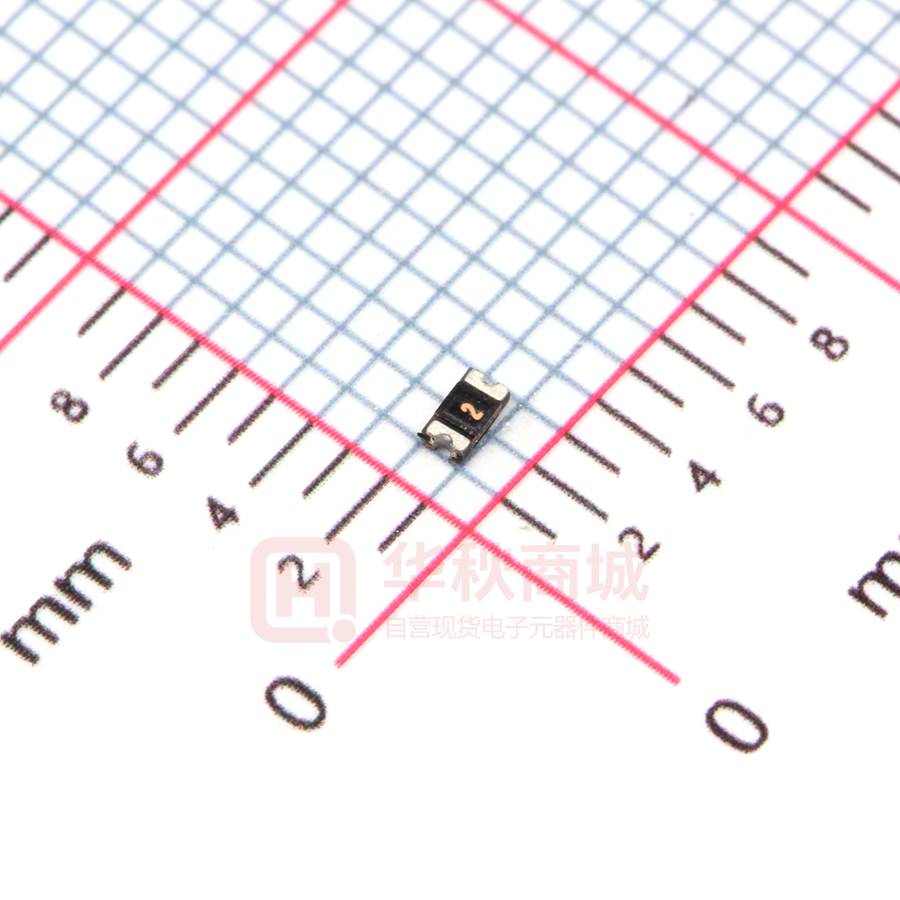

SMD0603P020TF

ELECTRONICS Positive Thermal Coefficent SMD0603 Series Circuit Protection System Specifications are subject to change without notice. Positive Thermal Coefficent - SMD0603 Series Features 1. I(hold): 0.1~1.1A 2. RoHS compliant, lead-free and halogen-free 3. Fast response to fault currents 4. Compact design saves board space 5. Low resistance 6. Low-profile 7.X Compatible with high temperature solders Applications 1. USB peripherals 2. Disk drives 3. CD-ROMs 4. Plug and play protection for motherboards and peripherals 5. Mobile phones - battery and port protection 6. Disk drives 7. PDAs / digital cameras 8. Game console port protection Product Name S M Surface Mount Device D 0 6 Device Dimensions: Length/Width (Unit: 1/100 inch) Circuit Protection System 0 3 P 0 1 Polytronics Symbol Current Rating 0.1A 0 T F T: Thin Version (Optional) F: Lead-free / - - Special Voltage Rating (Optional) Specifications are subject to change without notice. Page:1 Positive Thermal Coefficent - SMD0603 Series Dimension A B D Ihold Itrip Type Number Marking A A Maximum Time To Trip Current A Time s C P Rmin R1max Vmax Imax dmax Vdc A W Ω Ω Package Dimensions (mm) Package A B C D min max min max min max min SMD0603P010TF 1 0.1 0.3 0.5 1 15 40 0.5 0.9 6 0603 1.45 1.85 0.65 1.05 0.15 0.4 0.1 SMD0603P020TF 2 0.2 0.5 1 0.6 9 40 0.5 0.55 3.5 0603 1.45 1.85 0.65 1.05 0.15 0.4 0.1 SMD0603P025TF 2 0.25 0.55 8 0.08 9 40 0.5 0.5 3 0603 1.45 1.85 0.65 1.05 0.15 0.4 0.1 SMD0603P035TF 3 0.35 0.75 8 0.1 6 40 0.5 0.2 1.4 0603 1.45 1.85 0.65 1.05 0.15 0.4 0.1 SMD0603P050TF 5 0.5 1 8 0.1 6 40 0.5 0.1 0.8 0603 1.45 1.85 0.65 1.05 0.15 0.5 0.11 SMD0603P075TF 7 0.75 1.4 8 0.1 6 40 0.5 0.06 0.45 0603 1.45 1.85 0.65 1.05 0.15 0.5 0.11 SMD0603P100TF 0 1 2 8 0.1 6 40 0.5 0.04 0.3 0603 1.45 1.85 0.65 1.05 0.15 0.5 0.11 SMD0603P110TF 0 1.1 2.2 8 0.1 6 40 0.5 0.04 0.28 0603 1.45 1.85 0.65 1.05 0.15 0.5 0.11 Vocabulary Ihold = Hold current: maximum current device will pass without tripping in 23ºC still air. Itrip = Trip current: minimum current at which the device will trip in 23 ºC still air. Vmax = Maximum voltage device can withstand without damage at rated current (I max) Imax = Maximum fault current device can withstand without damage at rated voltage (Vmax) Pd typ = Typical power dissipated from device when in the tripped state at 23 ºC still air. Rmin = Minimum resistance of device in initial (un-soldered) state. R1max = Maximum resistance of device at 23 ºC measured one hour after tripping or reflow soldering of 260 ºC for 20 sec. Circuit Protection System Specifications are subject to change without notice. Page:2 Positive Thermal Coefficent - SMD0603 Series Thermal Derating Curve Percentage of Rated Current 200.00 150.00 100.00 50.00 0.00 -40.00 0.00 40.00 80.00 Device Ambient Temperature ( 120.00 ) Thermal Derating Chart Profile Feature Pb-Free Assembly Average Ramp-Up Rate(Ts max to T p) 3°C/second mac. Preheat -Temperature Min(Ts min) -Temperature Max(Ts max) -Time(Ts min to Ts max) 150°C 200°C 60~180 seconds Time maintained above: -Temperature(TL) -Time(tL) +217°C 60~150 seconds Peak Temperature(Tp) Ramp-Down Rate ·Recommended reflow methods: IR, vapor phase oven, hot air oven, N2 environment for lead-free ·Recommended maximum paste thickness is 0.25mm (0.010 inch) ·Devices can be cleaned using standard industry methods and solvents. Note 1: All temperature refer to topside of the package, measured on the package body surface. Note 2: If reflow temperatures exceed the recommended profile, devices may not meet the performance requirements. Circuit Protection System Time 25°C to Peak Temperature Storage Condition 260°C 6°C/second max. 8 minutes max 0°C~35°C,70%RH Specifications are subject to change without notice. Page:3 Positive Thermal Coefficent - SMD0603 Series Tape and Reel Specificatons H P1 P2 D0 P0 E1 W4 W3 D F W T W2 W F D2 C W1 K0 A0 H1 B0 TAPE SPECIFICATIONS: EIA-481-1 (mm) 0805L010 0805L020 0805L035 0805L050 0805L075 0805L100 W 8.0+/- 0.10 8.0+/- 0.10 8.0+/- 0.10 8.0+/- 0.10 F 3.5+/- 0.05 3.5+/- 0.05 3.5+/- 0.05 3.5+/- 0.05 E1 1.75+/- 0.10 1.75+/- 0.10 1.75+/- 0.10 1.75+/- 0.10 D0 1.55+/- 0.05 1.55+/- 0.05 1.55+/- 0.05 1.55+/- 0.05 D1 1.0 (min) 1.0 (min) 1.0 (min) 1.0 (min) P0 4.0+/- 0.10 4.0+/- 0.10 4.0+/- 0.10 4.0+/- 0.10 P1 4.0+/- 0.10 4.0+/- 0.10 4.0+/- 0.10 4.0+/- 0.10 P2 2.0+/- 0.05 2.0+/- 0.05 2.0+/- 0.05 2.0+/- 0.05 A0 1.45+/- 0.10 1.45+/- 0.10 1.45+/- 0.10 1.45+/- 0.10 B0 2.30+/- 0.10 2.30+/- 0.10 2.30+/- 0.10 2.30+/- 0.10 T 0.25+/- 0.10 0.25+/- 0.10 0.25+/- 0.10 0.25+/- 0.10 K0 0.9+/- 0.10 0.9+/- 0.10 0.9+/- 0.10 0.9+/- 0.10 Leader min. 390 390 390 390 Trailer min. 160 160 160 160 Circuit Protection System REEL DIMENSIONS: EIA-481-1 (mm) H 12.0+/- 0.05 W 9.0+/- 0.5 D Ø60+0.5 F Ø13.0+/- 0.2 C Ø178+/- 1.0 H1 11+/- 0.5 W1 2.2+/- 0.5 W2 3.0+0.5 W3 4.0+0.5 W4 5.5+0.5 Specifications are subject to change without notice. Page:4 Positive Thermal Coefficent - SMD0603 Series Thermal Derating Chart Part Numberr -40℃ -20℃ 0℃ 23℃ 40℃ 50 ℃ 60℃ 70℃ 85℃ SMD0603P004TF 0.052 0.048 0.044 0.040 0.032 0.028 0.024 0.020 0.012 SMD0603P010TF 0.13 0.12 0.11 0.10 0.08 0.07 0.06 0.05 0.03 SMD0603P020TF 0.27 0.25 0.23 0.20 0.17 0.14 0.12 0.10 0.07 SMD0603P025TF 0.32 0.29 0.27 0.25 0.21 0.18 0.16 0.14 0.10 SMD0603P035TF 0.47 0.41 0.38 0.35 0.29 0.26 0.24 0.20 0.14 SMD0603P050TF 0.67 0.59 0.54 0.50 0.41 0.37 0.34 0.29 0.20 Warehouse Storage Conditions of Products · Storage Conditions: 1. Storage Temperature: -10°C~+40°C 2. Relative Humidity:≤75%RH 3. Keep away from corrosive atmosphere and sunlight. · Period of Storage: 1 year Circuit Protection System Specifications are subject to change without notice. Page:5
