深圳市首韩科技有限公司
SHENZHEN SHOUHAN TECHNOLOGYCO.,LTD
Tel: 0755-27597601 Fax: 0755-27597491
认
FOR APPROVAL
产品名称 Project:
针座
韩
科
规格型号 Part No:
有
户 Customer:
技
客
限
公
SPECIFICATION
书
司
承
2.0mm LT(立贴)
位数通用
贵公司承认印 Approal slgnatures
签
章/Signatures
圳
市
首
料 号/Part No.
深
日期 Date:
拟制/Drawn
李春风
审核/Check
张栋
批准/Approved
罗孝金
1
1、 SCOPE: (适用范围) 2.0mm 立贴 位数通用
1.1
This specification covers production and inspection of Mode l PH Connector.
本规范内容适用于本公司 PH 系列型条形连接器产品的生产与检验.
2、 USE CONDITION:
(使用条件)
Ambient temperature Range:-25℃~+85℃
2.1
环境温度:-25℃~+85℃
2.2
Applicable Wire Sizes:AWG#24~#30
2.3
司
适用线规:AWG#24~#30
Applicable PC board thickness:0.8~1.6mm
公
适用 PC 板厚度:0.8~1.6 mm
限
3、 Appearance and Dimension:(外观及尺寸)
3.1
Appearance:Product surface without defect、dirt、crack、and mechanical damang,
有
Contact without rust,plating not oxided and not peeled.
氧化、脱落等现象.
Dimension:According to drawings
科
3.2
外形尺寸:依照附图
Exchangable:Exchangable with same specification products.
韩
3.3
技
产品表面不应有对制品有害的缺陷、污垢、裂痕及机械损伤;接触件无锈蚀、镀层
互换性:相同规格应能互换
料
P/N
零件名称
圳
Terminal
端子
市
材
首
4、Material:
深
Housing
孔 座
Wafer
直针座
弯针座
Wafer
卧贴针座
立贴针座
Type
类 型
Material
材 料
Finish
表面处理
Contact
插 簧
Phosphor bronze
锡青磷铜 厚 0.20mm
Tin Plating:3~4μm
镀锡:3~4μm
Plastic
塑 壳
Nylon66
UL94V-0
Color: White
颜色:白色
Plastic
塑 壳
Nylon66
UL94V-0
Color: White
颜色:白色
Contact
插针
Brass
黄铜 厚 0.50mm
Plastic
塑 壳
Nylon9T UL94V-0
Contact
插针
Brass
黄铜 厚 0.50mm
Tin Plating:3~4μm
镀锡:3~4μm
Solder tabs
焊护耳
Phosphor bronze
锡青磷铜 厚 0.40mm
Tin Plating:3~4μm
镀锡:3~4μm
Tin Plating:3~4μm
镀锡:3~4μm
Color: Beige
颜色:米色
Expiain
说 明
RoHS
Comp liant
5、Electriacl Performance:
电 气 性 能
N0.
序号
Ltem
项 目
Requirement
技术要求
5.1
Voltage Rated
额定电压
100V AC
DC
5.2
Current Rated
额定电流
2A
DC
5.3
Contact Resistance
接触电阻
≤10
5.4
Insulation Resistance
绝缘电阻
≥1000
5.5
Dielectric Strength
耐 压
AC
司
mΩ
公
MΩ
AC/minute
限
≥800V
有
6、Mechanical Performance:
机 械 性 能
Ltem
项 目
Requirement
技术要求
6.1
Male contact Retention force
PIN 针固定力
≥15N
per pin
6.2
Female contactRetention force
端子固定力
≥15N
per pin
6.3
Plug-in force
插入力
≤8N
per pin
Plug-out force
拔出力
≥1N
per pin
首
韩
科
技
N0.
序号
市
6.4
深
圳
7、Endurance Characteristics:
环 境 性 能
N0.
Ltem
序号
项 目
7.1
Requirement
技术要求
Time:2.5±0.5S
时间:2.5±0.5S
Soldering rest
可焊性
Temperature:245±5℃
温度:245±5℃
Area of Soldering: ≥95%
焊锡面积:≥95%
Time:5±1S
时间:5±1S
7.2
Temperature:260±5℃
温度:260±5℃
Resistance to soldering Heat
耐焊接热
公
Temperature:+85±3℃
温度:+85±3℃
Heat test
耐热性
Appearance:N0 Damage
外观:无损坏
限
7.3
司
Appearance:N0 Damage
外观:无损坏
Time:96h
时间:96 小时
Cold test
耐冷性
深
圳
市
首
韩
7.4
科
技
有
Contact resistance: ≤10 mΩ
接触电阻:≤10 mΩ
Time:48h
时间:48 小时
7.5
Temperature:-25±3℃
温度:-25±3℃
Appearance:N0 Damage
外观:无损坏
Contact resistance: ≤10 mΩ
接触电阻:≤10 mΩ
Low temperature:-25±3℃
低温:-25±3℃
High temperature:-85±3℃
高温:-85±3℃
Temperature Cycling
温度循环
For 5 cycles.test after keeping in Normal
Condition for 30 min.
5 次循环后,放置在正常环境中 30 分钟,在进
行测试
Appearance: N0 Damage
外观:无损坏
Contact resistance: ≤10 mΩ
接触电阻:≤10 mΩ
Temperature:60±2℃
温度:60±2℃
Relative humidity:90%-96% RH
相对湿度:90%-96% RH
Tim:96h
时间:96 小时
Appearance:N0 Damage
外观:无损坏
lnvariab lenes humidity
恒定湿热
司
7.6
公
Contact resistance: ≤10 mΩ
接触电阻:≤10 mΩ
有
限
lnsulation Resistance: ≥1000MΩ
绝缘电阻:≥1000 MΩ
首
韩
科
技
Salt concentration: 5±1%
浓度:5±1%
深
Salt Spray
盐雾试验
市
圳
7.7
Temperature:35±2℃
温度:35±2℃
Tim:16±2h
时间:16±2 小时
After salt is removed by running wafer and
A drop is removed ,it is measured.
把试验样品从试验箱顶悬挂下来,采用浓度(
5±1)%的氯化钠溶液,连续雾化 16 小时,试
验后用流动的蒸馏水轻轻洗去表面沉积物,在
常温常驻湿条件下恢复 1-2 小时,外观无损伤
Appearance:N0 Damage
外观:无损坏
Contact resistance: ≤10 mΩ
接触电阻:≤10 mΩ
8、Packaging Transportation Storage
包装、运输、贮存
8.1
Packaging
包装
(1) The packing of plastic inner is the plastic bag,the packing of inner terminal is panel
司
mounting attach material packing, marked with product name, specification model,
quantity, date in produced.
公
塑件内包装为塑料袋,端子内包装为盘装带料包装,装(贴)入合格证,注明产品名称、
限
规格型号、数量生产日期
(2) Exterior package is carton, facing the packing list, the packing list marked with product
有
name, specificcation model, quantity, date of dispatch.
外包装为纸箱,贴装箱单、装箱单上注明产品名称、规格型号、数量、出货日期
技
(3) The product in the box must not rock.
Transportation
韩
8.2
科
产品在箱内不晃动
运输
首
Allow for any way transportation, can’t get wet and mechanical in jury.
圳
8.3 Storage
市
允许用任何方式运输,勿淋湿及机械性损伤
贮存
深
The connector of packing finished should be in the ambient temperature between-10℃
to+40℃, Relative humidity≤80%. To store in storehouse does not have acidic, alkaline air
and other corrosive gas in the ambient air.
包装完毕的连接器应在环境温度为-10℃~+40℃,相对湿度≤80%,周围空气中没有酸性,
碱性及其它腐蚀性气体的库房中贮存
市
圳
罗孝金
张栋
李春风
深
6.25±0.25
技
科
韩
首
公
限
有
6.20±0.25
针座

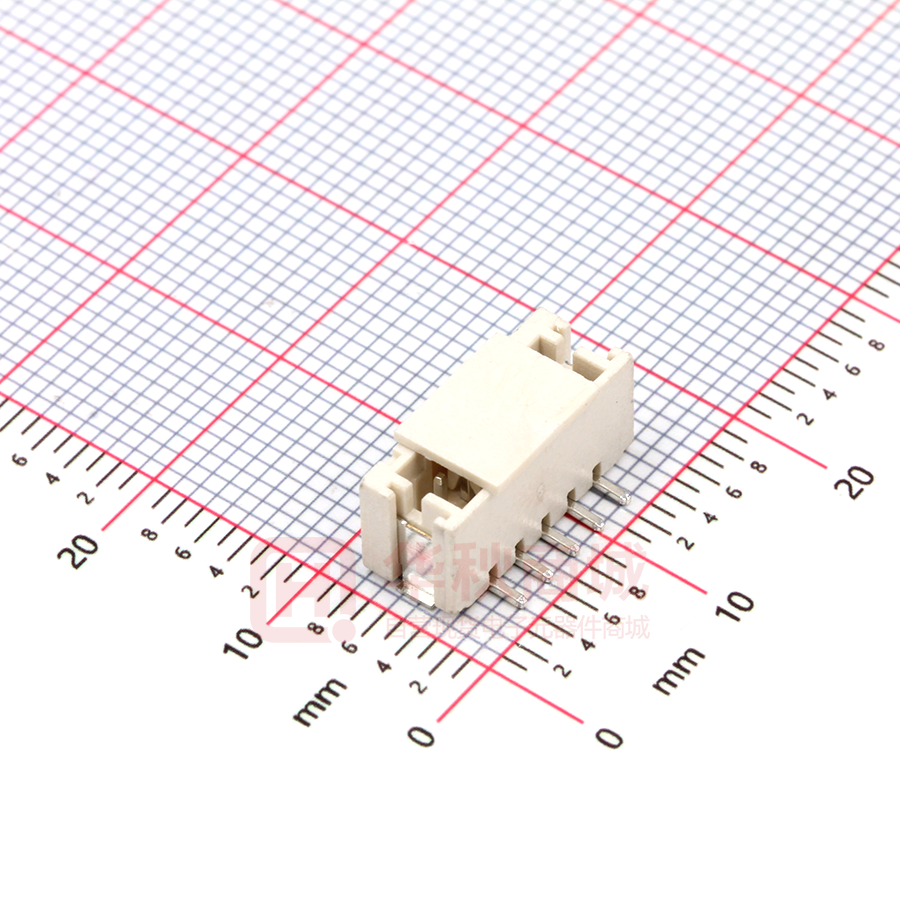

2.0mm LT(立贴) 位数通用
深圳市首韩科技有限公司
司
