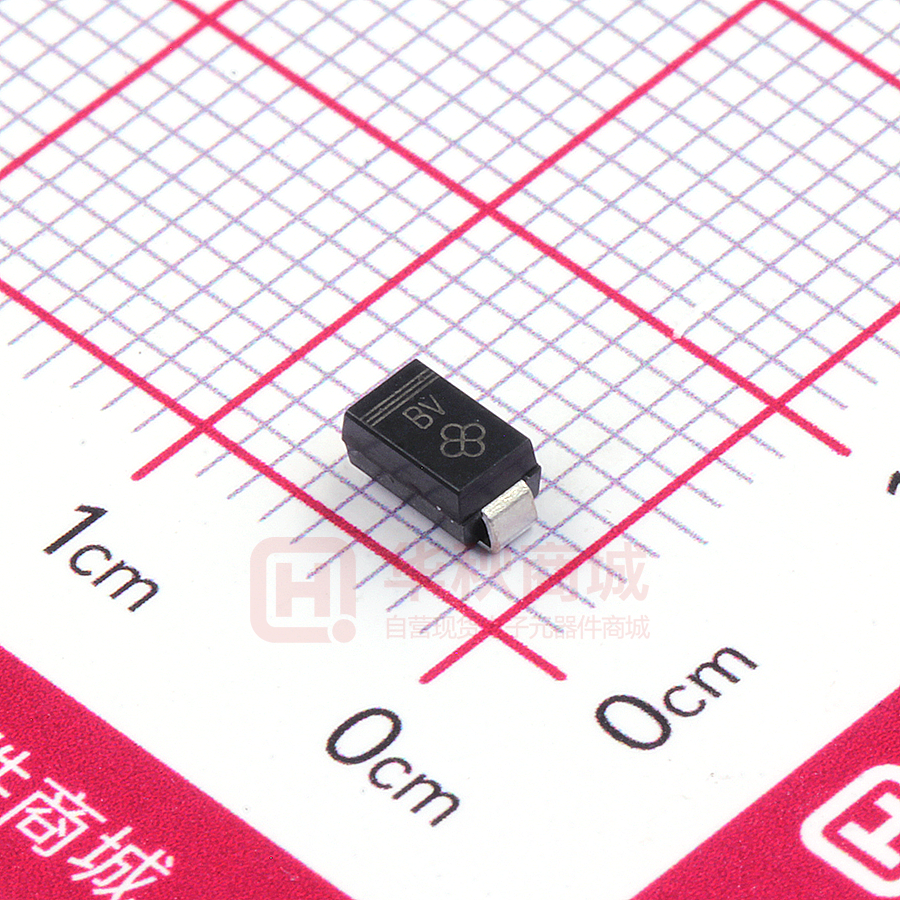

SMAJ20A

SMAJ SERIES 400 Watts Suface Mount Transient Voltage Suppressor SMA/DO-214AC Features — UL Recognized File # E-326243 — For surface mounted application — Low profile package — Built-in strain relief — Glass passivated junction — Excellent clamping capability — Fast response time: Typically less than 1.0ps from 0 volt to BV min — Typical IR less than 1uA above 10V — High temperature soldering guaranteed: 260℃ / 10 seconds at terminals — Plastic material used carried Underwriters Laboratory Flammability Classification 94V-0 — 400 watts peak pulse power capability with a 10 / 1000 us waveform (300W above 78V) Mechanical Data — Case: Molded plastic — Terminals: Pure tin plated, lead free — Polarity: Indicated by cathode band Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 ℃ ambient temperature unless otherwise specified. Type Number Symbol Value Unit Peak Power Dissipation at TA=25℃, Tp=1ms(Note 1) PPK Minimum 400 Watts Steady State Power Dissipation PD 1 Watts Peak Forward Surge Current, 8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) (Note 2, 3) IFSM 40 Amps VF 3.5 Volts TJ, TSTG -55 to +150 ℃ Maximum Instantaneous Forward Voltage at 25.0A for Unidirectional Only Operating and Storage Temperature Range Note 1: Non-repetitive Current Pulse Per Fig. 3 and Derated above TA=25℃ Per Fig. 2 Note 2: Mounted on 5 x 5mm (.013mm Think) Copper Pads to Each Terminal Note 3: 8.3ms Single Half Sine-wave or Equivalent Square Wave, Duty Cycle=4 Pulses Per Minute Maximum www.slkormicro.com 1 SMAJ SERIES RATINGS AND CHARACTERISTIC CURVES (SMAJ SERIES) FIG. 1 PEAK PULSE POWER RATING CURVE FIG.2 PULSE DERATING CURVE PEAK PULSE POWER(PPP) OR CURRENT (IPP) A DERATING IN PERCENTAGE (%) PPPM, PEAK PULSE POWER, KW 100 NON-REPETITIVE PULSE WAVEFORM SHOWN in FIG.3 TA = 25℃ 10 1 125 100 75 50 25 0 0.1 0.1 1 10 100 tp, PULSE WIDTH, (uS) 1000 0 10000 120 Peak Value IPPM 100 Half Value-IPPM/2 10/1000sec, WAVEFORM as DEFINED by R.E.A. 80 75 100 125 150 175 200 FIG. 4 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT UNIDIRECTIONAL ONLY 50 IFSM, PEAK FORWARD SURGE A CURRENT (A) PEAK PULSE CURRENT (%) PULSE WIDTH(td) is DEFINED as the POINT WHERE the PEAK CURRENT DECAYS to 50% OF IPPM tr=10usec 50 TA, AMBIENT TEMPERATURE (oC) FIG. 3 CLAMPING POWER PULSE WAVEFORM 140 25 60 40 20 8.3mS Single Half Sine Wave JEDEC Method 40 30 20 10 td 0 0 0.5 1 1.5 2 2.5 3 3.5 0 4 1 t, TIME ms FIG. 5 TYPICAL JUNCTION CAPACITANCE CJ, JUNCTION CAPACITANCE (pF) A 10000 MEASURED AT ZERO BIAS 1000 100 TA=25℃ f=1.0MHz Vsig=50mVp-p MEASURED at STAND-OFF VOLTAGE,Vwm 10 1 10 V(BR), BREAKDOWN VOLTAGE (V) www.slkormicro.com 100 2 10 NUMBER OF CYCLES AT 60 Hz 100 SMAJ SERIES ELECTRICAL CHARACTERISTICS (TA=25℃ unless otherwise noted) Device Device Marking Code Working Peak Reverse Voltage VWM Min Max (mA) Maximum Clamping Voltage at IPPM Vc(V) (Note5) 9.6 Breakdown Voltage Test VBR (V) Current at IT IT Maximum Maximum Peak Pulse Reverse Leakage Surge Current @ VWM IPPM ID (uA) (A)(Note5) 41.7 800 SMAJ5.0 AD 5 6.4 7.3 10 SMAJ5.0A AE 5 6.4 7 10 9.2 43.5 800 SMAJ6.0 AF 6 6.67 8.15 10 11.4 35.1 800 SMAJ6.0A AG 6 6.67 7.37 10 10.3 38.8 800 SMAJ6.5 AH 6.5 7.22 8.82 10 12.3 32.5 500 SMAJ6.5A AK 6.5 7.22 7.98 10 11.2 35.7 500 SMAJ7.0 AL 7 7.78 9.51 10 13.3 30.1 200 SMAJ7.0A AM 7 7.78 8.6 10 12.0 33.3 200 SMAJ7.5 AN 7.5 8.33 10.30 1.0 14.3 28.0 100 SMAJ7.5A AP 7.5 8.33 9.21 1.0 12.9 31.0 100 SMAJ8.0 AQ 8 8.89 10.9 1.0 15.0 26.7 50.0 SMAJ8.0A AR 8 8.89 9.83 1.0 13.6 29.4 50.0 SMAJ8.5 AS 8.5 9.44 11.5 1.0 15.9 25.2 10.0 SMAJ8.5A AT 8.5 9.44 10.4 1.0 14.4 27.8 10.0 SMAJ9.0 AU 9 10 12.2 1.0 16.9 23.7 5.0 SMAJ9.0A AV 9 10 11.1 1.0 15.4 26.0 5.0 SMAJ10 AW 10 11.1 13.6 1.0 18.8 21.3 5.0 SMAJ10A AX 10 11.1 12.3 1.0 17.0 23.5 5.0 SMAJ11 AY 11 12.2 14.9 1.0 20.1 19.9 5.0 SMAJ11A AZ 11 12.2 13.5 1.0 18.2 22.0 5.0 SMAJ12 BD 12 13.3 16.3 1.0 22.0 18.2 5.0 SMAJ12A BE 12 13.3 14.7 1.0 19.9 20.1 5.0 SMAJ13 BF 13 14.4 17.6 1.0 23.8 16.8 5.0 SMAJ13A BG 13 14.4 15.9 1.0 21.5 18.6 5.0 SMAJ14 BH 14 15.6 19.1 1.0 25.8 15.5 5.0 SMAJ14A BK 14 15.6 17.2 1.0 23.2 17.2 5.0 SMAJ15 BL 15 16.7 20.4 1.0 26.9 14.9 5.0 SMAJ15A BM 15 16.7 18.5 1.0 24.4 16.4 5.0 SMAJ16 BN 16 17.8 21.8 1.0 28.8 13.9 5.0 SMAJ16A BP 16 17.8 19.7 1.0 26.0 15.4 5.0 SMAJ17 BQ 17 18.9 23.1 1.0 30.5 13.1 5.0 SMAJ17A BR 17 18.9 20.9 1.0 27.6 14.5 5.0 SMAJ18 BS 18 20 24.4 1.0 32.2 12.4 5.0 SMAJ18A BT 18 20 22.1 1.0 29.2 13.7 5.0 SMAJ20 BU 20 22.2 27.1 1.0 35.8 11.2 5.0 SMAJ20A BV 20 22.2 24.5 1.0 32.4 12.3 5.0 SMAJ22 BW 22 24.4 29.8 1.0 39.4 10.2 5.0 SMAJ22A BX 22 24.4 26.9 1.0 35.5 11.3 5.0 SMAJ24 BY 24 26.7 32.6 1.0 43.0 9.3 5.0 SMAJ24A BZ 24 26.7 29.5 1.0 38.9 10.3 5.0 SMAJ26 CD 26 28.9 35.3 1.0 46.6 8.6 5.0 SMAJ26A CE 26 28.9 31.9 1.0 42.1 9.5 5.0 SMAJ28 CF 28 31.1 38 1.0 50.0 8.0 5.0 SMAJ28A CG 28 31.1 34.4 1.0 45.4 8.8 5.0 SMAJ30 CH 30 33.3 40.7 1.0 53.5 7.5 5.0 SMAJ30A CK 30 33.3 36.8 1.0 48.4 8.3 5.0 SMAJ33 CL 33 36.7 44.9 1.0 59.0 6.8 5.0 SMAJ33A CM 33 36.7 40.6 1.0 53.3 7.5 5.0 SMAJ36 CN 36 40 48.9 1.0 64.3 6.2 5.0 SMAJ36A CP 36 40 44.2 1.0 58.1 6.9 5.0 SMAJ40 CQ 40 44.4 54.3 1.0 71.4 5.6 5.0 SMAJ40A CR 40 44.4 49.1 1.0 64.5 6.2 5.0 SMAJ43 CS 43 47.8 58.4 1.0 76.7 5.2 5.0 SMAJ43A CT 43 47.8 52.8 1.0 69.4 5.8 5.0 www.slkormicro.com 3 SMAJ SERIES ELECTRICAL CHARACTERISTICS (TA=25℃ unless otherwise noted) Working Peak Reverse Voltage VWM Maximum Maximum Peak Pulse Reverse Leakage Surge Current @ VWM IPPM ID (uA) (A)(Note5) 5.0 5.0 SMAJ45 CU 45 50 61.1 1.0 Maximum Clamping Voltage at IPPM Vc(V) (Note5) 80.3 SMAJ45A CV 45 50 55.3 1.0 72.7 5.5 SMAJ48 CW 48 53.3 65.1 1.0 85.5 4.7 5.0 SMAJ48A CX 48 53.3 58.9 1.0 77.4 5.2 5.0 SMAJ51 CY 51 56.7 69.3 1.0 91.1 4.4 5.0 SMAJ51A CZ 51 56.7 62.7 1.0 82.4 4.9 5.0 SMAJ54 RD 54 60 73.3 1.0 96.3 4.2 5.0 SMAJ54A RE 54 60 66.3 1.0 87.1 4.6 5.0 SMAJ58 RF 58 64.4 78.7 1.0 103 3.9 5.0 SMAJ58A RG 58 64.4 71.2 1.0 93.6 4.3 5.0 SMAJ60 RH 60 66.7 81.5 1.0 107 3.7 5.0 SMAJ60A RK 60 66.7 73.7 1.0 96.8 4.1 5.0 SMAJ64 RL 64 71.1 86.9 1.0 114 3.5 5.0 SMAJ64A RM 64 71.1 78.6 1.0 103 3.9 5.0 SMAJ70 RN 70 77.8 95.1 1.0 125 3.2 5.0 SMAJ70A RP 70 77.8 86 1.0 113 3.5 5.0 SMAJ75 RQ 75 83.3 102 1.0 134 3.0 5.0 SMAJ75A RR 75 83.3 92.1 1.0 121 3.3 5.0 SMAJ78 RS 78 86.7 106 1.0 139 2.9 5.0 SMAJ78A RT 78 86.7 95.8 1.0 126 3.2 5.0 SMAJ85 RU 85 94.4 115 1.0 151 2 5.0 SMAJ85A RV 85 94.4 104 1.0 137 2.2 5.0 SMAJ90 RW 90 100 122 1.0 160 1.9 5.0 SMAJ90A RX 90 100 111 1.0 146 2.1 5.0 SMAJ100 RY 100 111 136 1.0 179 1.7 5.0 SMAJ100A RZ 100 111 123 1.0 162 1.9 5.0 SMAJ110 SD 110 122 149 1.0 196 1.6 5.0 SMAJ110A SE 110 122 135 1.0 177 1.7 5.0 SMAJ120 SF 120 133 163 1.0 214 1.4 5.0 SMAJ120A SG 120 133 147 1.0 193 1.6 5.0 SMAJ130 SH 130 144 176 1.0 231 1.3 5.0 SMAJ130A SK 130 144 159 1.0 209 1.5 5.0 SMAJ150 SL 150 167 204 1.0 266 1.1 5.0 SMAJ150A SM 150 167 185 1.0 243 1.3 5.0 SMAJ160 SN 160 178 218 1.0 287 1 5.0 SMAJ160A SP 160 178 197 1.0 259 1.2 5.0 SMAJ170 SQ 170 189 231 1.0 304 1 5.0 SMAJ170A SR 170 189 209 1.0 275 1.1 5.0 Device Device Marking Code Breakdown Voltage Test VBR (V) Current at IT IT Min Max (mA) 5.0 SMAJ188 ST 188 209 255 1.0 344 0.9 5.0 SMAJ188A SS 188 209 231 1.0 328 0.91 5.0 Notes: 1. Non-repetitive current pulse, per Fig. 3 and derated above T A=25℃ per Fig. 2 2. Mounted on 5 x 5mm copper pads to each terminal 3. Lead temperature at T L=75℃ 4. Measure on 8.3ms single half sine-wave duty cycle=4 pulses per minutes maximum 5. Peak pulse power waveform is 10/1000 us 6. For Bi-Directional devices having V R of 10 volts and under, the I R limit is double. www.slkormicro.com 4
