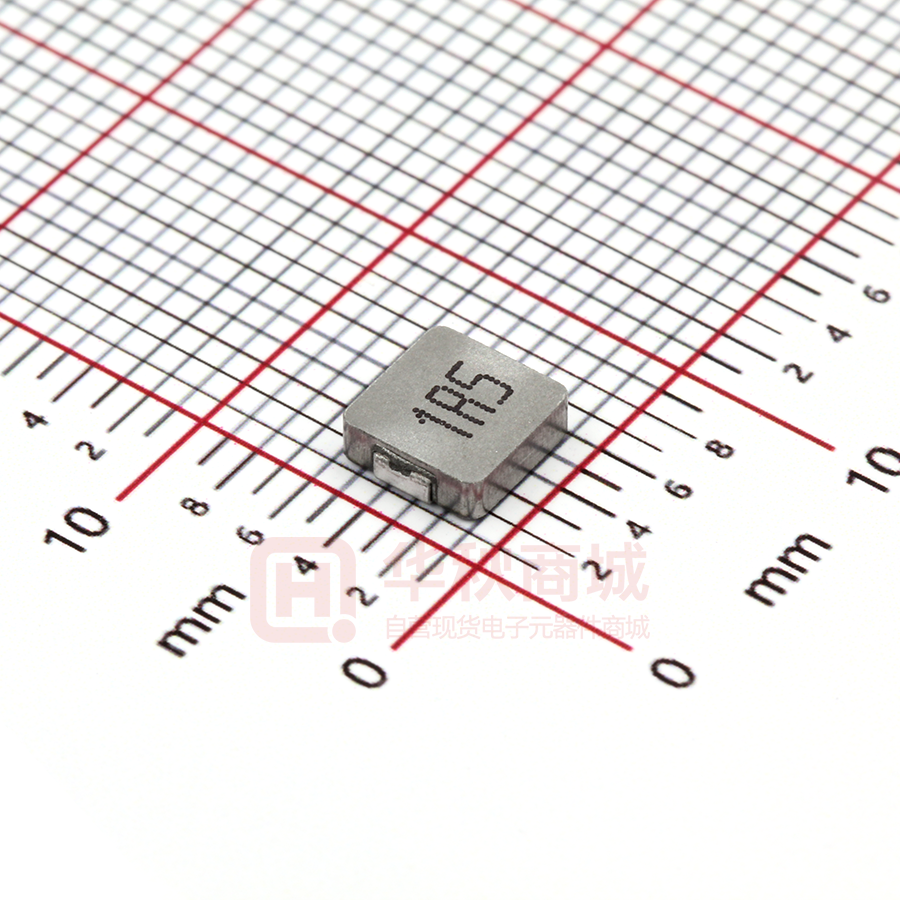

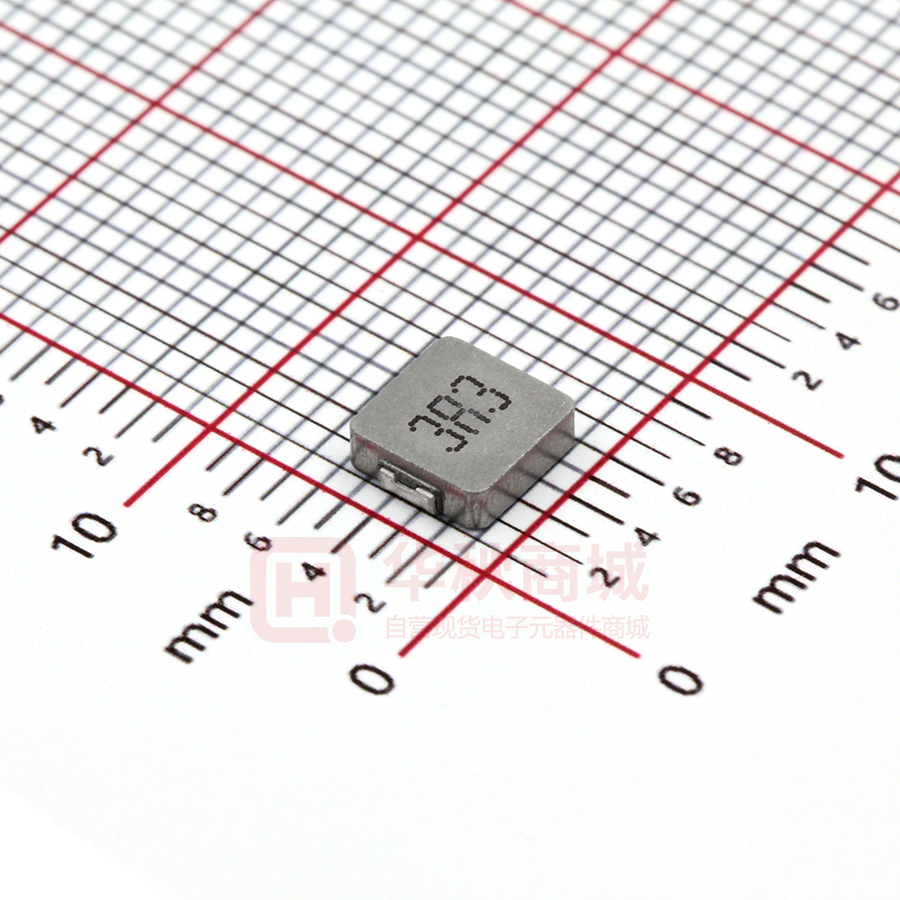

MWSA0518S-1R5MT

Molded SMD Power Inductors – MWSA Series Operating Temp. : -40℃~+125℃ (Including self-heating) FEATURES  Metal material for large current and low loss  Closed magnetic circuit design reduces leakage flux  Halogen free, RoHS compliant APPLICATIONS  Server, desktop computer, notebook  Graphics, memory  Industrial equipment, telecom base station PRODUCT IDENTIFICATION MWSA ① 0603S - ② ① ② M T ③ ④ ⑤ ③ Type MWSA 1R0 Molded SMD Power Inductor 4.2×4.4×1.2 0402S 4.2*4.4*2.0 0518S 5.2*5.4*1.8 0503S 5.2*5.4*3.0 0618S 6.6*7.0*1.8 0624S 6.6*7.0*2.4 0603S 6.6*7.0*3.0 0604S 6.6*7.0*4.0 0605S 6.6*7.0*5.0 1004S 10.0*11.5*4.0 1205S 12.6*13.45*5.0 Sunlord ⑥ Nominal Inductance Example Nominal Value R82 0.82μH 1R0 1.0μH External dimensions(L×W×H) [mm] 0412S □□□ ④ Inductance Tolerance M ⑤ ±20% Packing T ⑥ Tape & Reel Design Code □□□ Design Code Standard Product is Blank Specifications subject to change without notice. Please check our website for latest information. Revised 2018/11/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS Unit: mm Series A B C D E I Typ. J Typ. H Typ. MWSA0412S 4.2±0.25 4.4±0.35 1.0±0.2 0.8±0.3 2.0±0.3 1.5 2.2 2.5 MWSA0402S 4.2±0.25 4.4±0.35 1.8±0.2 0.8±0.3 2.0±0.3 1.5 2.2 2.5 MWSA0518S 5.2±0.2 5.4±0.35 1.6±0.2 1.20±0.2 2.2±0.3 1.9 2.2 2.5 MWSA0503S 5.2±0.2 5.4±0.35 2.8±0.2 1.20±0.2 2.2±0.3 1.9 2.2 2.5 MWSA0618S 6.6±0.2 7.0±0.3 1.6±0.2 1.60±0.3 3.0±0.3 2.35 3.7 3.5 MWSA0624S 6.6±0.2 7.0±0.3 2.2±0.2 1.60±0.3 3.0±0.3 2.35 3.7 3.5 MWSA0603S 6.6±0.2 7.0±0.3 2.8±0.2 1.60±0.3 3.0±0.3 2.35 3.7 3.5 MWSA0604S 6.6±0.2 7.0±0.3 3.8±0.2 1.60±0.3 3.0±0.3 2.35 3.7 3.5 MWSA0605S 6.6±0.2 7.0±0.3 4.8±0.2 1.60±0.3 3.0±0.3 2.35 3.7 3.5 MWSA1004S 10.0±0.3 11.5Max 3.8±0.2 2.0±0.5 3.0±0.5 4.1 5.4 4.1 MWSA1205S 12.6±0.3 13.45±0.35 4.8±0.2 2.0±0.5 3.5±0.5 3.25 8.0 5.0 SPECIFICATIONS MWSA0412S Series Inductance DC Resistance Saturation Current *3 Heat Rating Current*4 @100KH,1V Max. Typ. Typ. Units Symbol μH L mΩ DCR A Isat A Irms MWSA0412S-R15MT 0.15±20% 9 15.00 7.50 MWSA0412S-R22MT 0.22±20% 11 11.00 7.00 MWSA0412S-R33MT 0.33±20% 19 8.40 6.50 MWSA0412S-R47MT 0.47±20% 21 6.80 6.00 MWSA0412S-R68MT 0.68±20% 36 6.00 4.70 MWSA0412S-1R0MT 1.0±20% 47 5.50 4.50 MWSA0412S-1R5MT 1.5±20% 75 4.00 3.25 MWSA0412S-2R2MT 2.2±20% 83.5 3.00 2.75 MWSA0412S-4R7MT 4.7±20% 195 2.20 1.80 Part Number Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2018/11/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS MWSA0402S Series Part Number Inductance DC Resistance Saturation Current *3 Heat Rating Current*4 @100KH,1V Max. Typ. Typ. Units μH mΩ A A Symbol L DCR Isat Irms MWSA0402S-R10MT 0.10±20% 4 22.00 13.00 MWSA0402S-R22MT 0.22±20% 6.6 12.50 9.50 MWSA0402S-R33MT 0.33±20% 11 12.00 10.00 MWSA0402S-R47MT 0.47±20% 14 9.50 7.50 MWSA0402S-R56MT 0.56±20% 16 9.00 7.00 MWSA0402S-R68MT 0.68±20% 18 8.00 7.00 MWSA0402S-1R0MT 1.0±20% 27 7.00 6.00 MWSA0402S-1R2MT 1.2±20% 27 6.50 6.00 MWSA0402S-1R5MT 1.5±20% 46 5.50 5.00 MWSA0402S-2R2MT 2.2±20% 58 5.00 4.50 MWSA0402S-3R3MT 3.3±20% 87 3.50 3.30 MWSA0402S-4R7MT 4.7±20% 105 3.00 2.80 MWSA0402S-6R8MT 6.8±20% 175 2.50 2.40 MWSA0402S-100MT 10±20% 282 2.00 1.60 Inductance DC Resistance Saturation Current *3 Heat Rating Current*4 @100KH,1V Max. Typ. Typ. MWSA0518S Series Part Number Units μH mΩ A A Symbol L DCR Isat Irms MWSA0518S-R47MT 0.47±20% 9 12.00 10.50 MWSA0518S-R56MT 0.56±20% 10 11.00 9.50 MWSA0518S-1R0MT 1.0±20% 17 9.00 8.00 MWSA0518S-1R5MT 1.5±20% 26 8.00 7.50 MWSA0518S-2R2MT 2.2±20% 35 6.00 5.00 MWSA0518S-3R3MT 3.3±20% 58 4.80 4.50 MWSA0518S-4R7MT 4.7±20% 85 4.00 3.50 MWSA0518S-6R8MT 6.8±20% 120 3.40 2.80 MWSA0518S-100MT 10±20% 155 2.50 2.50 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2018/11/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS MWSA0503S Series Part Number Inductance @100KH,1V DC Resistance Saturation Current *3 Heat Rating Current*4 Max. Typ. Typ. Units μH mΩ A A Symbol L DCR Isat Irms MWSA0503S-R10MT 0.10±20% 3.0 30.00 25.00 MWSA0503S-R20MT 0.20±20% 3.9 20.00 14.00 MWSA0503S-R33MT 0.33±20% 5.5 18.00 14.00 MWSA0503S-R47MT 0.47±20% 8.5 15.00 11.00 MWSA0503S-R68MT 0.68±20% 12 11.50 9.00 MWSA0503S-1R0MT 1.0±20% 14 10.00 8.50 MWSA0503S-1R2MT 1.2±20% 16 9.50 8.50 MWSA0503S-1R5MT 1.5±20% 25 9.00 8.20 MWSA0503S-2R2MT 2.2±20% 29 7.00 7.00 MWSA0503S-3R3MT 3.3±20% 38 6.00 5.50 MWSA0503S-4R7MT 4.7±20% 60 4.60 4.50 MWSA0503S-6R8MT 6.8±20% 90 3.60 3.50 MWSA0503S-100MT 10±20% 125 3.50 3.20 DC Resistance Saturation Current *3 Heat Rating Current*4 MWSA0618S Series Part Number Inductance @100KH,1V Max. Typ. Typ. Units μH mΩ A A Symbol L DCR Isat Irms MWSA0618S-R10MT 0.10±20% 2.3 38.00 25.00 MWSA0618S-R22MT 0.22±20% 3.5 24.00 22.00 MWSA0618S-R47MT 0.47±20% 8.4 18.00 11.50 MWSA0618S-R68MT 0.68±20% 12 16.50 9.50 MWSA0618S-1R0MT 1.0±20% 16 12.00 8.50 MWSA0618S-1R5MT 1.5±20% 26 9.20 8.00 MWSA0618S-2R2MT 2.2±20% 35 8.00 7.00 MWSA0618S-3R3MT 3.3±20% 50 6.00 4.50 MWSA0618S-4R7MT 4.7±20% 62 5.00 4.00 MWSA0618S-6R8MT 6.8±20% 110 4.50 3.00 MWSA0618S-100MT 10±20% 155 4.00 2.30 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2018/11/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS MWSA0624S Series Inductance Part Number @100KH,1V DC Resistance Saturation Current *3 Heat Rating Current*4 Max. Typ. Typ. Units μH mΩ A A Symbol L DCR Isat Irms MWSA0624S-R22MT 0.22±20% 3 30.00 21.00 MWSA0624S-R33MT 0.33±20% 4.1 24.50 18.00 MWSA0624S-R47MT 0.47±20% 5.1 20.00 15.00 MWSA0624S-R56MT 0.56±20% 6.5 17.00 13.00 MWSA0624S-R68MT 0.68±20% 7 16.00 12.00 MWSA0624S-1R0MT 1.0±20% 13.5 15.00 9.00 MWSA0624S-1R5MT 1.5±20% 20 13.50 8.20 MWSA0624S-2R2MT 2.2±20% 28 10.00 7.00 MWSA0624S-3R3MT 3.3±20% 39 8.00 5.50 MWSA0624S-4R7MT 4.7±20% 50 6.50 5.00 MWSA0624S-6R8MT 6.8±20% 70 6.00 4.00 MWSA0624S-100MT 10±20% 101 4.00 3.10 MWSA0624S-150MT 15±20% 160 3.30 2.50 MWSA0624S-220MT 22±20% 230 2.50 2.00 DC Resistance Saturation Current *3 Heat Rating Current*4 Max. Typ. Typ. MWSA0603S Series Part Number Inductance @100KH,1V Units μH mΩ A A Symbol L DCR Isat Irms MWSA0603S-R22MT 0.22±20% 3 34.00 24.00 MWSA0603S-R33MT 0.33±20% 3.5 25.00 21.00 MWSA0603S-R47MT 0.47±20% 4.1 20.00 18.00 MWSA0603S-R56MT 0.56±20% 4.5 18.00 16.50 MWSA0603S-R68MT 0.68±20% 5.3 17.00 16.00 MWSA0603S-R82MT 0.82±20% 6.0 16.00 14.00 MWSA0603S-1R0MT 1.0±20% 7.4 15.00 12.00 MWSA0603S-1R5MT 1.5±20% 12.1 12.00 12.00 MWSA0603S-2R2MT 2.2±20% 15 10.00 9.50 MWSA0603S-3R3MT 3.3±20% 22 9.50 8.50 MWSA0603S-4R7MT 4.7±20% 33 9.00 6.00 MWSA0603S-5R6MT 5.6±20% 42 6.50 6.00 MWSA0603S-6R8MT 6.8±20% 48 6.00 5.00 MWSA0603S-8R2MT 8.2±20% 60 5.50 5.00 MWSA0603S-100MT 10±20% 68 5.20 4.50 MWSA0603S-150MT 15±20% 113 4.00 3.00 MWSA0603S-220MT 22±20% 170 3.00 2.50 MWSA0603S-330MT 33±20% 270 2.50 2.00 MWSA0603S-470MT 47±20% 385 2.00 1.50 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2018/11/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS MWSA0604S Series Inductance Part Number @100KH,1V DC Resistance Saturation Current *3 Heat Rating Current*4 Max. Typ. Typ. Units μH mΩ A A Symbol L DCR Isat Irms MWSA0604S-2R2MT 2.2±20% 18 12.00 8.00 DC Resistance Saturation Current *3 Heat Rating Current*4 Max. Typ. Typ. MWSA0605S Series Inductance Part Number @100KH,1V Units μH mΩ A A Symbol L DCR Isat Irms MWSA0605S-100MT 10±20% 60 5.30 4.50 MWSA0605S-150MT 15±20% 90 4.00 3.10 MWSA0605S-220MT 22±20% 140 3.50 2.60 MWSA0605S-330MT 33±20% 190 3.00 2.30 DC Resistance Saturation Current *3 Heat Rating Current*4 MWSA1004S Series Part Number Inductance @100KH,1V Max. Typ. Typ. Units μH mΩ A A Symbol L DCR Isat Irms MWSA1004S-R22MT 0.22±20% 1 60.00 35.00 MWSA1004S-R30MT 0.30±20% 1.1 45.00 35.00 MWSA1004S-R36MT 0.36±20% 1.2 45.00 30.00 MWSA1004S-R47MT 0.47±20% 1.7 40.00 30.00 MWSA1004S-R56MT 0.56±20% 1.8 33.00 25.00 MWSA1004S-R68MT 0.68±20% 2.4 30.00 23.00 MWSA1004S-R80MT 0.80±20% 2.7 29.00 23.00 MWSA1004S-1R0MT 1.0±20% 3.3 28.00 19.00 MWSA1004S-1R5MT 1.5±20% 4.2 24.00 16.00 MWSA1004S-2R2MT 2.2±20% 7 16.50 12.00 MWSA1004S-3R3MT 3.3±20% 11.8 16.00 11.00 MWSA1004S-4R7MT 4.7±20% 20 13.00 9.00 MWSA1004S-6R8MT 6.8±20% 25 12.00 8.50 MWSA1004S-8R2MT 8.2±20% 27 9.00 8.00 MWSA1004S-100MT 10±20% 30 8.50 7.80 MWSA1004S-150MT 15±20% 45 7.00 6.50 MWSA1004S-220MT 22±20% 66 5.50 5.00 MWSA1004S-330MT 33±20% 92 4.80 4.40 MWSA1004S-470MT 47±20% 145 3.50 3.30 MWSA1004S-680MT 68±20% 195 3.00 2.50 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2018/11/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS MWSA1205S Series Inductance Part Number @100KH,1V DC Resistance Saturation Current *3 Heat Rating Current*4 Max. Typ. Typ. Units μH mΩ A A Symbol L DCR Isat Irms MWSA1205S-R36MT 0.36±20% 0.85 50.00 42.00 MWSA1205S-R50MT 0.50±20% 1.15 48.00 38.00 MWSA1205S-R68MT 0.68±20% 1.55 46.00 33.00 MWSA1205S-R82MT 0.82±20% 1.67 39.00 30.00 MWSA1205S-R36MT 0.36±20% 0.85 50.00 42.00 MWSA1205S-R50MT 0.50±20% 1.15 48.00 38.00 MWSA1205S-R68MT 0.68±20% 1.55 46.00 33.00 MWSA1205S-R82MT 0.82±20% 1.67 39.00 30.00 MWSA1205S-1R0MT 1.0±20% 2.2 35.00 26.00 MWSA1205S-1R5MT 1.5±20% 3.2 33.00 23.00 MWSA1205S-2R2MT 2.2±20% 5.0 24.00 15.00 MWSA1205S-3R3MT 3.3±20% 7 22.00 14.00 MWSA1205S-4R7MT 4.7±20% 9 20.00 13.00 MWSA1205S-6R8MT 6.8±20% 18 16.00 12.00 MWSA1205S-100MT 10±20% 22 12.00 9.00 MWSA1205S-150MT 15±20% 30 10.00 8.00 MWSA1205S-220MT 22±20% 58 6.50 4.50 MWSA1205S-330MT 33±20% 84 6.00 3.50 47±20% 130 5.00 MWSA1205S-470MT ※1: All test data is referenced to 25°C ambient; ※2: Rated current: Isat or Irms, whichever is smaller; ※*3: Isat: DC current at which the inductance drops approximate 30% from its value without current; ※*4: Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient. Sunlord Specifications subject to change without notice. Please check our website for latest information. 3.00 Revised 2018/11/30 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
