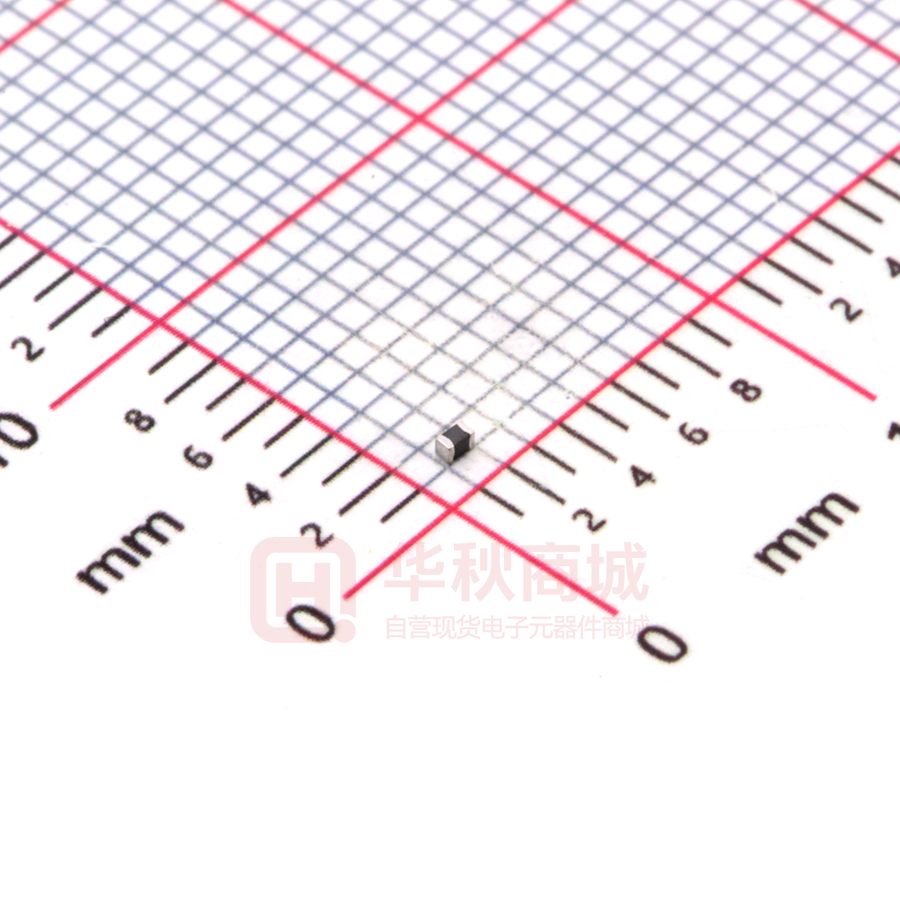

HZ1005K102TF

Multilayer Chip Ferrite Bead – HZ Series Operating Temp. : -55℃~+125℃ FEATURES Internal silver printed layers and magnetic shielded structures to minimize crosstalk Perfect effect for EMI suppression at high frequency (≥1GHz) due to its high impedance Four types material and wide range of impedance values for various applications ● ● ● APPLICATIONS  High frequency noise suppression in electric equipments such as computer and peripheral devices, DVD, cameras, LCD TVs, communication equipments, OA equipments, etc. PRODUCT IDENTIFICATION HZ 1608 K 301 T F ① ① ② ③ ④ ⑤ ⑥ ③ ② Type Chip Ferrite Bead for High Frequency HZ ④ 301 102 0603[0201] 0.6×0.3 1005 [0402] 1.0×0.5 1608 [0603] 1.6×0.8 Material Code G, K, D, U ⑤ Packing Tape & Reel T ⑦ Hazardous Substance Free Products F 300Ω ⑦ External Dimensions (L×W) (mm) ⑥ Nominal Impedance Example Nominal Value □□□ Design Code □□□ Design Code * Standard product is blank 1000Ω SHAPE AND DIMENSIONS Unit: mm [inch] Type HZ0603 [0201] HZ1005 [0402] HZ1608 [0603] L 0.6±0.05 [.024±.002] 1.0±0.15 [.039±.006] 1.6±0.15 [.063±.006] W 0.3±0.05 [.012±.002] 0.5±0.15 [.020±.006] 0.8±0.15 [.031±.006] T 0.3±0.05 [.012±.002] 0.5±0.15 [.020±.006] 0.8±0.15 [.031±.006] a 0.15±0.05 [.006±.002] 0.25±0.1 [.010±.004] 0.3±0.2 [.012±.008] SPECIFICATIONS HZ0603 TYPE Part Number Units Symbol HZ0603D331TF HZ0603D471TF HZ0603D601TF HZ0603G121TF HZ0603G221TF Sunlord Impedance @100MHz @1GHz Min. Ω Z 330±25% 450 470±25% 600 600±25% 900 120±25% 600 220±25% 720 Max. DC Resistance Max. Rated Current Ω DCR 1.00 1.30 1.70 1.50 2.00 mA Ir 200 175 150 200 150 Specifications subject to change without notice. Please check our website for latest information. Thickness mm [inch] T 0.3±0.05 [.012±.002] Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS HZ1005 TYPE Impedance @100MHz @1GHz Min. Ω Z 120±25% 500 220±25% 900 220±25% 300 300±25% 400 600±25% 700 1000±25% 900 180±25% 400 300±25% 600 470±25% 900 600±25% 1100 1000±25% 1200 1500±25% 1400 1800±25% 1620 600±25% 600 1000±25% 900 Part Number Units Symbol HZ1005G121TF HZ1005G221TF HZ1005D221TFB01 HZ1005D301TF HZ1005D601TF HZ1005D102TF HZ1005K181TF HZ1005K301TF HZ1005K471TF HZ1005K601TFB01 HZ1005K102TFB01 HZ1005K152TF HZ1005K182TFB03 HZ1005U601TFB02 HZ1005U102TFB01 Max. DC Resistance Max. Rated Current Ω DCR 0.70 1.00 0.50 1.00 1.50 1.80 1.00 1.10 1.30 0.85 1.25 2.20 2.20 0.70 1.10 mA Ir 300 250 300 100 100 50 100 100 100 300 250 50 200 300 250 Thickness mm [inch] T 0.5±0.15 [.020±.006] HZ1608 TYPE Impedance @100MHz @1GHz Min. Ω Z 470±25% 700 600±25% 850 1000±25% 1100 180±25% 180 300±25% 300 470±25% 400 600±25% 450 1000±25% 750 Part Number Units Symbol HZ1608K471TF HZ1608K601TF HZ1608K102TF HZ1608U181TF HZ1608U301TF HZ1608U471TF HZ1608U601TF HZ1608U102TF Max. DC Resistance Max. Rated Current Ω DCR 1.20 1.50 1.80 0.55 0.75 0.85 1.00 1.60 mA Ir 100 100 50 200 200 200 200 100 Thickness mm [inch] T 0.8±0.15 [.031±.006] ※: Products with other electrical characteristics can be provided upon customer’s request. Please contact your local sales. TYPICAL ELECTRICAL CHARACTERISTICS D, K, U Material Comparison 1600 1200 HZ1005K301TF 1200 Impedance( Ω ) Impedance( Ω ) 900 HZ1005D301TF 600 300 HZ1608K471TF HZ1608U471TF 800 400 0 1 10 100 1000 0 3000 1 10 Frequency(MHz) 100 1000 3000 Frequency(MHz) DETAIL ELECTRICAL CHARACTERISTICS HZ0603 TYPE HZ0603D331TF HZ0603D601TF HZ0603D471TF 1000 1500 1600 Z 800 Z 1200 Impedance(Ω) R 600 Z Impedance(Ω) Impedance(Ω) 1200 900 400 600 400 X 200 R 800 R X 300 X 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 0 1 10 100 Frequency(MHz) 1000 3000 0 1 10 100 1000 3000 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com DETAIL ELECTRICAL CHARACTERISTICS HZ0603 TYPE HZ0603G221TF HZ0603G121TF 1600 1500 Z 1200 1200 Impedance(Ω) Impedance(Ω) Z 900 R R 800 600 X X 400 300 0 0 1 10 100 1000 100 10 1 3000 1000 3000 Frequency(MHz) Frequency(MHz) HZ1005 TYPE HZ1005G121TF HZ1005G221TF 1200 Z 600 R 300 HZ1005D221TFB01 500 400 Z Impedance(Ω) 900 Impedance(Ω) 1600 Impedance(Ω) 1200 R 800 Z R 300 200 400 X 100 X 0 0 1 10 100 1000 1 3000 10 100 Frequency(MHz) 1000 X 0 3000 1 10 100 Frequency(MHz) HZ1005D301TF HZ1005D601TF 800 3000 1000 Frequency(MHz) HZ1005D102TF 1200 2000 Z 900 R 400 200 R 600 300 500 100 1000 0 0 3000 1 10 Frequency(MHz) 1000 100 HZ1005K181TF HZ1005K301TF R 200 Z 1200 R 600 300 1 100 10 Z R 800 400 X X X 0 0 3000 1000 1 10 Frequency(MHz) 100 1000 0 3000 1 10 Frequency(MHz) HZ1005K601TFB01 100 1000 3000 1000 3000 Frequency(MHz) HZ1005K102TFB01 2000 3000 HZ1005K471TF Impedance(Ω ) Impedance(Ω ) 400 1000 1600 900 Z 100 10 Frequency(MHz) 1200 600 HZ1005K152TF 3000 4000 2400 1800 R 1000 R 1200 500 X 0 1 10 100 R 2000 1000 X 600 X Z 3000 Z Impedance(Ω ) Impedance(Ω ) Z Impedance(Ω ) 1500 0 3000 1000 1 10 Frequency(MHz) 100 1000 0 3000 1 10 Frequency(MHz) 100 Frequency(MHz) HZ1005U601TFB02 HZ1005K182TFB03 HZ1005U102TFB01 1000 5000 1600 Z 4000 Z 750 3000 R Impedance(Ω) 1200 Impedance(Ω) Z Impedance(Ω ) 1 3000 Frequency(MHz) 800 Impedance(Ω ) X X 0 10 R 1000 X 1 Z 1500 Impedance(Ω ) Z Impedance(Ω ) Impedance(Ω ) 600 R 500 2000 250 400 X 1000 R 800 X X 0 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 1 10 100 Frequency(MHz) 1000 3000 0 1 10 100 1000 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000 DETAIL ELECTRICAL CHARACTERISTICS HZ1608 TYPE HZ1608K471TF HZ1608K102TF HZ1608K601TF 1600 3000 2000 2400 1500 R 800 Z Impedance(Ω) Z Impedance(Ω) Impedance(Ω) 1200 Z 1000 1800 R R 1200 400 500 X 0 0 0 10 1000 100 3000 1 10 Frequency(MHz) 1 3000 300 450 Z HZ1608U471TF 600 Z R Z R 400 150 100 200 X X X 0 0 0 1 10 100 1000 1 3000 10 100 1000 3000 HZ1608U601TF 1 10 100 1000 Frequency(MHz) Frequency(MHz) Frequency(MHz) HZ1608U102TF 1000 1600 Z 750 1200 Impedance(Ω) Impedance(Ω) Z R 500 R 800 250 400 X X 0 1 10 100 Frequency(MHz) Sunlord 3000 Frequency(MHz) 300 R 1000 100 10 800 Impedance(Ω) 600 Impedance(Ω) 1000 HZ1608U301TF HZ1608U181TF 400 200 100 Frequency(MHz) Impedance(Ω) 1 X 600 X 1000 3000 0 1 10 100 1000 3000 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2021/05/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832333 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000
