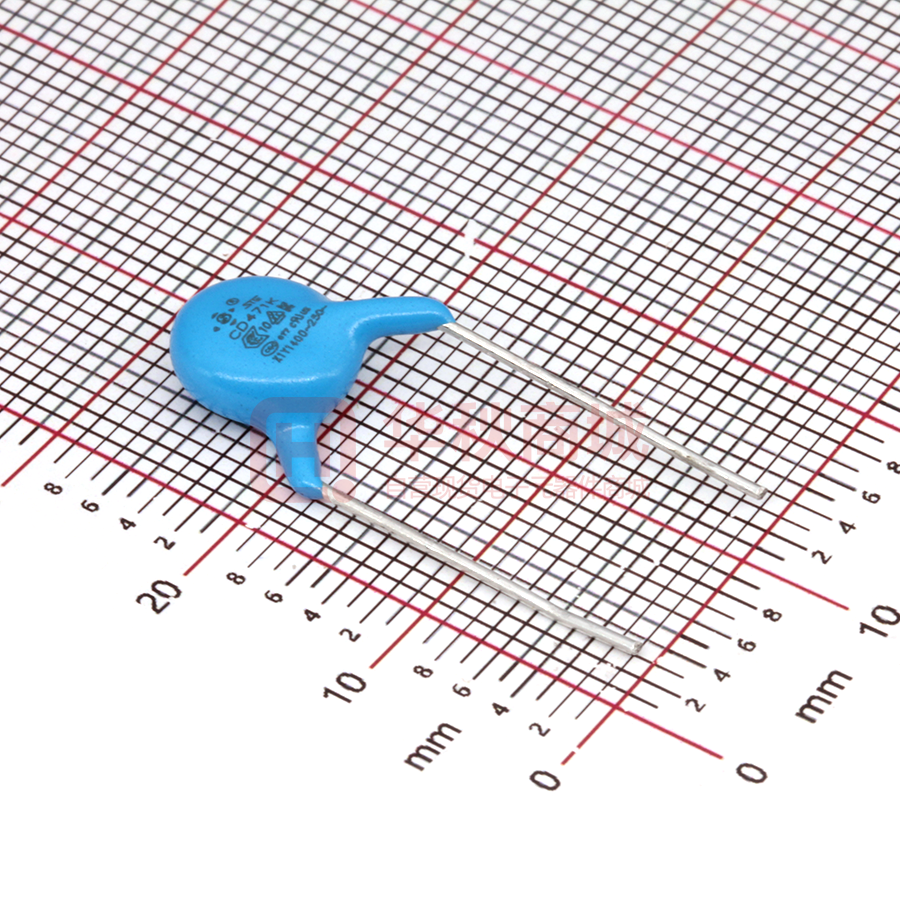

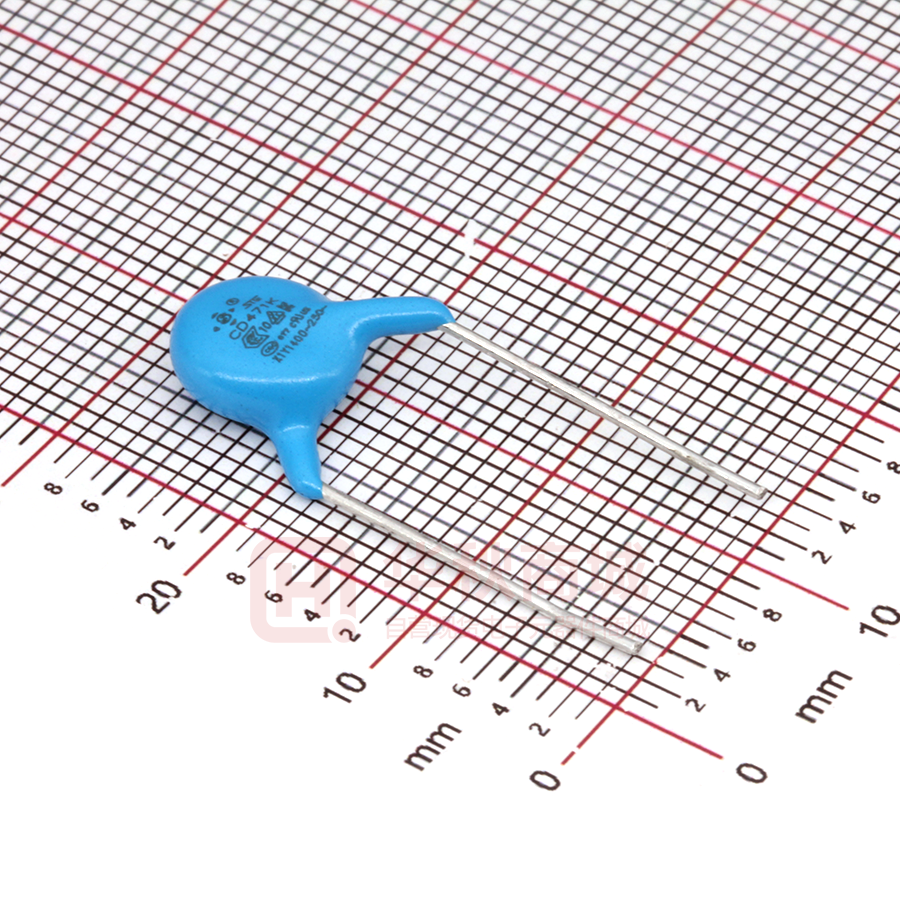

Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1) Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1) Data Sheet Feature ■Wide operating voltage range from 10pF to 4700pF ■Operating Temperature: -40℃～125℃ ■Storage Temperature: 15℃~35℃ ■Fix capacitors Y1 for electromagetic interference suppression and connection to the supply mains has high dielectric coefficient ceramic dielectric and flame retardant epoxy resin package Applications ■ Can be used for power supply noise suppression circuit in cross connection and bypass.It is a primary and secondary coupling X/Y capacitor used as AC line filter and switching power supply and AC converter Applicable Standard Approval Organization Safety Standards Certificate No. USA Canada UL CUL UL60384 E208107 Korea KTL K60384-14 SU03031-7002 China CQC GB/T 6346.14-2015 CQC06001018610 Germany VDE En 60384-14 40025754 Email: info@songtian.cn Website: http://www.songtian-ste.com Revision: 2018-04-29 1 Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1) Approval Organization Safety Standards Certificate No. EU ENEC En 60384-14 40025754 IEC IEC-CB IEC 60384-14 US-21746-UL Part Number Code Q 09 F Rated Voltage Q:Y1 Core Diameter 09:9mm 15:15mm Temperature Characteristic B:Y5P E:Y5U F:Y5V Revision: 2018-04-29 1 D 222 Pitch D:10.0mm M N0 B S Package B: Bulk T:Tape Tolerance K:±10% M:±20% Nominal capacitance 470:47pF 471:470pF 222:2200pF 103:10000pF Foot Type 1:Long straight 2:Outside Crimped 3:Short Straight 8:Vertical Crimped 0 0 N 0 Inner Management Environmental Standard 0:RoHS 2:RoHS+Halogen-Free Lead Length S0~S9:1.0~1.9mm X0~X9:2.0~2.9mm A0~A9:3.0~3.9mm B0~B9:4.0~4.9mm C0~C9:5.0~5.9mm D0~D9:6.0~6.9mm E0~E9:7.0~7.9mm 2 Lead Length F0~F9:8.0~8.9mm G0~G9:9.0~9.9mm H0~H9:10.0~10.9mm J0~J9:11.0~11.9mm K0~K9:12.0~12.9mm L0~L9:13.0~13.9mm M0~M9:14.0~14.9mm Email: info@songtian.cn Lead Length M0~M9:14.0~14.9mm N0:16~27.0mm(Bulk) Crimped Lead Taped N0:H0=16.5mm P0:H0=17.0mm Q0:H0=19.0mm Straight Lead Q0:20.0mm Website: http://www.songtian-ste.com Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1) Specifications Capacitance and Dissipation factor testing condition Dissipation Factor(tanδ) Y5P/Y5U/Y5V:25℃、1KHz、1Vrms ≤2.5% Rated Voltage 400VAC Withstand Voltage 4000VAC Insulation Resistance (I.R.) IR≥10000MΩ Temperature Characteristic Y5P、Y5U、Y5V Dimensions (mm) and Approval Size (mm) Part No. Approval D Max. T Max. F±0.8 d±0.05 CQC VDE cUL (Canada) KTL ENEC Y1-Y5P-101K 7.0 4.0 10.0 0.6 √ √ √ √ √ Y1-Y5P-151K 7.0 5.0 10.0 0.6 √ √ √ √ √ Y1-Y5P-221K 7.0 5.0 10.0 0.6 √ √ √ √ √ Y1-Y5P-331K 8.5 5.0 10.0 0.6 √ √ √ √ √ Y1-Y5P-471K 9.0 5.0 10.0 0.65 √ √ √ √ √ Y1-Y5P-681K 10.0 5.0 10.0 0.65 √ √ √ Y1-Y5P-102K 12.0 5.5 10.0 0.65 √ √ √ √ √ Y1-Y5U-331K 7.0 5.0 10.0 0.6 √ √ √ √ √ Y1-Y5U-471K 7.0 5.0 10.0 0.6 √ √ √ √ √ Y1-Y5U-102M 8.0 5.0 10.0 0.6 √ √ √ √ √ Y1-Y5U-152M 10.0 5.0 10.0 0.65 √ √ √ √ √ Y1-Y5U-222M 11.0 5.0 10.0 0.65 √ √ √ √ √ Y1-Y5V-102M 7.0 5.0 10.0 0.6 √ √ √ √ √ Y1-Y5V-152M 8.0 5.0 10.0 0.6 √ √ √ √ √ Y1-Y5V-222M 9.0 5.0 10.0 0.65 √ √ √ √ √ Y1-Y5V-332M 11.0 5.5 10.0 0.65 √ √ √ √ √ Y1-Y5V-472M 12.0 5.5 10.0 0.65 √ √ √ √ √ Revision: 2018-04-29 3 Email: info@songtian.cn Website: http://www.songtian-ste.com Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1) Lead Configuration Lead Style Lead Length L (mm) Drawing Long Straight 16.0 min Coating Lead Length C (mm) ①C≤2.5mm (Product diameter﹤12mm） Height H (mm) / ②C≤3.0mm (Product diameter≥12mm) Short Straight ①[2.5≤L＜6.0]+/-0.5; ②[6.0≤L≤10]+/-1.0 ①C≤2.5mm (Product diameter﹤12mm） / ②C≤3.0mm (Product diameter≥12mm) Outside Crimped ①[2.5≤L＜6.0]+/-0.5; ②[6.0≤L≤10]+/-1.0 Not exceed the bend point 5.0mm Max Vertical Crimped ①[2.5≤L＜6.0]+/-0.5; ②[6.0≤L≤10]+/-1.0 Not exceed the bend point 4.0mm Max Revision: 2018-04-29 4 Email: info@songtian.cn Website: http://www.songtian-ste.com Safety Standard Certified Ceramic Capacitors-CD Series (Class Y1) Taping And Dimensions (mm) Figure Symbol P=10.0 Po 12.7±0.3 P 25.4±1.0 P1 7.7±0.7 P2 12.7±1.3 F 10.0±0.8 Δh 0±2.0 W 18.0 +1.5/-1.0 Wo 10.5 Max W1 9.0+0.75/-0.5 W2 3.0 Max Do 4.0±0.2 H 20+1.5/-1.0 Ho 16.5&17.0&19.0 +1.5/-1.0 Straight Lead Crimped Lead 11.0 Max 9.0 Max L Revision: 2018-04-29 5 Email: info@songtian.cn t1 0.5±0.2 t2 1.7 Max Website: http://www.songtian-ste.com
