SLO1040H680MTT

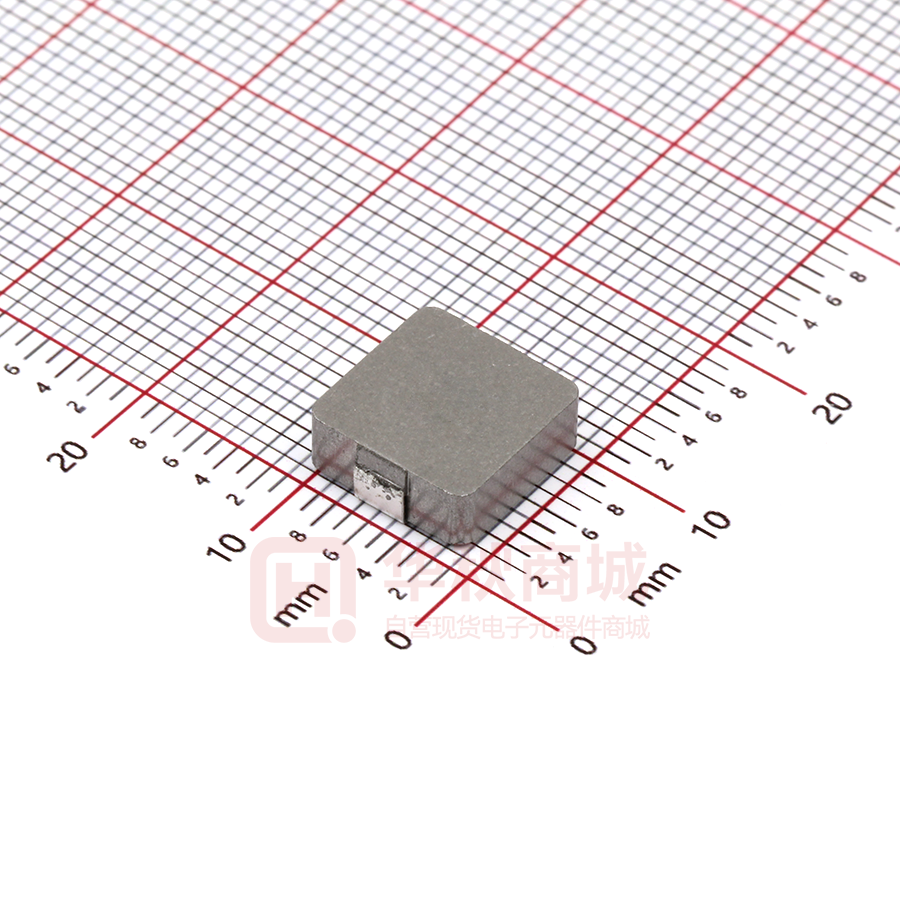

SLO1040H Series SMD Molding Power Inductor ◆ Features Pb 、Magnetically shielded construction, low DC resistance； 、The use of magnetic iron powder ensure capability for large current； 3、Low audible core noise； 4、Ideal for DC-DC converter applications in hand held personal computer and etc； 5、Frequency Range: up to 3.0MHz； 6、RoHS compliant。 1 2 ◆ Applications 、Smart phone、MID； 、Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras； 3、Flat-screen TVs, blue-ray disc recorders, set top box； 4、Notebooks, desktop computers, servers, graphic cards； 5、Portable gaming devices, personal navigation systems, personal multimedia devices； 6、Automotive systems； 7、Telecomm base stations。 1 2 ◆ Lead Free Part Numbering SLO 1040 (1) (2) H (3) 100 M (4) (5) ： ： (1) (2) (3) (4) T T (6) (7) Series Type Dimension A X C Material Code Inductance 2R2=2.2μH 100=10μH 101=100μH (5) Inductance Tolerance M= 20%, Y= 30% (6) Company Code (7) Packaging packed in embossed carrier tape ； ； ： ± ： ± ◆ Dimensions Series SLO1040H Rev.01 A±0.2(mm) B±0.2 (mm) C (mm) D±0.1 (mm) E±0.1 (mm) 10.8 10.0 4.0 Max 3.0 2.0 Page 1 of 4 www.sunltech.com SLO1040H Series ◆ Specification Part Number μ INDUCTANCE Lo( H) Ω Rdc (m ) Typ. Max Test a condition HEAT RATING CURRENT(Idc) DC AMPS1 (Typ.) SATURATION CURRENT(Isat) DC AMPS2 (Typ.) SLO1040H Series SLO1040HR22MTT 0.22 0.8 1.0 100KHz/1V 35.0 60.0 SLO1040HR33MTT 0.33 1.0 1.2 100KHz/1V 25.0 51.0 SLO1040HR47MTT 0.47 1.3 1.68 100KHz/1V 24.0 35.0 SLO1040HR56MTT 0.56 1.5 1.8 100KHz/1V 23.5 33.0 SLO1040HR68MTT 0.68 1.9 2.4 100KHz/1V 20.0 30.0 SLO1040H1R0MTT 1.0 3.0 3.3 100KHz/1V 18.0 28.0 SLO1040H1R5MTT 1.5 3.8 5.5 100KHz/1V 12.0 24.0 SLO1040H2R2MTT 2.2 5.8 7.0 100KHz/1V 12.0 18.0 SLO1040H3R3MTT 3.3 10 11 100KHz/1V 10.0 16.0 SLO1040H4R7MTT 4.7 12 19 100KHz/1V 8.5 13.0 SLO1040H5R6MTT 5.6 20 23 100KHz/1V 8.0 11.0 SLO1040H6R8MTT 6.8 22 25 100KHz/1V 7.0 10.0 SLO1040H100MTT 10 27 30 100KHz/1V 5.5 8.5 SLO1040H150MTT 15 32 45 100KHz/1V 4.5 7.0 SLO1040H220MTT 22 51 66 100KHz/1V 4.0 5.5 SLO1040H330MTT 33 79 92 100KHz/1V 3.5 5.0 SLO1040H470MTT 47 101 145 100KHz/1V 3.0 3.7 SLO1040H680MTT 68 155 205 100KHz/1V 2.3 3.0 SLO1040H820MTT 82 205 285 100KHz/1V 2.0 3.0 SLO1040H101MTT 82 265 300 100KHz/1V 1.5 2.0 NOTES: △ ℃ 1. DC current (Idc) that will cause an approximate T of 40 2. DC current (Isat) that will cause Lo to drop approximately 20% 3. All test data is referenced to 25 ambient 4. Operating Temperature Range -55 to +150 5. The part temperature (ambient + temp rise) should not exceed 150 under the worst operating conditions. Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions all affect the part temperature. Part temperature should be verified in the end application. ℃ Rev.01 ℃ ℃ Page 2 of 4 ℃ www.sunltech.com SLO1040H Series ◆ Wave Soldering ◆ Hand soldering Rev.01 Page 3 of 4 www.sunltech.com SLO1040H Series ◆ Reliability Mechanical ℃ ~+125℃ -45℃ ~ + 1 2 5 ℃ -55 Rev.01 Page 4 of 4 www.sunltech.com
