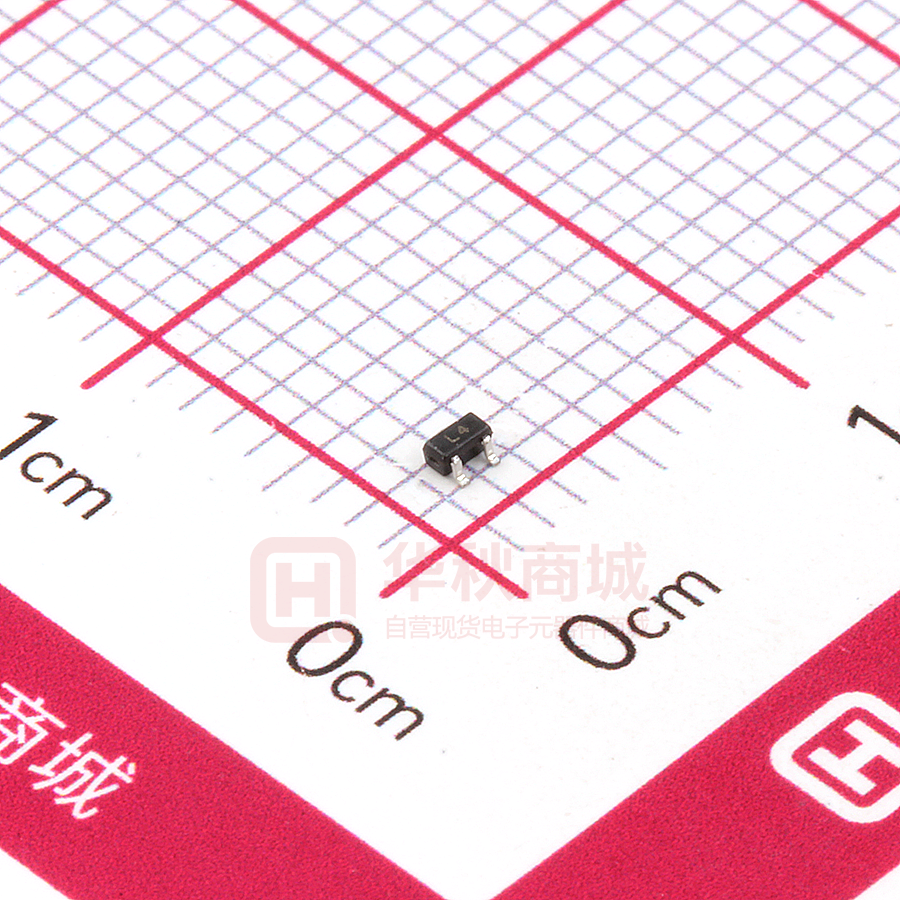

BAT54ST

BAT54T/AT/CT/ST Surface Mount Schottky Barrier Diodes SOT-523 Features — Low forward voltage drop. — Fast switching. — Ultra-small surface mount package. — PN junction guard ring for transient and — ESD protection. Dimensions in inches and (millimeters) Applications — Schottky barrier diodes. BAT54T BAT54AT BAT54CT BAT54ST Ordering Information Type No. Marking BAT54T BAT54AT BAT54CT BAT54ST L1 L2 L3 L4 Package Code SOT- 523 SOT-523 SOT-523 SOT-523 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Units VRRM VRWM VR Peak repetitive reverse voltage Working peak reverse voltage DC reverse voltage 30 V IF Forward continuous voltage 200 mA IFRM Repetitive peak forward voltage 300 mA IFSM Non-repetitive peak forward surge current @t
