TYKTADSANF-26M

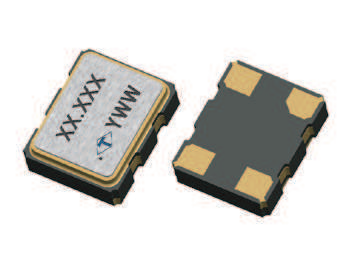

TY Type 2.5 x 2.0 mm SMD Voltage Controlled Temperature ture Compensated Crystal Oscillator Actual Size FEATURE - Typical 2.5 x 2.0 x 0.7 mm ceramic SMD package. - For automatic assembly. - Compactness and lightweight. - VCTCXO available. - Low thickness TYPICAL APPLICATION - GPS - WiMAX, WLAN - Mobile Phone RoHS Compliant DIMENSION (mm) SOLDER PAD LAYOUT (mm) [ BOTTOM VIEW ] [ TOP VIEW ] 0.1 μF 2.50±0.15 2.00±0.15 #1 #2 #2 #1 0.90 #4 0.60±0.10 #3 1.35±0.15 #4 1.45 1.95±0.15 2.05 0.50±0.10 Pin# [ SIDE VIEW ] 0.70±0.10 0.22±0.04 1 2 3 4 0.80 Function VCON:VC-TCXO GND / NC: TCXO GND Output VDD To ensure optimal oscillator performance, place a by-pass capacitor of 0.1μF as close to the part as possible between Vdd and GND pads. ELECTRICAL SPECIFICATION 3.3 / 3.0 / 2.8 V Min. Max. 2.66 3.465 10 52 Parameter Supply Voltage Variation (VDD) Frequency Range Standard Frequency Frequency Tolerance* Frequency stability Vs Supply Voltage (±5%) change Vs Load (±10%) change Vs Aging (@1st year) Supply Current 10 MHz Fo 26 MHz 26 MHz Fo 52 MHz Output Level (Clipped sine wave) Load Control Voltage Range (VCTCXO) Pulling Range (VCTCXO) Vc Input Impedance (VCTCXO) Phase Noise @ 19.2 MHz 100 Hz 1 kHz 10 kHz Start time Storage Temp. Range _ ±2.0 _ _ _ _ _ 2.5 V Min. Max. 2.375 2.625 10 52 16.369, 19.2, 26.0, 38.4 _ ±2.0 _ _ _ _ _ ±0.2 ±0.2 ±1.0 1.5 2.0 _ ±0.2 ±0.2 ±1.0 1.5 2.0 _ 0.8 0.8 10 KΩ // 10pF 10 KΩ // 10pF 0.5 2.5 0.4 2.4 _ _ ±5.0 ±5.0 _ _ 500 500 -115 -115 -135 -135 -148 -148 _ _ 2 2 -55 125 -55 125 Standard frequencies are frequencies which the crystal has been designed and does not imply a stock position. ＊ Frequency at 25°C, 1 hour after reflow. 1.8 V Min. 1.71 10 _ _ _ _ _ _ Max. 1.89 52 ±2.0 ±0.2 ±0.2 ±1.0 1.5 2.0 _ 0.8 10 KΩ // 10pF 0.3 1.5 _ ±5.0 _ 500 -115 -135 -148 _ 2 -55 125 Unit V MHz ppm ppm ppm mA Vp-p V ppm kΩ dBc/Hz mSec °C FREQ. STABILITY vs. TEMP. RANGE Temp. (°C) ppm ±0.5 ±1.0 ±1.5 ±2.0 ±2.5 -20 ~ +70 -30 ~ +85 -40 ~ +85 * ż: Available Χ:Conditional X: Not available Note: not all combination of options are available. Other specifications may be available upon request. 6SHFL¿FDWLRQVVXEMHFWWRFKDQJHZLWKRXWQRWLFH www.taitien.com sales@taitien.com.tw Rev(11)11/2019 85
