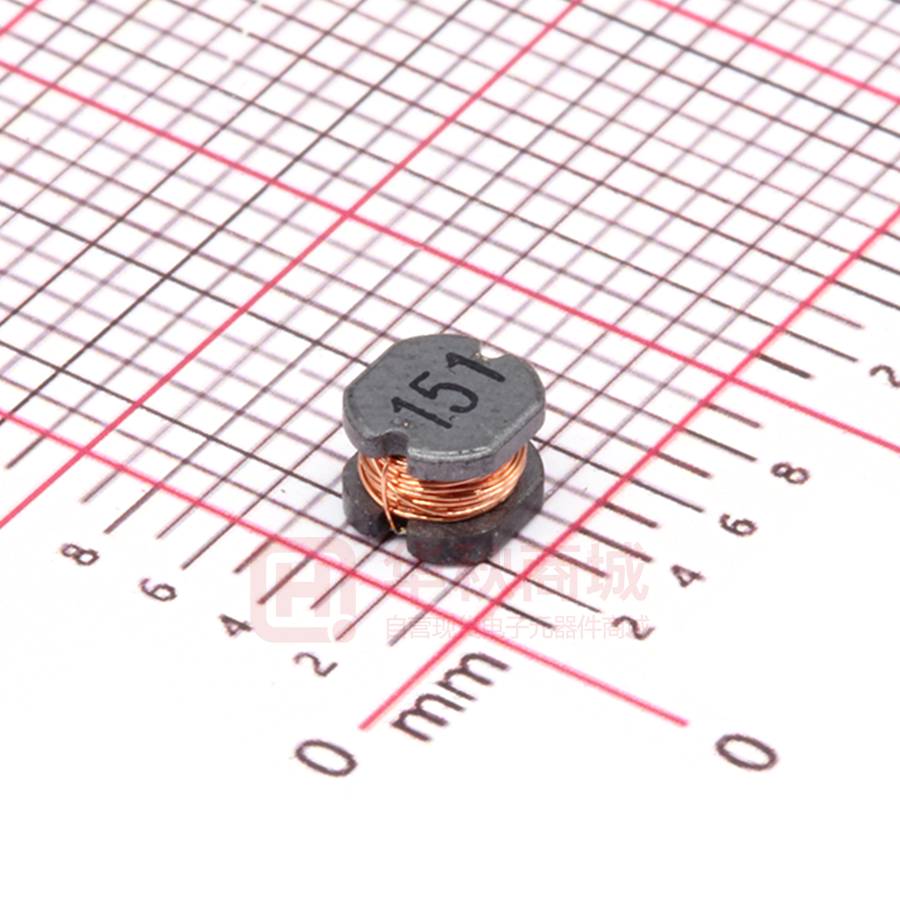

VE4532-151K

VE4532-151K

  • 厂商:

    VOLUMESOURCE(千代源)

  • 封装:

    IND_4.5X4MM_SM

  • 描述:

    功率电感 150µH ±10% 1.97Ω IND_4.5X4MM_SM

  • 数据手册
  • 价格&库存
VE4532-151K 数据手册
SPECIFIC AT IONS Customer Product Name Wire Wound SMD Power Inductors Volume Part Number VE4532 Series Customer Part Number [ New Released, Revised] SPEC No: VE4532-100M PART NO: FIA04532-12 【This SPEC is total 8 pages.】 【ROHS Compliant Parts】 Approved By Checked By Issued By ShenZhen Volume Source Electronics Co., Ltd. Address: 16th Floor, Building T5-N4, Tian'an Digital City, Fenggang, Dongguan Tel: 0769-89891993 Fax: 0769-89891993-806 【For Customer approval Only】 Qualification Status: Approved By Comments: □Full Date: □Restricted Verified By □Rejected Re-checked By Checked By 【Version change history】 Rev. Effective Date Changed Contents Change Reasons Approved By 01 / New released / Luyong Han Applications: ●Power supply for VTRs. LCD televisions. ●Notebook PCs, Portable communication equipment. ●DC/DC converters, etc. Features : ●Silver Plated Type, Low cost designed. ●Available on tape and reel for auto surface mounting. 1. Product physical map 3. Schematic Marking 2. Dimensions in (mm) A 4.5±0.3 B 4.0±0.3 C 3.2±0.3 H 4.5 I 1.75 Characteristics : ●Saturation Current(Isat):The current when the inductance Becomes 20% lower than is initial value.(Ta=20℃). ●Temperature Rise Current(Irms):The current when the temperature of coil increases up to max.ΔT=40℃.(Ta=20℃) ●Operating temperature : -30℃~+105℃. ●Storage temperature range (packaging conditions): -5℃~+30℃ and RH 70% (Max.) Test equipments : ●L&Q: HP 4285A or HP 4284A,VR116/VR7210. ●DCR: Milli-ohm meter,VR131. ●Electrical specifications at 25℃. J 1.5 Electrical Characteristics Part No. L( uH ) DCR(Ω) I sat (A) I rms (A) Test Frequency Max. Typ. Max. Typ. Max. Typ. Marking VE4532-1R0M 1.0±20% 100KHz/0.25V 26m 17m 3.85 4.80 3.40 4.20 1R0 VE4532-1R5M 1.5±20% 100KHz/0.25V 35m 23m 3.44 4.30 3.00 3.70 1R5 VE4532-2R2M 2.2±20% 100KHz/0.25V 42m 28m 2.80 3.50 2.75 3.40 2R2 VE4532-2R7M 2.7±20% 100KHz/0.25V 48m 32m 2.75 3.45 2.45 3.15 2R7 VE4532-3R3M 3.3±20% 100KHz/0.25V 60m 40m 2.48 3.10 2.35 2.85 3R3 VE4532-3R9M 3.9±20% 100KHz/0.25V 65m 43m 2.32 2.90 2.00 2.60 3R9 VE4532-4R7M 4.7±20% 100KHz/0.25V 76m 56m 2.00 2.50 1.98 2.40 4R7 VE4532-5R6M 5.6±20% 100KHz/0.25V 103m 76m 1.96 2.45 1.80 2.20 5R6 VE4532-6R8M 6.8±20% 100KHz/0.25V 119m 88m 1.60 2.00 1.62 2.00 6R8 VE4532-8R2M 8.2±20% 100KHz/0.25V 134m 99m 1.52 1.90 1.42 1.82 8R2 VE4532-100M 10±20% 1KHz/0.25V 0.14 0.11 1.44 1.80 1.38 1.62 100 VE4532-120M 12±20% 1KHz/0.25V 0.19 0.15 1.24 1.55 1.30 1.50 120 VE4532-150M 15±20% 1KHz/0.25V 0.21 0.17 1.12 1.40 1.18 1.42 150 VE4532-180M 18±20% 1KHz/0.25V 0.27 0.22 1.00 1.25 1.05 1.30 180 VE4532-220M 22±20% 1KHz/0.25V 0.31 0.25 0.96 1.20 0.98 1.20 220 VE4532-270M 27±20% 1KHz/0.25V 0.36 0.29 0.84 1.05 0.85 1.05 270 VE4532-330K 33±10% 1KHz/0.25V 0.42 0.34 0.76 0.95 0.82 1.00 330 VE4532-390K 39±10% 1KHz/0.25V 0.48 0.39 0.74 0.92 0.78 0.92 390 VE4532-470K 47±10% 1KHz/0.25V 0.56 0.45 0.68 0.85 0.74 0.90 470 VE4532-560K 56±10% 1KHz/0.25V 0.81 0.65 0.63 0.78 0.65 0.80 560 VE4532-680K 68±10% 1KHz/0.25V 0.92 0.74 0.50 0.62 0.58 0.70 680 VE4532-820K 82±10% 1KHz/0.25V 1.06 0.85 0.46 0.58 0.55 0.65 820 VE4532-101K 100±10% 1KHz/0.25V 1.18 0.95 0.45 0.57 0.52 0.62 101 VE4532-121K 120±10% 1KHz/0.25V 1.31 1.05 0.44 0.56 0.46 0.56 121 VE4532-151K 150±10% 1KHz/0.25V 1.97 1.58 0.37 0.46 0.38 0.47 151 VE4532-181K 180±10% 1KHz/0.25V 2.55 2.04 0.30 0.38 0.33 0.42 181 VE4532-221K 220±10% 1KHz/0.25V 2.90 2.32 0.29 0.37 0.32 0.39 221 VE4532-271K 270±10% 1KHz/0.25V 3.31 2.65 0.27 0.34 0.30 0.37 271 VE4532-331K 330±10% 1KHz/0.25V 6.92 5.54 0.24 0.30 0.20 0.24 331 VE4532-102K 1000±10% 1KHz/0.25V 11.2 8.85 0.12 0.13 0.10 0.11 102 VE4532-222K 2200±10% 1KHz/0.25V 23.0 19.5 0.08 0.09 0.06 0.07 222 Typical Performance curves: VE4532 Inductauce vs DC Current Curve VE4532 Temperature rise vs DC Current Curve Packing method 1. Packing quantity of each reel: 2000PCS/R (20-35PCS not packed at the beginning and end), affixed with the correct label, and then placed into a plastic bag (plastic bag size: 360x460mm), with a package of desiccant, sealing, reel and carrying tape dimensions. Fig. 1-1 Fig .1-1 Reel dimensions ,general tolerance (±0.5mm) A B C W D Ф330 Ф100 Ф13.5 12.5 18.5 The general tolerance, of carrier size is ±
