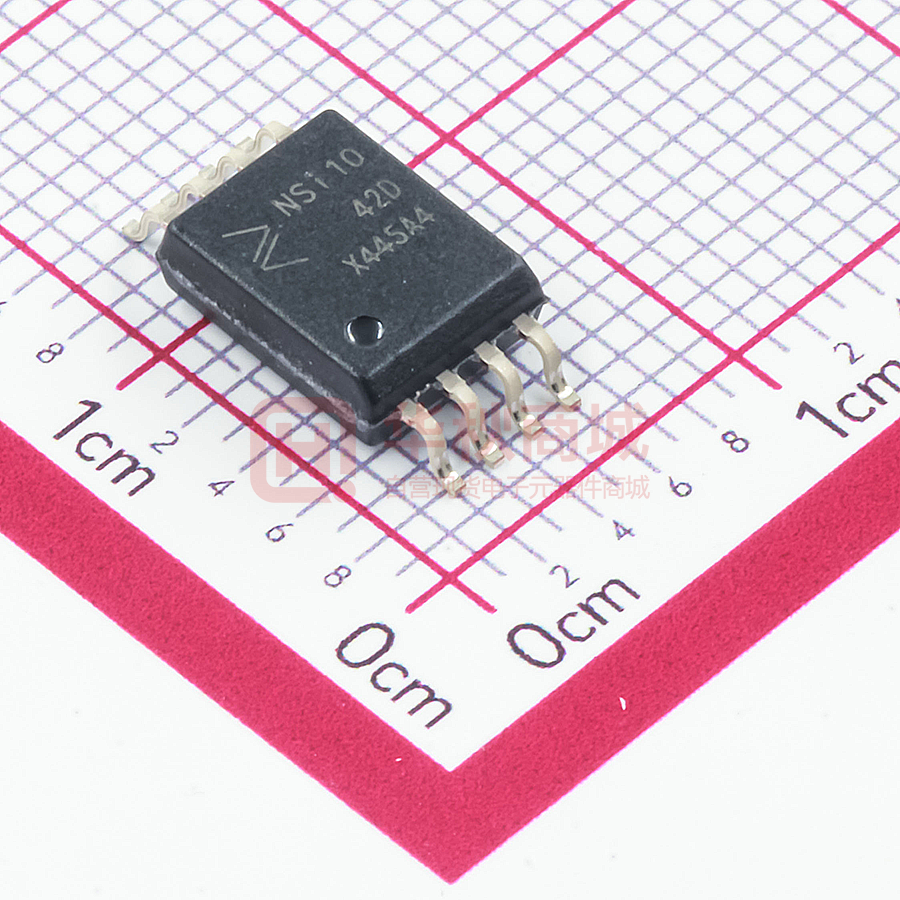

NSi1042/NSi1052 Isolated CAN Transceiver Datasheet (EN) 1.0 Product Overview Safety Regulatory Approvals The NSi1042 is an isolated CAN transceiver which fully compatible with the ISO11898-2 standard. The NSi1042 integrated two channel digital isolators and a high reliability CAN transceiver. The digital isolator is silicon oxide isolation based on Novosense capacity isolation technology. The high integrated solution can help to simplify system design and improve reliability. The NSi1042 device is safety certified by UL1577 support 5kVrms insulation withstand voltages, while providing high electromagnetic immunity and low emissions. The data rate of the NSi1042 is up to 5Mbps, and it can support at least 110 CAN nodes. The NSi1042 provides thermal protection and transmit data dominant time out function.  UL recognition: up to 5000Vrms for 1 minute per UL1577 Key Features Device Information  Fully compatible with the ISO11898-2 standard  CQC certification per GB4943.1-2011  CSA component notice 5A  DIN VDE V 0884-11:2017-01 Applications  Industrial automation system  Isolated CAN Bus  Telecom  Up to 5000Vrms Insulation voltage Part Number NSI1042-DSWVR Package SOW8 Body Size 5.85mm ×7.50mm  Power supply voltage NSI1042-DSWR SOW16 10.30mm × 7.50mm NSI1052-DSWR SOW16 10.30mm × 7.50mm VDD1: 2.5V to 5.5V VDD2: 4.5V to 5.5V  Bus fault protection of -70V to +70V Functional Block Diagrams  Transmit data (TXD) dominant time out function  Over current and over temperature protection  Date rate: up to 5Mbps  High CMTI: 150kV/us  Low loop delay: 600 Comparative Tracking Index DIN EN 60112 (VDE 0303-11) Material Group IEC 60112 Unit SOW8 um V I Installation Classification per DIN VDE 0110 For Rated Mains Voltage ≤ 150Vrms I to IV I to IV For Rated Mains Voltage ≤ 300Vrms I to IV I to IV For Rated Mains Voltage ≤ 600Vrms I to IV I to IV For Rated Mains Voltage ≤ 1000Vrms I to III I to III Insulation Specification per DIN VDE V 0884-11:2017-01 1) Climatic Category 40/125/21 Pollution Degree per DIN VDE 0110, Table 1 Maximum Working Isolation Voltage AC voltage 2 VIOWM 1500 1500 VRMS 2121 2121 VDC VIORM 2121 2121 Vpeak Vpd (m) 3977 3977 Vpeak V pd (m) 3394 3394 Vpeak V pd (m) 2545 2545 Vpeak VIOTM 8000 8000 Vpeak 6250 6250 Vpeak DC voltage Maximum Voltage Repetitive Isolation Input to Output Test Voltage, Method B1 Vini. b = VIOTM, Vpd(m) = VIORM × 1.875, tini = tm =1 sec, qpd≤ 5 pC, 100% production test Input to Output Test Voltage, Method A. After Environmental Tests Subgroup 1 Vini. a = VIOTM, Vpd(m) = VIORM × 1.6, Input to Output Test Voltage, Method A. After Input and Output Safety Test Subgroup 2 and Subgroup 3 Vini. a = VIOTM, Vpd(m) = VIORM × 1.2, Maximum Transient Isolation Voltage t = 60 sec Maximum Surge Isolation Voltage Test method per IEC62368-1, tini = 60 sec, tm = 10 sec, qpd ≤ 5 pC tini = 60 sec, tm = 10 sec, qpd ≤ 5 pC 1.2/50us waveform, VTEST = 1.6 × VIOSM Isolation Resistance Copyright © 2021, NOVOSENSE VIO = 500 V, Tamb = TS RIO >109 Ω Page 13 NSI1042/NSI1052 Datasheet (EN) 1.0 Description Test Condition Symbol Value VIO = 500 V, 100 °C ≤ Tamb ≤ 125 °C Isolation Capacitance f = 1MHz CIO VTEST = 1.2 × VISO, t = 1 sec, VISO Unit >1011 Ω 1.2 pF Insulation Specification per UL1577 Withstand Isolation Voltage 5000 5000 Vrms 100% production test 1) This coupler is suitable for “safe electrical insulation” only within the safety ratings. Compliance with the safety ratings shall be ensured by means of suitable protective circuits. 6.2. Safety-Limiting Values 批注 [A2]: 已按新热阻更新参数，但图片还未更新 Reinforced isolation safety-limiting values as outlined in VDE-0884-11 of NSi1042-DSWVR Description Test Condition Value Unit Safety Supply Power RθJA = 100 °C/W, TJ = 150 °C, TA = 25 °C 1250 mW Safety Supply Current RθJA = 100 °C/ W, VI = 5V, TJ = 150 °C, TA = 25 °C 250 mA 150 °C Safety Temperature 2) Calculate with the junction-to-air thermal resistance, RθJA, of SOP8(300mil) package (Thermal Information Table) which is that of a device installed on a low effective thermal conductivity test board (1s) according to JESD51-3. 2) The maximum safety temperature has the same value as the maximum junction temperature (TJ) specified for the device. 1800 1600 1400 1200 1000 800 600 400 200 0 400 Safety Limiting Current per Channel (mA) Safety Limiting Power (mW) 1) 350 300 250 200 150 100 0 50 100 150 Ambient Temperature (°C) 200 50 0 0 50 100 150 200 Ambient Temperature (°C) Figure 6.1 NSI1042-DSWVR Thermal derating Curve, Dependence of Safety Limiting Values with Case Temperature per DIN VDE V 0884-11 Copyright © 2021, NOVOSENSE 批注 [A3]: 需按新参数修改图片 Page 14 NSI1042/NSI1052 Datasheet (EN) 1.0 Reinforced isolation safety-limiting values as outlined in VDE-0884-11 of NSi1042-DSWR/NSi1052-DSWR Description Test Condition Value Unit Safety Supply Power RθJA = 69.9 °C/W, TJ = 150 °C, TA = 25 °C 1788 mW Safety Supply Current RθJA = 69.9 °C/ W, VI = 5V, TJ = 150 °C, TA = 25 °C 357 mA 150 °C Safety Temperature2) Calculate with the junction-to-air thermal resistance, RθJA, of SOP16(300mil) package (Thermal Information Table) which is that of a device installed on a low effective thermal conductivity test board (1s) according to JESD51-3. 4) The maximum safety temperature has the same value as the maximum junction temperature (TJ) specified for the device. 1800 1600 1400 1200 1000 800 600 400 200 0 450 400 350 300 250 200 150 100 50 0 Safety Limiting Current per Channel (mA) Safety Limiting Power (mW) 3) 0 50 100 150 200 Ambient Temperature (°C) II 0 50 100 150 200 Ambient Temperature (°C) Figure 6.2 NSi1042-DSWR/NSi1052-DSWR Thermal derating Curve, Dependence of Safety Limiting Values with Case Temperature per DIN VDE V 0884-11 6.3. Regulatory information The NSi1042/NSi1052 is approved by the organizations listed in table. CUL UL 1577 Component Recognition Program1 VDE Approved under CSA Component Acceptance Notice 5A DIN VDE V 088411:2017-012 CQC Certified by CQC11471543-2012 GB4943.1-2011 Single Protection, 5000Vrms Isolation voltage File (pending) Copyright © 2021, NOVOSENSE Single Protection, 5000Vrms Isolation voltage Reinforced Insulation 2121Vpeak, VIOSM=6250peak File (pending) File (pending) Basic insulation File (pending) Page 15 批注 [A4]: 需按新参数修改图片 NSI1042/NSI1052 Datasheet (EN) 1.0 7. Function Description The NSi1042 is an isolated CAN transceiver which fully compatible with the ISO11898-2 standard. The NSi1042 integrated two channel digital isolators and a high reliability CAN transceiver. The digital isolator is silicon oxide isolation based on Novosense capacity isolation technology. The high integrated solution can help to simplify system design and improve reliability. The NSi1042 device is safety certified by UL1577 support 5kVrms insulation withstand voltages, while providing high electromagnetic immunity and low emissions. The data rate of the NSi1042 is up to 5Mbps, and it can support at least 110 CAN nodes. The NSi1042 provides thermal protection and transmit data dominant time out function. 7.1. Device Functional Modes Table 7.1. Driver Function Table 1 TXD CANH CANL BUS STATE L H L Dominant H Z Z Recessive Open Z Z Recessive H= high level; L=low level; Z= common mode(recessive) bias to VCC/2 Table 7.2. Receiver Function Table 1 VID=CANH-CANL RXD BUS STATE VID ≥0.9V L Dominant 0.5< VID
