A
B
D
C
E
F
G
1
1
.50
技术参数值(Technical Parameters)
1.电气额定值(Electrical Rating):1A 250VAC
2.温度等级(Temperature grade):T85
3.动作力(OF):1.0±0.4N
4.动作行程(PT):≤0.8mm
5.接触电阻(Contact Resistance):≤50mΩ
6.绝缘电阻(Insulation Resistance):≥100MΩ
7.耐压(Withstand Voltage):端-端500VAC/5S,
漏电流5mA,端-壳1500VAC/5S,漏电流5mA。
8.电气寿命(Electrical Service Life):10,000
9.耐漏电起痕(Proof Tracking Index):175V
]±0
.465
9]
07
.00
Ø2
2.00[0.079]
3.60 [0.142]
0.50 [0.020]
5.80 [0.228]
1.50 [0.059]
[0.
6.50 [0.256]
2
9.80[0.386]±0.50(FP)
[0
0
11.8
3-0.90 [0.035]
5.08 [0.200]
3.80 [0.150]
2
5.08 [0.200]
6.50 [0.256]±0.10
12.80[0.504]
5
压柄
Pressing handle
1
不锈钢
SUS
4
塑盖
Plastic cover
1
PBT
3
动触片组件
Contact parts
1
铍青铜+银丝
Beryllium bronze + silver wire
2
推动子
Push parts
1
尼龙66
PA66
1
底座组件
Bottom assembly
1
PBT+黄铜+银丝
PBT + brass + silver wire
序号
Serial number
零件名称
Part name
数量
quantity
材质
Texture of material
3
电路简图
3
黑色
black
Z1 Z2
S
4
L
N
UNIT
A4
COMMON
DRAWN BY FUYUAN
台普
A2
A1
REV
ROCPU
DATE
REVISION DESCRIPTION
A
ISSUE
B
X.XX
± 0.10
X.X
± 0.15
X
± 0.25
ANGULAR
C
PROJCTED
DATE
2019
CHECKED BY
APPROVAL B
4
备注
REMARK
PRODUCT NAME:
TOLERANCE
A3
5
MM
灰色
grey
COCO
ALEN

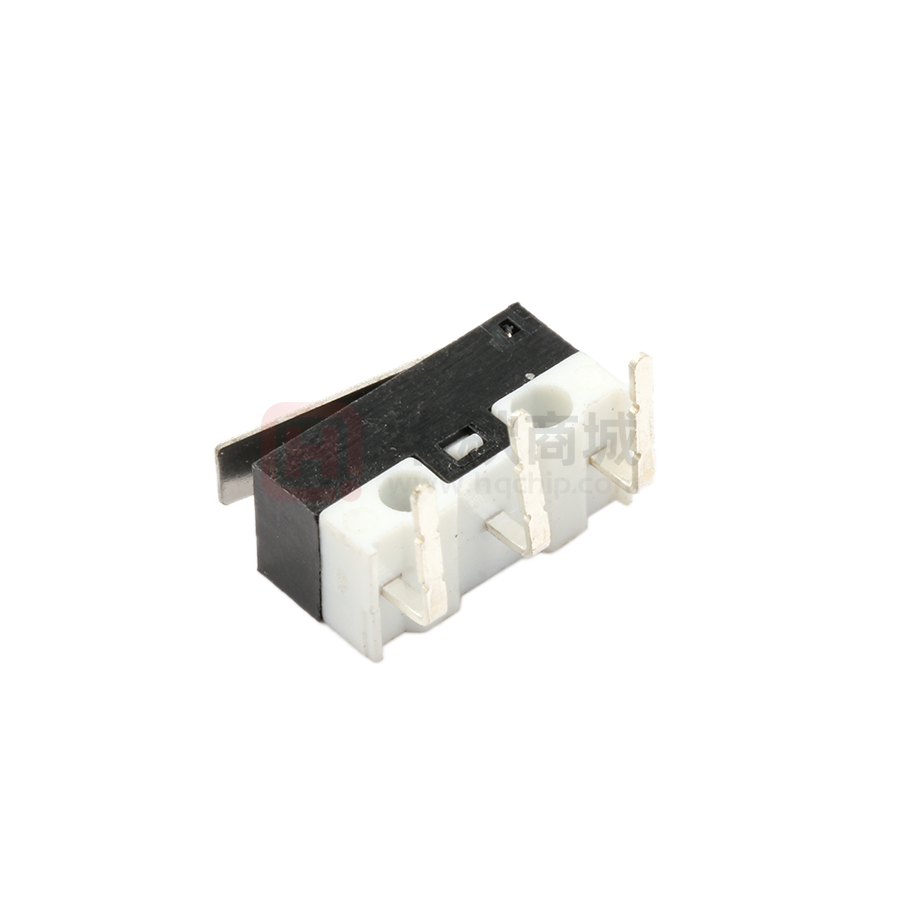

MODEL NO: TP301131180
Https:
www.rocpu.tw
ROCPU TECHNOLONGY CO.,LTD
Copies are issued in strict confidence and shall not be reproduced or copied,or used as the basic of manufacture or sale of apparatus without permission
D
E
F
G
5
