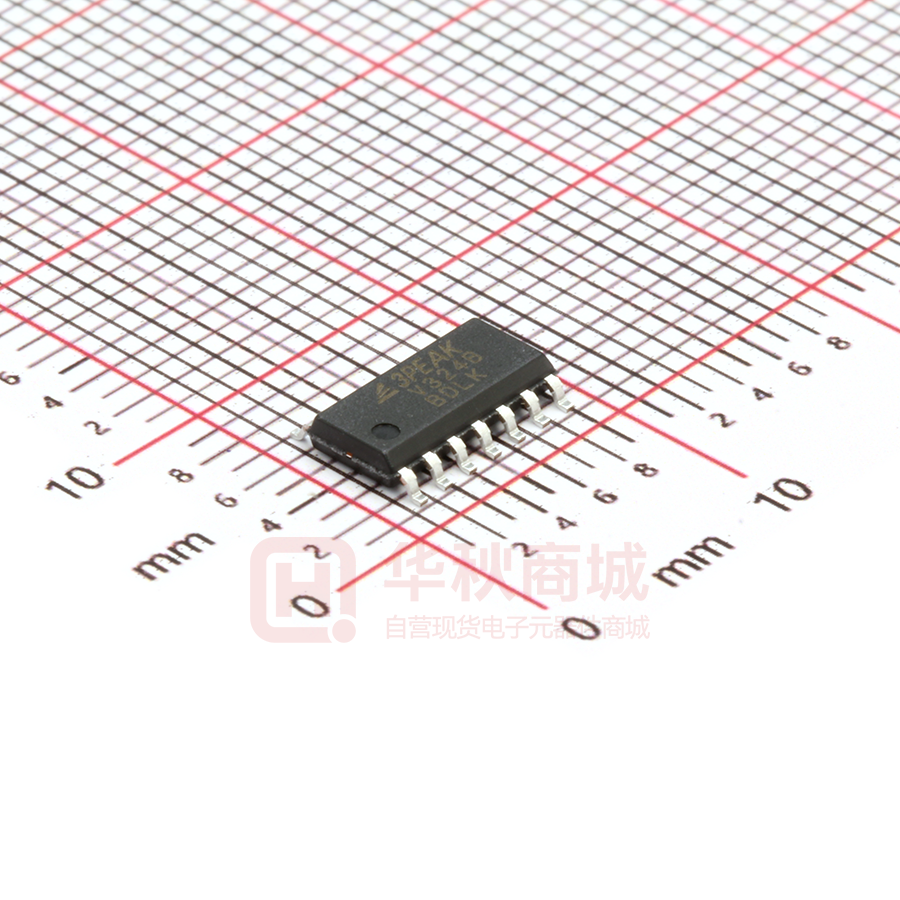

LMV324B-SR

LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps Features Description  Supply Voltage: 2.5V to 5.5V The LMV321B/358B/324B series are CMOS dual, and quad  Low Supply Current: 80μA per channel RRIO op-amps with low offset, low power and stable high  Positive Offset Voltage: +1mV to +4mV  Offset Voltage Temperature Drift: 2 μV/°C  High Output Capability: 100mA  Rail to Rail Input and Output amplifier. The input common-mode voltage range extends  Bandwidth: 1 MHz 100mV beyond V– and V+, and the outputs swing rail-to-rail.  Slew Rate: 0.7V/μs The LMV321B/358B/324B family can be used as plug-in  Excellent EMI Suppress Performance replacements for many commercially available op-amps to  Low Noise: 35 nV/√Hz at 1kHz  –40°C to 125°C Operation Temperature Range frequency response. They incorporate 3PEAK’s proprietary and patented design techniques to achieve very good AC performance with 1MHz bandwidth, 0.7V/μs slew rate and low distortion while drawing only 80μA of quiescent current per reduce power and improve input/output range and performance. The combination of features makes the LMV321B/358B/324B ideal choices for motor control and portable audio amplification, Applications sound ports, and other consumer Audio. The LMV321B/358B/324B Op-amp is very stable, and it is capable  Active Filters, ASIC Input or Output Amplifier  Sensor Interface The ability to swing rail-to-rail at the inputs and outputs enables  Smoke/Gas/Environment Sensors designers to buffer CMOS DACs, ASICs, or other wide output  Portable Instruments and Mobile Device swing devices in single-supply systems. of driving heavy capacitive loads such as those found in LCDs. Pin Configuration LMV321B 5-Pin SOT23/SC70 (-T and -C Suffixes) +In 1 -VS 2 LMV358B 8-Pin SOIC/MSOP/TSSOP (-S, -V, -TS Suffixes) 5 +VS Out A 1 -In A 2 A LMV324B 14-Pin SOIC/TSSOP (-S and -T Suffixes) 8 +VS 7 Out B Out A 1 -In A 2 A -In 3 4 Out +In A 3 -VS 4 B 1 / 16 Out D 13 -In D D 6 -In B +In A 3 12 +In D 5 +In B +VS 4 11 -VS +In B 5 10 +In C B www.3peakic.com.cn 14 C -In B 6 9 -In C Out B 7 8 Out C Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps Table of Contents Features ........................................................................................................................................................................... 1 Applications ..................................................................................................................................................................... 1 Description....................................................................................................................................................................... 1 Pin Configuration ............................................................................................................................................................ 1 Table of Contents ............................................................................................................................................................ 2 Revision History .............................................................................................................................................................. 3 Order Information ............................................................................................................................................................ 3 Absolute Maximum Ratings Note 1 ................................................................................................................................... 4 ESD Rating ....................................................................................................................................................................... 4 Thermal Information ....................................................................................................................................................... 4 Electrical Characteristics ............................................................................................................................................... 5 Typical Performance Characteristics ............................................................................................................................ 6 Tape and Reel Information ............................................................................................................................................. 9 Package Outline Dimensions ....................................................................................................................................... 10 SC70-5/SC70-6 /SOT-353/SOT-363 .......................................................................................................................................... 10 SOT23-5/6 .................................................................................................................................................................................. 10 SOP-8/ SOIC-8 ...........................................................................................................................................................................11 TSSOP-8 .................................................................................................................................................................................... 12 MSOP-8 ..................................................................................................................................................................................... 13 SOP-14 /SOIC-14....................................................................................................................................................................... 14 TSSOP-14 .................................................................................................................................................................................. 15 www.3peakic.com.cn 2 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps Revision History Date Revision Notes 2018/3/30 Rev.Pre Pre-Release Version 2018/5/30 Rev.0 First Release to Market Version Order Information Order Number Operating Temperature Range Package Marking Information MSL Transport Media, Quantity LMV321B-TR -40 to 125°C 5-Pin SOT23 21BXX Note 2 3 Tape and Reel, 3000 LMV321B-CR -40 to 125°C 5-Pin SC70 21BXX Note 2 1 Tape and Reel, 3000 LMV358B-SR -40 to 125°C 8-Pin SOIC 3 Tape and Reel, 4000 LMV358B-TSR -40 to 125°C 8-Pin TSSOP 3 Tape and Reel, 3000 LMV358B-VR -40 to 125°C 8-Pin MSOP 3 Tape and Reel, 3000 LMV324B-SR -40 to 125°C 14-Pin SOIC 3 Tape and Reel, 2500 LMV324B-TR -40 to 125°C 14-Pin TSSOP 3 Tape and Reel, 3000 V358B XXXX Note 3 V358B XXXX Note 3 V358B XXXX Note 3 V324B XXXX Note 3 V324B XXXX Note 3 Note 1: The sample will be ready in 1 month. Note 2: XX is the date code. Note 3: XXXX is date code. www.3peakic.com.cn 3 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps Absolute Maximum Ratings Note 1 Parameters Rating Supply Voltage, (+VS)– (-VS) 6V Input Voltage (-VS) – 0.3 to (+VS) + 0.3 Differential Input Voltage ±6V Input Current: +IN, –IN ±10mA Note 2 Output Short-Circuit Duration Note 3 Infinite Maximum Junction Temperature 150°C Operating Temperature Range –40 to 125°C Storage Temperature Range –65 to 150°C Lead Temperature (Soldering, 10 sec) 260°C Note 1: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. Exposure to any Absolute Maximum Rating condition for extended periods may affect device reliability and lifetime. Note 2: The inputs are protected by ESD protection diodes to each power supply. If the input extends more than 300mV beyond the power supply, the input current should be limited to less than 10mA. Note 3: A heat sink may be required to keep the junction temperature below the absolute maximum. This depends on the power supply voltage and how many amplifiers are shorted. Thermal resistance varies with the amount of PC board metal connected to the package. The specified values are for short traces connected to the leads. ESD Rating Symbol Parameter Condition Minimum Level Unit HBM Human Body Model ESD ANSI/ESDA/JEDEC JS-001 8 kV CDM Charged Device Model ESD ANSI/ESDA/JEDEC JS-002 2 kV Thermal Information Package Type θJA 5-Pin SC70 400 5-Pin SOT23 250 81 °C/W 8-Pin SOIC 158 43 °C/W 8-Pin TSSOP 191 44 °C/W 8-Pin MSOP 210 45 °C/W 14-Pin SOIC 120 36 °C/W 14-Pin TSSOP 180 35 °C/W www.3peakic.com.cn θJC Unit °C/W 4 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps Electrical Characteristics All test condition is VS = 5V, TA = 25°C, RL = 2kΩ, CL =100pF, unless otherwise noted. Symbol Parameter Conditions Min Typ Max Unit 5.5 V 130 μA Power Supply VS Supply Voltage Range IQ Quiescent Current per Amplifier PSRR Power Supply Rejection Ratio 2.5 80 70 75 +1 +2 dB Input Characteristics VOS Input Offset Voltage VCM = 0V to 3V VOS TC Input Offset Voltage Drift TA = -40°C to 125°C 2 μV/°C TA = 25 °C 1 pA IB Input Bias Current TA = 85 °C 25 pA 1 pA Differential Mode 8 pF Common Mode 7 pF 110 dB IOS Input Offset Current CIN Input Capacitance Av Open-loop Voltage Gain RLOAD = 10kΩ 85 +4 mV Common-mode Input Voltage VCMR (V-) - 0.1 (V+) + 0.1 V Range CMRR Common Mode Rejection Ratio VCM = 0V to 3V Xtalk Channel Separation 65 85 dB f = 1kHz, RL = 2kΩ 110 dB RLOAD = 10kΩ 3 Output Characteristics VOH, VOL Maximum Output Voltage Swing ISC Output Short-Circuit Current 90 15 mV 100 mA 1 MHz 0.7 V/μs AC Specifications GBW Gain-Bandwidth Product SR Slew Rate AV = 1, VOUT = 1.5V to 3.5V, CLOAD = 60pF, RLOAD = 1kΩ Settling Time, 0.1% AV = 1, 2V Step, CLOAD = 60pF, 3.5 μs Settling Time, 0.01% RLOAD = 1kΩ 4.8 μs PM Phase Margin RLOAD = 1kΩ, CLOAD = 60pF 60 ° GM Gain Margin RLOAD = 1kΩ, CLOAD = 60pF 15 dB tS Noise Performance EN Input Voltage Noise f = 0.1Hz to 10Hz 3 μVRMS eN Input Voltage Noise Density f = 1kHz 35 nV/√Hz iN Input Current Noise f = 1kHz 2 fA/√Hz THD+N Total Harmonic Distortion and f = 1kHz, AV =1, RL = 2kΩ, 0.003 % Noise VOUT = 1Vp-p www.3peakic.com.cn 5 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps Typical Performance Characteristics VS = 5V, VCM = 2.5V, RL = Open, unless otherwise specified. 140 1.8 120 200 150 100 1.5 Phase 100 1.3 60 Gain(dB) GBW(MHz) 80 1.0 0.8 50 40 Gain 0 20 0 0.5 Phase (°) 2.0 -50 -20 0.3 -100 -40 -60 0.0 -50 0 50 100 0.1 150 10 1k 10M -150 1000M Frequency (Hz) Temperature(℃) Figure 1. Unity Gain Bandwidth vs. Temperature Figure 2. Open-Loop Gain and Phase 120 140 VCM= 2.5V 80 120 ISOURCE Current(mA) 100 Supply current(μA) 100k VCM= 5.0V 60 VCM= 0V 100 ISINK 80 60 40 40 20 20 0 0 -50 -50 0 50 100 0 50 100 150 150 Temperature(℃) Temperature(℃) Figure 3. Supply Current vs. Temperature Figure 4. Short Circuit Current vs. Temperature 120 3 2.5 80 Offset Voltage(mV) Supply current (uA) 100 60 40 20 2 1.5 1 0.5 0 1.5 2 2.5 3 3.5 4 4.5 5 0 0 Supply Voltage (V) 1 2 3 4 5 Common Mode Voltage(V) Figure 5. Quiescent Current vs. Supply Voltage www.3peakic.com.cn Figure 6. Offset Voltage vs. Common-Mode Voltage 6 / 16 Rev.0 LMV321B/LMV358B/LMV324B 90 90 80 80 70 70 60 60 PSRR：dB CMRR：dB 1MHz, 80μA, RRIO, Op Amps 50 40 25℃ -40℃ 125℃ 30 50 PSRR-25℃ PSRR--40℃ PSRR-125℃ PSRR+ 25℃ PSRR+ -40℃ PSRR+ 125℃ 40 30 20 20 10 10 0 0 10 100 1K 10K Frequency：Hz 10 100K Figure 7. CMRR vs. Frequency 100 1K 10K Frequency：Hz 100K Figure 8. PSRR vs. Frequency 100 5μV/div Noise(nV/√Hz) 1000 10 1 1 10 100 1k 10k 100k 1M Frequency(Hz) Time (1s/div) Figure 9. Input Voltage Noise Spectral Density Figure 10. 0.1 Hz to 10 Hz Input Voltage Noise 90 Gain = 1 RL = 10kΩ 2V/div 80 EMIRR IN+ (dB) 70 60 50 40 30 2V/div 20 10 0 1 10 100 1000 Time (50μs/div) Frequency (MHz) Figure 11. EMIRR IN+ vs. Frequency www.3peakic.com.cn Figure 12. Large-Scale Step Response 7 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps Gain = +10 ±V = ±2.5V 2V/div 1V/div 1V/div 2V/div Gain = +10 ±V = ±2.5V Time (50μs/div) Time (50μs/div) Figure 13. Negative Over-Voltage Recovery Figure 14. Positive Over-Voltage Recovery 120 0 25℃ -40℃ 125℃ -20 -40 100 80 Iout(mA) Iout(mA) -60 -80 -100 60 40 25℃ 20 -120 -40℃ 125℃ 0 -140 0 1 2 3 4 0 5 1 2 3 4 5 Vout Dropout (V) Vout Dropout (V) Figure 15. Negative Output Swing vs. Load Current Figure 16. Positive Output Swing vs. Load Current www.3peakic.com.cn 8 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps Tape and Reel Information Order Number Package D1 W1 A0 B0 K0 P0 W0 Pin1 Quadrant LMV321B-CR 5-Pin SC70 178.0 9.5 2.4 2.5 1.2 4.0 8.0 Q3 LMV321B-TR 5-Pin SOT23 180.0 13.1 3.2 3.2 1.4 4.0 8.0 Q3 LMV358B-SR 8-Pin SOIC 330.0 17.6 6.4 5.4 2.1 8.0 12.0 Q1 LMV358B-VR 8-Pin MSOP 330.0 17.6 5.2 3.3 1.5 8.0 12.0 Q1 LMV358B-TSR 8-Pin TSSOP 330.0 17.6 6.8 3.3 1.2 8.0 12.0 Q1 LMV324B-SR 14-Pin SOIC 330.0 21.6 6.5 9.0 2.1 8.0 16.0 Q1 LMV324B-TR 14-Pin TSSOP 330.0 17.6 6.8 5.4 1.2 8.0 12.0 Q1 www.3peakic.com.cn 9 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps Package Outline Dimensions SC70-5/SC70-6 /SOT-353/SOT-363 Dimensions Symbol In Millimeters Min Max A 0.900 1.100 A1 0.000 0.100 A2 0.900 1.000 b 0.150 0.350 C 0.110 0.175 D 2.000 2.200 E 1.150 1.350 E1 2.150 2.450 e 0.650TYP e1 1.200 L 0.525REF L1 0.260 0.460 θ 0° 8° 1.400 SOT23-5/6 Dimensions Symbol www.3peakic.com.cn 10 / 16 In Millimeters Min Max A 1.050 1.250 A1 0.000 0.100 A2 1.000 1.150 b 0.300 0.500 C 0.100 0.200 D 2.820 3.020 E 1.500 1.700 E1 2.600 3.000 e 0.950TYP e1 1.800 L 0.600REF L1 0.300 0.600 θ 0° 8° 2.000 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps SOP-8/ SOIC-8 A2 C θ L1 A1 e E D Dimensions Symbol E1 b Min Max A1 0.100 0.250 A2 1.300 1.550 b 0.330 0.510 C 0.170 0.250 D 4.780 5.000 E 3.800 4.000 E1 5.800 6.300 e www.3peakic.com.cn 11 / 16 In Millimeters 1.270TYP L1 0.400 0.900 θ 0° 8° Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps TSSOP-8 Symbol Dimensions In Millimeters Min Dimensions In Inches Max Min Max D 2.900 3.100 0.114 0.122 E 4.300 4.500 0.169 0.177 b 0.190 0.300 0.007 0.012 c 0.090 0.200 0.004 0.008 E1 6.250 6.550 0.246 0.258 A 1.200 0.047 A2 0.800 1.000 0.031 0.039 A1 0.050 0.150 0.002 0.006 e 0.65(BSC) L 0.500 H 0.25(BSC) θ 1° www.3peakic.com.cn 0.026（BSC） 0.700 0.020 0.028 0.01（BSC） 7° 12 / 16 1° 7° Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps MSOP-8 Dimensions Symbol E E1 A A2 e b D In Millimeters Min Max A 0.800 1.200 A1 0.000 0.200 A2 0.750 0.950 b 0.30 TYP C 0.15 TYP D 2.900 e 0.65 TYP E 2.900 3.100 E1 4.700 5.100 L1 0.400 0.800 θ 0° 6° 3.100 A1 R1 R θ L1 www.3peakic.com.cn L L2 13 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps SOP-14 /SOIC-14 D Dimensions In Millimeters Symbol E1 E e b MIN TYP MAX A 1.35 1.60 1.75 A1 0.10 0.15 0.25 A2 1.25 1.45 1.65 b 0.31 D 8.45 8.63 8.85 E 5.80 6.00 6.20 E1 3.80 3.90 4.00 e L A A2 A1 www.3peakic.com.cn 1.27 BSC 0.40 0.60 L1 1.05 REF L2 0.25 BSC θ L L1 0.51 0° 0.80 8° θ L2 14 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps TSSOP-14 Dimensions In Millimeters E1 E A A2 e Symbol c D MIN TYP MAX A - - 1.20 A1 0.05 - 0.15 A2 0.80 - 1.05 c 0.19 - 0.30 D 4.86 5.00 5.10 E 6.20 6.40 6.60 E1 4.30 4.40 4.50 e L A1 0.65 BSC 0.45 0.60 L1 1.00 REF L2 0.25 BSC 0.75 R 0.09 - - θ 0° - 8° R1 R θ L1 www.3peakic.com.cn L L2 15 / 16 Rev.0 LMV321B/LMV358B/LMV324B 1MHz, 80μA, RRIO, Op Amps 3PEAK and the 3PEAK logo are registered trademarks of 3PEAK INCORPORATED. All other trademarks are the property of their respective owners. www.3peakic.com.cn 16 / 16 Rev.0
