2
Product Concept
2.1. General Description

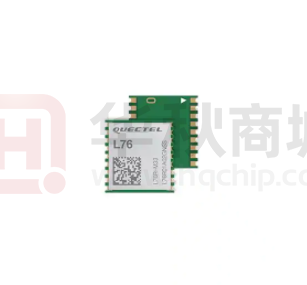

L76 is a single receiver module integrated with GLONASS and GPS system. It is able to achieve the
industry’s highest level of sensitivity, accuracy and TTFF with the lowest power consumption in a
small-footprint lead-free package. The embedded flash memory provides capacity for storing
user-specific configurations and allows for future updates.
l
e
t
l
c
a
i
e
t
u
n
Q fide
n
o
C
The L76 GNSS module supports multiple positions and navigation system including autonomous GPS,
GLONASS, SBAS (including WAAS, EGNOS, MSAS and GAGAN), QZSS, and AGPS.
Embedded with many advanced power saving modes including period, AlwaysLocateTM, standby and
backup, L76 GNSS module has excellent low-power consumption in different scenes.
EASY technology as the key feature of L76 is one kind of AGPS. Collecting and processing all internal
aiding information like GPS time, Ephemeris, Last Position etc, the GNSS module will have a fast TTFF in
either Hot or Warm start.
L76 GNSS module is an SMD type module with the compact 10.1mm x 9.7mm x 2.5mm form factor,
which can be embedded in your applications through the 18-pin pads. It provides necessary hardware
interfaces between the module and your board.
The module is fully ROHS compliant to EU regulation.
L76_Hardware_Design
Downloaded from Arrow.com.
Confidential / Released
8 / 45
GNSS Module
L76 Hardware Design
2.2. Key Features
Table 1: Feature
Feature
Implementation
GNSS
GPS&GLONASS
Power supply
Supply Voltage: 2.8V – 4.3V
typical : 3.3V
Power consumption
Acquisition
Tracking
Acquisition
Tracking
21 mA @ -130dBm(GPS)
15 mA @ -130dBm(GPS)
25 mA @ -130dBm(GPS+GLONASS)
18 mA @ -130dBm(GPS+GLONASS)
Receiver Type
GPS L1 1575.42MHz C/A Code
GLONASS L1 1598.0625~1605.375 C/A Code
l
e
t
l
c
a
i
e
t
u
n
Q fide
n
o
C
Sensitivity(NOTE)
Time-To-First-Fix
(EASY enabled)
Acquisition
Reacquisition
Tracking
-148dBm
-160dBm
-163dBm
Cold Start
Warm Start
Hot Start
很抱歉,暂时无法提供与“L76-M33”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格 香港价格
- 500+56.93163500+7.06235
- 1000+54.513661000+6.76240
- 1500+53.250731500+6.60573
- 国内价格 香港价格
- 1+101.988861+12.65167
- 10+79.0343710+9.80418
- 25+72.2649125+8.96443
- 100+64.04160100+7.94433
- 250+59.71442250+7.40755
- 国内价格
- 25+64.10758
- 125+60.11180
