DF11 Series
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2.0mm Pitch, Double-Row Connector
(UL/CSA Complaint)
Mar. 2021 ①
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Features
1. Space- saving on Board
Double row contact arrangement with 2mm pitch
has been condensed within a 5mm width.
Double the number of signals can be secured in
the same space as a conventional 2mm singlerow connector.
Rib to Prevent
Mis-insertion
Friction Lock
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Rib to prevent contact
insertion between
dissimilar contacts
5mm
2. Wide Varieties
There are two types of connection methods :
insulation displacement and crimping. Variations
are available in cable- to- board, in- line, and
board- to- board to expand PCB design freedom.
Additionally, both gold and tin plating can be
selected based on the application and SMT
compatible products are also available.
3. Wide Applicable Wire Range
The double 2mm pitch rows are compact while
enabling an applicable wire range of 22 to 30
AWG.
4. The IDC Type enables
reduced assembly time
Since the DF11 insulation displacemention allows
double rows IDC with a single part, harnessing
can be completed by machine connection alone.
Applications
Business equipment such as copy machines, printers and so on.
2
4 Wall Box Style
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Product Specifications
Ratings
Crimping
Rated Current (Note 1)
22 to 26 AWG
28 AWG
30 AWG
26 AWG
2A
1A
0.5A
1A
Rated Voltage
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Insulation Displacement
250V AC
Operating Temperature Range
-30 to +85℃ (Note 2)
Operating Humidity Range
40 to 80％ (Note 3)
Storage Temperature Range
-10 to +60℃ (Note 4)
Storage Humidity Range
40 to 70％ (Note 4)
UL, CSA Safety Standard Approved Specification
Wire Size
Rated Current
■ UL, CSA Safety Standard File No.
22 AWG
24 to 28 AWG
30 AWG
2A
1A
0.5A
Rated Voltage
100V AC
UL : E52653
CSA : LR95109
30V AC
Item
Specification
Condition
Insulation Resistance
1000M Ω Min.
500V DC
Withstanding Voltage
No flashover or insulation breakdown.
650V AC for 1 min.
Contact Resistance
30m Ω Max.
100mA
Single Insertion/Extraction
Force
0.3N (30gf) Min.
4.4N (450gf) Max.
Measured by the square steel pin at 0.5 ± 0.002mm
Vibration
No electrical discontinuity of 1μ s or more
Frequency : 10 to 55Hz, single amplitude of 0.75mm,
2 hours in each of the 3 directions.
Humidity
(Steady State)
Contact Resistance : 30m Ω Max.
Insulation Resistance : 500M Ω Min.
96 hours at temperature of 40 ± 2℃
and humidity of 90 to 95%
Temperature Cycle
Contact Resistance : 30m Ω Max.
Insulation Resistance : 1000M Ω Min.
(-55℃：30 minutes → 5 to 35℃：10 minutes
→ 85℃：30 minutes → 5 to 35℃：10 minutes) 5 cycles
Mating Durability
Contact Resistance : 30m Ω Max.
Tin Plated : 30 cycles,
Gold Plated : 50 cycles
Resistance to Soldering
Heat
Through
Hole
Flow :
260℃ for 10 seconds
Manual soldering
:
300℃ for 2
seconds
SMT
Reflow : At the
recommended
temperature profile
Manual soldering
:
300℃ for 3
seconds
No deformation of components affecting
performance.
Note 1 : This is the maximum current rating while all pins are powered or used as all power lines.
When isolating power lines into multiple circuits, current ratings may go above the stated current ratings.
Please consult Hirose for details before doing this. Current rating of header is 2A.
Note 2 : Includes the temperature rise due to current flow.
Note 3 : The connector should be completely dry. (no condensation)
Note 4 : The term "storage" refers to the long-term storage condition of unused products before PCB mounting.
The operating temperature and humidity ranges apply while the connector is in a non-energized state,
while in transport or after PCB mounting.
3
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Material / Finish
Product Type
MateriaI
Finish
Remarks
Crimping Socket
Insulator
Polyamide
Black
UL94V-0
Crimping Contact for Socket
Contact
Phosphor Copper
Tin Plated or Gold Plated
-
Insulator
Polyamide
Black
UL94V-0
Contact
Phosphor Copper
Tin Plated
-
Insulator
Polyamide
Black
UL94V-0
Contact
Phosphor Copper
Tin Plated or Gold Plated
-
Insulator
Polyamide
Black
UL94V-0
Contact
Brass
Tin Plated or Gold Plated
-
Insulator
Polyamide
Beige
UL94V-0
Contact
Brass
Tin Plated or Gold Plated
-
Retention Tab
Brass
Tin Plated
-
In-line Plug
Insulator
Polyamide
Black
UL94V-0
In-line Plug Crimping Contact
Contact
Phosphor Copper
Tin Plated or Gold Plated
-
Insulator
Polyamide
Black
UL94V-0
Contact
Brass
Tin Plated
-
IDC Socket
Receptacle
Pin Header
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Part
SMT Header
In-line Adaptor
4
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●
Connector
DF11 - # DS - 2 C
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
❶
❷
❸
❹ ❺
❶
Series Name
❷
No. of Pos.
4 to 32
❸
Connector Type
DS : Double Row Socket
DP : Double Row Pin Header
DEP : Double Row In-line Plug
❹
Contact Pitch
2mm
●
DF11
❺
Connection Form/ C : Crimping Socket
R26 : IDC Socket for 26 AWG
Contact Style
DSA : Straight Through Hole
DS : Right Angle Through Hole
V : Straight SMT
A : Adaptor
❹
Plating Type
Contact
DF11 - EP 2428 PCF A
❶
❷
❸
❹
❶
Contact Type
EP : For In-line Plug
❷
Applicable Wire
Size
22 : 22 AWG
2428 : 24 to 28 AWG
30 : 30 AWG
❸
Contact Type/
Packaging Type
SCF : Socket Contact, Embossed Tape
SC : Socket Contact, Bag
PCF : Plug Contact, Embossed Tape
PC : Plug Contact, Bag
5
Blank：Tin Plated
A ：Gold Plated
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
IDC Socket
P=2.0
A
B
6.5
3.0 2.0
1.5
No. 2
No. 1
Shown Assembled with Cable
CAV No. Marking
A
1
9.2
32
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
No. of Pos. Indicator
Note 1
Contact No.1 Marking
Note 2
Note 1 : Port 1-pcs indicates odd numbered rows,
and port 2-pcs indicate even numbered rows.
Note 2 : Use the following DIP type headers:
· Straight angle type : DF11-#DP-2DSA(08)
· Angle type : DF11-#DP-2DS(24)
Unit : mm
Part No.
HRS No.
No. of Pos.
A
B
DF11-4DS-2R26(05)
CL0543-0652-0-05
4
6.0
2.0
DF11-6DS-2R26(05)
CL0543-0653-3-05
6
8.0
4.0
DF11-8DS-2R26(05)
CL0543-0654-6-05
8
10.0
6.0
DF11-10DS-2R26(05)
CL0543-0655-9-05
10
12.0
8.0
DF11-12DS-2R26(05)
CL0543-0656-1-05
12
14.0
10.0
DF11-14DS-2R26(05)
CL0543-0657-4-05
14
16.0
12.0
DF11-16DS-2R26(05)
CL0543-0658-7-05
16
18.0
14.0
DF11-18DS-2R26(05)
CL0543-0659-0-05
18
20.0
16.0
DF11-20DS-2R26(05)
CL0543-0660-9-05
20
22.0
18.0
DF11-22DS-2R26(05)
CL0543-0661-1-05
22
24.0
20.0
DF11-24DS-2R26(05)
CL0543-0662-4-05
24
26.0
22.0
DF11-26DS-2R26(05)
CL0543-0663-7-05
26
28.0
24.0
DF11-28DS-2R26(05)
CL0543-0664-0-05
28
30.0
26.0
DF11-30DS-2R26(05)
CL0543-0665-2-05
30
32.0
28.0
DF11-32DS-2R26(05)
CL0543-0666-5-05
32
34.0
30.0
Purchase Unit
100pcs
per bag
[Specific No.]
(05) : Tin Plated
■ Applicable Cable
Part No.
DF11-#DS-2R26
Applicable Cable
UL1061 26 AWG (7/0.16mm)
Jacket Diameter
φ 0.9 to 1.05mm
■ DF11-#DS-2R IDC Machine
Type
Desktop IDC Machine
Part No.
SA700/DF11
CL0903-0013-5-00
Connection Type
Used for DF11 only,
No restricted condition
6
Remarks
Desktop machine for small lot
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Crimping Socket
A
P=2.0
B
5.0
2.0
No.2
No.1
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
7.3
Shown Assembled with Cable
Polarity Mark
CAV No. Marking
Unit : mm
Part No.
HRS No.
No. of Pos.
A
B

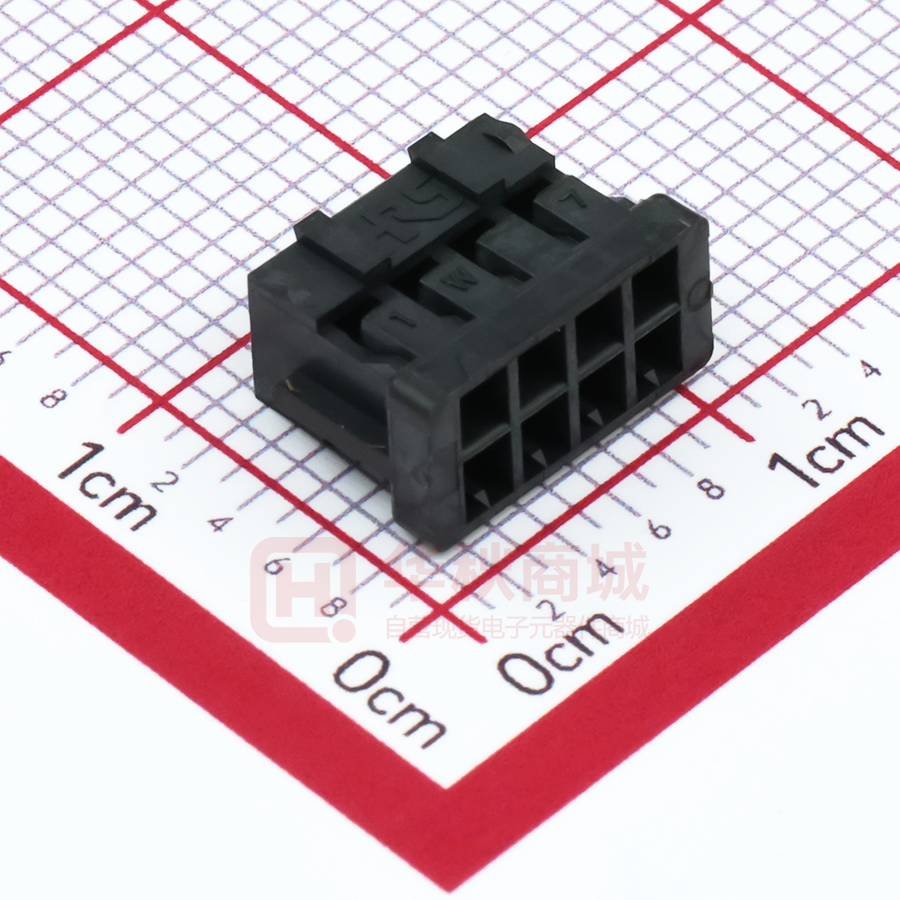

DF11-4DS-2C
CL0543-0568-6-00
4
6.0
2.0
DF11-6DS-2C
CL0543-0502-8-00
6
8.0
4.0
DF11-8DS-2C
CL0543-0503-0-00
8
10.0
6.0
DF11-10DS-2C
CL0543-0504-3-00
10
12.0
8.0
DF11-12DS-2C
CL0543-0505-6-00
12
14.0
10.0
DF11-14DS-2C
CL0543-0506-9-00
14
16.0
12.0
DF11-16DS-2C
CL0543-0507-1-00
16
18.0
14.0
DF11-18DS-2C
CL0543-0508-4-00
18
20.0
16.0
DF11-20DS-2C
CL0543-0509-7-00
20
22.0
18.0
DF11-22DS-2C
CL0543-0510-6-00
22
24.0
20.0
DF11-24DS-2C
CL0543-0511-9-00
24
26.0
22.0
DF11-26DS-2C
CL0543-0512-1-00
26
28.0
24.0
DF11-28DS-2C
CL0543-0513-4-00
28
30.0
26.0
DF11-30DS-2C
CL0543-0514-7-00
30
32.0
28.0
DF11-32DS-2C
CL0543-0515-0-00
32
34.0
30.0
7
Purchase Unit
100pcs
per bag
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Receptacle (Through Hole)
P=2.0
5.0
2.0
No. 2
A
B
No. 1
Polarity Mark
6.2
3.0
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
● Board Through-hole Diameter : φ0.8＋0.1
0
● Diameter of Board Hole for Kink Pin
＋0.05
Securing : φ0.8 0
0.6
0.2
Unit : mm
Part No.
HRS No.
No. of Pos.
A
B
DF11-6DS-2DSA(##)
CL0543-0553-9-##
6
8.0
4.0
DF11-8DS-2DSA(##)
CL0543-0554-1-##
8
10.0
6.0
DF11-10DS-2DSA(##)
CL0543-0555-4-##
10
12.0
8.0
DF11-12DS-2DSA(##)
CL0543-0556-7-##
12
14.0
10.0
DF11-14DS-2DSA(##)
CL0543-0557-0-##
14
16.0
12.0
DF11-16DS-2DSA(##)
CL0543-0558-2-##
16
18.0
14.0
DF11-18DS-2DSA(##)
CL0543-0559-5-##
18
20.0
16.0
DF11-20DS-2DSA(##)
CL0543-0560-4-##
20
22.0
18.0
DF11-22DS-2DSA(##)
CL0543-0561-7-##
22
24.0
20.0
DF11-24DS-2DSA(##)
CL0543-0562-0-##
24
26.0
22.0
DF11-26DS-2DSA(##)
CL0543-0563-2-##
26
28.0
24.0
DF11-28DS-2DSA(##)
CL0543-0564-5-##
28
30.0
26.0
DF11-30DS-2DSA(##)
CL0543-0565-8-##
30
32.0
28.0
DF11-32DS-2DSA(##)
CL0543-0566-0-##
32
34.0
30.0
[Specific No.] -##,(##)
(05) : Tin Plated
(06) : Gold Plated
8
Purchase Unit
100pcs
per bag
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Receptacle (SMT)
No.2
CAV No. Marking
A
0.7
1.5
5.0
2.0
1.5
P=2.0
No.1
B
5.95
4.95
1.5
Polarity Mark
■ PCB Mounting Pattern
A±0.1
2.0±0.1
P=2.0±0.05
1.1±0.1
2.8±0.1
5.1±0.1
2.0±0.1
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1.5
2.0±0.1
C±0.1
2.0±0.1
Note : If the shaded area has a pattern and is not treated with resist it may touch the
connector contact.
Unit : mm
Part No.
HRS No.
No. of Pos.
A
B
C
DF11CZ-4DS-2V(##)
CL0543-2063-0-##
4
2.0
8.5
8.7
DF11CZ-6DS-2V(##)
CL0543-2064-3-##
6
4.0
10.5
10.7
DF11CZ-8DS-2V(##)
CL0543-2065-6-##
8
6.0
12.5
12.7
DF11CZ-10DS-2V(##)
CL0543-2066-9-##
10
8.0
14.5
14.7
DF11CZ-12DS-2V(##)
CL0543-2067-1-##
12
10.0
16.5
16.7
DF11CZ-14DS-2V(##)
CL0543-2068-4-##
14
12.0
18.5
18.7
DF11CZ-16DS-2V(##)
CL0543-2069-7-##
16
14.0
20.5
20.7
DF11CZ-18DS-2V(##)
CL0543-2070-6-##
18
16.0
22.5
22.7
DF11CZ-20DS-2V(##)
CL0543-2071-9-##
20
18.0
24.5
24.7
DF11CZ-22DS-2V(##)
CL0543-2072-1-##
22
20.0
26.5
26.7
DF11CZ-24DS-2V(##)
CL0543-2073-4-##
24
22.0
28.5
28.7
DF11CZ-26DS-2V(##)
CL0543-2074-7-##
26
24.0
30.5
30.7
DF11CZ-28DS-2V(##)
CL0543-2075-0-##
28
26.0
32.5
32.7
DF11CZ-30DS-2V(##)
CL0543-2076-2-##
30
28.0
34.5
34.7
DF11CZ-40DS-2V(##)
CL0543-0584-2-##
40
38.0
44.5
44.7
[Specific No.] –##, (##)
(22) : Tin Plated Embossed Tape Packaging (with Vacuum Pick-up Cap)
(52) : Gold Plated Embossed Tape Packaging (with Vacuum Pick-up Cap)
Note 1 : The 40pos. connector can only be combined with SMT products.
Note 2 : Embossed packaging products have the reel wrapped in polyethylene and include a desiccant.
9
Purchase Unit
500pcs
per reel
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Straight Pin Header
A
B
P=2.0
5.0
2.0
No.2
No.1
3.0
6.6
3.05
1.6
Polarity Mark
3.0
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
● Board Through-hole Diameter : φ0.8＋0.1
0
□0.5
Unit : mm
Purchase
Unit
(##) : (01)
Purchase
Unit
(##) : (08)
Purchase
Unit
(##) : (24)
HRS No.
No. of
Pos.
A
B
DF11-4DP-2DSA(##)
CL0543-0517-5-##
4
6.0
2.0
81pcs
per tube
DF11-6DP-2DSA(##)
CL0543-0518-8-##
6
8.0
4.0
61pcs
per tube
DF11-8DP-2DSA(##)
CL0543-0519-0-##
8
10.0
6.0
49pcs
per tube
DF11-10DP-2DSA(##)
CL0543-0520-0-##
10
12.0
8.0
40pcs
per tube
DF11-12DP-2DSA(##)
CL0543-0521-2-##
12
14.0
10.0
34pcs
per tube
DF11-14DP-2DSA(##)
CL0543-0522-5-##
14
16.0
12.0
30pc
per tube
DF11-16DP-2DSA(##)
CL0543-0523-8-##
16
18.0
14.0
27pcs
per tube
DF11-18DP-2DSA(##)
CL0543-0524-0-##
18
20.0
16.0
DF11-20DP-2DSA(##)
CL0543-0525-3-##
20
22.0
18.0
22pcs
per tube
DF11-22DP-2DSA(##)
CL0543-0526-6-##
22
24.0
20.0
20pcs
per tube
DF11-24DP-2DSA(##)
CL0543-0527-9-##
24
26.0
22.0
18pcs
per tube
DF11-26DP-2DSA(##)
CL0543-0528-1-##
26
28.0
24.0
17pcs
per tube
DF11-28DP-2DSA(##)
CL0543-0529-4-##
28
30.0
26.0
16pcs
per tube
DF11-30DP-2DSA(##)
CL0543-0530-3-##
30
32.0
28.0
DF11-32DP-2DSA(##)
CL0543-0531-6-##
32
34.0
30.0
Part No.
[Specific No.] -##,(##)
(01) : Gold Plated
(08) : Tin Plated
(24) : Tin Plated
10
100pcs
per bag
100pcs
per bag
24pcs
per tube
15pcs
per tube
14pcs
per tube
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Right Angle Pin Header
□0.5
5.0
2.0
3.0
No.2
P=2.0
No.1
B
A
● Board Through-hole Diameter : φ0.8＋0.1
0
7.7
2.0
1.45
3.0
10.0
6.45
3.05
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Polarity Mark
Unit : mm
Part No.
HRS No.
No. of Pos.
A
B
Purchase Unit
DF11-4DP-2DS(##)
CL0543-0533-1-##
4
6.0
2.0
81pcs per tube
DF11-6DP-2DS(##)
CL0543-0534-4-##
6
8.0
4.0
61pcs per tube
DF11-8DP-2DS(##)
CL0543-0535-7-##
8
10.0
6.0
48pcs per tube
DF11-10DP-2DS(##)
CL0543-0536-0-##
10
12.0
8.0
40pcs per tube
DF11-12DP-2DS(##)
CL0543-0537-2-##
12
14.0
10.0
34pcs per tube
DF11-14DP-2DS(##)
CL0543-0538-5-##
14
16.0
12.0
30pcs per tube
DF11-16DP-2DS(##)
CL0543-0539-8-##
16
18.0
14.0
27pcs per tube
DF11-18DP-2DS(##)
CL0543-0540-7-##
18
20.0
16.0
24pcs per tube
DF11-20DP-2DS(##)
CL0543-0541-0-##
20
22.0
18.0
22pcs per tube
DF11-22DP-2DS(##)
CL0543-0542-2-##
22
24.0
20.0
20pcs per tube
DF11-24DP-2DS(##)
CL0543-0543-5-##
24
26.0
22.0
18pcs per tube
DF11-26DP-2DS(##)
CL0543-0544-8-##
26
28.0
24.0
17pcs per tube
DF11-28DP-2DS(##)
CL0543-0545-0-##
28
30.0
26.0
16pcs per tube
DF11-30DP-2DS(##)
CL0543-0546-3-##
30
32.0
28.0
15pcs per tube
DF11-32DP-2DS(##)
CL0543-0547-6-##
32
34.0
30.0
14pcs per tube
[Specific No.] -##,(##)
(24) : Tin Plated
(52) : Gold Plated
11
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
1.5
No.1
No.1
1.5
■ PCB Mounting Pattern
2.0±0.1
A±0.1
P=2.0±0.05
1.1±0.1
6.3±0.1
2.8±0.1
2.0±0.1
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
2.25
7.2
B
No.2
No.2
2.0
2.0
ø0
.
5
A
0.65
0.65
6.2
A
A
1.5
P=2.0
P=2
1.5
Straight Pin Header (SMT)
2.0±0.1
C±0.1
2.0±0.1
Note : If the shaded area has a pattern and is not treated with resist it may touch the
connector contact.
12
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Tin Plated
HRS No.
Part No.
HRS No.
No. of
Pos.
DF11CZ-4DP-2V(27)
CL0543-2047-4-27
DF11C-4DP-2V(57)
CL0543-0682-1-57
4
2.0
8.5
8.7
DF11CZ-6DP-2V(27)
CL0543-2048-7-27
DF11C-6DP-2V(57)
CL0543-0683-4-57
6
4.0
10.5
10.7
DF11CZ-8DP-2V(27)
CL0543-2049-0-27
DF11C-8DP-2V(57)
CL0543-0684-7-57
8
6.0
12.5
12.7
DF11CZ-10DP-2V(27)
CL0543-2050-9-27
DF11C-10DP-2V(57)
CL0543-0685-0-57
10
8.0
14.5
14.7
DF11CZ-12DP-2V(27)
CL0543-2051-1-27
DF11C-12DP-2V(57)
CL0543-0686-2-57
12
10.0
16.5
16.7
DF11CZ-14DP-2V(27)
CL0543-2052-4-27
DF11C-14DP-2V(57)
CL0543-0687-5-57
14
12.0
18.5
18.7
DF11CZ-16DP-2V(27)
CL0543-2053-7-27
DF11C-16DP-2V(57)
CL0543-0688-8-57
16
14.0
20.5
20.7
DF11CZ-18DP-2V(27)
CL0543-2054-0-27
DF11C-18DP-2V(57)
CL0543-0689-0-57
18
16.0
22.5
22.7
DF11CZ-20DP-2V(27)
CL0543-2055-2-27
DF11C-20DP-2V(57)
CL0543-0690-0-57
20
18.0
24.5
24.7
DF11CZ-22DP-2V(27)
CL0543-2056-5-27
DF11C-22DP-2V(57)
CL0543-0691-2-57
22
20.0
26.5
26.7
DF11CZ-24DP-2V(27)
CL0543-2057-8-27
DF11C-24DP-2V(57)
CL0543-0692-5-57
24
22.0
28.5
28.7
DF11CZ-26DP-2V(27)
CL0543-2058-0-27
DF11C-26DP-2V(57)
CL0543-0693-8-57
26
24.0
30.5
30.7
DF11CZ-28DP-2V(27)
CL0543-2059-3-27
DF11C-28DP-2V(57)
CL0543-0694-0-57
28
26.0
32.5
32.7
DF11CZ-30DP-2V(27)
CL0543-2060-2-27
DF11C-30DP-2V(57)
CL0543-0695-3-57
30
28.0
34.5
34.7
DF11CZ-32DP-2V(27)
CL0543-2061-5-27
DF11C-32DP-2V(57)
CL0543-0696-6-57
32
30.0
36.5
36.7
DF11CZ-40DP-2V(27)
CL0543-2062-8-27
DF11C-40DP-2V(57)
CL0543-0697-9-57
40
38.0
44.5
44.7
Part No.
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Gold Plated
A
B
C
Purchase
Unit
[Specific No.] -##,(##)
(27) : Tin Plated Embossed Tape Packaging (with Vacuum Pick-up Cap)
(57) : Gold Plated Embossed Tape Packaging (with Vacuum Pick-up Cap)
Note 1 : The 40pos. connector can only be combined with SMT products.
Note 2 : Embossed packaging products have the reel wrapped in polyethylene and include a desiccant.
Note 3 : There may be blisters on the mold surfaces excluding the mating face during mounting. However this does not affect the product performance.
13
500pcs
per reel
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
In-line Plug
A
B
C
D
No.2
6.0
2.0
0.9
P=2.0
No.1
13.0
1
1.8
A
CAV No. Marking
Polarity Mark
■ In-line Plug Panel Cutouts
E +0.1
0
F +0.1
0
パネル
Panel
3.9 +0.1
0
7.3 +0.1
0
2.5 +0.1
0
6.3 +0.1
0
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5.0
Shown Assembled with Cable
Note 1
Note 1 : Please use the non-radius side for the panel hooking area.
Note 2 : Applicable panel thickness is 1.6 to 1.0mm
(Slight misalignment may occur for the panel thicknesses excluding 1.6 and 1.2mm.)
Unit : mm
Part No.
HRS No.
No. of Pos.
A
B
C
D
E
F
DF11-4DEP-2C
CL0543-0619-5-00
4
11.0
9.2
6.0
2.0
9.4
6.3
DF11-6DEP-2C
CL0543-0620-4-00
6
13.0
11.2
8.0
4.0
11.4
8.3
DF11-8DEP-2C
CL0543-0621-7-00
8
15.0
13.2
10.0
6.0
13.4
10.3
DF11-10DEP-2C
CL0543-0622-0-00
10
17.0
15.2
12.0
8.0
15.4
12.3
DF11-12DEP-2C
CL0543-0623-2-00
12
19.0
17.2
14.0
10.0
17.4
14.3
DF11-14DEP-2C
CL0543-0624-5-00
14
21.0
19.2
16.0
12.0
19.4
16.3
DF11-16DEP-2C
CL0543-0625-8-00
16
23.0
21.2
18.0
14.0
21.4
18.3
DF11-18DEP-2C
CL0543-0626-0-00
18
25.0
23.2
20.0
16.0
23.4
20.3
DF11-20DEP-2C
CL0543-0627-3-00
20
27.0
25.2
22.0
18.0
25.4
22.3
DF11-22DEP-2C
CL0543-0628-6-00
22
29.0
27.2
24.0
20.0
27.4
24.3
DF11-24DEP-2C
CL0543-0629-9-00
24
31.0
29.2
26.0
22.0
29.4
26.3
DF11-26DEP-2C
CL0543-0630-8-00
26
33.0
31.2
28.0
24.0
31.4
28.3
DF11-28DEP-2C
CL0543-0631-0-00
28
35.0
33.2
30.0
26.0
33.4
30.3
DF11-30DEP-2C
CL0543-0632-3-00
30
37.0
35.2
32.0
28.0
35.4
32.3
DF11-32DEP-2C
CL0543-0633-6-00
32
39.0
37.2
34.0
30.0
37.4
34.3
14
Purchase Unit
100pcs
per bag
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
In-line Adaptor
No.2
6.0
2.0
0.9
P=2.0
A
B
C
D
2.0
□0.5 No.1
CAV
No.Marking
表示
CAV No.
5.0
↑
Note : The insertion and extraction force is higher on this side.
No.2
□0.5 No.1
■ In-line Adaptor Panel Cutouts
E +0.1
0
F +0.1
0
Panel
パネル
3.9 +0.1
0
7.3 +0.1
0
2.5 +0.1
0
6.3 +0.1
0
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
12.0
2.0
5.0
Polarity Mark
Note
注1 1
Note 1 : Please use the non-radius surface in the panel hooking area.
Note 2 : Applicable panel thickness is 1.6 to 1.0mm
(Slight misalignment may occur for the panel thicknesses excluding 1.6 and 1.2mm.)
Unit : mm
Part No.
HRS No.
No. of Pos.
A
B
C
D
E
F
DF11-4DEP-2A
CL0543-0698-1-00
4
11.0
9.2
6.0
2.0
9.4
6.3
DF11-6DEP-2A
CL0543-0699-4-00
6
13.0
11.2
8.0
4.0
11.4
8.3
DF11-8DEP-2A
CL0543-0700-1-00
8
15.0
13.2
10.0
6.0
13.4
10.3
DF11-10DEP-2A
CL0543-0701-4-00
10
17.0
15.2
12.0
8.0
15.4
12.3
DF11-12DEP-2A
CL0543-0702-7-00
12
19.0
17.2
14.0
10.0
17.4
14.3
DF11-14DEP-2A
CL0543-0703-0-00
14
21.0
19.2
16.0
12.0
19.4
16.3
DF11-16DEP-2A
CL0543-0704-2-00
16
23.0
21.2
18.0
14.0
21.4
18.3
DF11-18DEP-2A
CL0543-0705-5-00
18
25.0
23.2
20.0
16.0
23.4
20.3
DF11-20DEP-2A
CL0543-0706-8-00
20
27.0
25.2
22.0
18.0
25.4
22.3
DF11-22DEP-2A
CL0543-0707-0-00
22
29.0
27.2
24.0
20.0
27.4
24.3
DF11-24DEP-2A
CL0543-0708-3-00
24
31.0
29.2
26.0
22.0
29.4
26.3
DF11-26DEP-2A
CL0543-0709-6-00
26
33.0
31.2
28.0
24.0
31.4
28.3
DF11-28DEP-2A
CL0543-0710-5-00
28
35.0
33.2
30.0
26.0
33.4
30.3
DF11-30DEP-2A
CL0543-0711-8-00
30
37.0
35.2
32.0
28.0
35.4
32.3
DF11-32DEP-2A
CL0543-0712-0-00
32
39.0
37.2
34.0
30.0
37.4
34.3
15
Purchase Unit
100pcs
per bag
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Crimping Contact for Socket
（Header Area）
1.35
0.7
3.0
1.5
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
9.9
0.7 0.8 1.2
6.2
1.0
3.1
1.85
◆ Reel Contact (Applicable Tool : Applicator)
Part No.
HRS No.
Finish
DF11-22SCF
CL0543-0601-0-00
DF11-22SCFA(04)
DF11-2428SCF
DF11A-2428SCF
（Note 1）
Purchase
Unit
Applicable Wire (Tin Plated Annealed Copper Wire)（ Note 2）
UL
Wire
Size
Tin Plated
1061
22 AWG
17 / 0.16mm
0.342mm2
1.2 to
1.45mm
CL0543-0603-5-04
Gold Plated
1061
22 AWG
17 / 0.16mm
0.342mm2
1.2 to
1.45mm
CL0543-0500-2-00
Tin Plated
1061,
1007
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
0.9 to
1.45mm
1061,
1007
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
0.9 to
1.45mm
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
0.9 to
1.45mm
CL0543-0634-9-00
Tin Plated
10,000pcs
per reel
Standed Wire
Calculated
Jacket
Conductor
Cross-section Outer Dia.
DF11-2428SCFA(04)
CL0543-0550-0-04
Gold Plated
1061,
1007
DF11-30SCF
CL0543-0605-0-00
Tin Plated
1061,
1007
30 AWG
7 / 0.1mm
0.055mm2
0.75 to
1.2mm
DF11-30SCFA(04)
CL0543-0607-6-04
Gold Plated
1061,
1007
30 AWG
7 / 0.1mm
0.055mm2
0.75 to
1.2mm
● Strip Length : 1.7 to 2.3mm
Note 1 : DF11A-2428SCF is the low insertion/extraction tin plated type.
Note 2 : Contact your Hirose representative if considering use of non-specified cables.
Note 3 : The strip length is a reference value. Adjust so that each dimension after crimping meets the specified value.
Refer to the Crimp Quality Standard (ETAD-H0773-00) for details.
16
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
◆ Loose Contact (Applicable Tool : Hand Crimping Tool)
Part No.
HRS No.
Finish
DF11-22SC
CL0543-0602-2-00
DF11-22SCA
CL0543-0604-8-00
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
DF11-2428SC
DF11A-2428SC
（Note 1）
DF11-2428SCA
CL0543-0501-5-00
CL0543-0635-1-00
CL0543-0551-3-00
Purchase
Unit
Applicable Wire (Tin Plated Annealed Copper Wire)（ Note 2）
UL
Wire
Size
Tin Plated
1061
22 AWG
17 / 0.16mm
0.342mm2
1.3mm
Gold Plated
1061
22 AWG
17 / 0.16mm
0.342mm
2
1.3mm
1061
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm
0.141mm2
0.089mm2
1.1mm
1.0mm
0.9mm
1007
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
1.45mm
1.3mm
1.2mm
1061
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
1.1mm
1.0mm
0.9mm
1007
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
1.45mm
1.3mm
1.2mm
1061
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
1.1mm
1.0mm
0.9mm
1007
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
1.45mm
1.3mm
1.2mm
Tin Plated
Tin Plated
100pcs
per bag
Gold Plated
Standed Wire
Calculated
Jacket
Conductor
Cross-section Outer Dia.
2
DF11-30SC
CL0543-0606-3-00
Tin Plated
1061
30 AWG
7 / 0.1mm
0.055mm2
0.8mm
DF11-30SCA
CL0543-0608-9-00
Gold Plated
1061
30 AWG
7 / 0.1mm
0.055mm2
0.8mm
Note 1 : DF11A-2428SC is the low insertion/extraction tin plated type.
Note 2 : When crimping using a hand crimping tool, only the above wires are applicable.
Note 3 : The strip length is a reference value. Adjust so that each dimension after crimping meets the specified value.
Refer to the Crimp Quality Standard (ETAD-H0773-00) for details.
17
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Crimping Contact for In-line Plug
（Header Area）
0.9 0.9 1.3
14.1
0.7
3.0
1.5
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1.7
0.5
10.4
1.58
◆ Reel Contact (Applicable Tool : Applicator)
Part No.
DF11-EP2428PCF
HRS No.
CL0543-0615-4-00
Finish
Purchase
Unit
Tin Plated
10,000pcs
per reel
DF11-EP2428PCFA
CL0543-0617-0-00
Gold Plated
Applicable Wire (Tin Plated Annealed Copper Wire) (Note 1)
UL
Wire
Size
Standed Wire Calculated
Jacket
Conductor Cross-section Outer Dia.
1061,
1007
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
0.9 to
1.45mm
1061,
1007
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
0.9 to
1.45mm
● Strip Length : 1.9 to 2.3mm
Note 1 : Contact your Hirose representative if considering use of non-specified cables.
Note 2 : The strip length is a reference value. Adjust so that each dimension after crimping meets the specified value.
Refer to the Crimp Quality Standard (ETAD-H0935-00) for details.
◆ Loose Contact (Applicable Tool : Hand Crimping Tool)
Part No.
DF11-EP2428PC
HRS No.
CL0543-0616-7-00
Finish
Purchase
Unit
Tin Plated
Applicable Wire (Tin Plated Annealed Copper Wire) (Note 1)
UL
Wire
Size
1007
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
1.45mm
1.3mm
1.2mm
1007
24 AWG
26 AWG
28 AWG
11 / 0.16mm
7 / 0.16mm
7 / 0.127mm
0.221mm2
0.141mm2
0.089mm2
1.45mm
1.3mm
1.2mm
100pcs
per bag
DF11-EP2428PCA
CL0543-0618-2-00
Gold Plated
Note 1 : When crimping using a hand crimping tool, only the above wires are applicable.
Note 2 : The strip length is a reference value. Adjust so that each dimension after crimping meets the specified value.
Refer to the Crimp Quality Standard (ETAD-H0935-00) for details.
18
Standed Wire
Calculated
Jacket
Conductor
Cross-section Outer Dia.
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Embossed Carrier Tape Dimensions (JIS-C-0806 Standard)
●
Straight Pin Header (SMT)
Reel
0.2
（8）
2±
0.5
2±0.5
0.8
A±0.3
ø21±
75
ｎ+20
D+2
0
(D+6）MAX
(D+6)MAX
0.
+0.1
1.5
1.5 00
+0.1
（ø80）
ø370±2
B±0.1
ø1.5 Lead hole depth
R
+0.15
0
1.7
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
（5.8）
( 5.8)
7.8±0.3
7.8±
0.3
3±
E
0.4±0.1
0.4±
0.1
ø1
.1
+0 0
2±0.15
2±
0.15
16±0.1
16±
0.1
9.4±0.3
9.4±
0.3
C±0.1
5
1.
4±0.1
4±
0.1
1.75±0.1
E-E
E
E
Unreeling Direction
Unit : mm
Product Type
DF11CZ-##DP-2V(27)
DF11C-##DP-2V(57)
No. of Pos.
A
B
C
D
4 to 8
24.0
-
11.5
24.4
10 to 12
32.0
28.4
14.2
32.4
14 to 22
44.0
40.4
20.2
44.4
24 to 32
56.0
52.4
26.2
56.4
40
72.0
68.4
34.2
72.4
19
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Receptacle (SMT)
ø1.5 Lead hole depth
0.8
ø21±
ø370±2
（ø80）
2±
0.5
2±0.5
C±0.1
（5.5）
1.75±0.1
Contact No.1
E-E
0.2
E
ø1
.1
+0 0
4±0.1
4
±
0.1
B±0.1
A±0.3
5
1.
16±0.1
16±
0.1
E
3±
2±0.1
2±
0.1
1.75±0.1
●
R0
.7
（5）
E
+0.15
0
1.7
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
5
(5)
+0.1
0
+0.1
E
1.5
1.5
(D+6）MAX
(D+6)MAX
0.4±0.1
Unreeling Direction
D +20
D+2
0
6.6±0.3
8.4±0.3
Unit : mm
Product Type
DF11CZ-##DS-2V
No. of Pos.
A
B
C
D
4 to 8
24.0
-
11.5
24.4
10 to 12
32.0
28.4
14.2
32.4
14 to 18
44.0
40.4
20.2
44.4
20
56.0
52.4
26.2
56.4
22
44.0
40.4
20.2
44.4
24 to 32
56.0
52.4
26.2
56.4
40
72.0
68.4
34.2
72.4
20
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Application Pattern
DF11-#DP-2DS(24)
14.2
6.5
5.0
10.8
11.45
DF11-#DS-2R##（05）
DF11-πDS-2R**(05)
2.0
DF11#Z-#DP-2V
1.6
4.2
5.0
8.9
9.55
DF11#Z－#DP-2V
DF11－#DP-2DSA(08)
1.8
7.7
DF11-#DP-2DS(24)
DF11-#DS-2C
2.0
10.0
13.8（注 1）
7.8
1.6
11.0
DF11-#DS-2R##(05)
Panel
DF11-#DEP-2C
DF11-πDS-2R**(05)
DF11-#DS-2R##(05)
Panel
DF11-#DEP-2A
DF11-#DS-2R##(05)
（Note 1）DF11-#DS-2C : 11.9
7.55
7.8
DF11-#DS-2DSA(05)
DF11Z-#DS-2V
8.2
DF11#Z-#DS-2V
8.45
DF11-#DS-2DSA(05)
DF11Z-πDS-
DF11#Z-*DS-2V DF11-πDS-2DSA(05)
DF11-πDS-2DSA(05)
DF11#Z-#DP-2V
DF11-#DP-2DSA(08)
DF11-#DP-2DS(24)
5.0
DF11-#DS-2DSA(05)
2.0
8.65
10.95
8.9
2.0
5.0
11.2
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
DF11-#DP-2DSA(08)
DF11Z-#DS-2V
21
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Applicable Crimping Tool
Type
Part No.
HRS No.
AP105-DF11-22S
CL0901-4529-7-00
DF11-22SCF
DF11-22SCFA(04)
AP105-DF11-2428S
CL0901-4511-1-00
DF11-2428SCF
DF11A-2428SCF
DF11-2428SCFA(04)
AP105-DF11-30S
CL0901-4532-1-00
DF11-30SCF
DF11-30SCFA(04)
AP105-DF11-EP2428P
CL0901-4528-4-00
DF11-EP2428PCF
DF11-EP2428PCFA
CM-105C
CL0901-0001-0-00
―
HT801/DF11-22S(A)
CL0550-0407-5-00
DF11-22SC
DF11-22SCA
HT801/DF11-2428S(A)
CL0550-0403-4-00
DF11-2428SC
DF11A-2428SC
DF11-2428SCA
HT801/DF11-30S(A)
CL0550-0408-8-00
DF11-30SC
DF11-30SCA
HT801/DF11-EP2428P(A)
CL0550-0409-0-00
DF11-EP2428PC
DF11-EP2428PCA
DF-C-PO(B)
CL0550-0179-2-00
DF11(A)-####SC(F)(A)(##)
DF11-EP2428PC(F)(A)
Applicator
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Press
Hand Crimping Tool
Contact Extraction Tool
Applicable Contact
Note 1 : Please do the crimping operations according to the table in the Crimp Quality Standard (ETAD-H0773-00, ETAD-H0935-00).
Note 2 : Problems with tools other than those specified by Hirose are outside the scope of warranty.
22
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Crimping
■ Items required prior to starting crimping
The work- related documents shown below are required before starting harness assembly.
( The ● mark represents required documents. )
Please contact your Hirose sales representative if you do not have these documents.
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Document Title
Automatic Hand
Crimping Crimping
Machine
Tool
Description
Crimping Machine Main Unit
Instruction Manual
Explanation of Main Press Machine Unit
●
-
Applicator Spare Parts
Identification
Explanation for Applicator Installation
●
-
Crimp Conditions
Standard Crimp Height and Tensile
Strength Values
●
-
Crimp Quality Standards
Various Standards for Crimping Conditions
●
-
Operating Instructions for Hand
Tool
Crimp Height, Tensile Strength, and Other
Inspection Items
-
●
●
●
Harness Procedure Manual
ETAD-H0965-00
Harness Procedure
Remarks
Bundled with purchase of main
press machine unit
Bundled with purchase of applicator.
Bundled with purchase of hand tool.
Ask a Hirose sales personnel to
provide them.
■ Tools
Use tools specified by Hirose for crimping.
* Crimping performed with tools other than those designated should be avoided as it may result in contact failure,
disconnection of cable, etc.
* Operating instructions are available for the crimping machine and the applicator.
Be sure to carefully read the operating instructions manual before beginning work.
■ Applicable Cables
Check that the cables to be used are within the applicable range.
If you intend to use a cable other than those recommended, contact a sales representative.
[ Precautions]
- Cables applicable to crimping connectors are tin- plated stranded soft- copper wire.
- Avoid crimping solid wire, wires with polyester threads or tin coated wires.
- Avoid crimping two cables together.
- The crimp height setting values ( Note 1) may vary between tin- plated and gold- plated terminals even if the same electric
wires are used.
- The crimp height setting values ( Note 1) may vary depending on the difference in the core wire configuration even if the
computed cross- sectional area is the same.
Note 1 : The crimp height is an important item that determines crimping quality. We execute crimping tests for each electric wire to ensure the optimal value for
the crimp height with high precision, thereby ensuring optimal setup values.
23
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
Precautions
1. Recommended Temperature Profile (SMT)
Temperature (℃)
10s Max.
250
230
200
180±10
60s Max.
150
100 to 120s
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
100
Time (S)
Note 1 : Up to 2 cycles of Reflow soldering are possible under the same conditions,
provided that there is a return to normal temperature between the first
and second cycle.
Note 2 : The temperature profile indicates the board surface temperature of
the contact leads.
Note 3 : This reflow profile is for the connectors packaged in embossed tape (reel),
with desiccant in the package. (Within 168 hours of opening)
Temperature (℃)
10s Max.
240
230
200
150
165±5
60s Max.
90 to 120s
100
Time (S)
Note 4 : Reflow temperature conditions for embossed packaged products without
desiccant and for embossed packaged products with desiccant that have
been opened 168 hours ago or longer.
24
Aug.1.2021 Copyright 2021 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
DF11 Series/2.0mm Pitch, Double-Row Connector (UL/CSA Complaint)
2. Recommended
Manual
Soldering
Condition
(SMT)
Soldering iron temperature: 290 ± 10℃ , Soldering time: Within 2 seconds
3. Recommended
Screen
Thickness
(SMT)
0.15 to 0.2mm
4. Board
Warpage
(SMT)
Based on the both connector edges, 0.03mm Max. is allowed in the connector center area.
5. Recommended
Soldering
Condition
(Throughhole)
Flow : 250 ± 5℃ for 10 seconds
Manual soldering : Soldering iron temperature 290 ± 10℃ for 2 seconds
6. Cleaning
Condition
Refer to the "Wire-to-Board Connector Use Handbook".
7. Connection
Condition
Refer to the "Wire-to-Board Connector Use Handbook".
8. Precautions
■ When inserting the crimp terminal into the IDC socket, do not insert diagonally in order to maintain
performance reliability.
■ Refer to the DF11 Series Cable Assembly Procedure (ETAD-H0965-00), DF11#-##SC##(##) Crimp Quality
Standard (ETAD-H0773-00), DF11#-EP####PC##(##) (ETAD-H0935-00) and Crimp Condition for the cable
assembly procedures.
■ Please refrain from insertion and removal when not mounted to the board as it may result in damage or
deformation of the contacts.
■ Do not remove the product by holding the cable as it may result in damage.
■ When soldering by hand do not apply flux that may result in flux rising.
■ There may be slight variation in the mold coloration based on production lot but this does not affect the
product performance.
9. Handling
Instructions
Refer to the following documents when handling this product.
■ Crimp Quality Standard (ETAD-H0773-00, ETAD-H0935-00)
■ Cable Assembly Procedure (ETAD-H0965-00)
■ Wire-to-Board Connector Use Handbook
While taking in consideration
Specifications mentioned in this catalog are reference values.
When considering to order or use this product, please confirm the " Drawing" and " Product Specifications" sheets.
Use an appropriate cable when using the connector in combination with cables.
If considering usage of a non- specified cable, please contact your sales representative.
If assembly process is done by jigs & tools which are not identified by Hirose assurance will not be given.
Please consult with your Hirose sales representative if you are planning to use the product for any of the following
applications. ( Automotive, medical, public infrastructure, aerospace/ defense, etc. )
Hirose will consider the validity of the warranty depending on the conditions.
2-6-3,Nakagawa Chuoh,Tsuzuki-Ku,Yokohama-Shi 224-8540,JAPAN
https://www.hirose.com https://www.hirose-connectors.com
※ The contents of this catalog are current as of date of 3/ 2021. Contents are subject to change without notice for the purpose of improvements.
25
工商网监
湘ICP备2023018690号
