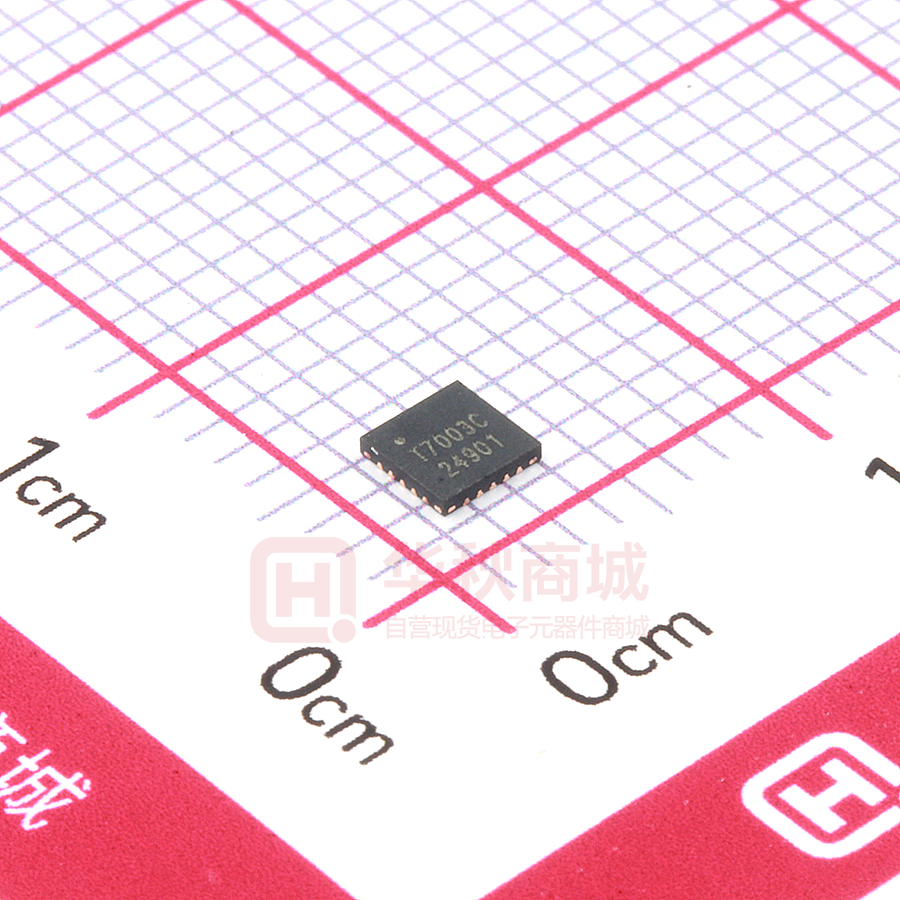

TMI7003C

TMI7003C

  • 厂商:

    TMI(拓尔微)

  • 封装:

    QFN-20_3X3MM-EP

  • 描述:

    3通道1.5A、1.5MHz DC/DC降压PMU

  • 数据手册
  • 价格&库存
TMI7003C 数据手册
TMI7003C 3 Channels 1.5A, 1.5MHz DC/DC Step-Down PMU FEATURES ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ ⚫ GENERAL DESCRIPTION The TMI7003C is a Highly integrated power management IC designed to minimize power consumption in consumer and multimedia applications. It is targeted at Tablet, Mobile Internet Devices, Personal Navigation Devices, Digital Photo Frame, Portable DVD Player, Entertaining and Education Machine. Providing a complete system power management solution, the TMI7003C integrates 3-channel synchronous buck converter. The converters are optimized for high efficiency (greater than 93%) and feature integrated low impedance FETs. 2.5V to 5.5V Input Voltage Range Output Voltage as Low as 0.6V 100% Duty Cycle in Dropout Operation High-Efficiency Synchronous-Mode Operation Input Voltage UVP&OVP Thermal Fault Protection Internal Soft-Start Fixed 1.5MHz Switching Frequency Over-Current Protection and Hiccup Available in a 20-pin 3mm x 3mm QFN Package APPLICATIONS ⚫ ⚫ ⚫ Digital Set-top Box (STB) Flat-Panel Television and Monitors Portable Media Player (PMP) TYPICAL APPILCATION L1 2.2μH VOUT1 1.2V 5V INPUT SW1 C5 10μF R1 100k C8 22pF Optional VIN1 C1 4.7μF FB1 R2 100k VIN2 C2 4.7μF L2 2.2μH VOUT2 1.5V VIN3 C3 4.7μF SW2 C6 10μF R3 100k C9 22pF Optional FB2 R4 68k L3 2.2μH VOUT3 3.3V C7 10μF R5 100k C10 22pF Optional SW3 EN1 ON/OFF FB3 EN2 ON/OFF EN3 ON/OFF R6 22.2k AGND EPAD Figure 1. Basic Application Circuit TMI and SUNTO are the brands of TOLL microelectronic inc. TMI7003C V1.0 2019.12 www.toll-semi.com 1 TMI7003C ABSOLUTE MAXIMUM RATINGS (Note 1) Parameter Value Unit Input Supply Voltage -0.3~7.0 V SW Voltages -0.3~7.0 V EN, FB Voltage -0.3~7.0 V Peak Current limit 1.6 A Junction Temperature (Note 2) 150 °C Power Dissipation 1.6 W Lead Temperature (Soldering,10s) 260 °C NC 16 SW1 14 NC 15 NC NC FB1 PIN CONFIGURATION 13 12 11 10 VIN1 9 EN1 8 EN2 NC 17 EN3 18 VIN3 19 7 VIN2 SW3 20 6 SW2 3 FB3 FB2 4 5 NC 2 NC 1 NC 21 GND (Exposed Pad) QFN3X3-20 (top view) Top Mark: T7003C/XXXXX (T7003C: Device Code, XXXXX: Inside Code) Part Number Package TMI7003C QFN3X3-20 Top mark T7003C XXXXX Quantity/ Reel 3000 TMI7003C devices are Pb-free and RoHS compliant. www.toll-semi.com 2 TMI and SUNTO are the brands of TOLL microelectronic . TMI7003C V1.0 2019.12 TMI7003C PIN FUNCTIONS Pin Name Function 1 NC No Connection. 2 FB3 Feedback input of CH3. Connect to output voltage with a resistor divider 3 FB2 Feedback input of CH2. Connect to output voltage with a resistor divider 4 NC No Connection. 5 NC No Connection. 6 SW2 7 VIN2 8 EN2 CH2 turn on/turns off control input. Don’t leave this pin floating 9 EN1 CH1 turn on/turns off control input. Don’t leave this pin floating 10 VIN1 11 SW1 12 NC No Connection. 13 NC No Connection. 14 FB1 Feedback input of CH1. Connect to output voltage with a resistor divider 15 NC No Connection. 16 NC No connection. 17 NC No Connection. 18 EN3 CH3 turn on/turns off control input. Don’t leave this pin floating 19 VIN3 20 SW3 21 GND(EP) Internal MOSFET switching output of CH2 Power input pin of CH2. Recommended to use a 10μF MLCC capacitor between VIN2 pin and GND. Power input pin of CH1. Recommended to use a 10μF MLCC capacitor between VIN1 pin and GND. Internal MOSFET switching output of CH1 Power input pin of CH3. Recommended to use a 10μF MLCC capacitor between VIN3 pin and GND. Internal MOSFET switching output of CH3. The Exposed Pad must be soldered to a large PCB copper plane and connected to GND for appropriate dissipation TMI and SUNTO are the brands of TOLL microelectronic inc. TMI7003C V1.0 2019.12 www.toll-semi.com 3 TMI7003C ESD RATING Items Description Value Unit VESD_HBM Human Body Model for all pins ±2000 V JEDEC specification JS-001 RECOMMENDED OPERATING CONDITIONS Items Description Min Max Unit Voltage Range IN 2.5 5.5 V TJ Operating Junction Temperature Range -40 125 °C THERMAL RESISITANCE (Note 3) Items Description Value Unit θJA Junction-to-ambient thermal resistance 75 °C/W www.toll-semi.com 4 TMI and SUNTO are the brands of TOLL microelectronic . TMI7003C V1.0 2019.12 TMI7003C ELECTRICAL CHARACTERISTICS (VIN=5V, TA = 25°C, unless otherwise noted.) Parameter Test Conditions Input Voltage Range Min Typ 2.5 Max Unit 5.5 V Buck Regulator 1, 2, 3 OVP Threshold 6.0 V UVLO Threshold 2.3 V Input DC Supply Current PWM Mode VOUT = 90%, ILOAD=0mA 150 300 µA PFM Mode VOUT = 105%, ILOAD=0mA 40 75 µA Shutdown Mode VEN= 0V, VIN=4.2V 0.1 2 µA 0.600 0.612 V Regulated Feedback Voltage VFB TA= 25°C, PWM operation 0.588 VOUT=100% 1.5 MHz VOUT=0V 400 kHz On Resistance of PMOS ISW=100mA 300 mΩ On Resistance of NMOS ISW=-100mA 180 mΩ Peak Current Limit VIN= 5V, VOUT=90% Oscillation Frequency EN Input High Voltage 1.5 A 1.5 V EN Input Low Voltage EN Leakage Current SW Leakage Current VEN=0V, VIN=VSW=5V 0.4 V ±0.01 ±1.0 µA ±0.01 ±1.0 µA Thermal Shutdown Threshold (Note 4) 160 °C Thermal Shutdown Hysteresis (Note 4) 20 °C Note 1: Absolute Maximum Ratings are those values beyond which the life of a device may be impaired. Note 2: TJ is calculated from the ambient temperature TA and power dissipation PD according to the following formula: TJ = TA + (PD) x θJA. Note 3: Measured on JESD51-7, 4-layer PCB. Note 4: Thermal shutdown threshold and hysteresis are guaranteed by design. TMI and SUNTO are the brands of TOLL microelectronic inc. TMI7003C V1.0 2019.12 www.toll-semi.com 5 TMI7003C GENERAL DESCRIPTION Feature Description TMI7003C is a highly efficient and integrated Power Management IC for Systems-on-a-Chip (SoCs), ASICs, and processors. The device incorporates 3 high-efficiency synchronous buck regulators. Each of the buck regulators is specially designed for high-efficiency operation throughout the load range. With 1.5MHz typical switching frequency, the external L-C filter can be small and still provide very low output voltage ripple. The bucks are internally compensated to be stable with the recommended external inductors and capacitors as detailed in the application diagram. Synchronous rectification yields high efficiency for low voltage and high output currents. Additional features include soft-start, under-voltage lockout, bypass, and current and thermal overload protection. 3 channel BUCKs are nearly identical in performance and mode of operation. They can operate in automatic mode (PWM/PFM). At very light loads, BUCKs enter PFM mode and operate with reduced switching frequency and supply current to maintain high efficiency. Soft-Start Each of BUCKs has an internal soft-start circuit that limits the in-rush current during startup. This allows the converters to gradually reach the steady-state operating point, thus reducing startup stresses and surges. During startup, the switch current limit is increased in steps. The startup time depends on the output capacitor size, load current and output voltage. The typical soft-start time is 1ms. Current Limiting A current limit feature protects the device and any external components during overload conditions. In PWM mode the current limiting is implemented by using an internal comparator that trips at current levels according to the buck capability. If the output is shorted to ground the device enters a timed current limit mode where the NFET is turned on for a longer duration until the inductor current falls below a low threshold, ensuring inductor current has more time to decay, thereby preventing runaway. Uder-Voltage Lock Out (UVLO) The VIN voltage is monitored for a supply under voltage condition, for which the operation of the device cannot be guaranteed. The part will automatically disable PMIC. To prevent unstable operation, the UVLO has a hysteresis window. An under-voltage lockout (UVLO) will disable BUCKs outputs, Once the supply voltage is above the UVLO hysteresis, the device will initiate a power-up sequence and then enter the active state. Input Over Voltage Protection (IOVP) The VIN voltage is monitored for a supply over voltage condition, for which the operation of the device cannot be guaranteed. The purpose of IOVP is to protect the part and all other components connected to the PMIC outputs from any damage and malfunction. Once VIN rises over about 6.0V, BUCKs will be disabled automatically. To prevent unstable operation, the IOVP has a hysteresis window. An input over voltage www.toll-semi.com 6 TMI and SUNTO are the brands of TOLL microelectronic . TMI7003C V1.0 2019.12 TMI7003C protection (IOVP) will force the device into the reset state, Once the supply voltage goes below the OVLO lower threshold, the device will initiate a power-up sequence and then enter the active state. Thermal Shutdown (OTP) The temperature of the silicon die is monitored for an over-temperature condition, for which the operation of the device cannot be guaranteed. The part will automatically be disabled if the temperature is too high. The thermal shutdown (OTP) will force the device into the reset state. In reset, all circuitry is disabled. To prevent unstable operation, the OTP has a hysteresis window of about 20°C. Once the temperature has decreased below the OTP hysteresis, the device will initiate a power-up sequence and then enter the active state. In the active state, the part will start up as if for the first time. TMI and SUNTO are the brands of TOLL microelectronic inc. TMI7003C V1.0 2019.12 www.toll-semi.com 7 TMI7003C TYPICAL PERFORMANCE CHARACTERISTICS Steady State Operation Steady State Operation VIN =5V, VOUT =1.2V, No Load VIN =5V, VOUT =1.2V, Io=1A Vin=20mV/div AC coupled Vin=50mV/div AC coupled Vout=20mV/div AC coupled Vout=20mV/div AC coupled LX=2V/div LX=2V/div IL=200mA/div AC coupled Time: 400ns/div IL=1A/div Time: 400ns/div Load Transient Load Transient VIN =5V, VOUT =3.3V, Io =0A to 1A VIN =5V, VOUT =3.3V, Io =0.1A to 0.9A VOUT=200mV/div VOUT=200mV/div Io=500mA/div Io=500mA/div Time: 200μs/div Time: 200μs/div Output Short Entry Output Short Recovery VIN =5V, VOUT =1.2V, No Load VIN =5V, VOUT =1.2V, No Load Vin=2V/div Vin=2V/div Vout=500mV/div Vout=500mV/div LX=5V/div LX=5V/div IL=1A/div IL=2A/div Time: 8μs/div www.toll-semi.com 8 Time: 8μs/div TMI and SUNTO are the brands of TOLL microelectronic . TMI7003C V1.0 2019.12 TMI7003C TYPICAL PERFORMANCE CHARACTERISTICS (continued) VIN Power On VIN Power down VIN =5V, No Load VIN =5V, No Load VIN=2V/div VIN=2V/div VOUT1(1.2V)=1V/div VOUT1(1.2V)=1V/div VOUT2(1.5V)=1V/div VOUT2(1.5V)=1V/div VOUT3(3.3V)=2V/div VOUT3(3.3V)=2V/div Time: 400ms/div Time: 10ms/div VIN Power On VIN Power down VIN =5V, Full Load VIN =5V, Full Load VIN=2V/div VIN=2V/div VOUT1(1.2V)=1V/div VOUT1(1.2V)=1V/div VOUT2(1.5V)=1V/div VOUT2(1.5V)=1V/div VOUT3(3.3V)=2V/div VOUT3(3.3V)=2V/div Time: 800μs/div Time: 10ms/div EN Enable Power On/Off EN Disable Power down VIN =5V, EN1 and EN2, Full Load VIN =5V, EN1 and EN2, Full Load EN1=2V/div EN1=2V/div VOUT1(1.2V)=500mV/div VOUT1(1.2V)=500mV/div EN2=2V/div EN2=2V/div VOUT2(1.5V)=1V/div VOUT2(1.5V)=1V/div Time: 400μs/div TMI and SUNTO are the brands of TOLL microelectronic inc. TMI7003C V1.0 2019.12 Time: 400μs/div www.toll-semi.com 9 TMI7003C TYPICAL PERFORMANCE CHARACTERISTICS (continued) EN Enable Power On/Off EN Disable Power down VIN =5V, EN1 and EN3, Full Load VIN =5V, EN1 and EN3, Full Load EN1=2V/div EN1=2V/div VOUT1(1.2V)=500mV/div VOUT1(1.2V)=500mV/div EN3=2V/div EN3=2V/div VOUT3(3.3V)=2V/div VOUT3(3.3V)=2V/div Time: 400μs/div www.toll-semi.com 10 Time: 400μs/div TMI and SUNTO are the brands of TOLL microelectronic . TMI7003C V1.0 2019.12 TMI7003C DETAILED DESIGN PROCEDURE External Components Selection TMI7003C require an input capacitor, an output capacitor and an inductor. These components are critical to the performance of the device. TMI7003C are internally compensated and do not require external components to achieve stable operation. The output voltage can be programmed by resistor divider. VOUT =VFB * VOUT R1+R2 R2 R1 Select R1 value around 50kΩ R2=R1* COUT VFB VFB VOUT -VFB R2 Where VFB as 0.6V Output Inductors and Capacitors Selection There are several design considerations related to the selection of output inductors and capacitors: • Load transient response • Stability • Efficiency • Output ripple voltage • Over current ruggedness The device has been optimized for use with nominal LC values as shown in the Application Diagram. BUCK Power Supply Recommendations TMI7003C are designed to operate from input voltage supply range between 2.5 V and 5.5 V. This input supply must be well regulated. If the input supply is located more than a few inches, additional bulk capacitance may be required in addition to the ceramic bypass capacitors. A ceramic capacitor with an effective value of 4.7μF is a typical choice. VIN must be connected to input capacitors as close as possible. BUCK Inductor Selection The recommended inductor values are shown in the Application Diagram. It is important to guarantee the inductor core does not saturate during any foreseeable operational situation. The inductor should be rated to handle the peak load current plus the ripple current: Care should be taken when reviewing the different saturation current ratings that are specified by different manufacturers. Saturation current ratings are typically specified at 25°C, so ratings at maximum ambient temperature of the application should be requested from the manufacturer. IL(MAX) =ILOAD(MAX) +IRIPPLE =ILOAD(MAX) + D= D*(VIN -VOUT ) 2*L*FS VOUT , F =1MHz, L=2.2uH VIN S TMI and SUNTO are the brands of TOLL microelectronic inc. TMI7003C V1.0 2019.12 www.toll-semi.com 11 TMI7003C where • IL(MAX): Max inductor Current • ILOAD(MAX): Max load current • IRIPPLE: Peak-to-Peak inductor current • D: Estimated duty factor • VIN: Input voltage • VOUT: Output voltage • FS: Switching frequency, Hertz Recommended Method for BUCK Inductor Selection The best way to guarantee the inductor does not saturate is to choose an inductor that has saturation current rating greater than the maximum device current limit, as specified in the Electrical Characteristics. In this case the device will prevent inductor saturation by going into current limit before the saturation level is reached. Alternate Method for BUCK Inductor Selection If the recommended approach cannot be used care must be taken to guarantee that the saturation current is greater than the peak inductor current: ISAT > ILPEAK ILPEAK =IOUTMAX + IRIPPLE = D= IRIPPLE 2 D*(VIN -VOUT ) L*FS VOUT VIN *EFF where • ISAT: Inductor saturation current at operating temperature • ILPEAK: Peak inductor current during worst case conditions • IOUTMAX: Maximum average inductor current • IRIPPLE: Peak-to-Peak inductor current • VOUT: Output voltage • VIN: Input voltage • L: Inductor value in Henries at IOUTMAX • FS: Switching frequency, Hertz • D: Estimated duty factor • EFF: Estimated power supply efficiency ISAT may not be exceeded during any operation, including transients, startup, high temperature, worst case conditions, etc. www.toll-semi.com 12 TMI and SUNTO are the brands of TOLL microelectronic . TMI7003C V1.0 2019.12 TMI7003C Output and Input Capacitors Characteristics Special attention should be paid when selecting these components. The DC bias of these capacitors can result in a capacitance value that falls below the minimum value given in the recommended capacitor specifications table. The ceramic capacitor’s actual capacitance can vary with temperature. The capacitor type X7R, which operates over a temperature range of −55°C to +125°C, will only vary the capacitance to within ±15%. The capacitor type X5R has a similar tolerance over a reduced temperature range of −55°C to +85°C. Many large value ceramic capacitors, larger than 1uF are manufactured with Z5U or Y5V temperature characteristics. Their capacitance can drop by more than 50% as the temperature varies from 25°C to 85°C, therefore X5R or X7R is recommended over Z5U and Y5V in applications where the ambient temperature will change significantly above or below 25°C. BUCK Output Capacitor Selection The output capacitor of a switching converter absorbs the AC ripple current from the inductor and provides the initial response to a load transient. The ripple voltage at the output of the converter is the product of the ripple current flowing through the output capacitor and the impedance of the capacitor. The impedance of the capacitor can be dominated by capacitive, resistive, or inductive elements within the capacitor, depending on the frequency of the ripple current. Ceramic capacitors have very low ESR and remain capacitive up to high frequencies. Their inductive component can be usually neglected at the frequency ranges the switcher operates. The output-filter capacitor smooths out the current flow from the inductor to the load and helps maintain a steady output voltage during transient load changes. It also reduces output voltage ripple. These capacitors must be selected with sufficient capacitance and low enough ESR to perform these functions. Note that the output voltage ripple increases with the inductor current ripple and the Equivalent Series Resistance of the output capacitor (ESRCOUT), also note that the actual value of the capacitor’s ESRCOUT is frequency and temperature dependent, as specified by its manufacturer. The ESR should be calculated at the applicable switching frequency and ambient temperature. VOUT-RIPPLE-PP = IRIPPLE 8*FS *COUT Where IRIPPLE = D= D*(VIN -VOUT ) 2*L*FS VOUT VIN where • VOUT-RIPPLE-PP: estimated output voltage ripple • IRIPPLE: estimated current ripple • D: Estimated duty factor Output ripple can be estimated from the vector sum of the reactive (capacitance) voltage component and the real (ESR) voltage component of the output capacitor: VOUT-RIPPLE-PP =√V2ROUT +V2COUT TMI and SUNTO are the brands of TOLL microelectronic inc. TMI7003C V1.0 2019.12 www.toll-semi.com 13 TMI7003C where VROUT =IRIPPLE *ESRCOUT VCOUT = IRIPPLE 8*FS *COUT where • VOUT-RIPPLE-PP: estimated output ripple, • VROUT: estimated real output ripple, • VCOUT: estimated reactive output ripple. The device is designed to be used with ceramic capacitors on the outputs of the buck regulators. The recommended dielectric type of these capacitors is X5R, X7R, or of comparable material to maintain proper tolerances over voltage and temperature. The recommended effective value for the output capacitors is 10µF with an ESR of 2mΩ or less. The output capacitors need to be mounted as close as possible to the output/ground terminals of the device. BUCK Input Capacitor Selection Input capacitor should be located as close as possible to their corresponding VIN and GND terminals, tantalum capacitor can also be located in the proximity of the device. The input capacitor supplies the AC switching current drawn from the switching action of the internal power MOSFETs. The input current of a buck converter is discontinuous, so the ripple current supplied by the input capacitor is large. The input capacitor must be rated to handle both the RMS current and the dissipated power. The input capacitor must be rated to handle this current: √VOUT *(VIN -VOUT ) VIN The power dissipated in the input capacitor is given by: VRMS_CIN =IOUT PD_CIN =I2RMS_CIN *RESR_CIN The device is designed to be used with ceramic capacitors on the inputs of the buck regulators. The recommended dielectric type of these capacitors is X5R, X7R, or of comparable material to maintain proper tolerances over voltage and temperature. The minimum recommended effective value for the input capacitor is larger than 4.7µF with an ESR of 10mΩ or less. The input capacitors need to be mounted as close as possible to the power/ground input terminals of the device. The input power source supplies the average current continuously. During the high side MOSFET switch ontime, however, the demanded di/dt is higher than can be typically supplied by the input power source. This delta is supplied by the input capacitor. A simplified “worst case” assumption is that all of the high side MOSFET current is supplied by the input capacitor. This will result in conservative estimates of input ripple voltage and capacitor RMS current. Input ripple voltage is estimated as follows: VPPIN = IOUT *D +I *ESRCIN CIN *FS OUT where • VPPIN: Estimated peak-to-peak input ripple voltage • IOUT: Output current • CIN: Input capacitor value www.toll-semi.com 14 TMI and SUNTO are the brands of TOLL microelectronic . TMI7003C V1.0 2019.12 TMI7003C • ESRCIN: Input capacitor ESR This capacitor is exposed to significant RMS current, so it is important to select a capacitor with an adequate RMS current rating. Capacitor RMS current estimated as follows: IRMSCIN =√D*(I2OUT + I2RIPPLE ) 12 Where • IRMSCIN: Estimated input capacitor RMS current Layout Guidelines PC board layout is an important part of DC-DC converter design. Poor board layout can disrupt the performance of a DC-DC converter and surrounding circuitry by contributing to EMI, ground bounce, and resistive voltage loss in the traces. These can send erroneous signals to the DC-DC converter resulting in poor regulation or instability. Good layout can be implemented by following a few simple design rules. 1. Minimize area of switched current loops. In a buck regulator there are two loops where currents are switched rapidly. The first loop starts from the CIN input capacitor, to the regulator VIN terminal, to the regulator SW terminal, to the inductor then out to the output capacitor COUT and load. The second loop starts from the output capacitor ground, to the regulator GND terminals, to the inductor and then out to COUT and the load. To minimize both loop areas the input capacitor should be placed as close as possible to the VIN terminal. Grounding for both the input and output capacitors should consist of a small localized top side plane that connects to GND. The inductor should be placed as close as possible to the SW pin and output capacitor. 2. Minimize the copper area of the switch node. The SW terminals should be directly connected with a trace that runs on top side directly to the inductor. To minimize IR losses this trace should be as short as possible and with a sufficient width. However, a trace that is wider than 100 mils will increase the copper area and cause too much capacitive loading on the SW terminal. The inductors should be placed as close as possible to the SW terminals to further minimize the copper area of the switch node. 3. Have a single point ground for all device analog grounds. The ground connections for the feedback components should be connected together then routed to the GND of the device. This prevents any switched or load currents from flowing in the analog ground plane. If not properly handled, poor grounding can result in degraded load regulation or erratic switching behavior. 4. Minimize trace length to the FB terminal. The feedback trace should be routed away from the SW pin and inductor to avoid contaminating the feedback signal with switch noise. 5. Make input and output bus connections as wide as possible. This reduces any voltage drops on the input or output of the converter and can improve efficiency. If voltage accuracy at the load is important make sure feedback voltage sense is made at the load. Doing so will correct for voltage drops at the load and provide the best output accuracy. TMI and SUNTO are the brands of TOLL microelectronic inc. TMI7003C V1.0 2019.12 www.toll-semi.com 15 TMI7003C PACKAGE INFORMATION QFN3x3-20 Unit: mm Symbol Dimensions In Millimeters Min Typ Max A 0.70 0.75 0.80 A1 0.00 - A3 - D E Symbol Dimensions In Millimeters Min Typ Max b 0.15 0.20 0.25 0.05 L 0.25 0.30 0.35 0.20 REF - D2 1.65 1.80 1.90 2.95 3.00 3.05 E2 1.65 1.80 1.90 2.95 3.00 3.05 e 0.40 BSC Note: 1) All dimensions are in millimeters. www.toll-semi.com 16 TMI and SUNTO are the brands of TOLL microelectronic . TMI7003C V1.0 2019.12 TMI7003C TAPE AND REEL INFORMATION TAPE DIMENSIONS: QFN3x3-20 Unit: mm Symbol Dimensions Symbol Dimensions Symbol Dimensions Symbol Dimensions A0 3.30±0.10 P0 4.00±0.10 E1 1.75±0.10 D1 1.55±0.05 B0 3.30±0.10 P1 8.00±0.10 F 5.50±0.10 T 0.30±0.05 K0 1.10±0.10 P2 2.00±0.10 D0 1.55±0.05 W 12.00±0.30 REEL DIMENSIONS: QFN3x3-20 Unit: mm ØA B ØC ØN W1 W2 330±1.0 4.7±0.5 13.5±0.2 100±0.5 13.4±0.5 17.4±0.5 Note: 1) All Dimensions are in Millimeter 2) Quantity of Units per Reel is 3000 3) MSL level is level 3. TMI and SUNTO are the brands of TOLL microelectronic inc. TMI7003C V1.0 2019.12 www.toll-semi.com 17
