GB02SHT03-46

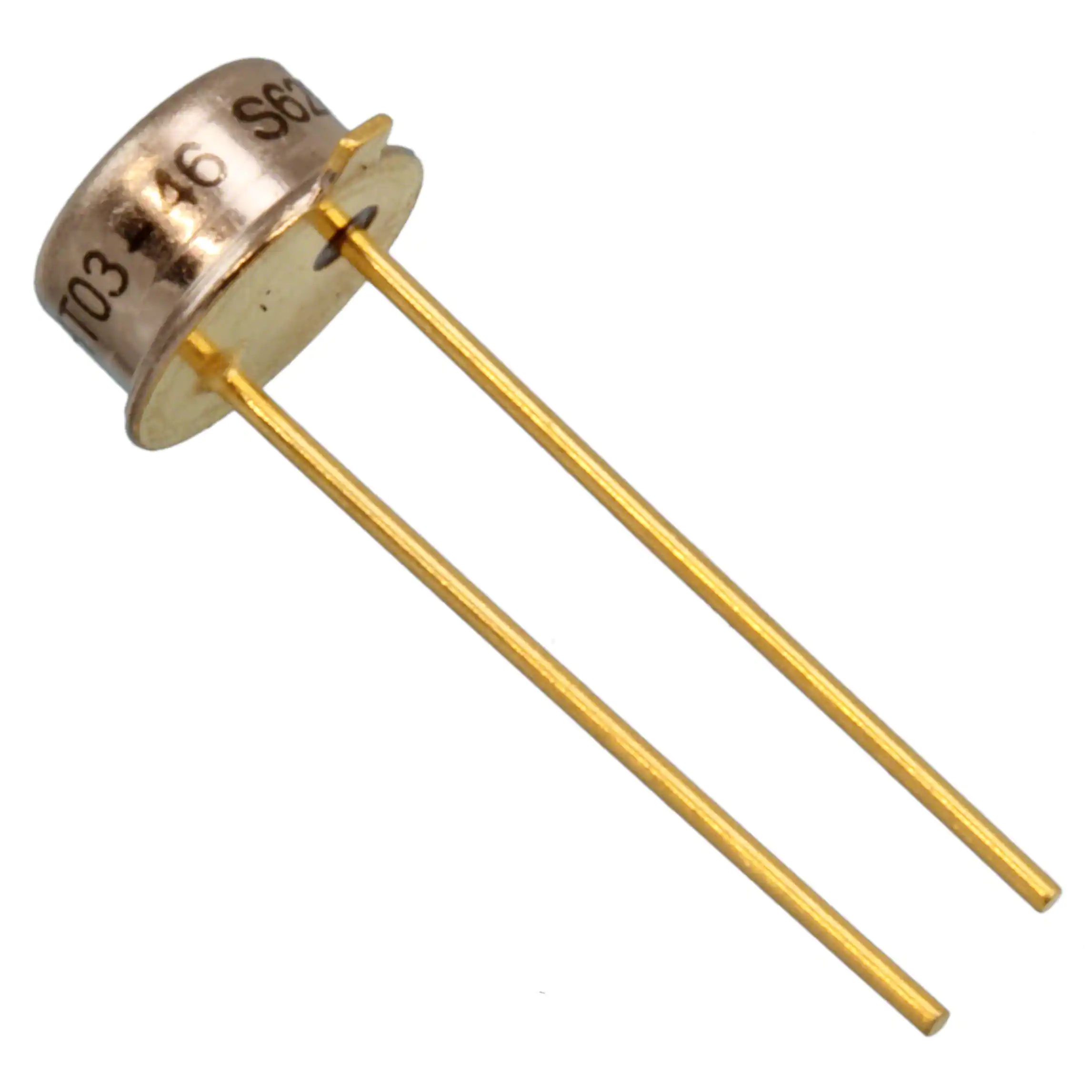

GB02SHT03-46     High Temperature Silicon Carbide Power Schottky Diode VRRM IF (Tc=25°C) QC Features Package          RoHS Compliant 300 V Schottky rectifier 210 °C maximum operating temperature Zero reverse recovery charge Superior surge current capability Positive temperature coefficient of VF Temperature independent switching behavior Lowest figure of merit QC/IF Available screened to Mil-PRF-19500 = = = 300 V 4A 9 nC 1 2 TO – 46 Advantages Applications                  High temperature operation Improved circuit efficiency (Lower overall cost) Low switching losses Ease of paralleling devices without thermal runaway Smaller heat sink requirements Industry’s lowest reverse recovery charge Industry’s lowest device capacitance Ideal for output switching of power supplies Best in class reverse leakage current at operating temperature Down Hole Oil Drilling Geothermal Instrumentation Solenoid Actuators General Purpose High-Temperature Switching Amplifiers Solar Inverters Switched-Mode Power Supply (SMPS) Power Factor Correction (PFC) Maximum Ratings at Tj = 210 °C, unless otherwise specified Parameter Repetitive peak reverse voltage Continuous forward current Continuous forward current RMS forward current Surge non-repetitive forward current, Half Sine Wave Non-repetitive peak forward current 2 I t value Power dissipation Operating and storage temperature Symbol VRRM IF IF IF(RMS) Conditions TC = 25 °C TC ≤ 180 °C TC ≤ 180 °C Values 300 4 2 4 Unit V A A A IF,SM TC = 25 °C, tP = 10 ms 10 A IF,max 2 ∫i dt Ptot Tj , Tstg TC = 25 °C, tP = 10 µs 65 0.5 64 -55 to 210 A 2 AS W °C TC = 25 °C, tP = 10 ms TC = 25 °C Electrical Characteristics at Tj = 210 °C, unless otherwise specified Parameter Symbol Diode forward voltage VF Reverse current IR Total capacitive charge QC Switching time ts Total capacitance C Conditions IF = 1 A, Tj = 25 °C IF = 1 A, Tj = 210 °C VR = 300 V, Tj = 25 °C VR = 300 V, Tj = 210 °C IF ≤ IF,MAX VR = 300 V dIF/dt = 200 A/μs VR = 300 V Tj = 210 °C VR = 1 V, f = 1 MHz, Tj = 25 °C VR = 300 V, f = 1 MHz, Tj = 25 °C min. Values typ. 1.6 2.6 1 5 9 < 17 76 15 max. Unit V 5 50 µA nC ns pF Thermal Characteristics Thermal resistance, junction - case RthJC 5.55 °C/W 0.6 Nm Mechanical Properties Mounting torque Dec 2014   M http://www.genesicsemi.com/high-temperature-sic/high-temperature-sic-schottky-rectifiers/ Pg 1 of 4   Figure 1: Typical Forward Characteristics Figure 2: Typical Reverse Characteristics Figure 3: Power Derating Curve Figure 4: Current Derating Curves (D = tP/T, tP= 400 µs) (Considering worst case Zth conditions ) Figure 5: Current vs Pulse Duration Curves at TC = 190 °C Figure 6: Transient Thermal Impedance Dec 2014   GB02SHT03-46   http://www.genesicsemi.com/high-temperature-sic/high-temperature-sic-schottky-rectifiers/ Pg 2 of 4 GB02SHT03-46     Package Dimensions: TO-46 PACKAGE OUTLINE NOTE 1. CONTROLLED DIMENSION IS INCH. DIMENSION IN BRACKET IS MILLIMETER. 2. DIMENSIONS DO NOT INCLUDE END FLASH, MOLD FLASH, MATERIAL PROTRUSIONS Revision History Date Revision Comments 2014/08/29 0 Initial release Supersedes Published by GeneSiC Semiconductor, Inc. 43670 Trade Center Place Suite 155 Dulles, VA 20166 GeneSiC Semiconductor, Inc. reserves right to make changes to the product specifications and data in this document without notice. GeneSiC disclaims all and any warranty and liability arising out of use or application of any product. No license, express or implied to any intellectual property rights is granted by this document. Unless otherwise expressly indicated, GeneSiC products are not designed, tested or authorized for use in life-saving, medical, aircraft navigation, communication, air traffic control and weapons systems, nor in applications where their failure may result in death, personal injury and/or property damage. Dec 2014   http://www.genesicsemi.com/high-temperature-sic/high-temperature-sic-schottky-rectifiers/ Pg 3 of 4   GB02SHT03-46 SPICE Model Parameters This is a secure document. Copy this code from the SPICE model PDF file on our website into a SPICE software program for simulation of the GB02SHT03-46. * MODEL OF GeneSiC Semiconductor Inc. * * $Revision: 1.0 $ * $Date: 29-AUG-2014 $ * * GeneSiC Semiconductor Inc. * 43670 Trade Center Place Ste. 155 * Dulles, VA 20166 * * COPYRIGHT (C) 2014 GeneSiC Semiconductor Inc. * ALL RIGHTS RESERVED * * These models are provided "AS IS, WHERE IS, AND WITH NO WARRANTY * OF ANY KIND EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED * TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A * PARTICULAR PURPOSE." * Models accurate up to 2 times rated drain current. * * Start of GB02SHT03-46 SPICE Model * .SUBCKT GB02SHT03ANODE KATHODE D1 ANODE KATHODE GB02SHT03_25C; Call the Schottky Diode Model D2 ANODE KATHODE GB02SHT03_PIN; Call the PiN Diode Model .MODEL GB02SHT03_25C D + IS 3.57E-18 RS 0.49751 + TRS1 0.0057 TRS2 2.40E-05 + N 1 IKF 322 + EG 1.2 XTI 3 + CJO 9.12E-11 VJ 0.371817384 + M 1.527759838 FC 0.5 + TT 1.00E-10 BV 300 + IBV 1.00E-03 VPK 300 + IAVE 2 TYPE SiC_Schottky + MFG GeneSiC_Semiconductor .MODEL GB02SHT03_PIN D + IS 5.73E-11 RS 0.72994 + N 5 IKF 800 + EG 3.23 XTI -14 + FC 0.5 TT 0 + BV 300 IBV 1.00E-03 + VPK 300 IAVE 2 + TYPE SiC_PiN .ENDS * * End of GB02SHT03 SPICE Model Dec 2014   http://www.genesicsemi.com/high-temperature-sic/high-temperature-sic-schottky-rectifiers/ Page 1 of 1  Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: GeneSiC Semiconductor: GB02SHT03-46
