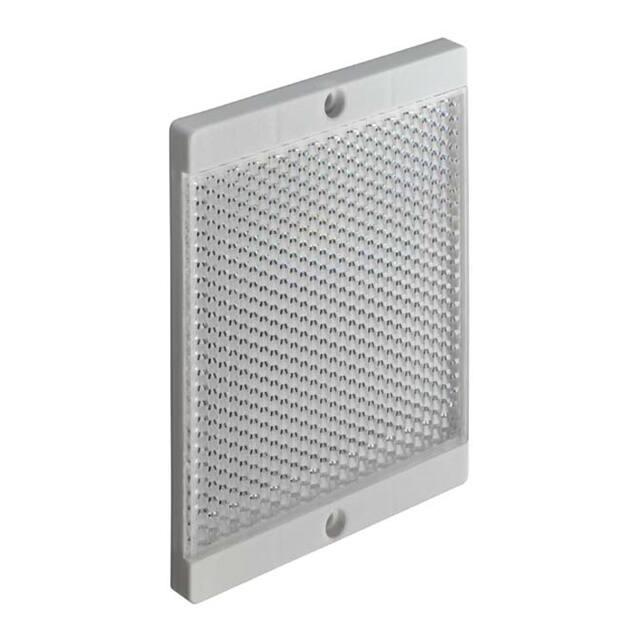

TKS 100X100

Technical data sheet Reflector Part no.: 50022816 TKS 100X100 Contents - Technical data - Dimensioned drawings Figure can vary Leuze electronic GmbH + Co. KG info@leuze.com • www.leuze.com We reserve the right to make technical changes In der Braike 1, 73277 Owen Phone: +49 7021 573-0 • Fax: +49 7021 573-199 eng • 2021-03-25 1/2 Reflector • Part no.: 50022816 • TKS 100X100 Technical data Mechanical data Environmental data Design Rectangular Triple reflector size 4 mm Mounting dimension, width 103 mm Certifications Mounting dimension, height 125 mm Degree of protection Mounting dimension, thickness 8.7 mm Reflection surface height 96 mm Reflection surface width 96 mm Reflector material Plastic Material of base material Plastic Polarization-changing Yes Chemical designation, reflector material PMMA8N Structure, active surface Net weight Type of fastening Triple 70 g Adhesive Through-hole mounting Ambient temperature, operation -40 ... 65 °C IP 67 Classification Customs tariff number 90029000 eCl@ss 5.1.4 27279203 eCl@ss 8.0 27279203 eCl@ss 9.0 27273601 eCl@ss 10.0 27273601 eCl@ss 11.0 27273601 ETIM 5.0 EC002467 ETIM 6.0 EC002467 ETIM 7.0 EC002467 Dimensioned drawings All dimensions in millimeters Leuze electronic GmbH + Co. KG info@leuze.com • www.leuze.com We reserve the right to make technical changes In der Braike 1, 73277 Owen Phone: +49 7021 573-0 • Fax: +49 7021 573-199 eng • 2021-03-25 2/2
