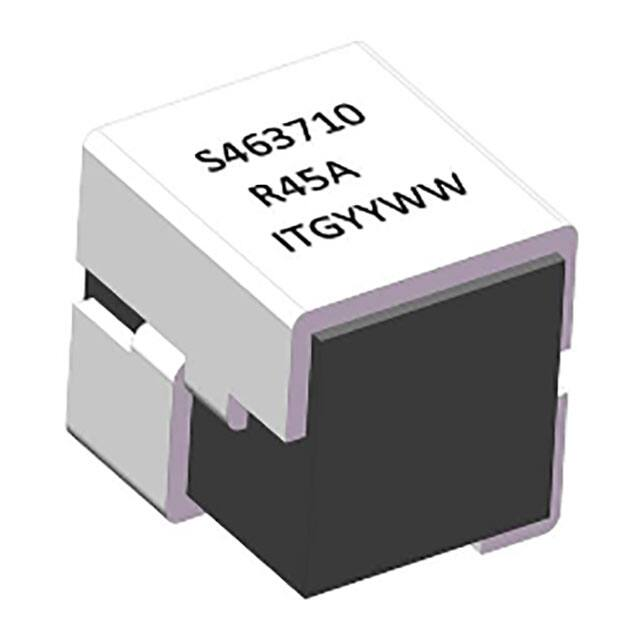

SLM463710A-1R0MHF

SLM463710 Series 1. Features of SLM463710 Series: • • • • • • • • • Ferrite based SMD inductor with lower core loss. Inductance range: 0.22 uH to 1.30 uH , custom values are welcomed. High current output chokes of up to 96.0 Amp with approx. 20% roll off. Low profile 9.50/9.80 mm Max. height . 10.40 x 11.70 mm Max. Foot Print . Ideal for Buck Converter, VRM & High Density Board Design. Operating frequency of up to 5.0MHz. Operating temperature range of -55°C to + 130°C. RoHS & HF compliant. T & R Qty’s: 250pcs, 13'' Reel. 2. Electrical Characteristics of SLM463710 Series: ITG Part Number OCL 1 L @ Isat1 2 DCR 3 Isat1 4 Isat2 4 Isat3 4 Irms 5 Dim.C (uH) (uH) (mΩ) (A) (A) (A) (A) (mm) ± 20% Min.@25℃ ± 8.0% @25℃ @75℃ @100℃ @25℃ Max. SLM463710A-R22MHF 0.220 0.141 0.35 96.00 87.00 80.00 40.00 9.80 SLM463710A-R35MHF 0.350 0.224 0.35 65.00 60.00 56.00 40.00 9.50 SLM463710A-R40MHF 0.400 0.256 0.35 54.00 50.00 45.00 40.00 9.50 SLM463710A-R45MHF 0.450 0.288 0.35 51.00 47.00 42.00 40.00 9.50 SLM463710A-R52MHF 0.525 0.336 0.35 41.00 38.00 33.00 40.00 9.50 SLM463710A-R60MHF 0.600 0.384 0.35 37.00 34.00 31.00 40.00 9.50 SLM463710A-1R0MHF 1.000 0.640 0.35 19.00 18.00 16.00 40.00 9.50 SLM463710A-1R2MHF 1.200 0.768 0.35 15.00 14.00 13.00 40.00 9.50 SLM463710A-1R3MHF 1.300 0.832 0.35 12.00 11.00 10.00 40.00 9.50 3. Mechanical Dimension of SLM463710 Series: A B Max. Max. 11.70 8.70 C Max. D E F G Max. Nom. Nom. Nom. See table 10.40 5.10 above 5.00 2.50 Note: 1. Open Circuit Inductance (OCL) test condition: 100KHz,1.0Vrms,0Adc at 25Ԩ. 2. L @ Isat and L @ Irms Test condition: 100KHz,1.0Vrms (Ta=25Ԩ). 3. The nominal DCR is measured from point "a" to point"b",as shown above on the mechanical drawing (Ta=25Ԩ). 4. Isat1,Isat2 & Isat3 : DC current that will cause inductance to drop approximately by 20%. 5. Irms: DC current for an approximate temperature rise of 40Ԩ without core loss. Derating is necessary for AC currents. PCB pad layout,trace thickness and width,air-flow and proximity of other heat generating components will affect the temperature rise. 6. It is recommended the part temperature not exceed 130°C under worst case operating conditions as verified in the end application. ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 ● Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision D: October 31 , 2016 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. SLM463710 Series 4. Inductance Characteristics of SLM463710 Series (Inductance vs Current): SLM463710x-R22MHF 264.0 220.0 25Ԩ L (nH) 176.0 132.0 75Ԩ 88.0 100Ԩ 44.0 0.0 0.0 20.0 40.0 60.0 70.0 75.0 78.0 80.0 82.0 84.0 86.0 88.0 90.0 92.0 94.0 96.0 98.0 100.0 Direct Current (A) SLM463710x-R35MHF 420.0 350.0 25Ԩ L (nH) 280.0 210.0 75Ԩ 140.0 100Ԩ 70.0 0.0 0.0 456.0 10.0 20.0 30.0 40.0 50.0 52.0 54.0 56.0 58.0 60.0 Direct Current (A) 62.0 64.0 66.0 68.0 70.0 72.0 SLM463710x-R40MHF 380.0 25Ԩ L (nH) 304.0 228.0 75Ԩ 152.0 100Ԩ 76.0 0.0 0.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 44.0 45.0 46.0 48.0 50.0 52.0 54.0 55.0 58.0 60.0 65.0 Direct Current (A) 540.0 SLM463710x-R45MHF 450.0 25Ԩ L (nH) 360.0 270.0 75Ԩ 180.0 100Ԩ 90.0 0.0 0.0 10.0 20.0 25.0 30.0 35.0 40.0 41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0 51.0 52.0 53.0 54.0 55.0 57.0 Direct Current (A) ● ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision D: October 31 , 2016 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. SLM463710 Series 4. Inductance Characteristics of SLM463710 Series (Inductance vs Current): SLM463710x-R52MHF 630.0 L (nH) 525.0 420.0 25Ԩ 315.0 75Ԩ 210.0 100Ԩ 105.0 0.0 0.0 5.0 10.0 15.0 20.0 25.0 30.0 32.0 35.0 36.0 38.0 40.0 41.0 42.0 43.0 44.0 45.0 46.0 47.0 Direct Current (A) SLM463710x-R60MHF 720.0 L (nH) 600.0 480.0 25Ԩ 360.0 75Ԩ 240.0 100Ԩ 120.0 0.0 0.0 10.0 15.0 20.0 25.0 30.0 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 41.0 42.0 43.0 Direct Current (A) SLM463710x-1R0MHF 1104.0 L (nH) 920.0 736.0 25Ԩ 552.0 75Ԩ 368.0 100Ԩ 184.0 0.0 0.0 5.0 10.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 Direct Current (A) 22.0 23.0 24.0 25.0 26.0 27.0 SLM463710x-1R2MHF 1440.0 L (nH) 1200.0 960.0 25Ԩ 720.0 75Ԩ 480.0 100Ԩ 240.0 0.0 0.0 ● 3.0 5.0 7.0 9.0 10.0 11.0 12.0 13.0 14.0 Direct Current (A) 15.0 16.0 17.0 18.0 19.0 20.0 ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision D: October 31 , 2016 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase. SLM463710 Series 4. Inductance Characteristics of SLM463710 Series (Inductance vs Current): SLM463710x-1R3MHF 1560.0 1300.0 25Ԩ L (nH) 1040.0 780.0 75Ԩ 520.0 100Ԩ 260.0 0.0 0.0 2.0 4.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 Direct Current (A) 14.0 15.0 16.0 17.0 18.0 19.0 5. Core Loss: SL463710x-XXX Core Loss 0 500 1000 1500 2000 2500 3000 3500 4000 1800.0 1600.0 1400.0 1MHz Core Loss (mW) 1200.0 500KHz 1000.0 300KHz 800.0 200KHz 600.0 100KHz 400.0 200.0 0.0 △B(Guass) Where △B=0.184*L(nH)*△I ● ● New York 1 914 347 2474 ● Taipei 886 2 2698 8669 ● Kaohsiung 886 7 350 2275 Japan 81 568 85 2830 ● Shenzhen 86 755 8418 6263 ● Shanghai 86 21 5424 5141 ● Hong Kong 852 9688 9767 ● sales@ITG-Electronics.com ● www.ITG-Electronics.com Revision D: October 31 , 2016 *Due to continuous product improvement, all specifications are subject to change without prior notice. Kindly contact an ITG field application engineer or a sales representative prior to purchase.
