昆山海旭科技电子有限公司
Kunshan Haixu Electronic Technology Co. Ltd
样 品 承 认 书
Specifications
客户名称 Customer Name
品
名 Rariety

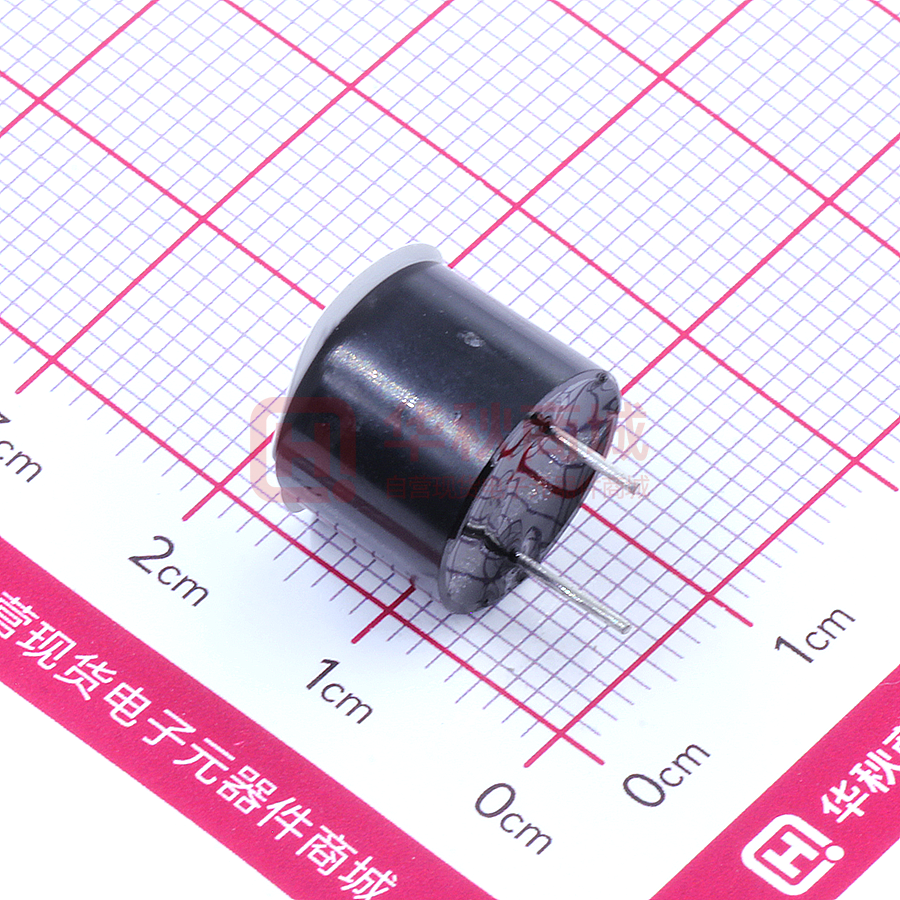

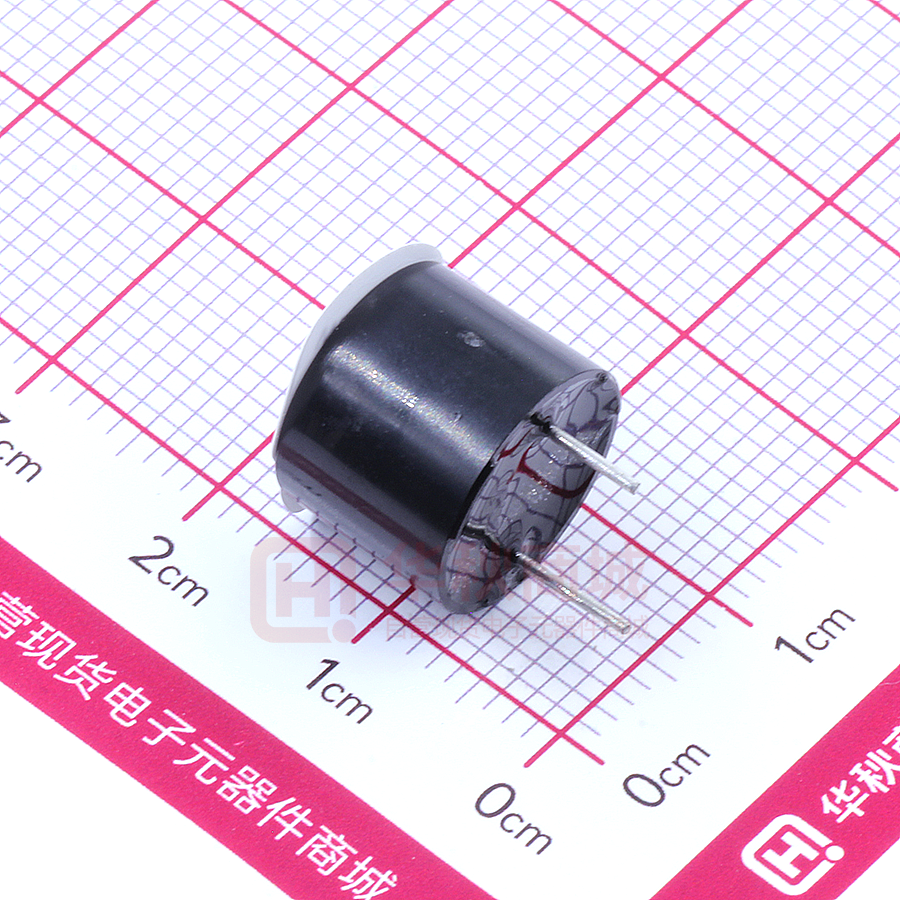

电磁式有源蜂鸣器
型
号 Part No
SUN-12095-12VPA7.6
客户型号 The customer Part No
样品日期 Model Date
2018-12-26
客户承认签署
签定结果:
核准/Approved:
审核/Checked:
经办/Designed:
海旭确认签署
核准/Approved:
审核/Checked:
经办/Designed:
Liou Ni Ding
Huang Mei
Ding Jian Wu
承认后请签回一份!
Thank you very much!
公司地址:广东省中山市东凤镇东凤大道南
公司地址:广东省中山市东凤镇东凤大道南 238 号电星工业园 B 座 4 楼
Email:2912553020@qq.com
Email:2912553020@qq.com Web:http://www.haixucn.com/
-1-
昆 山 海 旭 科 技 电 子 有 限 公 司
Kunshan Haixu Electronic Technology Co. Ltd
性能参数 Electrical Characteristics
型号 Part No:SUN-12095-12VPA7.6
1
额定电压 Rated Voltage (VDC)
2
工作电压 Operating Voltage (VDC)
3
*在 10cm 处测试声压值 Sound Output at 10cm (dB)
4
*消耗电流 Current Consumption (mA)
5
共振频率 Resonant Frequency (Hz)
6
工作温度 Operating Temperature (℃)
7
储存温度 Storage Temperature (℃)
8
单品重量 Weight (g)
9
外壳材料 Housing Material
带*号指标需要在额定电压下测试 *Applying rated voltage
Soldering
蜂鸣器焊接方法
Buzzer Soldering process
温度 Temp.( ℃)
回流焊 Reflow soldering
245±15
★波峰焊 Wave soldering
手工焊 Manual soldering
接插件
255±5
350±10
带★号为海旭科技推荐的焊接方法 Remark:★ S&S
外形图 DIMENSIONS (UNIT: mm)
12
8~15
≥85
≤30
2700±200
-20~+70
-30~+80
1.6
黑色 Black PPO
Parameter
时间 Time(Sec.)
180℃预热 40~70 秒
above
245℃ 3 秒
180℃ time 40~70
4~6
2~5
可焊接次数 Times
3
2~3
2~3
Instance Soldering Process
未标注公差按±0.5mm 计算 Tolerance: ±0.5mm Except Specified
备注:顶部贴封口纸。
测试方法 TEST METHOD
频响曲线 FREQUENCY RESPONSE
-2-
昆 山 海 旭 科 技 电 子 有 限 公 司
Kunshan Haixu Electronic Technology Co. Ltd
型号 Part No:SUN-12095-12VPA7.6
可靠性测试 RELIABLY TEST
项目 ITEM
测试条件 TESTING CONDITION
高温试验
High
Temperature
Test
产品置于+80±2℃试验箱中,先工作 2 小时,然后在正常大
气压条件下恢复 2 小时后,进行测量。
After being worked in a chamber at +80±2℃ for 2h and then
being placed in natural condition for 2h,sounder shall be
measured.
低温试验
Low
Temperature
Test
产品置于-30±2℃试验箱中,先工作 2 小时,再放置 16
小时,然后在正常大气压条件下恢复 2 小时后,进行测量。
First being worked in a chamber at -30 ± 2 ℃ for 2h and
then being planed in a chamber at -30±2℃ for16h,finally being
placed in natural condition for2h,sounder shall be measured.
恒湿试验
Humidity
Test
产品置于湿度为 90~95%R.H,温度为 40±2℃试验箱中 48
小时,然后在正常大气压条件下恢复 2 小时后,进行测量。
After being placed in a chamber with 90 to 95%R.H.at+40
± 2 ℃ for 48h and then being placed in natural condition for
2h,sounder shall be measured.
振动试验
Vibration
Test
振幅为 0.75mm,频率为 10~30~10Hz,三个不同轴方向各
振动 1 小时,试验后测量。
Sounder shall be measured after being applied vibration of
amplitude of 0.75mm with 10 to30 to10Hz band of vibration
frequency to each of 3 perpendicular directions for 1hour.
试验后要求
VARIANCE
AFTER TEST
试验后,声响器
的声级变化值在±
10dB 之内,外观无
变化(例如:开裂,
氧化,损伤,变形
等现象)
After
test,the
transducr
S.P.L.difference
shall be within ±
10dB,and
the
appearance
not
exist any change to
be
harmful
to
normal
operation(e.g.crack
s,rusts,damages and
especially
distortion)
在 0.8 米高处,将产品三方向自由落体在木板上,试验后测
自由落体试验
量。
Freely Falling
Sounder shall be measured after freely falling the products
Test
from 0.8m high to the wooden board with three sides per time.
加速度 100±10m/s²,脉冲持续时间 16ms,重复频率 1~3
次/min,次数 1000±10 次。试验后测量。
碰撞试验
Sounder shall be measured after the test of acceleration 100
Collision
Test
± 10m/s ² ,impulse lasting time 16ms,repeat frequency 1~3/min
and time 1000±10.
引线剥头/针脚浸入松香焊剂 3 秒,然后再浸入+250±5℃的锡锅中 3±0.5 秒,
引线剥头表面应覆盖一层光滑明亮的焊料。
可焊性试验
Lead terminals are immersed in rosin for 3 seconds and then immersed in solder
Solderability
bath at +250 ± 5 ℃ for 3 ± 0.5 seconds,terminals should be covered with the clean
solder.
引线/针脚强
引线/针脚应承受 0.5N 拉力,拉力时间 10 秒,引线无松动和脱落等现象。
度试验
The force 10 seconds of 0.5N is applied to each terminal in axial direction.no looseness
Terminal
and falling off.
Strength
Pulling
-3-
