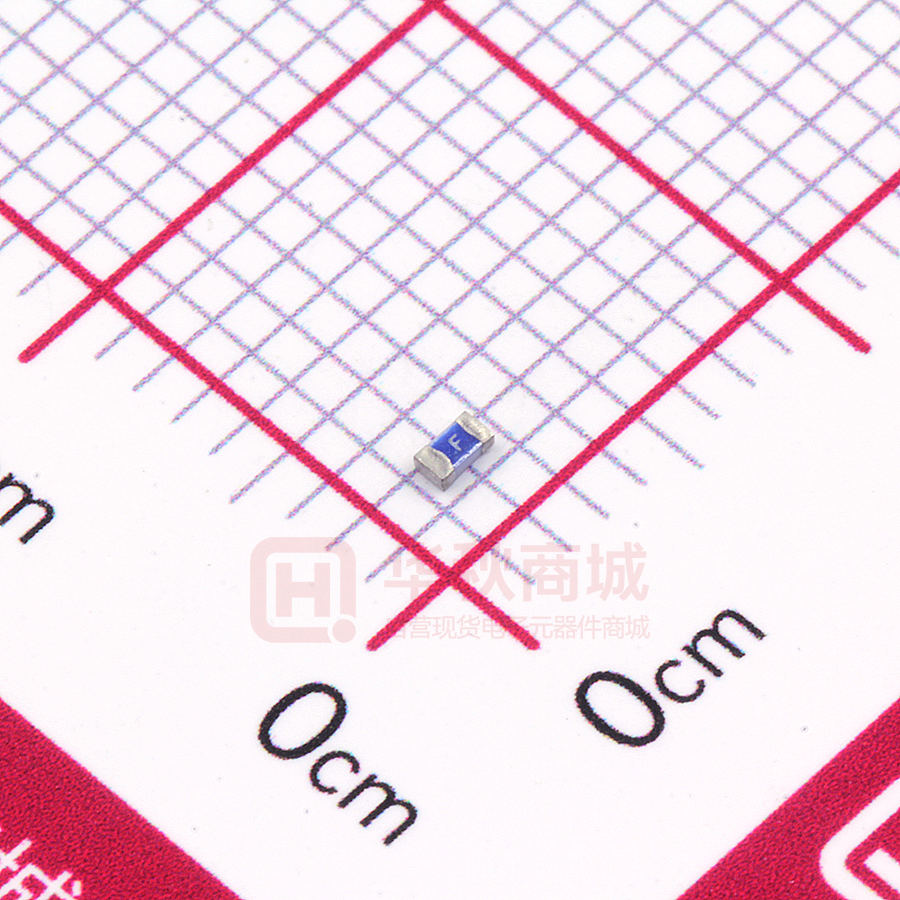

JFC0603-0500FS

PRODUCT DATASHEET JFC0603FS Series Fuse Surface Mount Fuses JFC0603FS Series Fuse Description Agency Approvals Features High inrush current withstanding capability AGENCY AGENCY FILE NUMBER Compatible with reflow and wave solder Excellent environmental integrity E486200 One time positive disconnect Lead Free and Halogen free material Electrical Characteristics Rated Current 1.0In 2.5In 2.0In 250mA~8A 4 hour min. 60 sec maximum Dimensions Topview JDT FUSE Electronics Corp. www.jdtfuse.com Sideview Page 1/3 JFC0603FS Series Fuse Performance Specification Part No. Rated Voltage DC Rated Current (A) Breaking Capacity 1 Typical Cold. Resistance (mOhms) 2 Typical Voltage Drop (mV) Typical Pre-Arcing I2t (A2Sec)3 Aplha Marking JFC0603-0250FS 0.250 3250 893 0.00042 D JFC0603-0375FS 0.375 1310 587 0.00093 E JFC0603-0500FS 0.500 1070 582 0.0010 F JFC0603-0750FS 0.750 470 427 0.0090 G JFC0603-1100FS 1 300 345 0.011 B JFC0603-1125FS 1.25 204 315 0.013 J JFC0603-1150FS 1.5 150 270 0.045 H JFC0603-1200FS 2 72 160 0.115 K 52 145 0.14 L JFC0603-1250FS 32V 2.5 50A JFC0603-1300FS 3 35 130 0.21 O JFC0603-1350FS 3.5 23.8 130 0.50 R JFC0603-1400FS 4 21 120 0.56 S JFC0603-1500FS 5 14 110 1.2 T JFC0603-1600FS 6 8.5 110 1.7 V JFC0603-1700FS 7 7.3 80 2.3 X JFC0603-1800FS 8 5.1 75 3.0 Z * DC Interrupting Rating (Measured at rated voltage, time constant of less than 50 microseconds, battery source) * DC Cold Resistance are measured at
