PC27.07.0100A

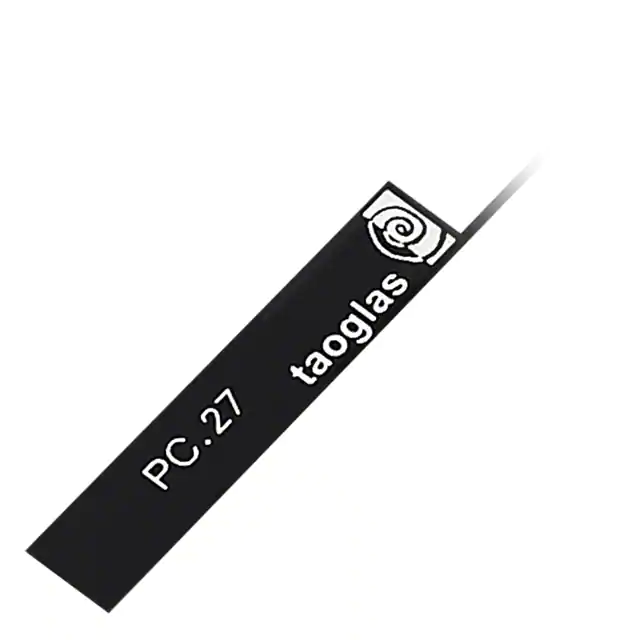

Specification Part No. : PC27.07.0100A Product Name : TheStripe™ 850 / 900 / 1800 / 1900 MHz GSM PCB Antenna W/100mm IPEX 1.13mm Diameter MHF I Connector Feature : 34mm*7mm*0.8mm 850 / 900 / 1800 / 1900MHz GSM Compatible with Hirose U.FL RoHS Compliant SPE-11-8-124/C Page 1 of 11 1. Introduction This miniaturized low profile PCB antenna is based on smart TheStripe™ antenna technology. It consists of a PCB antenna and 1.13mm co-axial cable with IPEX MHFI (U.FL) connector. 2. Specification ELECTRICAL Frequency (MHz) 824 ~ 896 880~960 1710~1880 1850~1990 Free Space Peak Gain -4.1dBi -13dBi 0.6dBi -0.4dBi Free Space Efficiency 13% 8% 51% 11% Impedance 50Ω Polarization Linear Radiation Pattern Omni MECHANICAL Antenna Dimensions 34 x 7 x 0.8mm Cable 1.13 co-axial Connector IPEX MHF I ENVIRONMENTAL Operation Temperature -40°C to 85°C Humidity Non-condensing 65°C 95% RH SPE-11-8-124/C Page 2 of 11 3. S11 Property 3.1. Return Loss 0 (dB) -5 -10 -15 free space on ABS -20 600 800 1000 1200 1400 1600 1800 2000 2200 2400 (MHz) 3.2. VSWR 9 8 7 6 5 4 3 free space on ABS 2 1 600 800 1000 1200 1400 1600 1800 2000 2200 SPE-11-8-124/C 2400 (MHz) Page 3 of 11 3.3. Efficiency 80 70 60 (%) 50 40 30 20 free space on ABS 10 0 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 (MHz) 3.4. Peak Gain 4 2 0 -2 -4 -6 -8 (dBi) -10 -12 -14 -16 -18 free space -20 on ABS -22 -24 -26 -28 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 2300 SPE-11-8-124/C (MHz) Page 4 of 11 3.5. Average Gain 0 -2 -4 -6 -8 -10 (dBi) -12 -14 -16 -18 -20 -22 free space -24 on ABS -26 -28 -30 700 800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800 1900 2000 2100 2200 SPE-11-8-124/C 2300 (MHz) Page 5 of 11 4. Antenna Radiation Pattern 4.1. Radiation Pattern in Free Space 4.1.1. E-plane Radiation 0 0 330 30 -5 -10 -15 300 60 -20 -25 -30 -35 270 -40 90 240 120 210 850MHz 900MHz 1800MHz 150 1900MHz 180 4.1.2. H-plane Radiation 0 0 330 30 -5 -10 -15 300 60 -20 -25 -30 -35 270 -40 90 240 120 210 150 180 850MHz 900MHz 1800MHz 1900MHz SPE-11-8-124/C Page 6 of 11 4.2. Radiation Pattern on ABS 4.2.1. E-plane Radiation 0 0 330 30 -5 -10 -15 300 60 -20 -25 -30 -35 -40 270 90 240 120 210 850MHz 900MHz 1800MHz 150 1900MHz 180 4.2.2. H-plane Radiation 0 0 330 30 -5 -10 -15 300 60 -20 -25 -30 -35 270 -40 90 240 120 210 150 180 850MHz 900MHz 1800MHz 1900MHz SPE-11-8-124/C Page 7 of 11 5. Drawing SPE-11-8-124/C Page 8 of 11 6. Packaging SPE-11-8-124/C Page 9 of 11 SPE-11-8-124/C Page 10 of 11 Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited. Copyright © Taoglas Ltd. SPE-11-8-124/C Page 11 of 11
