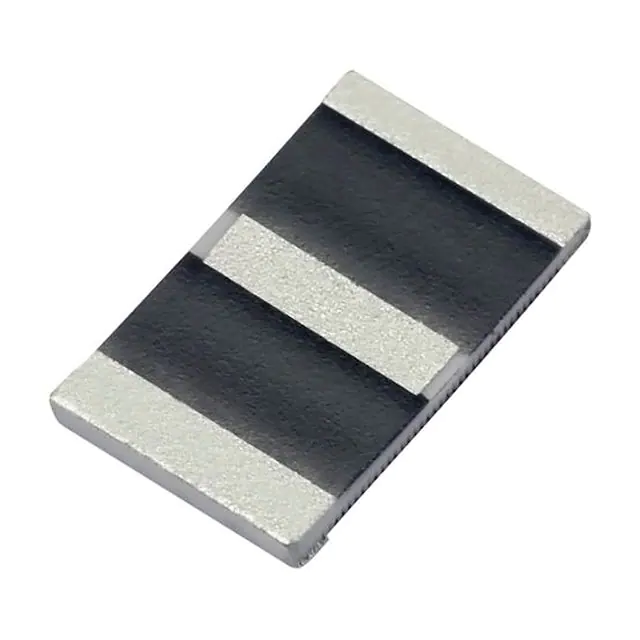

ILA.09 915MHz 5*3*0.5mm -0.5dBi Ceramic Loop Antenna
Part No:
ILA.09
Description:
915MHz Embedded Ceramic Loop Antenna for ISM/Lora/LPWAN/Sigfox
Features:
High Efficiency
Omnidirectional
Low profile
Tiny Size
Dims: 5.0*3.0*0.5mm
Surface-Mount
RoHS & REACH Compliant
SPE-16-8-051-B
1.
Introduction
3
2.
Specifications
4
3.
Antenna Characteristics
5
4.
Radiation Patterns
7
5.
Mechanical Drawing – Antenna
9
6.
Mechanical Drawing – Evaluation Board
11
7.
Soldering Conditions
12
8.
Packaging
13
9.
Changelog
15
Taoglas makes no warranties based on the accuracy or completeness of the contents of this document and reserves the right to
make changes to specifications and product descriptions at any time without notice. Taoglas reserves all rights to this document and
the information contained herein. Reproduction, use or disclosure to third parties without express permission is strictly prohibited.
SPE-16-8-051-B
www.taoglas.com
2
1.
Introduction
1.
Introduction
1.
Introduction
1.
Introduction
1.
1.
1.
1.
The ILA.09 is a new 915MHz ISM band embedded ceramic loop antenna from Taoglas featuring good
efficiency of 55% at the center of the band. It is the perfect solution for the growing number of devices using
the 915MHz band such as Sigfox and LoRa applications in the US, or in metering application.
Introduction
This antenna works best when placed at the center of the board edge. The ILA.09 antenna, at 5*3*0.5mm,
is low profile and would be suitable for devices with space constraints. The ILA.09 is delivered on tape and
reel and now allows M2M customers to use an omnidirectional SMT antenna. The omnidirectional radiation
characteristics allow for excellent performance regardless of device orientation. This is especially useful for
devices that are not fixed in one particular spot during use. When there is little PCB space available for
antenna placement, but high performance is required, the ILA.09 is the ideal choice.
Introduction
Introduction
The antenna is manufactured in a TS16949 first tier automotive approved facility and has passed the most
stringent reliability testing. Since it is SMD, it is much easier to integrate and more reliable in high volume
production compared to helical antennas which are cumbersome to install and subject to variability due to
the need for manual assembly.
Introduction
This antenna can be mounted with no performance degradation in either orientation as long as the antenna
is soldered correctly via Surface mounting. Please see the integration instructions section for further detail
regarding the optimum way to integrate this antenna into your device.
For further optimization to customer-specific device environments and for support to integrate and test this
antennas performance in your device, contact your regional Taoglas Customer Services Team.
Applications:
Sigfox, Lora, LPWAN, Automated Meter Reading (AMR), Radio Frequency Identification (RFID), Remote,
Monitoring, Healthcare, Sensing, Alarm Systems, Handheld Devices
SPE-16-8-051-B
www.taoglas.com
3
2.
Specifications
3.
Antenna Characteristics2.
Frequency (MHz)
3.
902
Antenna Characteristics
80 x 40 mm Ground Plane
Specifications
Antenna
915
928
55.93
34.45
Efficiency (%)
25.66
Peak Gain (dBi)
4.
Antenna Radiation Patterns3.
Antenna0.39 dBi
-3.00 dBi
80 x 40 mm Ground Plane
Max Return Loss (dB)
Characteristics2.
3.
< -3
Specifications
< -10
Impedance (Ω)
50Ω
Polarization
Linear
Input Power(W)
Antenna
Characteristics2.
-1.78 dBi
