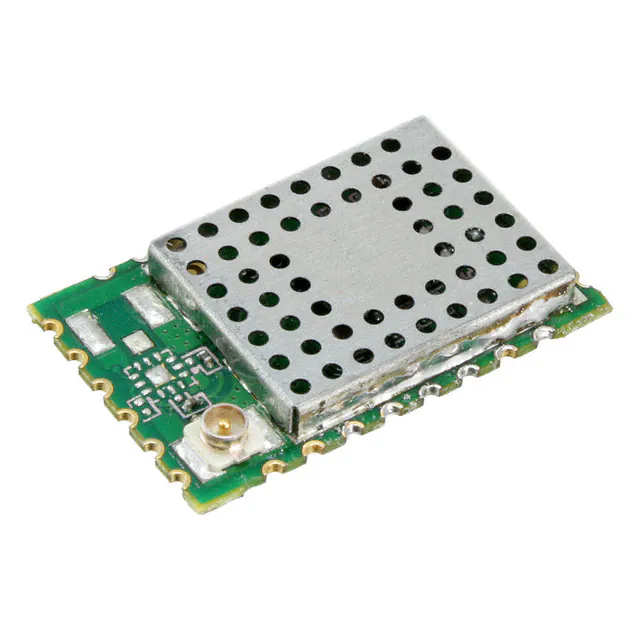

SG901-1098 Miniature Wi-Fi Radio Overview Features The SG901-1098 WiFi module is a shielded and FCC module certified version of the SG901-1091 Radio Module. It is optimized to simplify successful integration into systems requiring the latest performance with small size. This certified module is a highly integrated single chip based 802.11b/g/n WLAN radio for embedded, lowpower and extremely small form factor mobile applications. The product conforms to the IEEE 802.11b, g, and n protocols operating in the 2.45GHz ISM frequency band supporting 802.11g/n modulations from 6 to 65Mbps, and 802.11b modulations. • • • • • • • • • The SG901-1098 is a fully integrated wireless radio including RF Synthesizer/VCO, high-speed data converters, digital baseband processor, onboard MAC and PHY processors, Power Management, and Power Amplifier. On-chip auto-calibration eliminates unit specific and customer calibration. An on-board crystal and filter simplify system integration. The addition of 2.3 to 4.8V and 1.8V supplies, Antenna, and host communication provides a complete WiFi solution. Host control is provided by either an SDIO or SPI interface at 1.8V. • • • • • FCC Module Certifified, FCC ID VRA-SG9011098 Ultra Low Current Consumption Supports SPI Interface and SDIO Interfaces Small Footprint (13.5x21.25mm) RF connector Self Calibrated RoHs Compliant Fully Integrated 802.11 System Solution Fully Compliant with the IEEE 802.11 WLAN Standards Support for 802.11g/n Modulations up to 65Mbps, and Mandatory 802.11b Modulations Intelligent Power Control, Including 802.11 Power Save Mode Factory Support for Linux /Android Source Code Available for porting to RTOS or Custom OS Available under either: o Industrial Temperature -40 to +85C o Commercial Temperature 0 to +70C Applications • Hand-held Devices • Embedded Systems • Portable Systems • Point of Sale terminals • Personal Digital Assistants (PDA) • Cameras • Cable Replacement Ordering Information Packaging Temp Range Part Number Tape and Reel Industrial SG901-1098-ET-TR Bulk Industrial SG901-1098-ET-BLK Tape and Reel Commercial SG901-1098-CT-TR Bulk Commercial SG901-1098-CT-BLK Evaluation Kit Available This EVK supports embedded software development. EVK for 1098 1-800-779-7139 WWW.SAGRAD.COM SG923-0010 DOC#: SG914-0034 Rev. 1.4 Block Diagram VDDIO Voltage VBATT IPEX Antenna Connection Timebase Supply Inputs Power Management Unit PA T/R Switch ZIF Transceiver BB Baseband Processor Processor Host Interface Connection SPI/SDIO MA C To HOST Hi Speed g Data Converters Standards Performance Target Regulatory Domains US – FCC Canada – IC EU – ETSI Japan – TELEC Standards Support Modulations Power Save Encryption Resources Regulatory Support Fast BSS Transition Protected Frames Direct Connect 1-800-779-7139 Yes Planned In Progress Optional b/g/n Modulations 802.11e/WMM/WMM-PS 802.11i/WEP/WPA/WPA2 802.11k 802.11d 802.11r 802.11w Wi-Fi Direct WWW.SAGRAD.COM -2- DOC#: SG914-0034 rev.1.4 General Electrical Specifications Parameter Test Condition / Comment Min. Typ. Max. Units Absolute Maximum Ratings 3.3V Supply 2.3 3.3 3.6 V VHIO Supply 1.65 1.8 1.95 V 85 °C 3.3 3.6 Operating Conditions and Input Power Specifications Operating Temperature Range -40 Input Supply Voltage 2.3 Sleep Mode Current 3.3V Supply VHIO Supply V 80 uA Power Save Mode Current DTIM = 1 0.87 mA Peak TX Current 14.5dBm 294 mA Peak RX Current Processing OFDM 75 mA Input Supply Voltage VHIO input supply determines Host CMOS logic levels Input Supply Current RX Active, processing OFDM 1.65 1.8 1.95 0.87 Sleep Mode Current 25 Input Voltage Levels VIL -0.3 VIH 0.625VHIO Output Voltage Levels VOL IOL = 100uA VOH IOH = -100uA V mA uA 0.35VHIO V V VHIO-0.2 0.2 V VHIO V RF Characteristics Parameter Test Condition / Comment Antenna Port Impedance Channel to Channel De-sensitivity Maximum Input Signal 1-800-779-7139 Typ. 50 Antenna Input Return Loss RX Sensitivity Min. CH1 to CH14 Max. Units Ohms -11 dB 11b, 1Mbps -96 dBm 11b, 2 Mbps -93 dBm 11b, 5.5 Mbps -91 dBm 11b, 11 Mbps -87 dBm 11g, 9Mbps -89.5 dBm 11g, 18Mbps -86 dBm 11g, 36Mbps -80 dBm 11g, 54Mbps -74.5 dBm 11n, MCS1, 13Mbps -86.5 dBm 11n, MCS3, 26Mbps -81.5 dBm 11n, MCS5, 52Mbps -74 dBm 11n, MCS7, 65Mbps -71 dBm 1 dB -20 dBm CH1 to 14 11g, 54Mbps 10% PER CH7 11g, 54Mbps WWW.SAGRAD.COM -3- DOC#: SG914-0034 rev.1.4 RF Characteristics cont, Parameter Test Condition / Comment Adjacent Channel Rejection Min. Max. Units 38 dBc 9Mbps 20 dBc 54Mbps 4 dBc MCS1 24 dBc MCS7 3 dBc 11b, 1Mbps @802.11b spectral mask 11b, 11Mbps 11g, 9Mbps TX Output Power Typ. 11Mbps @802.11g spectral mask 18.3 dBm 18.3 dBm 18.3 dBm 11g, 54Mbps EVM = -27dB, 4.5% 13.7 dBm 802.11n MCS1 @802.11n spectral mask 18.3 dBm 802.11n MCS7 EVM = -27dB 13.5 dBm Pinout List SIGNAL NAME PIN NUMBER DESCRIPTION NOTES RF Pins 2G4_RF U.FL Connector 2G4_RF 11 Hirose Electrical PN U.FL-R-SMT(10) Optional PAD, Factory enabled only Careful Layout for this RF Pad and nearby ground Serial Interface Pins (VHIO Domain, logic levels compatible with the VHIO (Pin 26) input voltage) SDCMD 21 SPI MOSI (input) SDIO CMD VHIO Domain SDCLK 22 SPI Clock Input SDIO CLK VHIO Domain SDD0 20 SPI MISO (output) SDIO Data 0 VHIO Domain SPI: Interrupt Output SDIO Data 1 VHIO Domain, Push Pull. Indicated an interrupt on going rising edge SDIO Data 2 VHIO Domain- at reset, low selects SPI, high SDIO SPI Chip Select Input SDIO Data 3 VHIO Domain SDD1 19 SDD2 18 SDD3 17 Control Pins POWERUP 4 Power Up Enable (from Host) RSTn 25 Reset Input CLK32K 27 32.768 kHz Sleep Clock Input VLDO Domain with internal pull up High = operating, Low = off VHIO Domain – Active Low reset, At power up, RSTnmust be held LOW until 2 cycles of the CLK32K have been initiated VHIO Domain, Required for proper operation Power and Ground Pins 26 Supply Voltage for I/O's 1.65 to 1.95V, Internally decoupled with a 0.1uF capacitor 3.3V 8 RF PA supply 2.7 to 3.6V, Internally decoupled with a 10uF capacitor GND 1,2,3,5,6,7,10, 12,13,14,15,16, 23,24,28,Paddle VHIO Ground Connections SPI functions in MODE 3. Clock data in and out at the rising edge. SDCLK is idle at HIGH. 1-800-779-7139 WWW.SAGRAD.COM -4- DOC#: SG914-0034 rev.1.4 SG901-1098 SPI/SDIO Interfaces The SPI/SDIO interface for the SG901-1098 is a 5-wire low voltage interface depicted in figure 1. SDD2 pin High/Active or grounded defines the interface type. Figure 1: Host Interfacing Block Diagram HOST SG901-1098 22 SPI_CLK 17 SPI_CSN SPI_MOSI 21 SDCLK SDD3 SDCMD SDD2 18 1.8V Interface SPI_MISO SPI_IRQ 20 SDD0 19 SDD1 SPI Interface The five signals of the SG901-1098 SPI interface are as follows: • SDD3: Device select allows the use of multiple slaves from a Host. (1 device select per slave). This signal is active low. Signal is mandatory, even with only one slave because the Host must drive this signal to indicate SPI frames. • SDCLK: Clock signal, active for multiple data length cycles during a SPI transfer (SDD3) active). The clock is allowed to be active when SDD3 is not active, in order to serve other possible slaves. • SDD0: Data transfer from SG1098 to Host. Data is generated on the negative edge of SDCLK by the SG1098 and sampled on the positive edge of SDCLK. When SDD3 is inactive, SDD0 is in Tri-state mode. • SDCMD: Data transfer from Host to SG1098. Data is generated on the negative edge of SDCLK by the Host and sampled on the positive edge of SDCLK • SDD1: Interrupt from the SG1098, used to request a SPI transfer to the Host. This signal is active High (Host input must be level sensitive). 1-800-779-7139 WWW.SAGRAD.COM -5- DOC#: SG914-0034 rev.1.4 The SG901-1098 SPI interface has the following characteristics: • • • • • • • • • Maximum operating frequency of 52MHz. The SPI interface operates in Half Duplex Mode. Host is the Master and the SG1098 is the slave The SPI data length, endianess and flow control are configurable. The Host can change the configuration by writing in the SPI configuration register 16 and 32 bits word lengths are supported including the following configurable modes, where [bn] is the bit transmission order from left to right:
32-bit Mode0:[b15-b8], [b7-b0], [b31-b24], [b23-b17]
32-bit Mode1:[b31-b24], [b23-b17], [b15-b8], [b7-b0]
32-bit Mode2:[b7-b0], [b15-b8], [b23-b17], [b31-b24]
16-bit Mode0:[b15-b8], [b7-b0]
16-bit Mode1:[b7-b0], [b15-b8] The rising clock edge is used for sampling. Active clock edge for shifting is configurable (rise/fall) Supports automatic indirect addressing of device internal memory via fixed address SPI register to facilitate bulk DMA transfer Support Host wake up of the WLAN block by SPI register access The default WLAN configuration is: (refer to figures 2 and 3)
32 bit data length
Most significant byte First, default is little Endian
Most significant bit First
Flow control on SDD0 and in a register Figure 2: Default SPI transfer from Host to the SG901-1098 SPI Host to SG1098 Transfer Host selects the SG1098 Host de-Selects The SG1098 SDD3 SDCLK IDLE SDD0 SDCMD WRITE LENGHT DATA All Data Transmitted SDD1 Host sends Write Command and Data to SG1098 1-800-779-7139 WWW.SAGRAD.COM -6- DOC#: SG914-0034 rev.1.4 Figure 3: Default SPI data transfer form the SG901-1098 to the Host SPI SG1098 to Host Transfer Host Selects the SG1098 Host De-selects the SG1098 SDD3 SDCLK SDD0 IDLE LENGHT DATA All data Transmitted READ SDCMD SDD1 IDLE Host sends Read command to SG1098 SG1098 requests the BUS SPI Timing Parameters. Refer to figure 4 Symbol Description Min. T1 Clock Period 19.23 T2, T3 Clock High and Low duration (0.45*T1)-T4 ().55*T1)-T4 T4, T5 Clock rise and fall time (10 TO 90%) 1 2.5 ns T6 Input Set Up time (SDCMD TO SDCLK active edge) 5 - ns T7 T8 T9 Input Hold time (SDCLK active edge to SDCMD Invalid) Output Set Up time (SDCLK active edge to SDD0 Valid) Output Hold time (SDCLK active edge to SDD0 Invalid) 5 14.23 5 ns ns ns 5 ns 1 ns T10 T11 st SDD3 to SDCLK (SDD3 fall to 1 SDCLK rising edge) SDCLK to SDD3 (Last falling edge of SDCLK to SDD3 rising edge 1-800-779-7139 WWW.SAGRAD.COM -7- Typ. Max. Units ns DOC#: SG914-0034 rev.1.4 ns Figure 4: SPI Timing diagrams T10 T11 SDD3 T1 T2 SDCLK T3 T T T T SDCMD T T SDD0 SDIO Interface The SG901-1098 SDIO interface has the following characteristics: Maximum operating frequency of 26MHz. The SDIO interface is a 4 to 6 wire data interface Compatible with the SDIO specification Version 1.10, except that the voltage range is not SD compatible, but is compatible with the standard I/O levels defined in this data sheet • Interrupt may be generated to the host in 4 bit SDIO mode even without the SDIO clock. • The SDIO is master at the Host side and Slave at the 1098 side • Operation in SD mode from 1 to 4 data bits • The 6 signals are as follows: SDCLK: clock signal SDCMD: Bidirectional SDIO command line SDD0: Bidirectional data line SDD1: Bidirectional data line. When no data is present on this line, it is used as an interrupt from the 1098, used to request an SDIO transfer from the 1098 to the host SDD2: Optional Bidirectional data line SDD3: Optional Bidirectional data line • • • 1-800-779-7139 WWW.SAGRAD.COM -8- DOC#: SG914-0034 rev.1.4 Figure 5: SDIO Timing Diagram SDIO TIMING T1 T2 SDCLK T3 T T T T INPUT T T OUTPUT SDIO Interface timing. Refer to figure 5 Symbol Description Min. T1 Clock Period 38.46 T4, T5 Clock Rise and Fall Time (10 to 90%) T2, T3 Clock High and Low Time 10 T6, T7 Input Set Up and Hold Time (SDCMD TO SDCLK active edge) 5 T8, T9 Output Delay Time during data transfer mode Typ. Max. Units ns 9 - ns 14 ns WLAN Power Up/Down Sequence The 1098 Power up sequencing is as follows: • • • • • • • VHIO is applied CLK32K (low power clock) is stable RSTn pin is released after at least two CLK32K cycles POWERUP is asserted. Internal supplies stabilize within 20ms The Host must wait 30ms after RSTn release for all internal supplies to stabilize The device is then in sleep mode The Host shall then wake the module by writing over the Host interface, SPI or SDIO the WUP bit 1-800-779-7139 WWW.SAGRAD.COM -9- ns ns DOC#: SG914-0034 rev.1.4 • • • • • The module requests the reference clock already running The module will assert the RDY bit and assert the interrupt request to the Host The Host can now download the firmware and release the by further SPI/SDIO write The Host will wait for the Module to initialize and can clear the WUP bit Once initialized including a series of messages between the Host and the module, the Module may not have anything further to do and will enter the sleep state. The 1098 power down has no constraints. It is recommended that the Host activates the RSTn at least 2 cycles of the CLK32K before powering off the supplies. Figures 6 depicts the power up and down timing diagrams. Figure 6. Power On and Off sequence diagrams 1-800-779-7139 WWW.SAGRAD.COM - 10 - DOC#: SG914-0034 rev.1.4 Software Support The Wi-Fi module is supported via two different software stacks: 1) a Linux device driver (GPL License) that integrates with the Linux mac80211 layer and existing usermode tools, and 2) a phone-handsetoriented chipset-vendor supplied software stack that is available for customers with non-GPL requirements. In both cases a license is required to distribute the chipset MAC firmware binary. Linux Stack Features: ● Client mode ● Mini-AP mode (max 5 clients) ● Security: All standard modes (note: all packet encryption handled in MAC hardware) ○ Open System, ○ WEP, ○ WPA (TKIP) PSK and Enterprise, and ○ WPA2 (AES) PSK and Enterprise ● QoS ● OS Support: Linux v2.6 and 3.0, Android ● License: GPL Vendor Stack Features: ● Client mode ● Mini-AP mode (max 5 clients) ● Security: All standard modes (note: all packet encryption handled in MAC hardware) ○ Open System, ○ WEP, ○ WPA (TKIP) PSK and Enterprise, and ○ WPA2 (AES) PSK and Enterprise ● QoS ● OS Support: Linux v2.6, Android, portable codebase ● License: chipset-vendor SLA The complete 802.11 stack requires about 350KB of space for the implementation of the entire specification. Extremely small versions can be created by knowledgeable customers but is a considerable task and requires detailed understanding of 802.11. As a service to customers, Sagrad offers extended technical support on a fee basis. 1-800-779-7139 WWW.SAGRAD.COM - 11 - DOC#: SG914-0034 rev.1.4 Mechanical o Maximum Peak Reflow Temperature: 240 C Recommended Reflow Profile: • • PEAK Ramp 0.5 – 2.0oC/sec 230-245oC TAL Target 235-240oC 35-90sec Temperature ( 0C) 250 200 150 100 Not in scale Ramp Up 50 0.8 – 1.7oC/sec 50 100 150 200 250 Time (Seconds) 300 350 400 130-220oC:Target 90-135sec 170-220oC:Target 60-90sec Moisture Level Sensitivity: 1 1-800-779-7139 WWW.SAGRAD.COM - 12 - DOC#: SG914-0034 rev.1.4 Mechanical (Bottom view) Pin numbering proceeds clockwise in the drawing above. The nominal size of the part is 13.5x21.25mm with a height of 2.5mm. 1-800-779-7139 WWW.SAGRAD.COM - 13 - DOC#: SG914-0034 rev.1.4 Recommended Layout PCB design requires detailed review of center exposed pad. This pad requires good thermal conductivity. Soldering coverage should be maximized and checked via x-ray for proper design. There is a trade off in providing enough soldering for conductivity and too much which allows the module to “float” on the paddle creating reliability issues. Sagrad recommends two approaches, a large center via that allows excess soldering to flow down into the host PCB with smaller vias arount it. Or many smaller vias with just enough space for the viscosity of the chosen solder/flux to allow some solder to flow into the smaller vias. Each of these approaches need to result in 60% or more full contact solder coverage on the paddle after reflow. Sagrad strongly encourages PCB layout teams to work with their EMS providers to ensure vias and solder paste designs will result in satisfactory performance. Note: Pin 1 is on the bottom left of this diagram. This view is viewed from the top. Packaging The part comes packaged in Tape and Reel or Bulk. 1-800-779-7139 WWW.SAGRAD.COM - 14 - DOC#: SG914-0034 rev.1.4
