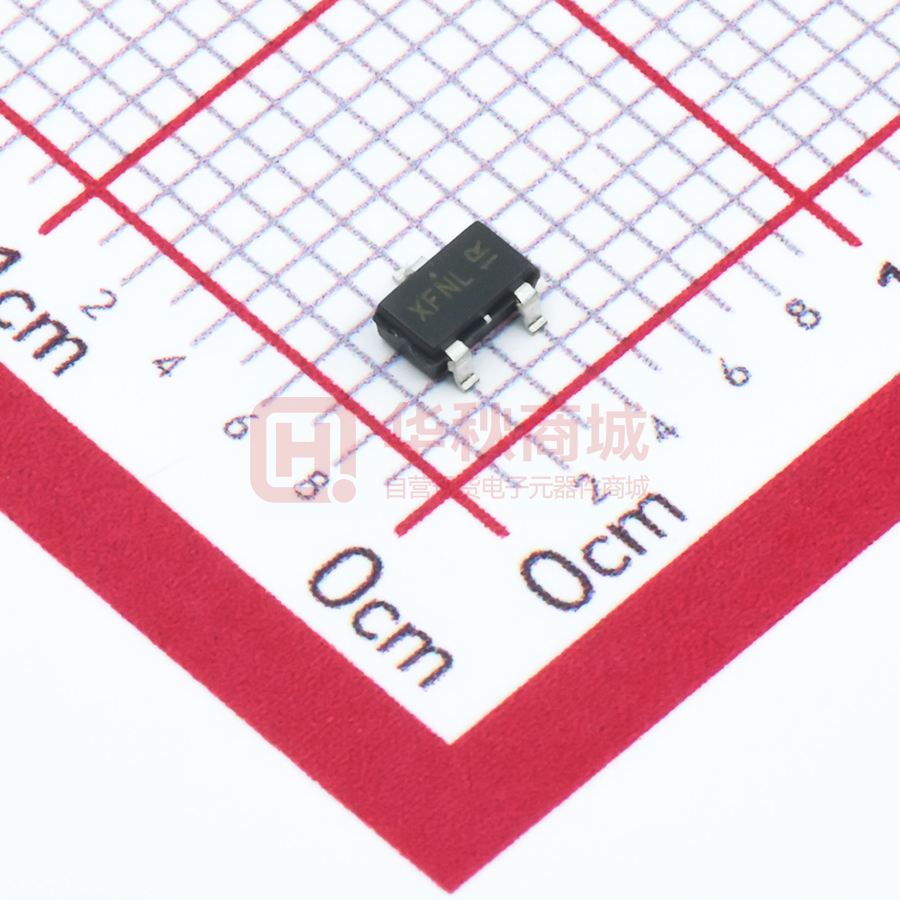

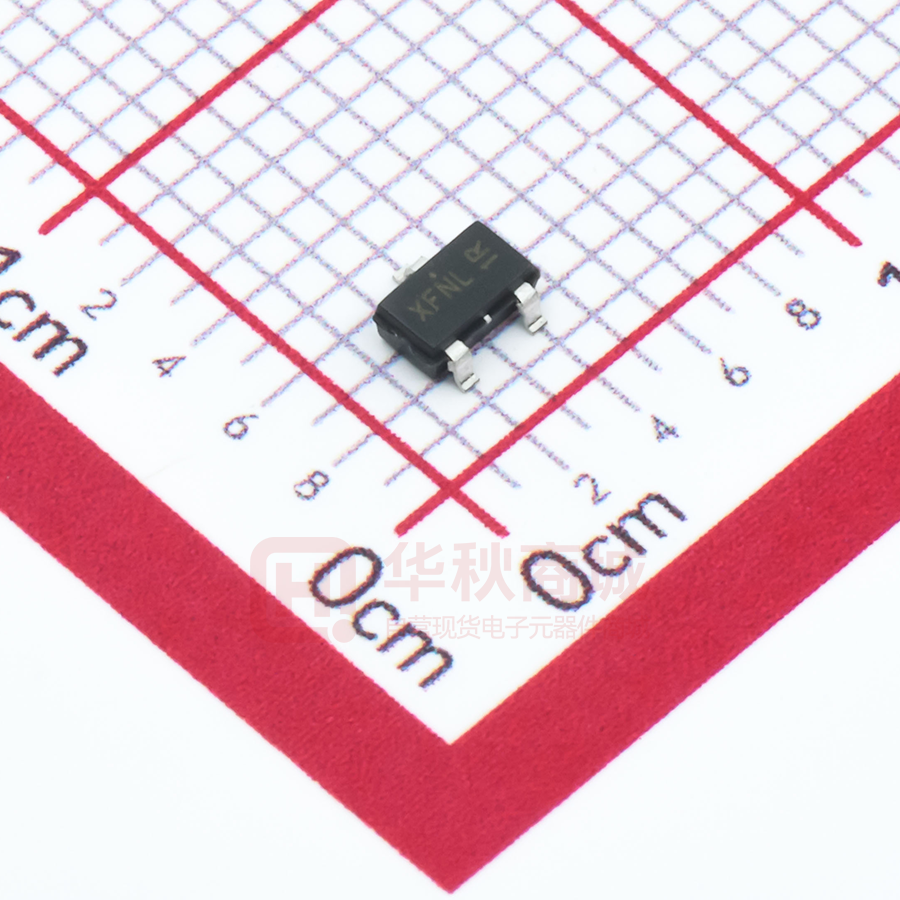

AO3415A

UMW R UMW AO3415A SOT-23 Plastic-Encapsulate MOSFETS UMW AO3415A P-Channel 20-V(D-S) MOSFET V(BR)DSS ID RDS(on)MAX 36mΩ@-4.5V -20 V SOT-23 -4A 60mΩ@-2.5V  1. GATE 2. SOURCE 3. DRAIN FEATURE z Excellent RDS(ON), low gate charge,low gate voltages APPLICATION z Load switch and in PWM applicatopns Equivalent Circuit D G S Maximum ratings (Ta=25℃ unless otherwise noted) Parameter Symbol Value Drain-Source Voltage VDS -20 Gate-Source Voltage VGS ±8 Unit V Continuous Drain Current (t≤10s) ID -4.0 A Maximum Power Dissipation (t≤10s) PD 0.35 W RθJA 357 ℃/W TJ 150 ℃ TSTG -55 ~+150 ℃ Thermal Resistance from Junction to Ambient Operating Junction Temperature Storage Temperature www.umw-ic.com 1 友台半导体有限公司 UMW R UMW AO3415A SOT-23 Plastic-Encapsulate MOSFETS Ta =25 ℃ unless otherwise specified Parameter Symbol Test Condition Min Typ Max -0.56 -1 Units Static Parameters Drain-source breakdown voltage Gate threshold voltage V(BR) DSS VGS = 0V, ID =-250µA -20 VGS(th) VDS =VGS, ID =-250µA -0.3 Gate-body leakage current IGSS Zero gate voltage drain current IDSS VDS =0V, VGS =±8V ±10 VDS =0V, VGS =±4.5V ±1 VDS =-16V, VGS =0V -1 VGS =-4.5V, ID =-4A 34 36 RDS(on) VGS =-2.5V, I D =-4A 43 60 Forward transconductance(note2) gFS VDS =-5V, ID =-4A Body diode voltage(note2) VSD IS=-1A,VGS =0V Drain-source on-state resistance(note1) 8 V µA mΩ S -1 V Dynamic Parameters (note3) Input capacitance Ciss Output capacitance Coss Reverse transfer capacitance Crss Gate resistance Rg 1450 VDS =-10V,VGS =0V,f =1MHz 205 pF 160 VDS =0V,VGS =0V,f =1MHz 6.5 Ω Switching Parameters Total gate charge Qg Gate-Source charge Qgs Gate-drain charge Qgd 4.5 Turn-on delay time (note3) td(on) 9.5 Turn-on rise time(note3) Turn-off delay time(note3) Turn-off fall time(note3) 17.2 VDS =-10V,VGS =-4.5V,ID =-4A 1.3 tr VDS=-10V, VGS=-4.5V 17 td(off) RGEN =3Ω, RL=2.5Ω, 94 tf nC ns 35 Notes: 1. Repetitive rating,pulse width limited by junction temperature. 2. Pulse Test : Pulse width≦300µs, duty cycle≦2%. 3. These parameters have no way to verify. www.umw-ic.com 2 友台半导体有限公司 UMW R UMW AO3415A Symbol A A1 A2 b c D E E1 e e1 L L1 θ Dimensions In Millimeters Min. Max. 0.900 1.150 0.000 0.100 0.900 1.050 0.300 0.500 0.080 0.150 2.800 3.000 1.200 1.400 2.250 2.550 0.950 TYP. 1.800 2.000 0.550 REF. 0.300 0.500 0° 8° Dimensions In Inches Min. Max. 0.035 0.045 0.000 0.004 0.035 0.041 0.012 0.020 0.003 0.006 0.110 0.118 0.047 0.055 0.089 0.100 0.037 TYP. 0.071 0.079 0.022 REF. 0.012 0.020 0° 8° XFDX 17 Marking U Ordering information Order code Package Baseqty Deliverymode UMW AO3415A SOT-23 3000 Tape and reel www.umw-ic.com 3 友台半导体有限公司
