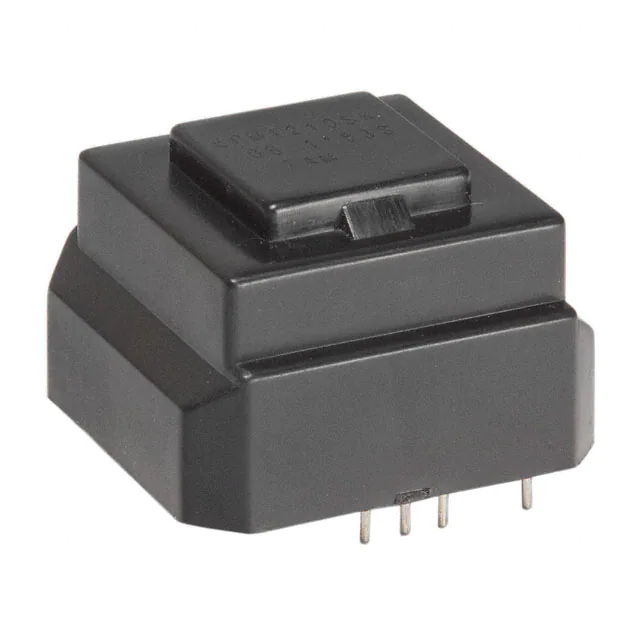

EPM1210SJ
■Input-output condition
Item
Specification
Input voltage range
DC110~450V
Rated input voltage
DC140V, DC340V
Rated output voltage
12V
Rated load current
1A
■Electrical specification Ta=25℃
Item
Specification
Conditions・Note
Efficiency
More than 80%
Rated input voltage
Rated output current
Output voltage tolerance
±5%
Line regulation
Less than 100mV
Input voltage DC110V~450V
Load regulation
Less than 250mV
Output current 0~1A
No-load power
Less than 70mW
Rated input voltage
Ripple
Less than 120mVp-p
Ripple noise
Less than 150mVp-p
Rated input voltage
Rated output current
Measurement circuit
Module
N.C. 14
Drain
12 +DC IN
E1
SecW 4 N.C.
W1
C101
N.C. 11 Vcc
V1
L201
+DC OUT 5
150mm
10 -DC IN
C202
N.C. 6 N.C.
N.C. 9
VccW
N.C. 8
FB
C201
C203
150mm
P1
LM1
RL1
C204
-DC OUT 7
C102
E1 : DC power supply
W1 : Wattmeter WT210 (YOKOGAWA)
RL1: Electronic load
V1 : Voltmeter Class 0.5
P1 : Differential probe DP-100(KG)
LM1: Ripple noize meter RM-103(KG)
C101
C102
C201
C202
C203
C204
L201
:
:
:
:
:
:
:
TAMURA CORPORATION
1/6
450BXC33M (RUBYCON)
CD85-E2GA102M (TDK)
25ZLG330M (RUBYCON)
25ZLG330M (RUBYCON)
25ZLG47M (RUBYCON)
50F2D104K (RUBYCON)
PJ5H-2R2M (KORIN )
Rev.A Dec, 2012
EPM1210SJ
■Protection
Item
Specification
Conditions・Note
Overcurrent protection
More than 1.05A
Auto recovery
Overvoltage protection
13.5~18V
Latch off
Overheat protection
Latch off
■Insulation
Item
Specification
Conditions・Note
Insulation voltage
(Between Pri-Sec)
3.0kV (or 3.6kV)
AC 1min (or AC 2sec)
Cutoff 2mA
Insulation resistance
(Between Pri-Sec)
More than 100MΩ
DC500V
Specification
Conditions・Note
Operation temperature
-20℃~80℃
Stand for ambient temperature derating
Operating humidity
20~95%RH
(No condensation)
-25℃~85℃
■Environmental conditions
Item
Storage temperature
Storage humidit
5~95%RH
(No condensation)
■Ambient temperature derating curve
Reduce the load current according to the following temperature derating table.
100
負荷率 Load
factor (%)
負荷率(%)
80
60
40
20
0
-20
-10
0
10
20
30
40
50
60
70
80
周囲温度(℃)
周囲温度 Ambient temperature (℃)
TAMURA CORPORATION
2/6
Rev.A Dec, 2012
EPM1210SJ
■Typical characteristics Ta=25℃
Input power (at no load)
Efficiency
50
90
45
80
40
Efficiency [%]
70
Input Power [mW]
100
DC140V
60
DC340V
50
40
30
35
30
25
20
15
20
10
10
5
0
0
0
100 200 300 400 500 600 700 800 900 1000
100
150
200
Output Current [mA]
300
350
400
450
Input Voltage VDC [V]
Input power (at light load)
Load regulation
12.6
1.0
12.5
12.4
DC140V
0.9
DC340V
0.8
12.3
Input Power [W]
Output Voltage [V]
250
12.2
12.1
12.0
11.9
11.8
11.7
0.7
0.6
0.5
0.4
DC140V
0.3
DC340V
0.2
11.6
0.1
11.5
0.0
11.4
0
100 200 300 400 500 600 700 800 900 1000
0
5
10
15
20
25
30
35
40
45
50
Output Current [mA]
Output Current [mA]
Output Voltage [V]
Line regulation
12.6
12.5
12.4
12.3
12.2
12.1
12.0
11.9
11.8
11.7
11.6
11.5
11.4
No load (0A)
Rated load (1A)
100
150
200
250
300
350
400
450
Input Voltage VDC [V]
TAMURA CORPORATION
3/6
Rev.A Dec, 2012
EPM1210SJ
■Outline dimensional drawing
Unit:mm
TAMURA CORPORATION
4/6
Rev.A Dec, 2012
EPM1210SJ
■Recommended hole diameter and land size
※ The round pulling out figure is a
pin numbering.
Unit:mm
Component side
■Terminal function and connection
Secondaries
Pin No.
Name
Explanation of terminals
No terminal
1
No terminal
2
No terminal
3
4
SecW
5
+DC OUT
6
N.C.
7
-DC OUT
Non-contact terminal
※Don't connect with other circuits.
Output terminal (+)
Non-contact terminal
※Don't connect with other circuits.
Output terminal (-)
Primaries
Pin No.
Name
8
FB
9
VccW
10
-DC IN
11
Vcc
12
+DC IN
Non-contact terminal
※Don't connect with other circuits.
Non-contact terminal
※Don't connect with other circuits.
DC voltage input terminal (-)
Terminal for start-up time adjustment
DC voltage input terminal (+)
No terminal
13
14
Explanation of terminals
Drain
Terminal for noise adjustment
TAMURA CORPORATION
5/6
Rev.A Dec, 2012
EPM1210SJ
■Application circuit example
EPM module
N.C. 14 Drain
AC85V~AC276V (50/60Hz)
F101
D101
L101
L
12 +DC IN
SecW 4 N.C.
C102
C101
N.C. 11 Vcc
L201
+DC OUT 5
+DC OUT
10 -DC IN
N
N.C.
N.C. 9
6 N.C.
C201
VccW
-DC OUT 7
8
N.C.
C202
-DC OUT
FB
C103
Symbol
Description
Part No.
Manufacturer
D101
Diode
D2SB60
SHINDENGEN
L101
L201
Inductor
Inductor
LF-4Z-E393
PJ5H-2R2M
KORIN
KORIN
C101
C102
C103
C201
C202
Capacitor
Capacitor
Capacitor
Capacitor
Capacitor
LE104-MX
450BXC33M
CD85-E2GA102M
25ZLG330M
25ZLG330M
OKAYA
RUBYCON
TDK
RUBYCON
RUBYCON
F101
Fuse
FCT 250V 1.6A
NIPPON-SEISEN
TAMURA CORPORATION
6/6
Rev.A Dec, 2012
