NJM12901D1

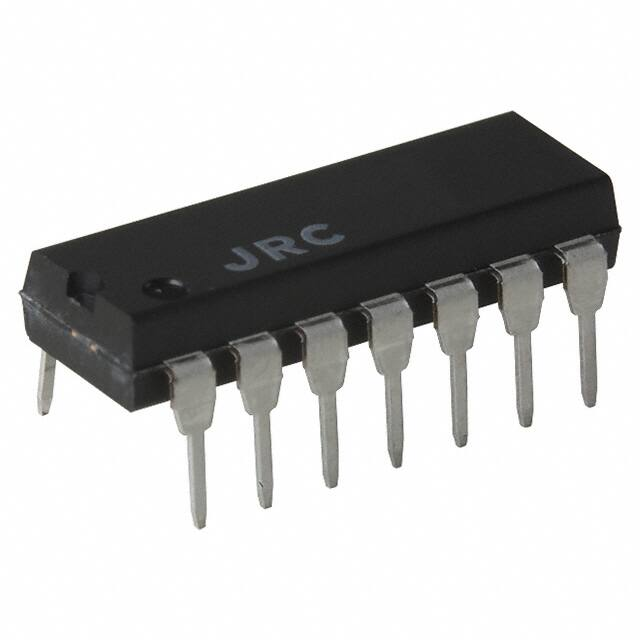

NJM12901 SINGLE SUPPLY QUAD COMPARATOR ■ GENERAL DESCRIPTION The NJM12901 is single-supply quad voltage comparator, which can operate from 2V supply. The features are low input offset voltage, low input bias current and low current consumption. The NJM12901 compare the input signal to 0V ( ground ) due to the Darlington PNP input stage. The package lineup is DIP, DMP and others compact, so that the NJM12901 is suitable for any kind of signal comparator. ■ FEATURES ● Operating Voltage ● Open Collector Output ● Bipolar Technology ● Package Outline ■ PACKAGE OUTLINE ( +2V~+14V ) DIP14,DMP14,EMP14,SSOP14 ■ PIN CONFIGURATION PIN FUNCTION 1.B OUTPUT 2.A OUTPUT + 3.V 4.A –INPUT 5.A +INPUT 6.B –INPUT 7.B +INPUT 8.C -INPUT 9.C +INPUT 10.D -INPUT 11.D +INPUT 12.GND 13.D OUTPUT 14.C OUTPUT ■ EQUIVALENT CIRCUIT ( 1/4 Shown ) Ver.2003-03-19 -1- NJM12901 ■ ABSOLUTE MAXIMUM RATINGS ( Ta=25˚C ) PARAMETER Supply Voltage Differential Input Voltage Input Voltage SYMBOL + V VID VIC Power Dissipation PD Operating Temperature Range Storage Temperature Range Topr Tstg RATINGS 15 14 -0.3~+14 ( DIP14 ) 700 ( DMP14 ) 300 ( EMP14 ) 300 ( SSOP14 ) 300 -40~+85 -50~+125 UNIT V V V mW ˚C ˚C ■ ELECTRICAL CHARACTERISTICS ( V+=5V,Ta=25˚C ) PARAMETER Operating Voltage Input Offset Voltage Input Offset Current Input Bias Current Input Common Mode Voltage Range Large Signal Voltage Gain Response Time Output Sink Current Output Saturation Voltage Leakage Current Operating Current -2- SYMBOL Vopr VIO IIO IB VICM AV tR ISINK VSAT ILEAK ICC TEST CONDITION RS=0Ω,VO=1.4V RL=15kΩ RL=5.1kΩ + VIN =1V,VIN =0V,VO=1.5V + VIN =1V,VIN =0V,ISINK=3mA + VIN =0V,VIN =1V,VO=5V RL=∞ MIN. 2 0~3.5 6 - TYP. 1 5 30 106 0.5 10 80 0.1 0.8 MAX. 14 4 50 200 300 1.0 1.8 UNIT V mV nA nA V dB µs mA mV µA mA Ver.2003-03-19 NJM12901 ■ TYPICAL CHARACTERISTICS Ver.2003-03-19 -3- NJM12901 ■ TYPICAL CHARACTERISTICS [CAUTION] The specifications on this databook are only given for information , without any guarantee as regards either mistakes or omissions. The application circuits in this databook are described only to show representative usages of the product and not intended for the guarantee or permission of any right including the industrial rights. -4- Ver.2003-03-19
