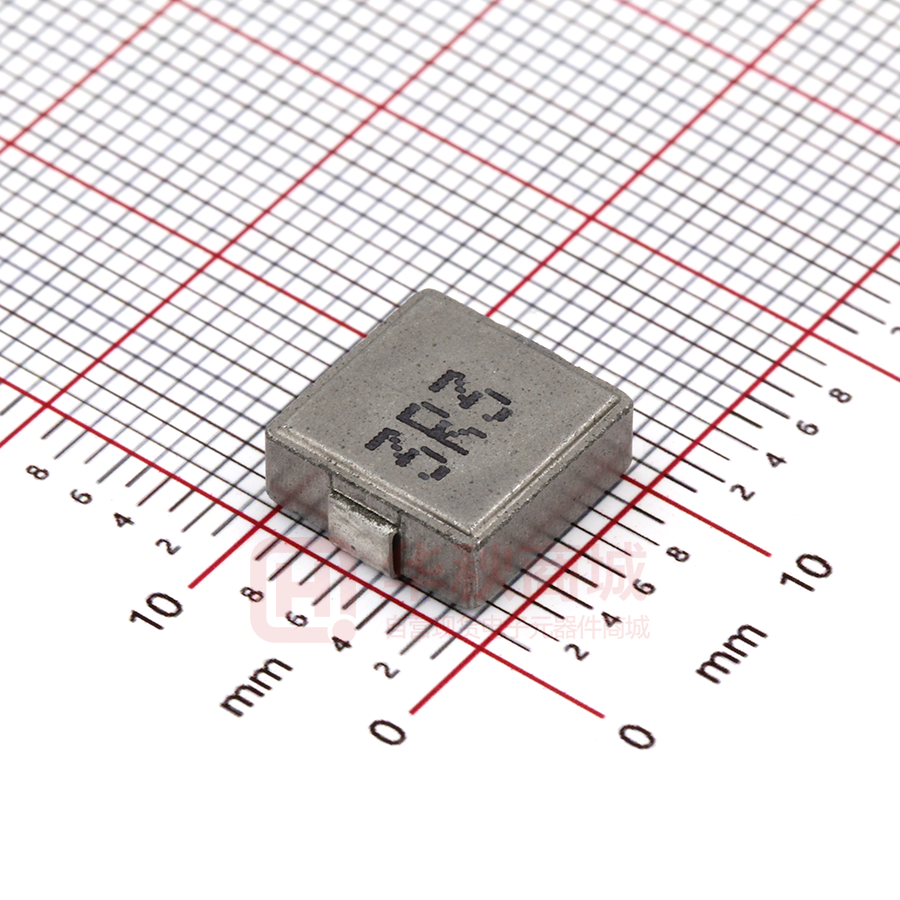

MAPM1040F-3R3M-LF

CUSTOMER: DATE: APPROVAL PRODUCT NAME: 2016-6-21 SPECIFICATION SMD power inductor YOUR PART NO.: OUR PART NO.: MAPM1040F Series VERSION: V1.0 RECEPTION THE SPECIFICATION HAS BEEN ACCEPTED. DATE： COMPANY： CFMD CHKD RCVD MANUFACTURING NAME 深圳市麦捷微电子科技股份有限公司 SHENZHEN MICROGATE TECHNOLOGY CO.，LTD Address: Yuxing road, Golf Street, Guanlan Town Bao’an District Shenzhen P.R.C Postcode :518110 TEL：86-755-28085000 FAX：86-755-28085605 CFMD. CHKD. DSGD. Charles 王玉生 刘维 目录 CATALOG 规格书版本控制 Component SPEC Version Record……………………………….. .. .. 2 1 适用范围 Scope．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 3 2 品名构成 Product Identification．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 4 3 形状、尺寸和材料 Appearance, Dimensions and Material．．．．．．．．．．．．．．．．．．．．．． 4 4 测试条件 Testing Conditions．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 4 5 电气特性 Electrical Characteristics．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ．． 5 6 信赖性试验 Reliable Performance．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 7-7 7 焊接条件 Recommended Soldering Conditions．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 8-9 8 包装 Packaging．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． 9-10 9 存贮条件 Products Storage．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．．． ．．． 11 深圳市麦捷微电子科技股份有限公司 地址：深圳市宝安区观澜镇高尔夫大道裕新路 电话(Tel)：0755-28085000 传真(Fax)：0755-28085605 邮编(Postcode)：518110 2/11 Component SPEC Version Record Rev. Effective Date Changed Contents Change Reasons Approved By V1.0 2014.12.04 New released / Charles 深圳市麦捷微电子科技股份有限公司 地址：深圳市宝安区观澜镇高尔夫大道裕新路 电话(Tel)：0755-28085000 传真(Fax)：0755-28085605 邮编(Postcode)：518110 3/11 1. Scope This specification applies to the MAPM series of SMD Power inductors. 2. Product Identification MAPM 1040F -2R2 ① ② ③ M –LF ④ ⑤ ① Product Symbol ② Dimensions ③ Inductance Value (2R2:2.2uH 220: 22uH; 101:100uH) ④ Inductance Tolerance (K:10% ; M:20% ; N:30%) ⑤ Lead-Free 3. Construction 3.1 Shape and dimensions Recommend Land Patter 2R2 Model MAPM1040F A 11.8max B 11.0max Dimensions in mm C D 4.0 Max. 2.2±0.5. E 3.0±0.5 F 4.0 ref G 13.6 ref H 6.0 ref Material List 1 No. 1 2 3 Item Core Wire Terminal Material Carbonyl Iron Powder Polyester-Imide Tin Covered Copper 2 3 深圳市麦捷微电子科技股份有限公司 地址：深圳市宝安区观澜镇高尔夫大道裕新路 电话(Tel)：0755-28085000 传真(Fax)：0755-28085605 邮编(Postcode)：518110 4/11 4.Testing Conditions Unless otherwise specified Temperature : Ordinary Temperature ( 5 to 35℃) Humidity : Ordinary Humidity (
